Product description

Fountek’s Neo X 1.0 ribbon tweeter features Fountek’s third-generation ribbon tweeter technology, with a new 12 mm wide diaphragm that increases efficiency and extends range.

.

Highlights

3rd gen Fountek design with a black/silver faceplate

12 mm wide reinforced ribbon diaphragm

Extremely fast transient response, wide frequency response, and high sensitivity

High power handling for a true ribbon tweeter

.

Product details

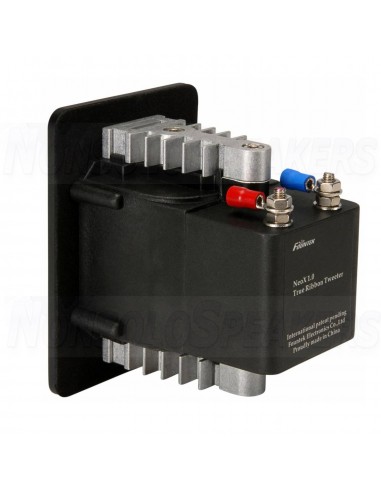

Fountek's reputation as an innovator in ribbon transducer technology continues with the Neo X series of ribbon tweeters. The Neo X 1.0 is built using third-generation Fountek ribbon driver technology, a strong neodymium motor structure, and built-in transformer to contribute to the responsiveness of this tweeter. A 12 mm wide sandwiched aluminum ribbon diaphragm increases sensitivity and power handling.

All of this combines to make the Neo X 1.0 an incredible, true ribbon tweeter with a super-wide (and flat) frequency response that extends from 1,200 Hz out to 40,000 Hz, while the wide horizontal off-axis dispersion makes for a larger listening sweet spot. The benign impedance makes the Neo X 1.0 a safe speaker to use with temperamental tube amplifiers. Recommended minimum crossover frequency: 2,500 Hz @ 18 dB/octave.

.

Specifications

Article numberNeoX1.0 Black
Tweeter TypeRibbon
Tweeter SeriesX Series
Cone / Dome Diameter0.47'' W x 1.77'' H
Power Handling (RMS)20 Watts
Impedance (Z)8 Ω
Sensitivity (SPL at 1m / 2.83V)92 dB
DC Resistance (Re)0.02 ohms
Overall Outside Diameter2.74'' W x 3.86'' H
Cutout Diameter1.97'' W x 3.19'' H
Depth3.06''
Recommended cut frequency2,500Hz with 2nd order
Fountek Neo X 1.0
