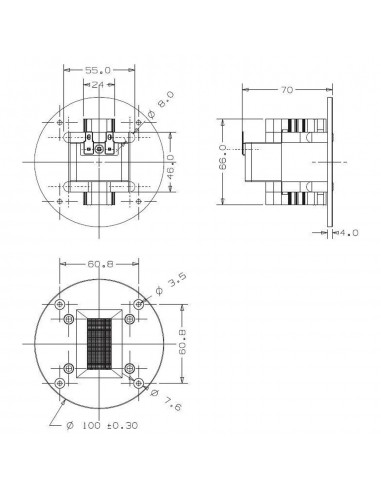

Fountek NeoCD1.0 dimensions
Fountek NeoCD1.0 Ribbon Tweeter
Fountek NeoCD1.0 Ribbon Tweeter
Fountek NeoCD1.0 Ribbon Tweeter
Fountek NeoCD1.0 Ribbon Tweeter
Fountek NeoCD1.0 Ribbon Tweeter
Fountek NeoCD1.0 dimensions

Fountek NeoCD1.0 Ribbon Tweeter

Fountek NeoCD1.0 Ribbon Tweeter

Fountek’s NeoCD1.0 is a value leader in affordable ribbon tweeters, delivering the incredible detail that ribbon tweeters are known for at a price that is easily within reach. Its round faceplate is easily recessed using conventional tools

Out-of-Stock
€142.45 €149.95 -5%
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Fountek NeoCD1.0 Ribbon Tweeter

.

Product description

Fountek’s NeoCD1.0 is a value leader in affordable ribbon tweeters, delivering the incredible detail that ribbon tweeters are known for at a price that is easily within reach. Its round faceplate is easily recessed using conventional tools

.

Highlights

1.5" H x 0.315" W ribbon element

Wide 2,000-40,000 Hz frequency response

Excellent horizontal off-axis dispersion for a wide listening window

Circular faceplate for easy mounting

.

Product details

The NeoCD1.0 ribbon tweeter is Fountek's most accessible ribbon tweeter with an affordable price, and a round faceplate that is easy to recess into loudspeaker baffles using the same tools used for recessing other round drivers.

A reinforced, sandwiched-aluminum ribbon and high-strength neodymium motor structure portray musical detail with incredible accuracy and speed, with an incredible frequency response that extends out to 40,000 Hz, while the wide horizontal off-axis dispersion makes for a larger listening sweet spot. Recommended minimum crossover frequency: 3,500 Hz @ 18 dB/octave

.

Specifications

Article numberNeoCD1.0
Tweeter TypeRibbon
Tweeter SeriesCD series
Cone / Dome Diameter0.31'' W x 1.5'' H
Power Handling (RMS)12 Watts
Impedance (Z)5 Ω
Sensitivity (SPL at 1m / 2.83V)90 dB
Frequency Response2,000 to 40,000 Hz
Overall Outside Diameter3.94''
Cutout Diameter2.17'' W x 2.60'' H
Depth2.60"
Recommended cut frequency3,500Hz with 3rd order
Fountek NeoCD1.0
