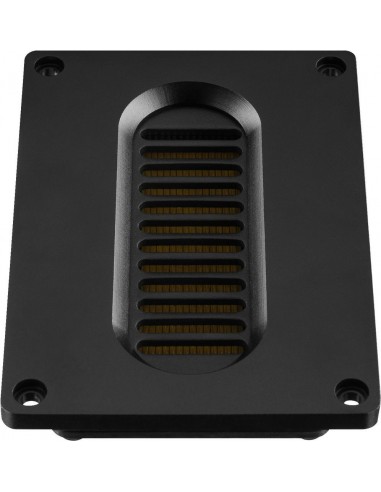

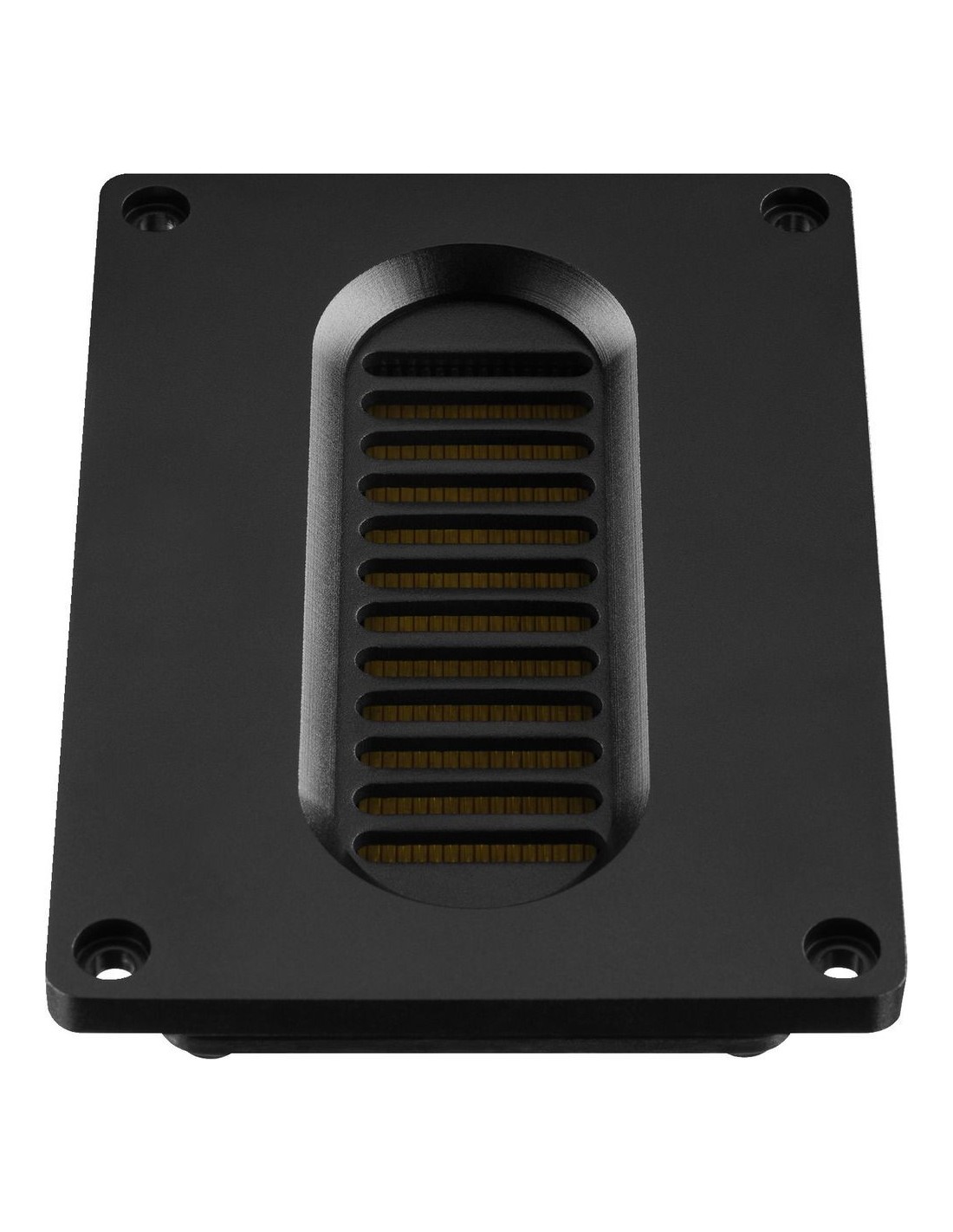

Monacor AIRMT-130 Air Motion Transformers
Air Motion Transformers
are a special type of tweeter systems which have been developed by the German physicist Oskar Heil during his research on the characteristics of the human ear. The main feature is a film-covered cone with a special folding which vibrates like an accordion when an audio signal is applied. This folding allows to accommodate a large cone area at a minimum of space. The AMTs feature a dynamic sound, an excellent transient response, a high efficiency and a low harmonic distortion.
High-end Air Motion Transformer tweeter, 60 W, 8 Ω
- Tweeter based on the principle of Air Motion Transformer
- High-performance neodymium magnet system
- Fine, dynamic and brilliant reproduction of the high frequencies
- Folded cone made of Kapton and aluminium
- High power capability and high efficiency
- For use from 3,000 Hz on
- Robust aluminium front panel
Technical Specifications
AIRMT-130
Impedance (Z) 8 Ω

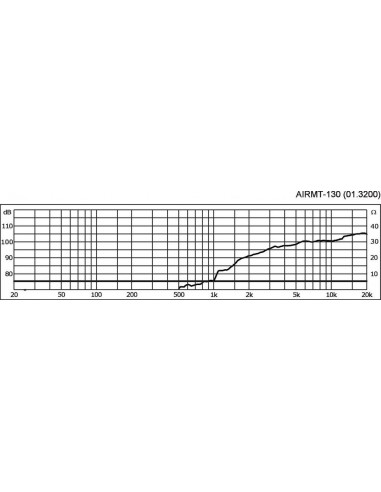

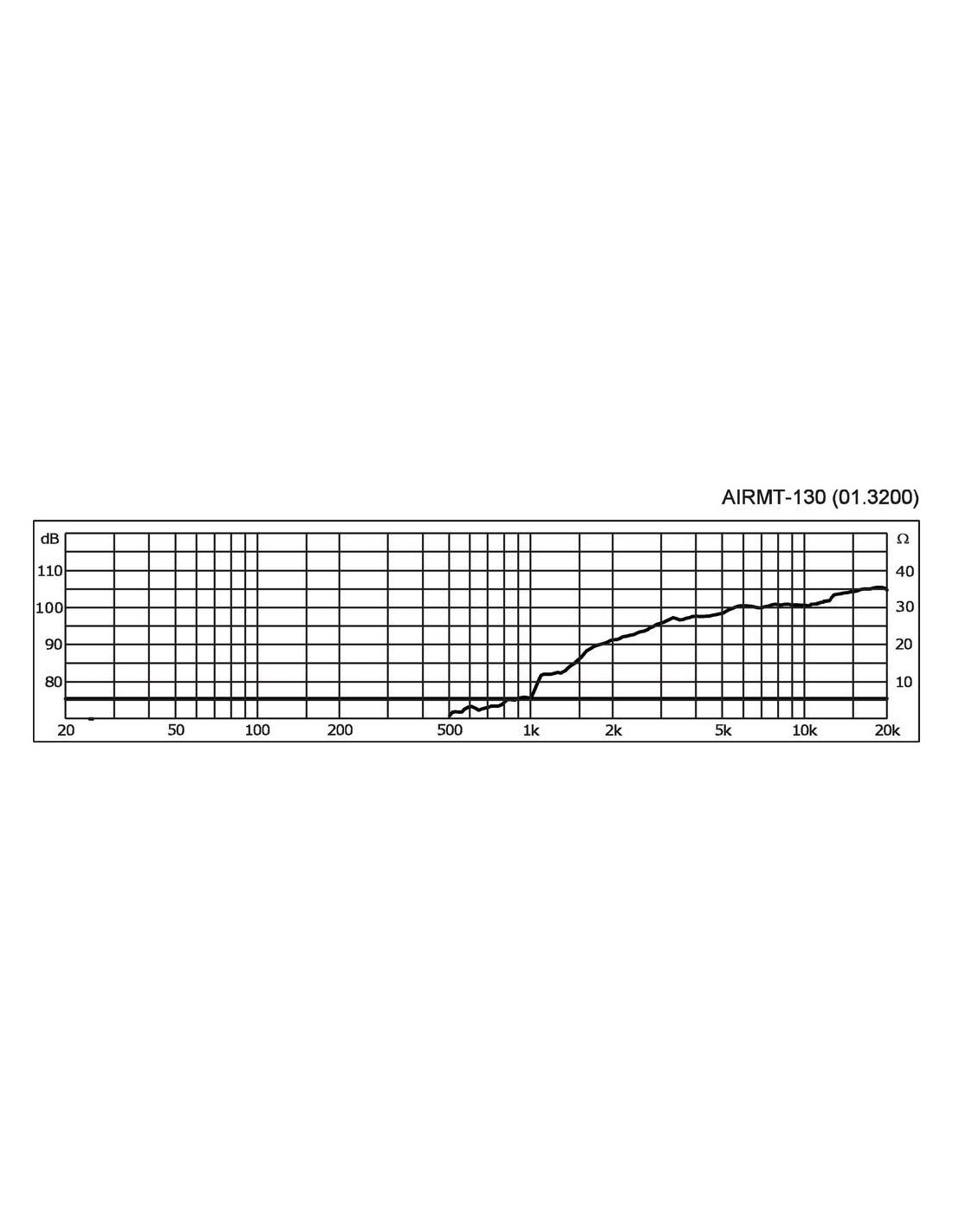

Frequency range 2,500-30,000 Hz
Rec. Crossov. fre. (fmax.) (12 dB / oct.)> 3,000 Hz
Power rating (RMS) 60 W
Peak music power output (MAX) 120 W
Sensitivity 98 dB / W / m
DC resistance (Re) 5.2 Ω
Magnet diameter neodymium rods

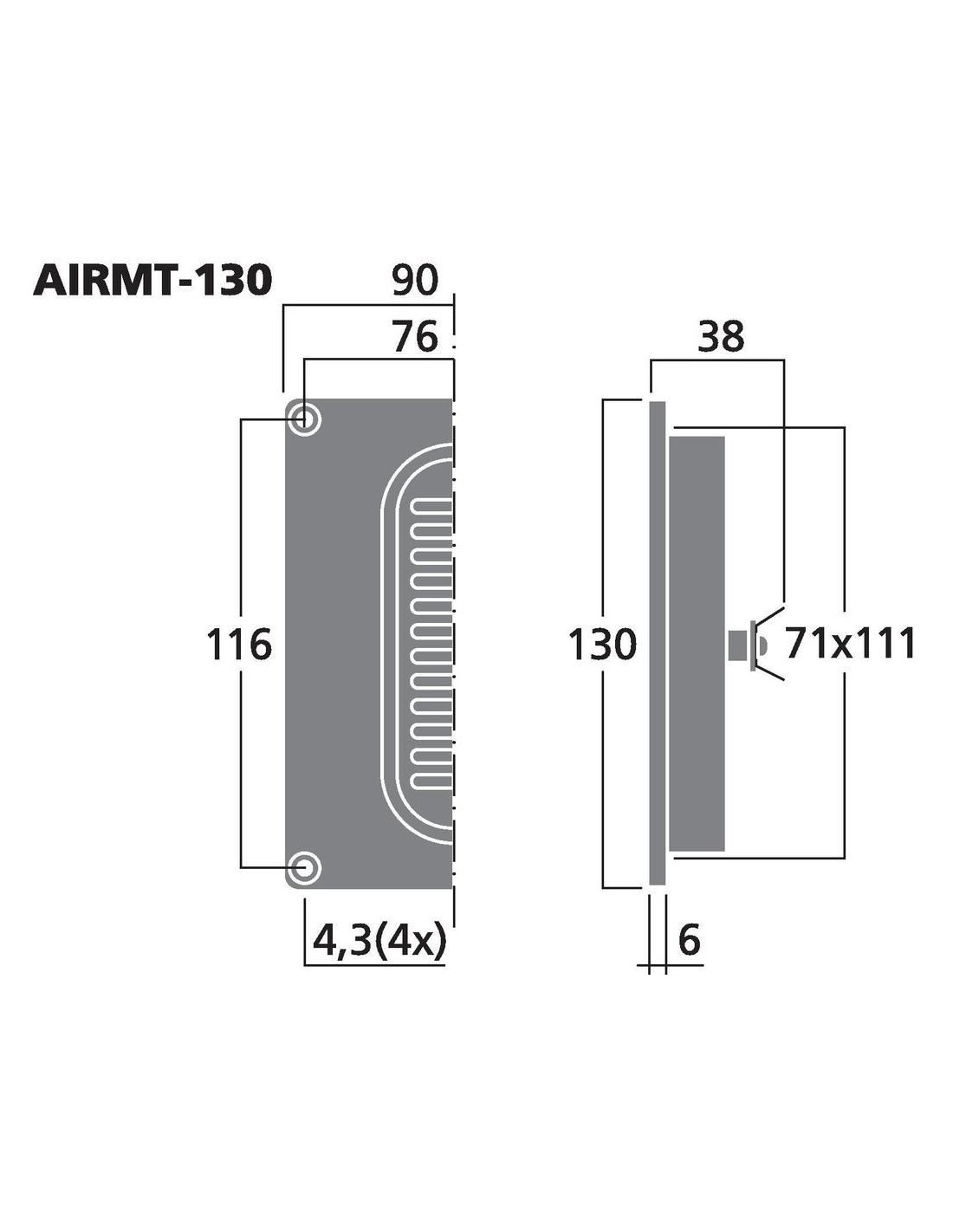

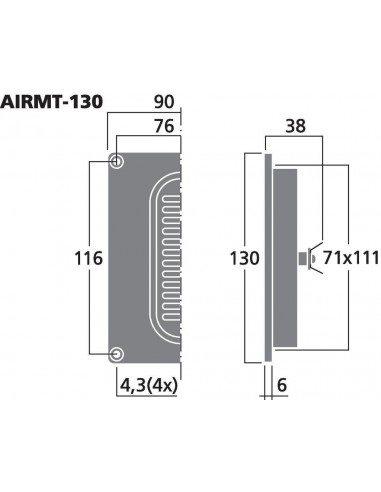

Mounting cutout 71 x 111 mm
Mounting depth 40 mm
X-axis 76 mm hole spacing
Y-axis 116 mm hole spacing
Dimensions 90 x 130 x 38 mm
Outside diameter not applicable
Width 90 mm
Height 130 mm
Depth 38 mm
Admiss. ambient temp. 0-40 ° C
Weight 0.585 kg
Packing unit 1
Type of speaker AMT
Low-impedance 1
Monacor AIRMT-130
