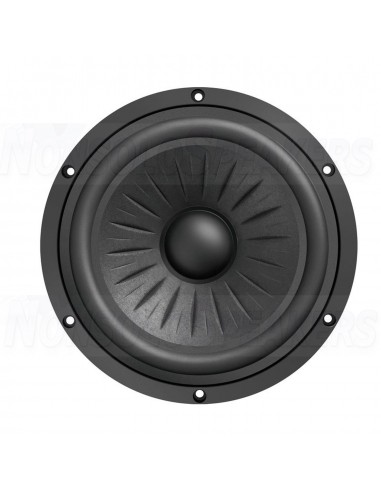

Monacor 7-612/C8/32RP hi-fi bass-midrange 80 W 8 Ω

Monacor 7-612/C8/32RP hi-fi bass-midrange 80 W 8 Ω

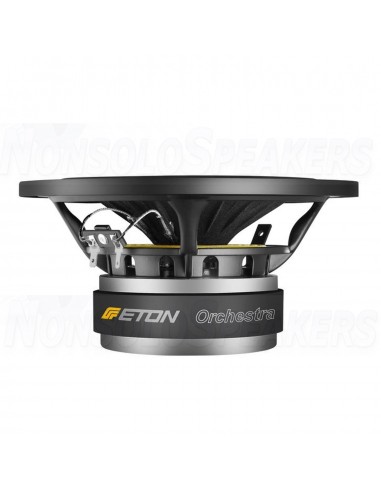

Our orchestra series with standard paper cone has been redeveloped using the know-how by ETON. The special radial reinforcement ribs and long-fibred paper compound with high damping does not only achieve an individual look; it also generates an undistorted and a very high pulse fidelity, even at high volume levels. The special paper compound prevents moding and thus, ensures a homogeneous reproduction of any frequency range possible. The midrange speakers and bass speakers of the Orchestra series feature a warm and natural sound. This results in a well-defined and well-balanced midrange. With a voluminous and vivid bass reproduction, our orchestra series is also very impressive in the low bass frequency range. Multiple ventilation of the ferrite drive and an aerodynamically efficient design of the diecast basket ensure that compression effects are reduced to a minimum. The Orchestra series is a reinterpretation of sound with classic materials - Made in Germany.

High-end hi-fi bass-midrange speaker, 80 W, 8 Ω

18 cm (7") bass-midrange speaker for versatile applications

Ribbed cone geometry, paper version

Warm sound with a soft, well-defined midrange and a fast, crisp bass reproduction

For versatile applications in 2-way systems and multi-way systems

Equipped with dust cap

Technical Specifications

7-612/C8/32RP

Impedance (Z)  8 Ω

Frequency range f3-3,000 Hz

Resonant frequency (fs) 34 Hz

Power rating (RMS) 80 W

Peak music power output (MAX) 160 W

Sensitivity 89 dB/W/m

Suspension compl. (Cms) 1.07 mm/N

Moving mass (Mms) 17.3 g

Mech. Q factor (Qms) 5.95

Electr. Q factor (Qes) 0.32

Total Q factor (Qts) 0.30

Equivalent volume (Vas) 28 l

DC resistance (Re) 6.5 Ω

Force factor (BxL) 8.60 Tm

Voice coil induct. (Le) 0.81 mH

Voice coil diameter Ø 32 mm

Voice coil former Kapton

Linear excursion (XMAX) ± 4.5 mm

Eff. cone area (Sd) 137 cm2

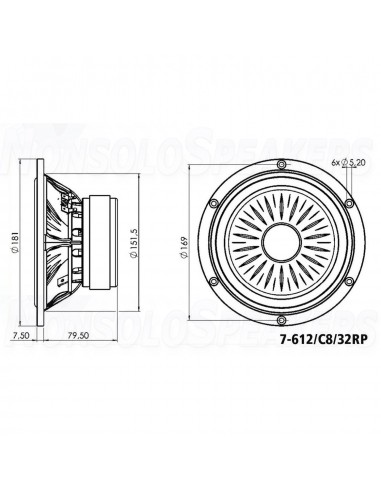

Magnet diameter Ø 102 mm

Mounting cutout Ø 152 mm

Mounting depth 79.5 mm

Mounting hole diameter Ø 169 mm

Dimensions Ø 181 mm x 87 mm

Outside diameter Ø 181 mm

Width Ø 181 mm

Depth 87 mm

Colour black

Admiss. ambient temp. 0-40 °C

Weight 1.96 kg

Packing unit 1

Type of speaker 7"

Packing dimensions (W x H x L) 0.205 x 0.15 x 0.205 m

Gross weight 2.26 kg

Net weight 1.96 kg
