Celestion TF-0615 PA bass-midrange 100 W 8 Ω

CELESTION

One of the most "sounding" names in the speaker world. The chassis of the TF series are characterized by an excellent price-performance ratio with very good sound properties and are therefore predestined for use in powerful and powerful PA speaker systems.

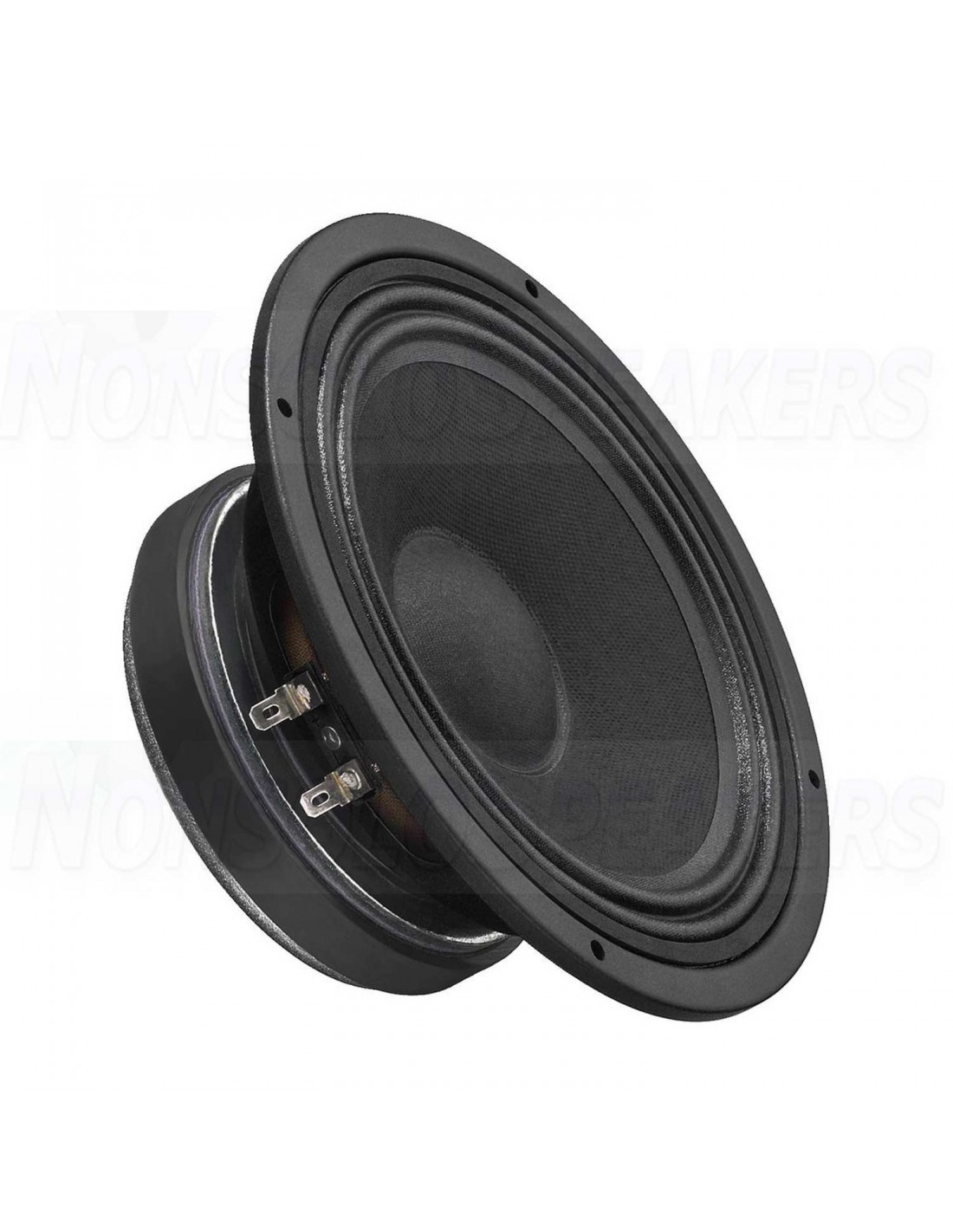

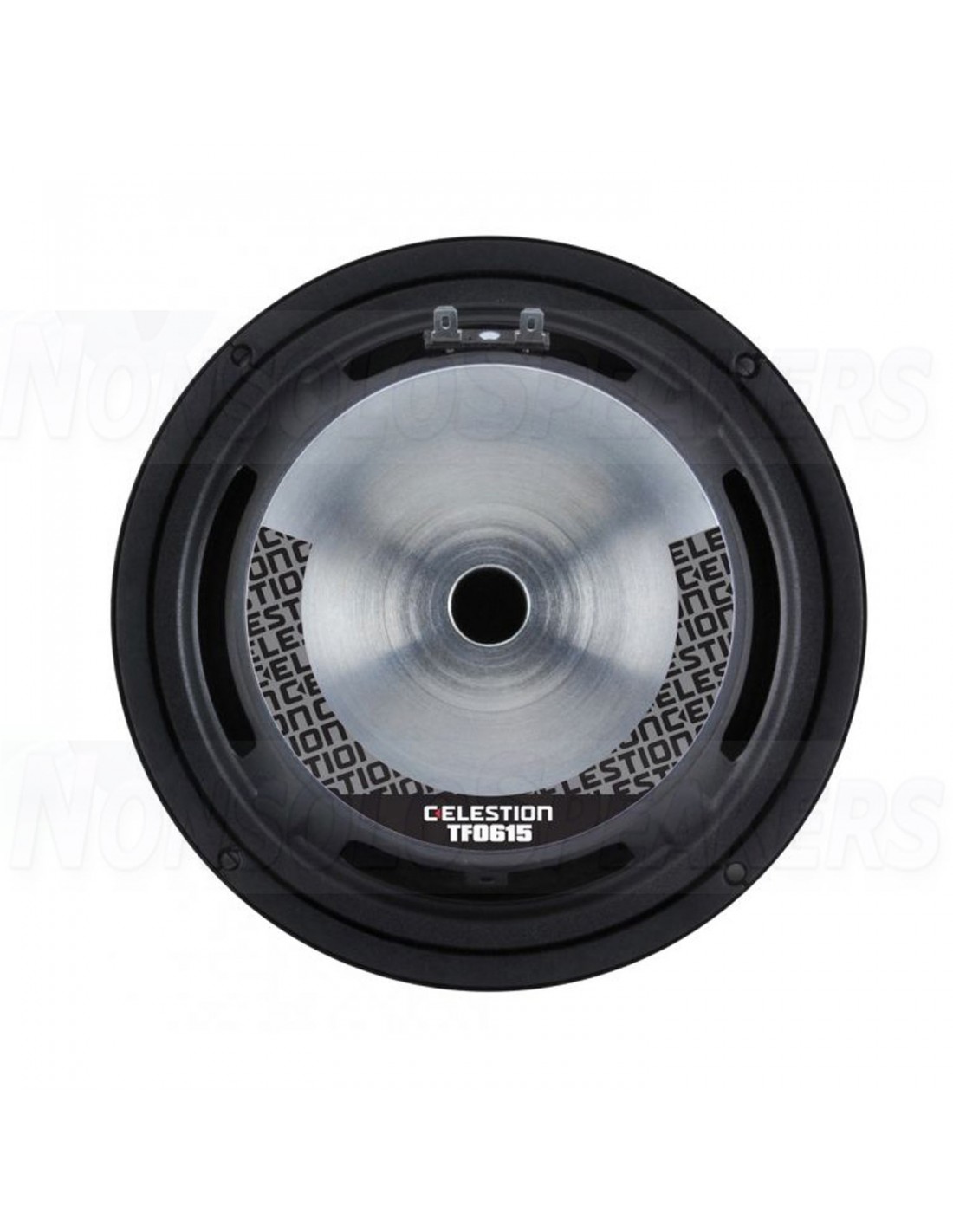

PA bass-midrange speaker, 100 W, 8 Ω

Excellent sounding 16 cm PA bass-midrange driver (6 ") with reserves in the bass range up to approx. 100 Hz

High quality cellulose membrane reinforced with Kevlar fibers

Heat-resistant 38 mm voice coil on a Kapton voice coil former

Excellent frequency response linearity and broadband

Linear stroke XMAX with +/- 2.5 mm

"Double Roll" surround for excellent linearity

Stable sheet steel basket

Ideal for compact PA tops with subwoofer support

Technical specifications

TF-0615

Low resistance 1

Impedance (Z) 8 Ω

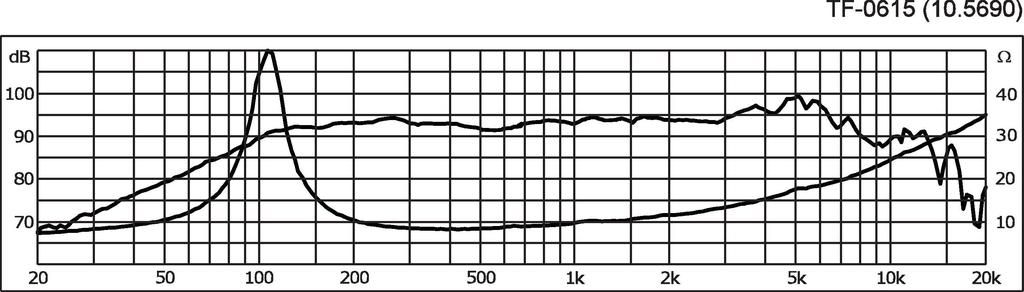

Frequency range f3-6000 Hz

Resonance frequency (fs) 107 Hz

Nominal load capacity (RMS) 100 W

Music load capacity (MAX) 200 W

Sound pressure level 95 dB / W / m

Compliance (Cms) 0.193 mm / N

Moving mass (Mms) 11.3 g

Mechanical quality (Qms) 5.83

Electrical Q factor (Qes) 0.68

Total Q factor (Qts) 0.61

Equivalent volume (Vas) 6.5 l

DC resistance (Re) 7.2 Ω

Power factor (WxL) 9.03 Tm

Voice coil ind. (Le) 0.5 mH

Voice coil diameter Ø 38 mm

Voice coil former KAPTON

Linear excursion (XMAX) ± 2.5 mm

Eff. Membrane area (Sd) 145 cm2

Magnet weight 0.8 kg

Magnet diameter Ø 115 mm

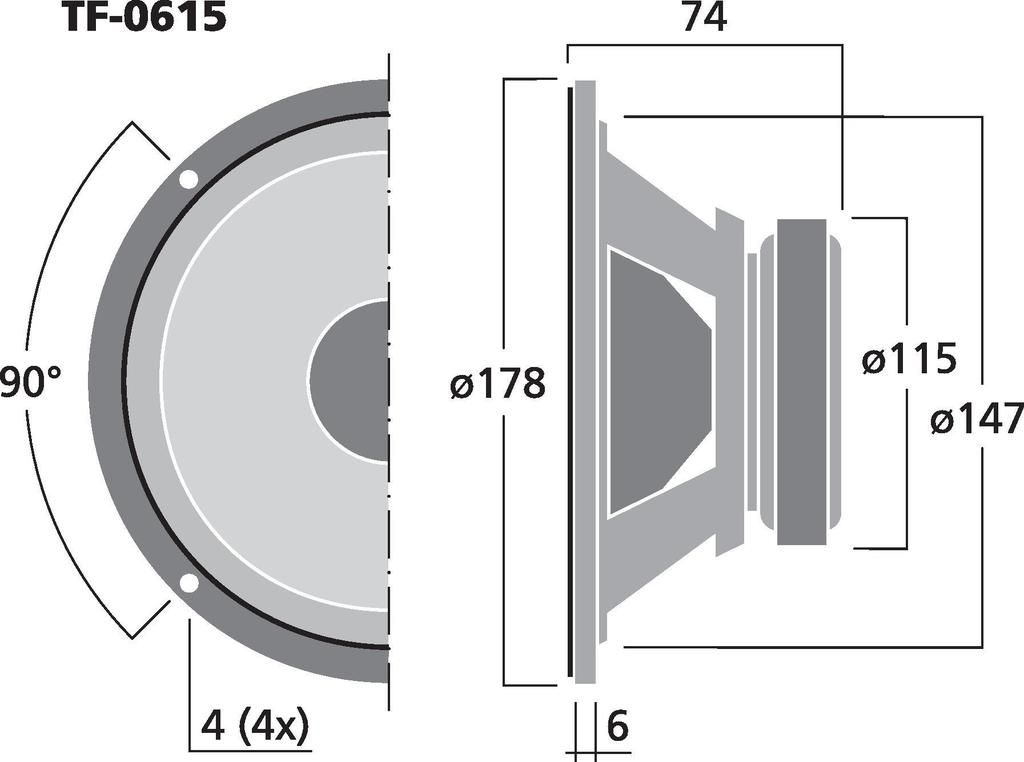

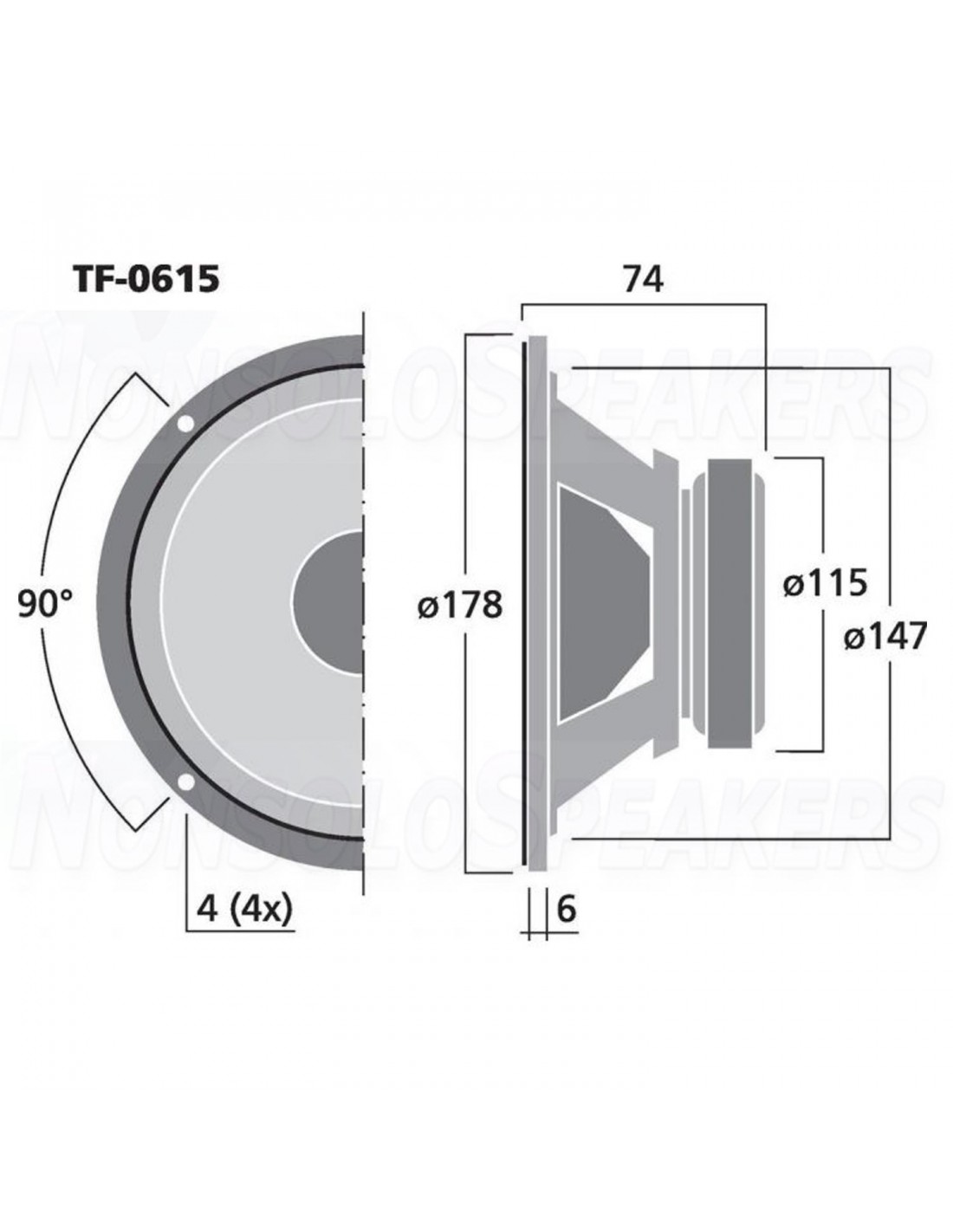

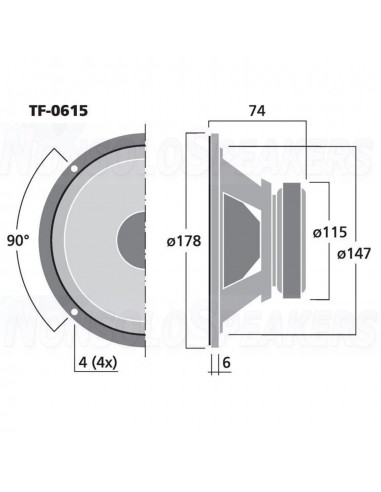

Installation opening Ø 147 mm

Installation depth 65.5 mm

Hole circle diameter Ø 168.5 mm

Hole spacing X 119 mm

Hole spacing Y 119 mm

Dimensions Ø 178 mm x 74 mm

Outside diameter Ø 178 mm

Width Ø 178 mm

Depth 74 mm

Color: Black

Perm. Operating temperature 0-40 ° C

Weight 1.71 kg

Packing unit 1

Speaker type 6 "

Packaging dimensions (W x H x L) 0.205 x 0.105 x 0.205 m

Gross weight 1.88 kg

Net weight 1.71 kg

-

TF-0615
