Monacor 11-612C8 / 50RP High-end hi-fi woofer 120 W 8 Ω

Monacor 11-612C8 / 50RP High-end hi-fi woofer 120 W 8 Ω

.

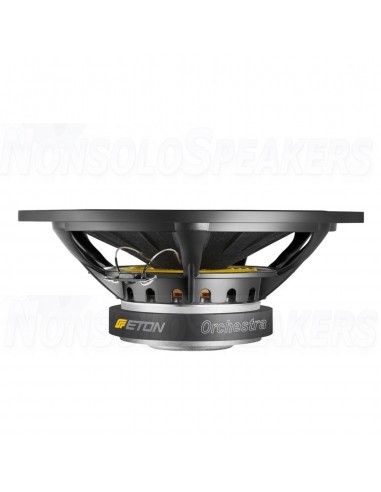

Our Orchestra series with a classic paper membrane, reinterpreted through ETON know-how. The special radial rib stiffening and the long-fiber, highly damping paper mix produce a very high level of impulse fidelity and precision, even at high levels - not to mention the resulting individual look. The special paper mixture guarantees homogeneity in all representable frequency ranges by avoiding the formation of modes. The orchestra mid and woofer are characterized by their natural, warm sound. The result is a balanced, well-contoured and smooth midrange. In the bass range, our Orchestra series is more than convincing with its voluminous and impulsive bass reproduction. The ferrite drive ensures through multiple ventilation and a streamlined cast basket that any compression effects that may occur are reduced to a minimum. Orchestra - a tonal reinterpretation with classic materials - Made in Germany.

.

High-end hi-fi woofer, 120 W, 8 Ω

Classic 28 cm (11 ") woofer for 3-way systems

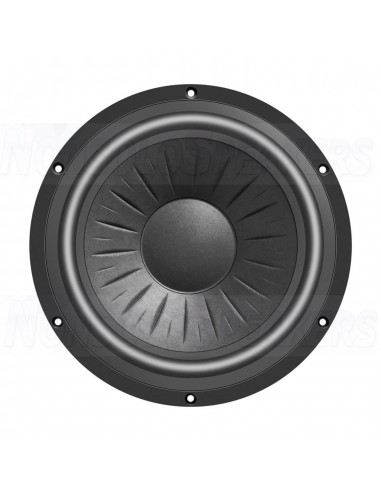

Ribbed membrane geometry in paper design

Very precise bass reproduction

Reaches far into the lowest frequencies

Agile sound character

.

Technical specifications

11-612C8 / 50RP

Impedance (Z) 8 Ω

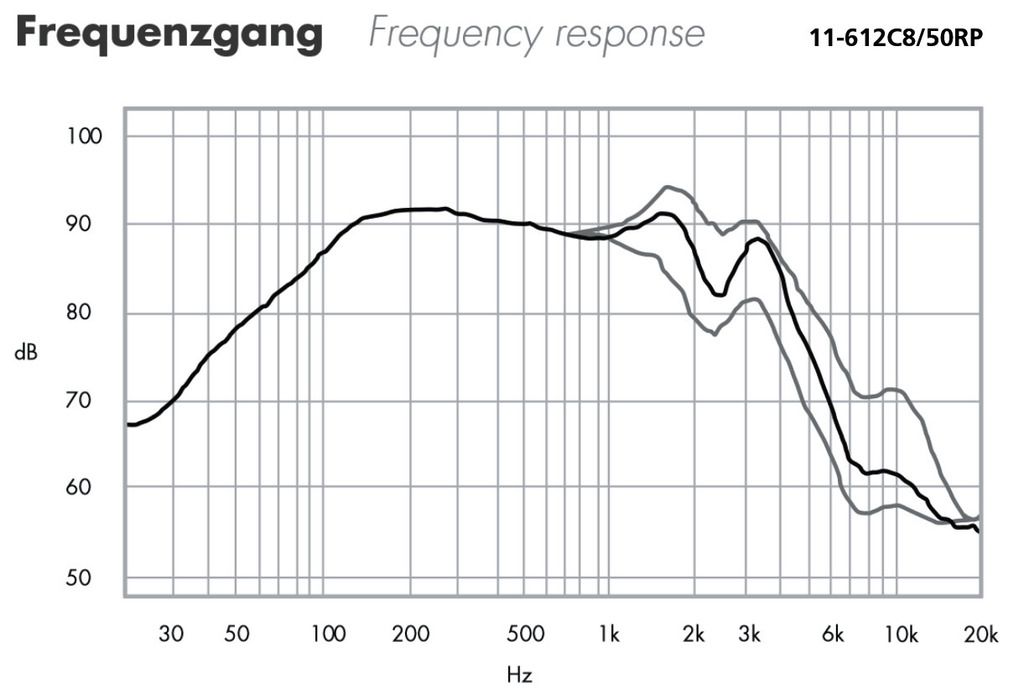

Frequency range f3-1000 Hz

Resonance frequency (fs) 23 Hz

Nominal load capacity (RMS) 120 W

Music power handling (MAX) 240 W

Sound pressure level 91 dB / W / m

Compliance (Cms) 0.81 mm / N

Moving mass (Mms) 54 g

Mechanical quality (Qms) 7.87

Electrical Q factor (Qes) 0.30

Overall Q factor (Qts) 0.29

Equivalent volume (Vas) 152 l

DC resistance (Re) 5.3 Ω

Power factor (WxL) 11.40 Tm

Voice coil ind. (Le) 1.03 mH

Voice coil diameter Ø 50 mm

Voice coil former Kapton

Linear excursion (XMAX) ± 5.0 mm

Eff. Membrane area (Sd) 366 cm2

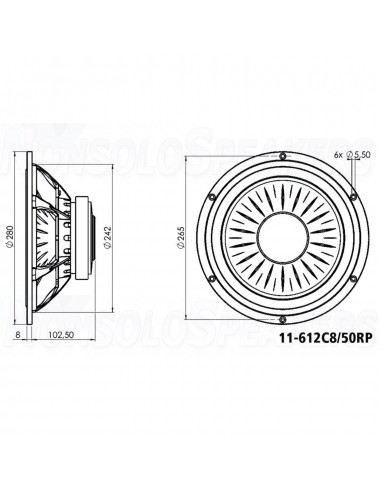

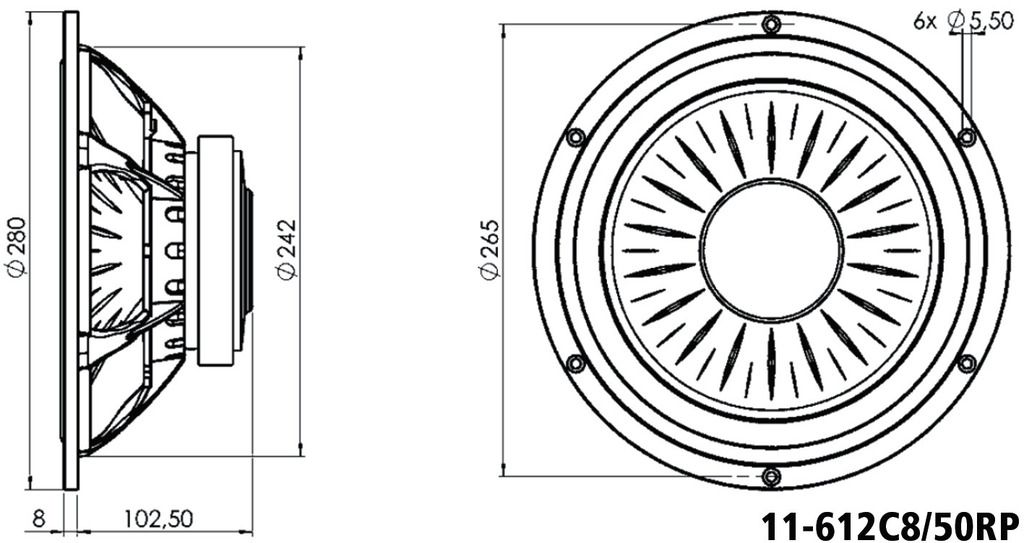

Magnet diameter Ø 134 mm

Installation opening Ø 242 mm

Installation depth 102.5 mm

Hole circle diameter Ø 265 mm

Dimensions Ø 280 mm x 110.5 mm

Outside diameter Ø 280 mm

Width Ø 280 mm

Depth 110.5 mm

Color: Black

Perm. Operating temperature 0-40 ° C

Weight 3.25 kg

Packing unit 1

Speaker type 11 "

Packaging dimensions (W x H x L) 0.305 x 0.18 x 0.305 m

Gross weight 3.82 kg

Net weight 3.25 kg

-
