Wavecor PR312WA02 PASSIVE MEMBRANE

Wavecor PR312WA02  PASSIVE MEMBRANE

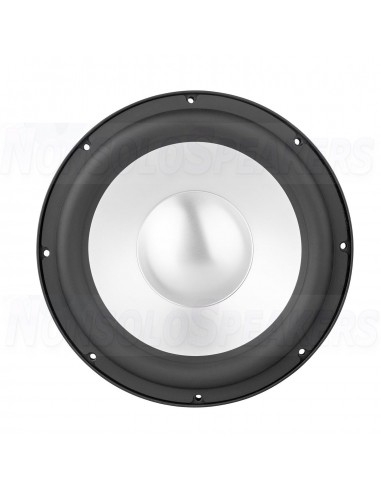

The two models PR312WA02 and PR312WA03 are identical except for cone colour. PR312WA02: Natural coloured alu cone, PR312WA03: Black alu cone.
PR312WA02/03 are passive units designed for dedicated subwoofer applications - as partners for our active subwoofer units.
Due to low mechanical losses they master equally well low level details and extreme dynamic requirements.
For demanding sub bass applications using a passive unit is usually the only real alternative to sealed enclosures with active bass boost.
To make experimenting and individual tuning convenient and easy, PR312WA02/03 are delivered with three separate extra loads that are easily applied onto a threaded rod on the rear side of the cone.

• Extremely rigid alu cone for precise transient response
• Rigid die cast chassis with extensive venting for lower air flow speed reducing audible distortion
• Low-loss suspension (high Qm) for better reproduction of details and dynamics
• Conex spider for better durability under extreme conditions
• Custom tunable by adding one or more of the three extra weights (included)

30 cm passive radiator (passive membrane).

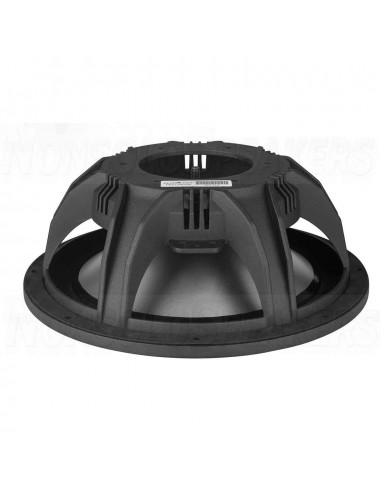

The loudspeaker basket is made by die-casting.

Resonance frequency fs = 12.2-18.4 Hz

Effective piston radiating area Sd = 488 cm2

Moving mass including air load mms = 278 g

Equivalent volume of compliance Vas = 91 l Total Q factor Qts = (Qms = 27, Qes =)

Installation diameter d = 276 mm

Overall diameter d = 312 mm

Installation depth (not countersunk) t = 104 mm

Weight m = 1.8 kg
