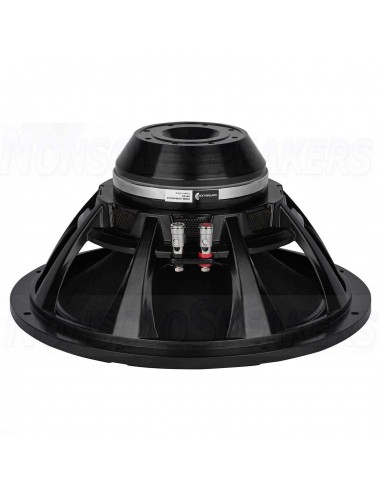

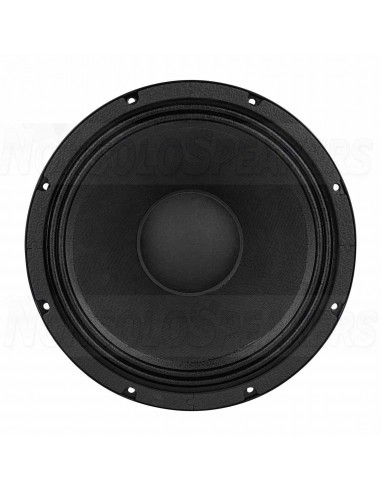

Dayton Audio Odeum Apollo 12MB400N-8 Bass-midwoofer

Live sound is back in business! Dayton Audio wants you to hit the road with confidence and maximize your profitability at your next gig. Dayton Audio is a worldwide leader in raw frame drivers. We are passionate audio enthusiasts with a vision to offer the best performance to price value in the industry. After extensive market research, vendor evaluation, and sample driver testing, we are proud to introduce to you the Dayton Audio ODEUM Series.

.

Highlights

    Powerful neodymium motor for superior output.

    Copper inductance cap for low distortion

    Paper cone and cloth m-roll surround for high clarity, smooth response, and linear excursion for pounds of punch

    2” Inside/outside wound copper voice coil leads on fiberglass former lends solid power handling capability

    Under spider and rear periphery venting allow for a cooler running voice coil

    Low Qts means high damping and smaller boxes

.

Product details

Dayton Audio Odeum Apollo 12N 12MB400N-8 12" Professional Neodymium Bass-midwoofer 8 Ohm

Using the knowledge from decades of driver design and engineering, Dayton Audio is placing an emphasis on technical excellence, product reliability, and innovation with the Odeum Series of speaker components! The Odeum Series takes the stage with a new line of professional drivers made for any venue.

The Dayton Audio Apollo 12 has a response that matches a large number of horn drivers due to its high efficiency in the frequency range of human voices and midrange detail of stringed instruments. The impedance curve of the Apollo 6 makes it easy to pair up with your favorite tweeters without taxing your power amplifiers!

The Apollo 12 is a 12" mid-bass woofer that is guaranteed to outperform the stock woofers in your PA system. A 200W power limit is achieved through the combination of a neodymium motor, a 3" voice coil with a fiberglass former, and a copper inductance cap to lower distortion. A paper cone with cloth M-roll surrounds provides a neutral tone that is easy to tune, and peripheral venting helps keep the whole system cool when playing!

We feel we have hit the sweet spot in price and specs in the pro audio market with this workhorse line of subwoofers, midrange, and high-frequency drivers. The ODEUM series consist of two 1200W 18” subwoofers (one neodymium, one ceramic), 5 sizes and various power ratings of neodymium mid-bass, and two 1” exit compression drivers (one bolt-on, one screw-on). Upgrade, replace, or create a new pro sound system with the ODEUM series.

.

Specifications

Article number 12MB400N-8

Woofer Series Odeum

Woofer Type Bass-midwoofer

Nominal Diameter  12"

Power Handling (RMS) 400 Watts

Power Handling (max)  800 Watts

Impedance (Z) 8Ω

Sensitivity  96.6dB 2.83V/1m

Frequency Response  40 to 5,600Hz

Voice Coil Diameter  3"

DC Resistance (Re) 7.5Ω

Voice Coil Inductance (Le) 1.21mH

Resonant Frequency (Fs)  38Hz

Mechanical Q (Qms)7.75

Electromagnetic Q (Qes)  0.27

Total Q (Qts) 0.26

Diaphragm Mass Inc. Airload (Mms) 54.46g

Mechanical Compliance of Suspension (Cms) 0.323mm/N

Surface Area of Cone (Sd)  494.56cm²

BL Product (BL) 19.19T·m

Compliance Equivalent Volume (Vas) 4.52ft³

Maximum Linear Excursion (Xmax) 6.75mm

Cone / Diaphragm Material Coated Paper

Surround Material Paper

Voice Coil Wire Material Copper

Voice Coil Former Fiberglass

Magnet Material  Neodymium

Overall Outside Diameter 12.59"

Overall Depth 5.66"

Baffle Cutout Diameter  11.49"

# Mounting Holes  8

Sealed Volume    0.8ft³

Sealed F3    128Hz

Vented Volume 0.9ft³

Vented F3 77Hz
