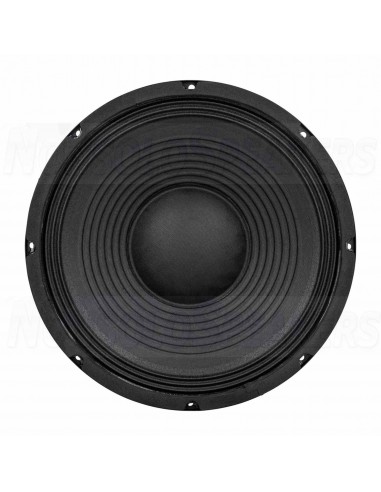

GRS 12PT-8 12" Paper Cone Professional Woofer with 3" Voice Coil 8 Ohm

The GRS 12PT-8 12” professional paper cone woofer will deliver high output low frequency response without breaking the bank. Packed with features like a 3” voice coil, inductance reducing copper cap, under spider venting, and gap vents; this driver is built for high performance, low distortion, and incredible reliability. Whether you need a drop-in replacement for a damaged DJ speaker or you are designing a high output 2 or 3-way system, the 12PT-8 is the perfect driver for budget builds.

.

Product highlights:

• Lightweight ribbed paper cone allows high efficiency with minimal resonance
• Smooth on and off axis response up to 2,000 Hz for use in high output 2 or 3-way designs
• 3” diameter voice coil on heat resistant Kapton former easily handles up to 350 watts RMS
• Extensive venting keeps cool air flowing across the voice coil to minimize power compression

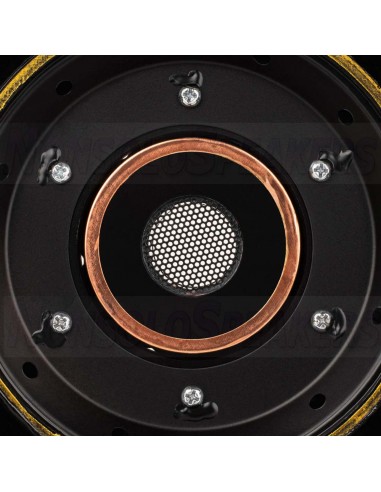

• Inductance lowering copper cap reduces distortion and extends high frequency response
• Spring-loaded push-button terminals makes wire connections quick and easy
• Foam front gasket ensures an airtight seal for rear mount installations

.

Product details

GRS 12PT-8 12" Paper Cone Professional Woofer with 3" Voice Coil 8 Ohm

Engineered for high output with smooth frequency response, the 12PT-8 12” professional woofer is ideal for use in large low-cost sound systems. Packed with features you would expect from much more expensive drivers, the 12PT-8 is built for low distortion and reliability even when pushed to its limit. The lightweight reinforced paper cone has excellent damping properties, minimizing unwanted resonances, and the ribbed surface controls cone breakup to ensure smooth response all the way up to 2,000 Hz. Driving the cone is a 3” diameter dual-layer voice coil that is wound on a heat resistant polyimide former to handle up to 350 watt RMS. Extensive venting through frame, pole piece, and magnetic gap cools the voice coil to prevent thermal runaway and lower power compression during long sessions at high power. With a copper cap on the pole piece keeping inductance under control, you can ensure that the 12PT-8 will provide low distortion throughout its useable bandwidth. Whether you need a drop-in replacement for a worn out DJ speaker, or are designing high output 2 or 3-way system, the 12PT-8 is the ideal choice if you want high output and natural response without spending a fortune.

Technical Specifications:

• Article number 12PT-8
• Nominal Diameter 12"
• Power Handling (RMS) 350 Watts
• Power Handling (max) 700 Watts
• Impedance (Z) 8Ω
• Sensitivity (SPL at 1m / 2.83V) 93 dB
• Frequency Response 35 to 7,000Hz
• DC Resistance (Re) 7.6Ω
• Voice Coil Inductance (Le) 1.9mH
• Resonant Frequency (Fs) 35 Hz
• Mechanical Q (Qms) 12.1
• Electromagnetic Q (Qes) 0.4
• Total Q (Qts) 0.39
• Diaphragm Mass Inc. Airload (Mms) 73g
• Mechanical Compliance of Suspension (Cms) 0.28mm/N
• Surface Area of Cone (Sd) 530.9cm²
• BL Product (BL) 17.4T·m
• Compliance Equivalent Volume (Vas) 3.96ft³
• Maximum Linear Excursion (Xmax) 7.8 mm
• Cone / Diaphragm Material Paper / Glass Fiber
• Voice Coil Wire Material Copper
• Voice Coil Former Kapton® / Polyimide
• Basket / Frame Material Steel
• Magnet Material Ferrite
• Overall Outside Diameter 12.2"
• Overall Depth 5.11"
• Baffle Cutout Diameter 10.9"
• Bolt Circle Diameter 11.61
• # Mounting Holes 8
• Sealed Volume 1.2ft³
• Sealed F3 71Hz Vented
• Volume 2.8ft³ Vented F3 41Hz
