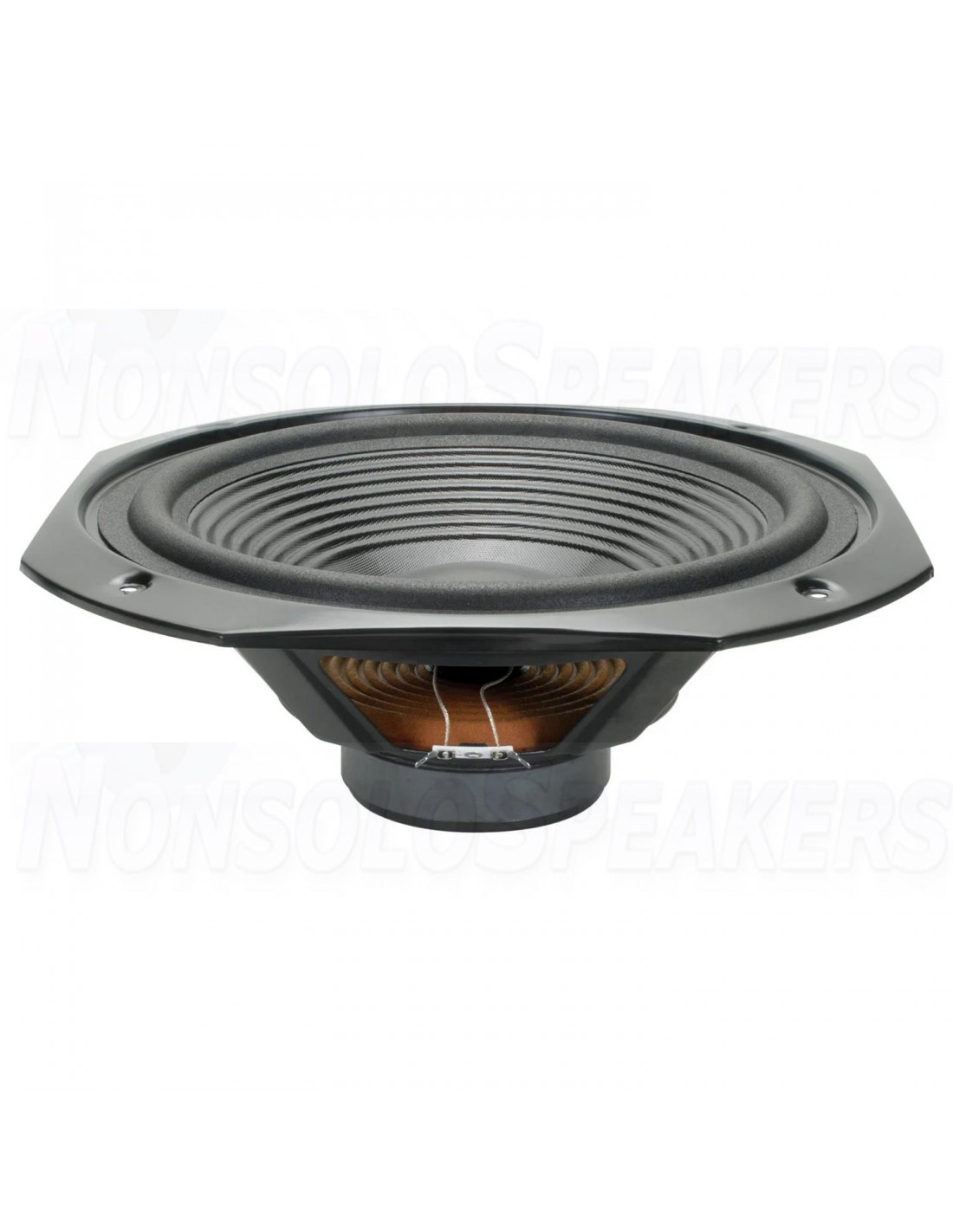

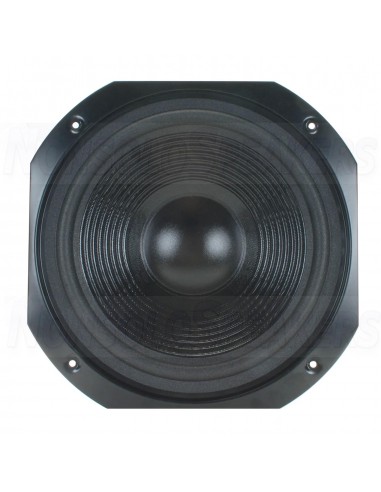

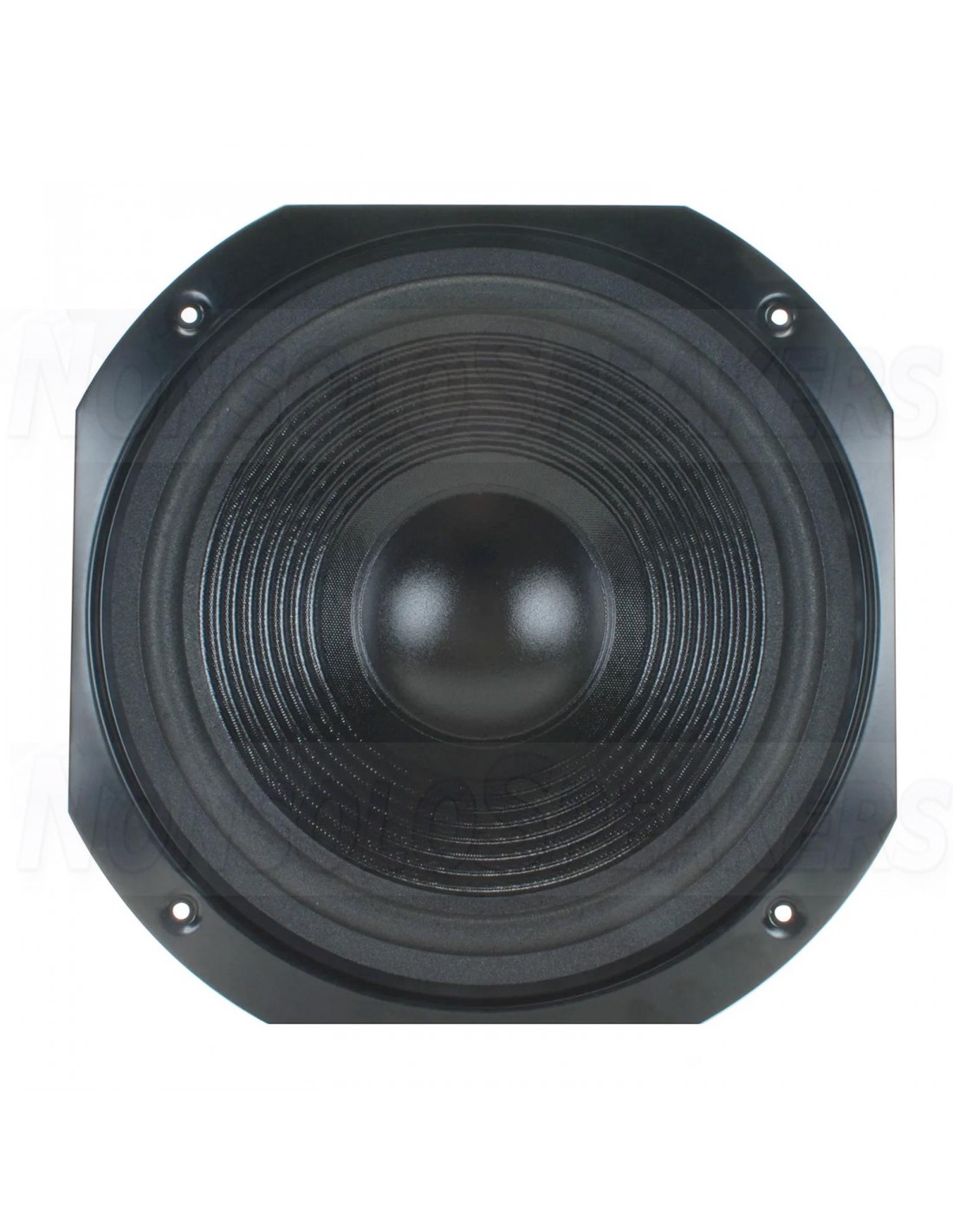

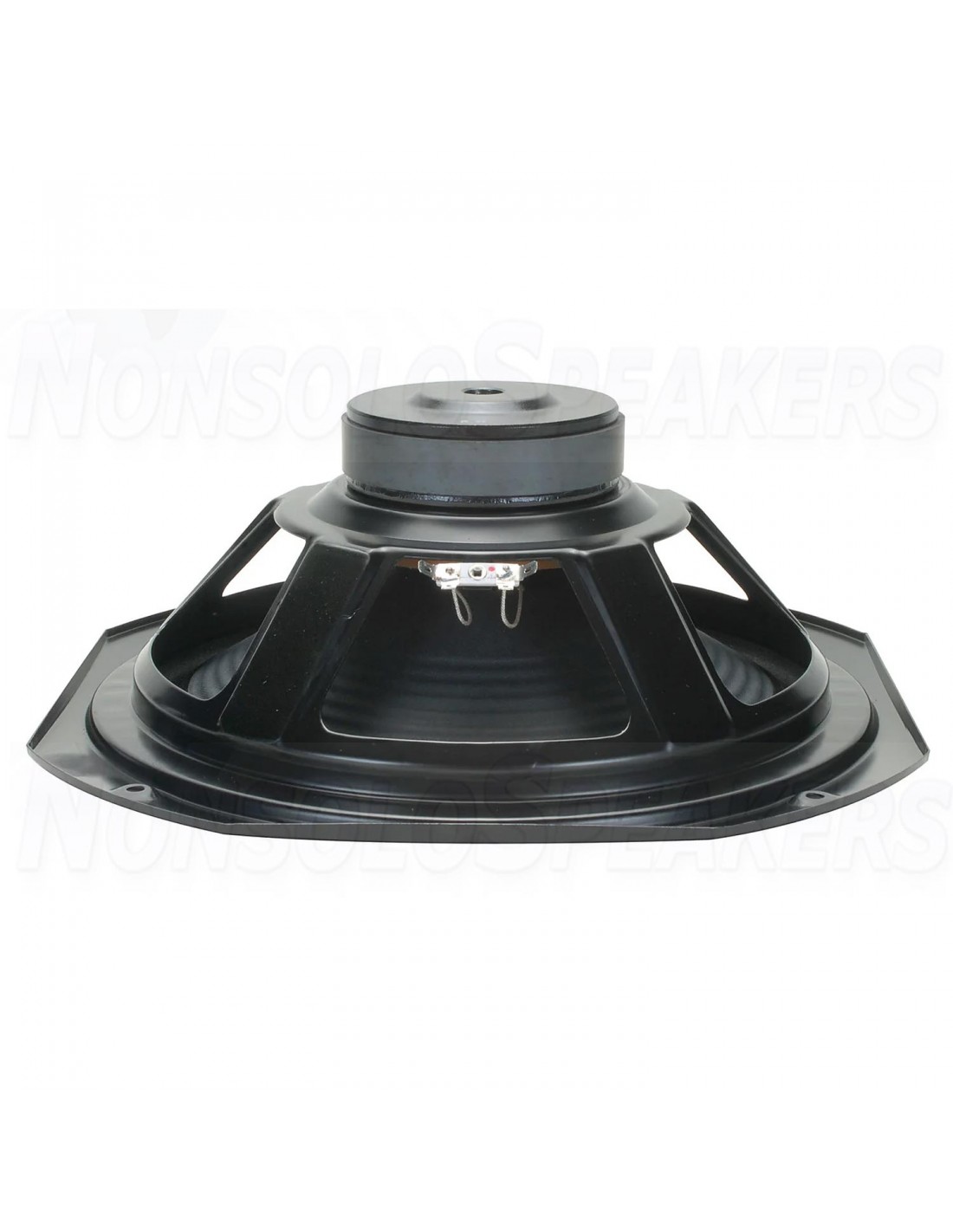

GRS 12SFPC-B 12" Square Frame Paper Cone Woofer Black 8 ohm
GRS 12SFPC-B 12" Square Frame Paper Cone Woofer Black 8 ohm
GRS 12SFPC-B 12" Square Frame Paper Cone Woofer Black 8 ohm
GRS 12SFPC-B 12" Square Frame Paper Cone Woofer Black 8 ohm
GRS 12SFPC-B 12" Square Frame Paper Cone Woofer Black 8 ohm
GRS 12SFPC-B 12" Square Frame Paper Cone Woofer Black 8 ohm

GRS 12SFPC-B 12" Square Frame Paper Cone Woofer Black 8 ohm

SHIPMENT IN 7/10 WORKING DAYS
€90.00 €100.00 -10%

Tax included
rating No review at the moment

GRS 12SFPC-B 12" Square Frame Paper Cone Woofer Black 8 ohm

A perfect replacement woofer for classic hi-fi loudspeakers! The oversized decorative squared-off frame accommodates a wide variety of OEM driver cutouts.

Estimated Shipping Costs
Shipping Costs
€21.60
Shipping Time
.
Want to check another country or courier?



GRS 12SFPC-B 12" Square Frame Paper Cone Woofer Black 8 ohm

A perfect replacement woofer for classic hi-fi loudspeakers! The oversized decorative squared-off frame accommodates a wide variety of OEM driver cutouts.

.

Product highlights:

  • Attractive square stamped steel frame
  • Smooth response and hefty bass output
  • Treated paper cone
  • Foam half roll edge
  • Choice of white or black cone

.

Product details

GRS 12SFPC-B 12" Square Frame Paper Cone Woofer Black

A perfect replacement woofer for classic hi-fi loudspeakers! The oversized decorative squared-off frame accommodates a wide variety of OEM driver cutouts. Smooth response and generous Xmax ensure optimum performance, and the use of modern materials and adhesives means your "experienced" speaker system will serve for many more years to come. Also great for DIY projects. Available in white or black cone versions.

.

Technical Specifications:

  • Article number 12SFPC-B
  • Woofer Type Subwoofer
  • Nominal Diameter 12"
  • Power Handling (RMS) 80 Watts
  • Power Handling (max) 160 Watss
  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 90 dB
  • Frequency Response 35 to 3,000 Hz
  • Voice Coil Diameter 1.5"
  • DC Resistance (Re) 5.8 ohms
  • Voice Coil Inductance (Le) 1.28 mH
  • Resonant Frequency (Fs) 34.8 Hz
  • Mechanical Q (Qms) 3.29
  • Electromagnetic Q (Qes) 0.87
  • Total Q (Qts) 0.69
  • Compliance Equivalent Volume (Vas) 5.87 ft.³
  • Maximum Linear Excursion (Xmax) 4.25 mm
  • Cone / Diaphragm Material Paper Surround Material Foam
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Overall Outside Diameter 14.375"
  • Overall Depth 4.5"
  • Baffle Cutout Diameter 11"
  • Bolt Circle Diameter 13"
  • # Mounting Holes 4
  • Sealed Volume 8.32 ft.³
  • Sealed F3 45 Hz
  • Vented Volume 17 ft.³
  • Vented F3 23 Hz
