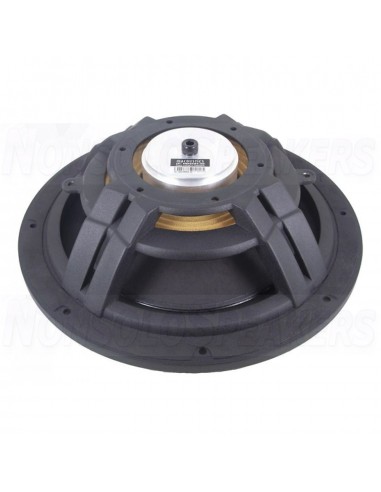

SB Acoustics SB34NRX-00 12" Passive Radiator
SB Acoustics SB34NRX-00 12" Passive Radiator
SB Acoustics SB34NRX-00 12" Passive Radiator
SB Acoustics SB34NRX-00 12" Passive Radiator

SB Acoustics SB34NRX-00 12" Passive Radiator

SB Acoustics SB34NRX-00 12" Passive Radiator

The SB Acoustics SB34NRX-00 passive radiator is a good match to the SB Acoustics woofer SB34SWNRX-S75.

SHIPMENT IN 7/10 WORKING DAYS
€135.90 €151.00 -10%
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB34NRX-00 12" Passive Radiator

.

Product description

Highlights

Hard paper cone for improved piston operation (made in-house)

Cast aluminum chassis for optimum strength

Low damping medium hardness rubber surround for improved dynamic linearity and mechanical stability

Easily adjustable moving mass

.

Product details

SB Acoustics SB34NRX-00 12" Passive Radiator

The SB Acoustics SB34NRX-00 passive radiator is a good match to the SB Acoustics woofer SB34SWNRX-S75.  In 2.0 to 2.5 cubic foot box this combo will get down to 30Hz.  Adding a plate amplifier with a low frequency boost would push the F3 even lower.

.

Specifications

Article numberSB34NRX-00
Woofer SeriesNRX Series
Woofer TypePassive Radiator
Nominal Diameter12"
Resonant Frequency (Fs)8.7 Hz
Mechanical Q (Qms)12.1
Diaphragm Mass Inc. Airload (Mms)665g
Mechanical Compliance of Suspension (Cms)0.5 mm/N
Surface Area of Cone (Sd)508 cm2
Compliance Equivalent Volume (Vas)6.46 ft.³
Maximum Linear Excursion (Xmax)17 mm

SB34NRX-00
