SB Acoustics SB34NRX75-6 Subwoofer
SHIPMENT IN 7/10 WORKING DAYS
€209.95
Tax included
No review at the moment
You might also like
SB Acoustics SB34NRX75-6 Subwoofer
.
Product description
High flow venting center pole
3" voice coil
Low dampening surround
Non-inductive voice coil former
Proprietary cone materials made-in-house
Cast Aluminum chassis
.
Product details

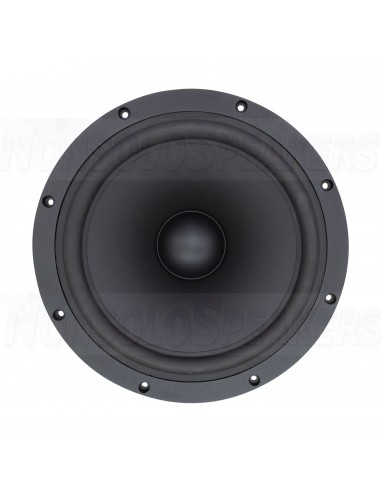

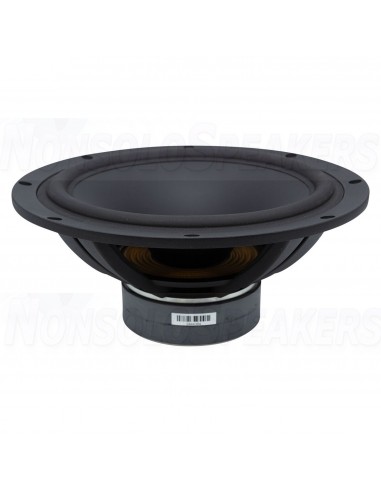

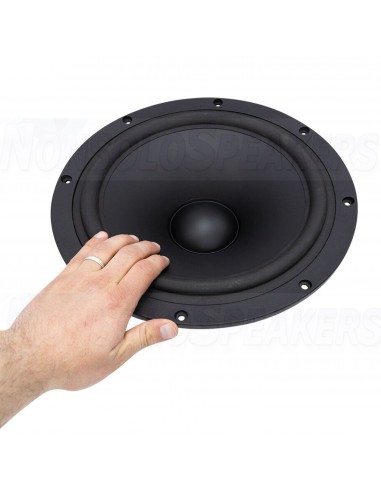

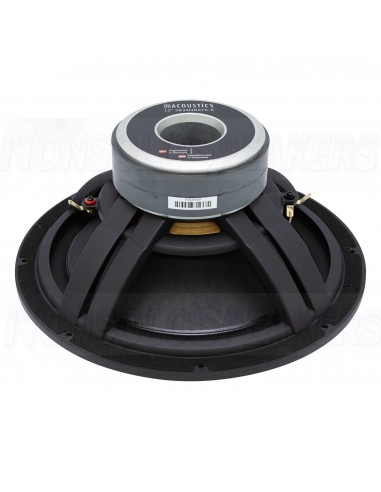

SB Acoustics SB34NRX75-6 12" Woofer
The SB Acoustics SB34NRX75-6 12" woofer uses a large 3" voice coil on a cast aluminum chassis. Hard Paper proprietary cone materials made in-house for consistency. Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression. Aluminum alloy for light weight, non-magnetic and extra rigidity. Shorting Copper cap on pole piece. Non-inductive 75mm coil former.
.
Specifications
Article numberSB34NRX75-6
Woofer SeriesNRX Series
Woofer TypeMidwoofer
Nominal Diameter12"
Power Handling (RMS)200 Watts
Impedance (Z)6 ohms
Sensitivity (SPL at 1m / 2.83V)90 dB
Voice Coil Diameter2.97"
DC Resistance (Re)4.2 ohms
Voice Coil Inductance (Le)1.8 mH
Resonant Frequency (Fs)19 Hz
Mechanical Q (Qms)5.1
Electromagnetic Q (Qes)0.43
Total Q (Qts)0.40
Diaphragm Mass Inc. Airload (Mms)99 g
Mechanical Compliance of Suspension (Cms)0.71 mm/N
Surface Area of Cone (Sd)508 cm2
BL Product (BL)10.7 Tm
Compliance Equivalent Volume (Vas)9.18 ft.³
Maximum Linear Excursion (Xmax)11 mm
