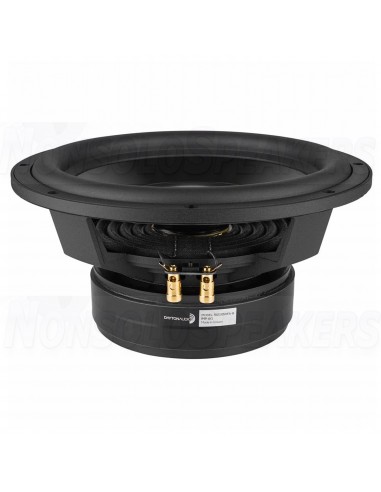

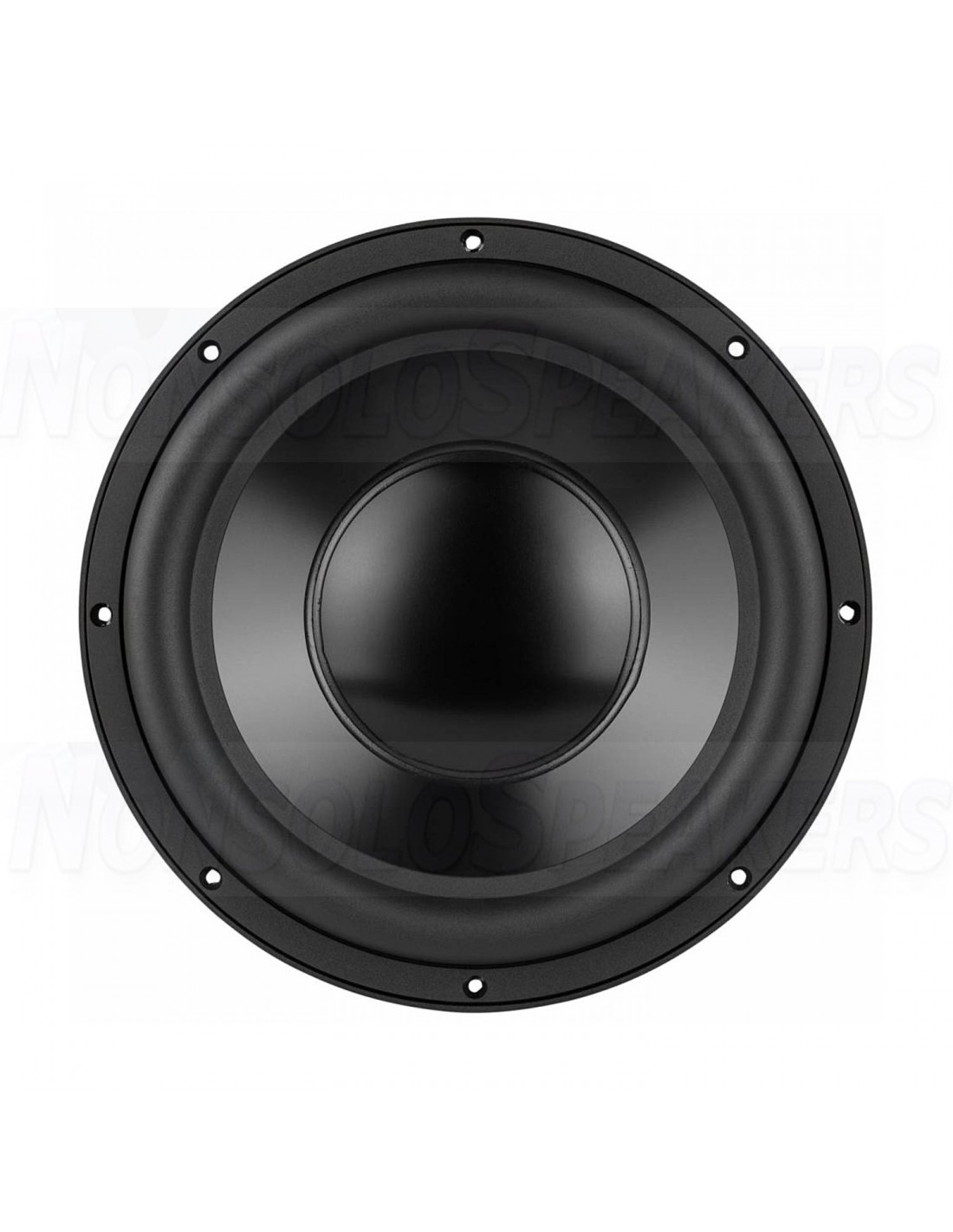

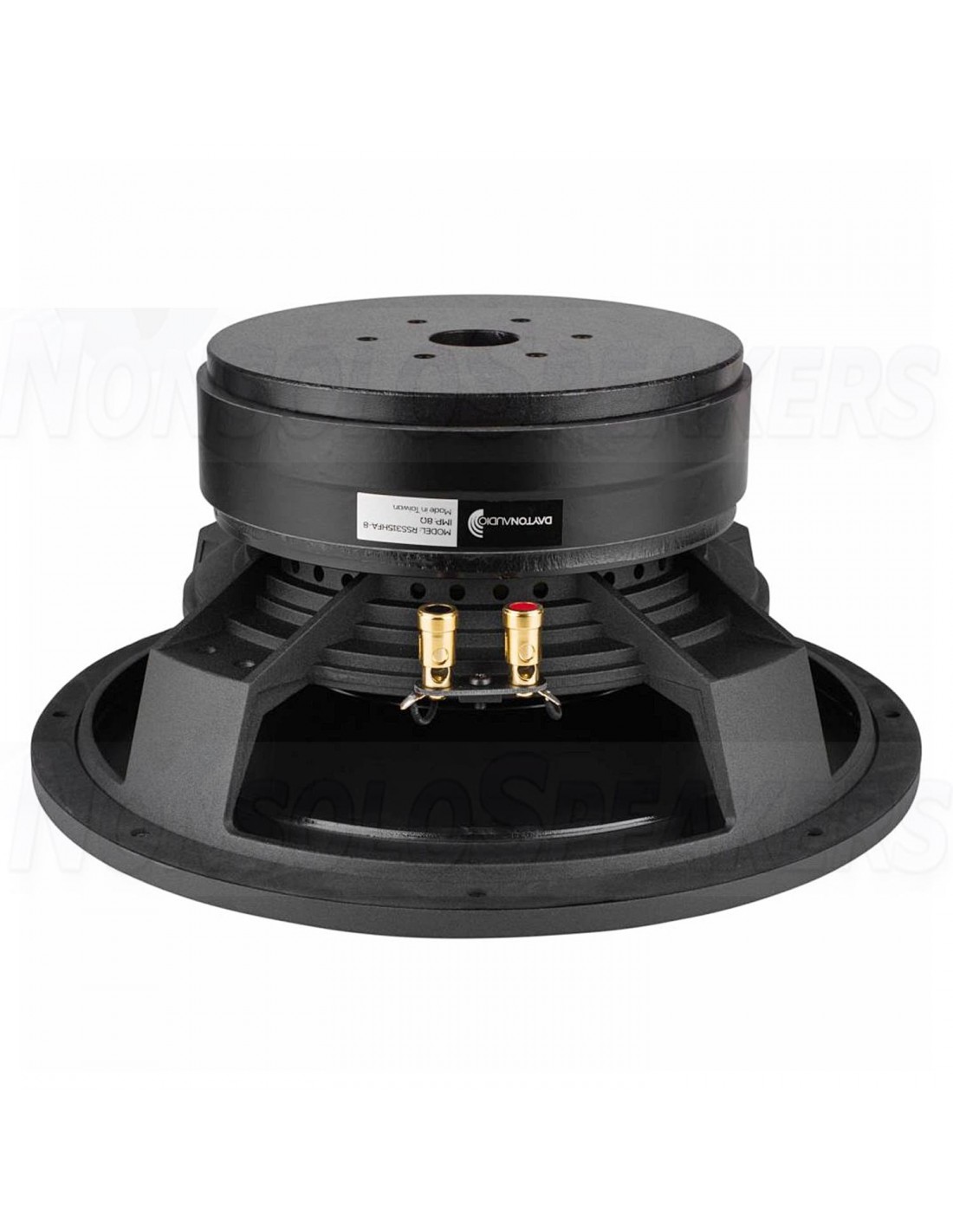

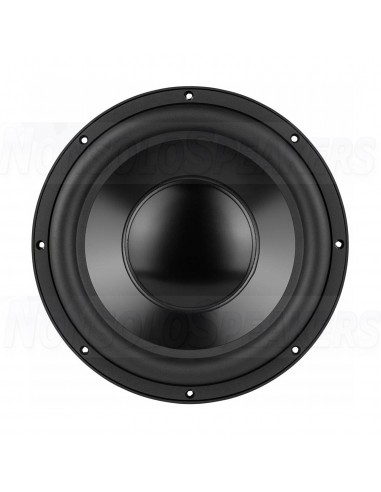

Dayton Audio RSS315HFA-8 12" Reference HF Subwoofer 8 Ohm
Dayton Audio RSS315HFA-8 12" Reference HF Subwoofer 8 Ohm
Dayton Audio's Reference Series RSS315HFA-8 12" subwoofer utilizes the same low-distortion design as the rest of the series, but provides an 8 ohm alternative for increased connection and impedance-loading options.
You might also like
Dayton Audio RSS315HFA-8 12" Reference HF Subwoofer 8 Ohm
Dayton Audio's Reference Series RSS315HFA-8 12" subwoofer utilizes the same low-distortion design as the rest of the series, but provides an 8 ohm alternative for increased connection and impedance-loading options.
.
Highlights
- Extensively vented motor eliminates power compression and allows quiet excursion
- Lighter-weight black anodized aluminum cone minimizes moving mass 2-layer coil for reduced back EMF
- Triple shorting-ring motor for ultra-low distortion
- Optimized for large enclosures
- Highest quality materials throughout for long-lasting performance
.
Product Description
The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of the RSS315HFA-8 12" subwoofer is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose this High Fidelity (HF) version for home speaker systems when your priority is clean, low bass and you are not restricted by cabinet size.
OPTIMUM CABINET SIZE *
Sealed Volume 1.54 ft.³
Sealed F3 40 Hz
Vented Volume 4.63 ft.³
Vented F3 20 Hz
* Enclosure volume/F3s based on BassBox "optimum" calculations
.
Product Specifications
Speaker Series Reference Series
Model Number RSS315HFA-8
Color Black
Unit of Measure Each
UPC 844632088681
Product Shipping Weight (lbs.) 24.5
Speaker Type Subwoofer
Nominal Diameter 12"
Power Handling (RMS) 400 watts
Power Handling (max) 700 watts
Continuous Program Power --
Impedance 8 ohms
Sensitivity 85.7 dB @ 2.83V/1m
Frequency Response 25 - 1,500 Hz
Voice Coil Diameter 65.5 mm
Magnet Weight --
DC Resistance (Re) 6.5 ohms
Voice Coil Inductance (Le) 1.56 mH @ 1 kHz
Resonant Frequency (Fs) 22.2 Hz
Mechanical Q (Qms) 2.5
Electromagnetic Q (Qes) 0.54
Total Q (Qts) 0.45
Diaphragm Mass Inc. Airload (Mms) 194g
Moving Mass Of Diaphragm (Mmd) --
Mechanical Compliance of Suspension (Cms) 0.27 mm/N
Surface Area Of Cone (Sd) 506.7 cm²
Volume of Displacement (Vd) 724.6 cm³
BL Product (BL) 18 Tm
Compliance Equivalent Volume (Vas) 97.2 liters
Maximum Linear Excursion (Xmax) 14.3 mm
Drivers Mechanical Losses (Rms) --
Cone / Diaphragm Material Black Anodized Aluminum Cone
Entry / Exit Diameter --
Surround Material Rubber
Voice Coil Wire Material Copper
Voice Coil Former Aluminum
Basket/Frame Material Steel
Magnet Material Ferrite
Overall Outside
Diameter 314 mm
Overall Depth 146 mm
Baffle Cutout Diameter 282 mm
# Mounting Holes 8
Mounting Hole Diameter --
Bolt Circle Diameter --
Product Weight --
