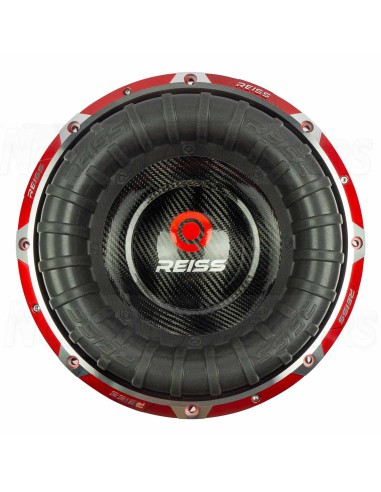

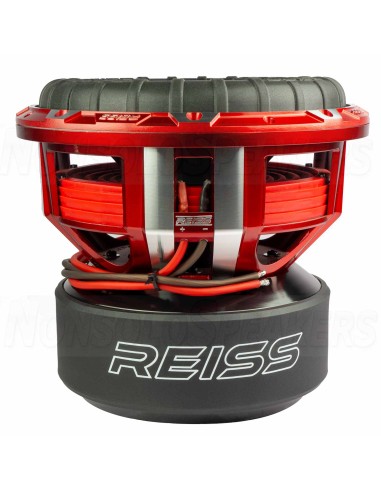

Reiss RS-RANGE12.D1 12" Subwoofer 3500W RMS 2x1 OhmReiss RS-RANGE12.D1 12" Subwoofer 3500W RMS 2x1 Ohm

.

The Reiss RS-RANGE12.D1 is a no-compromise 12-inch subwoofer, built to deliver extreme sound pressure levels in competition-grade systems. With a power handling of 3500W RMS (7000W max) and dual 1 Ohm voice coils, it's the ideal match for powerful monoblocks and parallel configurations where every watt counts.

Covering a frequency range of 40–500 Hz, this driver is perfect for aggressive, deep bass without sacrificing responsiveness. A resonance frequency of 41.45 Hz, QTS of 0.359, and Vas of 12 liters make it an excellent candidate for ported enclosures focused on efficiency and control.

With a moving mass of 335.97 g, cone area of 452.16 cm², and a sensitivity of 88 dB, the RS-RANGE12.D1 delivers both power and precision in every bass hit. Its heavy-duty construction – including an oversized motor structure and high-tension spider – results in a total weight of 34 kg, ensuring durability even under extreme loads.

Installation demands space: with an outer diameter of 318 mm, mounting depth of 240 mm, and a cutout of Ø 281 mm, but it's a worthy trade-off for those seeking brutal output with absolute control.

The Reiss RS-RANGE12.D1 is a top-tier choice for serious builders, SPL enthusiasts, and audio competitors demanding maximum output and precision – uncompromising performance in a 12-inch format.

.

Technical Specifications

• Woofer size 12"
• Power handling RMS 3500W
• Power handling MAX 7000W
• Frequency range 40-500 Hz
• Impedance 2x1 Ohm
• FS 41.45 Hz
• RE 2x0.8 Ohm
• QES 0.386
• QMS 5.105
• QTS 0.359
• Vas 12.022 L
• Sensitivity 88 dB
• CMS 41.41
• MMS 335.97 g
• SD 452.16 cm2
• Outer diameter Ø 318 mm
• Installation depth 240 mm
• Mounting hole Ø 281 mm
• Weight 34 kg
