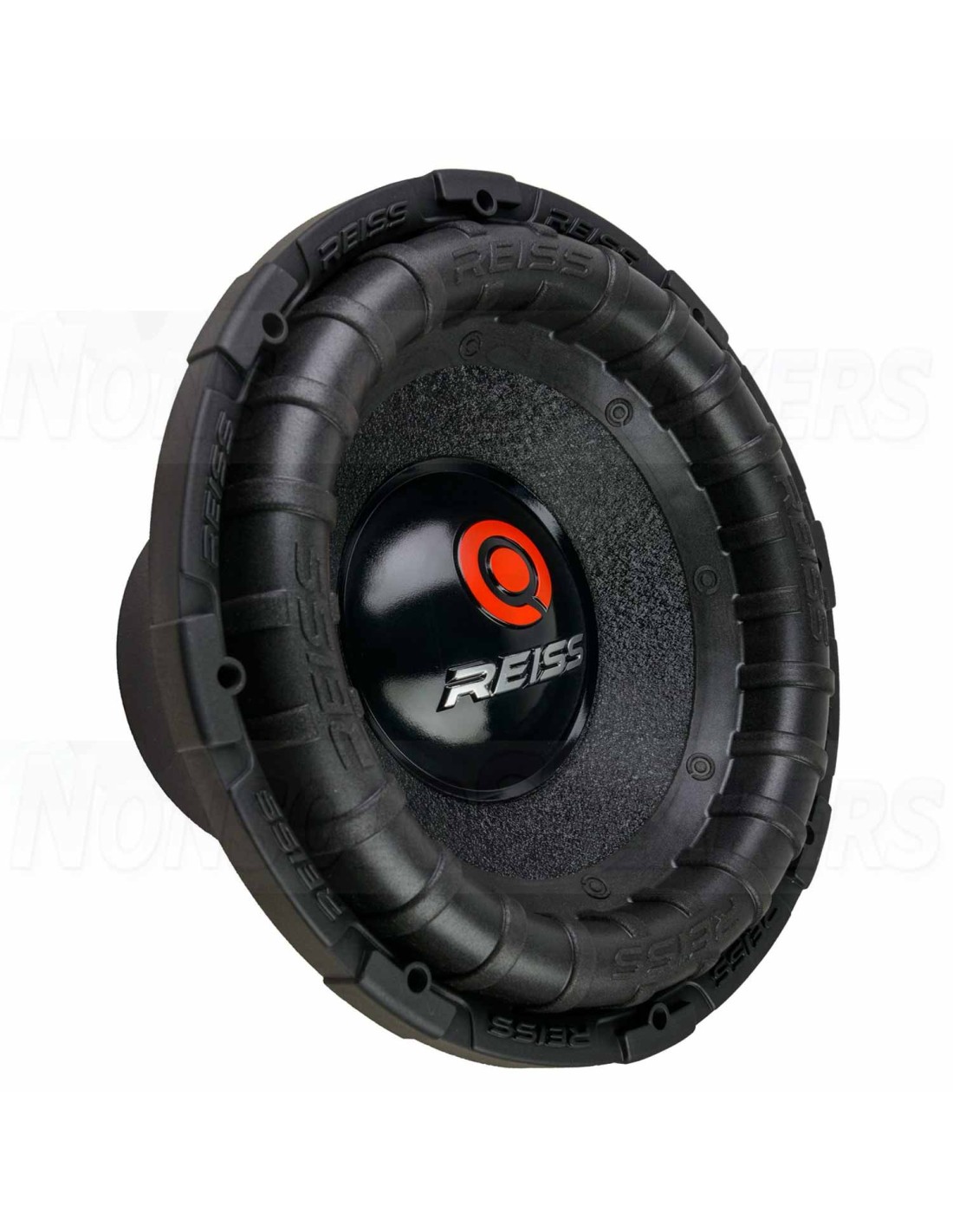

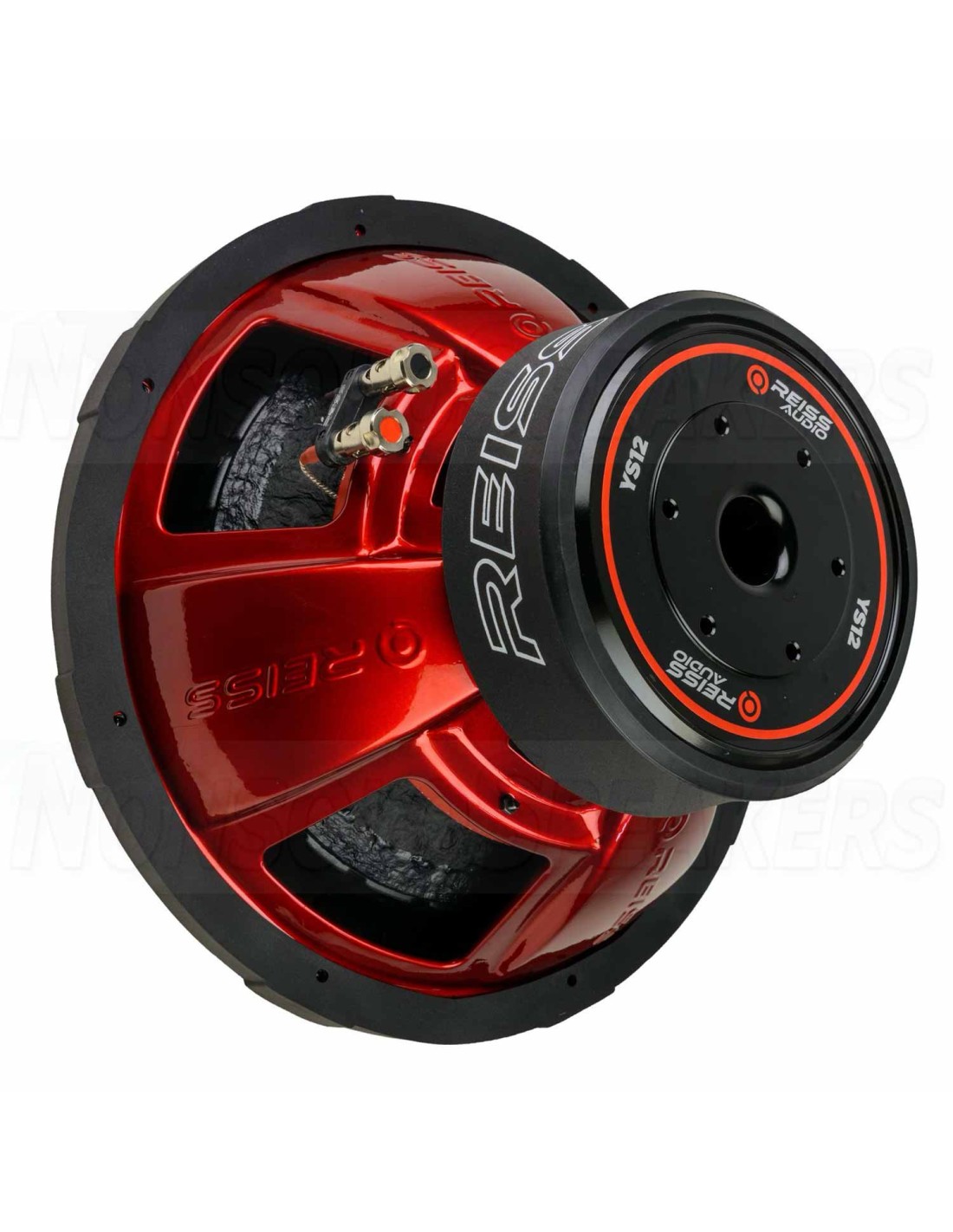

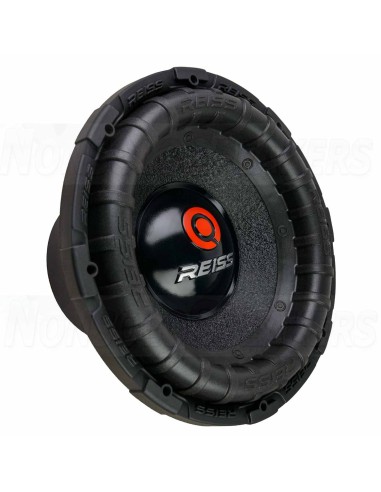

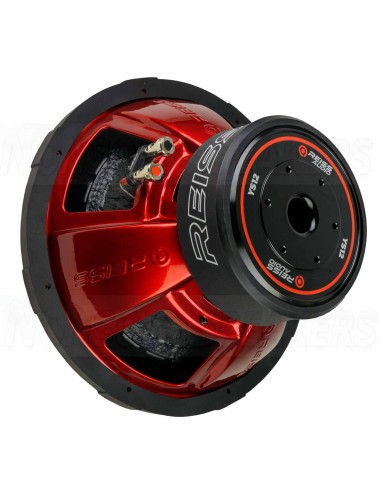

Reiss RS-YS12.D2 – 12" Subwoofer Driver with Dual 2-Ohm Voice Coils and Deep Bass Response

Out-of-Stock
€149.00
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€16.80
Shipping Time
.
Want to check another country or courier?



Reiss RS-YS12.D2 12" Subwoofer 600W RMS 2x2 Ohm

.

The Reiss RS-YS12.D2 is a powerful and precise 12-inch subwoofer featuring a 2x2 Ohm impedance, giving you great flexibility when choosing an amplifier and wiring configuration. With a power handling of 600W RMS (2000W max), it's ready to deliver massive bass under extended loads.

The low resonance frequency of 36.48 Hz makes the RS-YS12.D2 ideal for deep bass reproduction, while the frequency range of 38 to 1000 Hz provides a wide operational scope. With a sensitivity of 88 dB and a QTS of 0.626, this driver is well-balanced for both sealed and ported enclosures.

The robust construction includes a large voice coil (63.8 x 35 mm) for increased durability and heat resistance. With a weight of 6.9 kg, a mounting depth of 148 mm, and an outer diameter of 318 mm, it’s a serious driver that requires space – but delivers substantial bass output.

The Reiss RS-YS12.D2 is a premium choice for anyone looking to build a powerful bass system with maximum control, deep frequency response, and excellent installation flexibility.

.

Technical Specifications

  • Frequency range 38Hz ~ 1000Hz
  • Impedance 2x2 Ohm
  • FS 36.48 Hz
  • RE 2x1.8 Ohm
  • QES 0.692
  • QMS 6.533
  • QTS 0.626
  • Vas 25.225 L
  • Voice coil size 63.8 x 35 mm
  • Sensitivity 88 dB
  • CMS 82.68
  • MMS 230.102
  • SD 46.353 cm2
  • Outer diameter Ø 318 mm
  • Installation depth 148 mm
  • Mounting hole Ø 282 mm
  • Weight 6.9 kg
Reiss RS-YS12.D2
