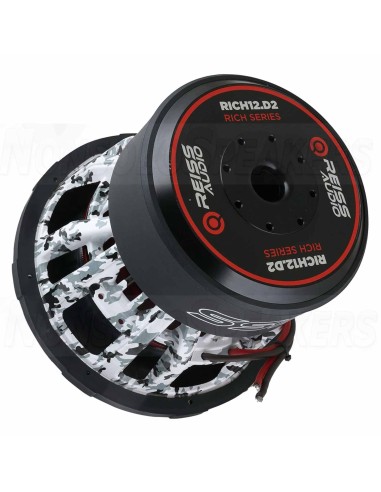

Reiss RS-RICH12.D2 12" Subwoofer 2500W RMS 2x2 Ohm

.

The Reiss RS-RANGE12.D2 is a high-performance 12-inch subwoofer engineered to deliver extreme levels of sound pressure without sacrificing control. With a power handling of 3500W RMS (and a massive 7000W max), combined with dual 2 Ohm voice coils, it’s built for the most demanding SPL setups.

This driver plays within a focused frequency range of 40 to 500 Hz and has a resonance frequency (FS) of 40 Hz – optimized for tight, punchy bass response. A low QTS of 0.399 and Vas of 13.9 liters make it especially suited for ported enclosures where precision and control are key.

A substantial moving mass of 356 g paired with a cone area of 452 cm² delivers long excursion and high air displacement, while a sensitivity of 88 dB ensures every watt is used efficiently. The robust 34 kg construction reflects its oversized motor structure and exceptional durability.

With an outer diameter of 318 mm, mounting depth of 240 mm, and a cutout of Ø 281 mm, the RS-RANGE12.D2 demands space – but in return delivers brutal output and uncompromising performance.

The Reiss RS-RANGE12.D2 is the obvious choice for competition-grade builds and systems where maximum power, strength, and precision are non-negotiable.

.

Technical Specifications

• Woofer size 12"
• Power handling RMS 2500W
• Power handling MAX 5000W
• Frequency range 43-500 hz
• Impedance 2x2 Ohm
• FS 46.72 Hz
• RE 2x1.6 Ohm
• QES 0.780
• QMS 5.233
• QTS 0.679
• Vas 10.82 L
• Voice coil size 76.5 x 60 mm
• Sensitivity 88 dB
• CMS 37.27
• MMS 311.38 g
• SD 452.16 cm2
• Outer diameter Ø 318 mm
• Installation depth 230 mm
• Mounting hole Ø 281 mm
• Weight 24.8 kg

.
