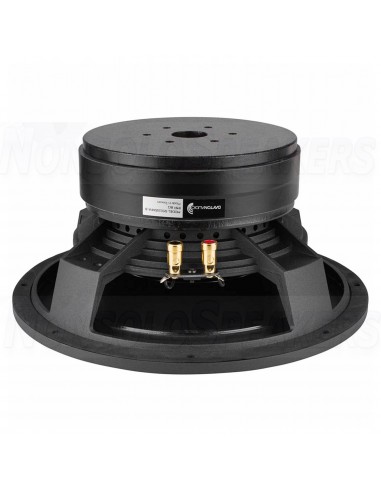

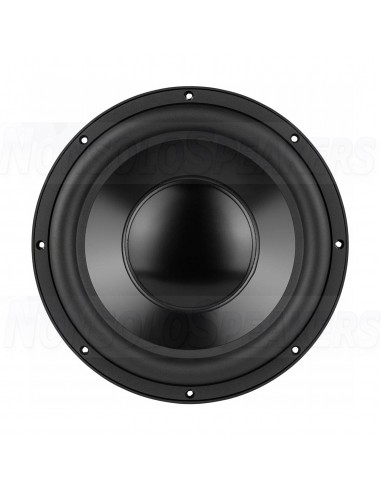

Dayton Audio Reference RSS315HO-44 Subwoofer

Product description

The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion.

.

Highlights

Dual 4 ohm voice coils

Extensively vented motor eliminates compression and allows quiet excursion

Extra-thick black anodized aluminum cone for maximum rigidity

Triple shorting-ring motor for ultra-low distortion

4-layer coil for high power handling

Parameters optimized for small enclosures

Highest quality materials throughout for long-lasting performance

.

Product details

Dayton Audio RSS315HO-44 12" Reference HO DVC Subwoofer

The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. The High Output (HO) drivers are optimized for automotive applications and equalized high-power home subwoofers.

.

Specifications

Article number RSS315HO-44

Woofer Series Reference Series

Woofer Type Subwoofer

Nominal Diameter 12"

Power Handling (RMS) 700 watts

Power Handling (max) 1400 watts

Impedance (Z) 4+4 ohms

Sensitivity 84.6 dB @ 2.83V/1m

Frequency Response 20 - 500 Hz

Voice Coil Diameter 65.5 mm

DC Resistance (Re) 6.5 ohms

Voice Coil Inductance (Le) 3.17 mH @ 1 kHz

Resonant Frequency (Fs) 21.5 Hz

Mechanical Q (Qms) 3.70

Electromagnetic Q (Qes) 0.41

Total Q (Qts) 0.37

Diaphragm Mass Inc. Airload (Mms) 327.7

Mechanical Compliance of Suspension (Cms) 0.17 mm/N

Surface Area of Cone (Sd) 507.1 cm²

Volume of Displacement (Vd) 720.6 cm³

BL Product (BL) 26.5 Tm

Compliance Equivalent Volume (Vas) 61.3 liters

Maximum Linear Excursion (Xmax) 14.0 mm

Cone / Diaphragm Material Black Anodized Aluminum Cone

Surround Material Rubber

Voice Coil Wire Material Copper

Voice Coil Former Aluminum

Dual Voice Coil Yes

Basket / Frame Material

Cast Aluminum

Magnet Material Ferrite

Overall Outside Diameter 314 mm

Overall Depth 146 mm

Baffle Cutout Diameter 282 mm

# Mounting Holes 8

Sealed Volume 0.49 ft.³

Sealed F3 47 Hz

Vented Volume 1.36 ft.³

Vented F3 27 Hz
