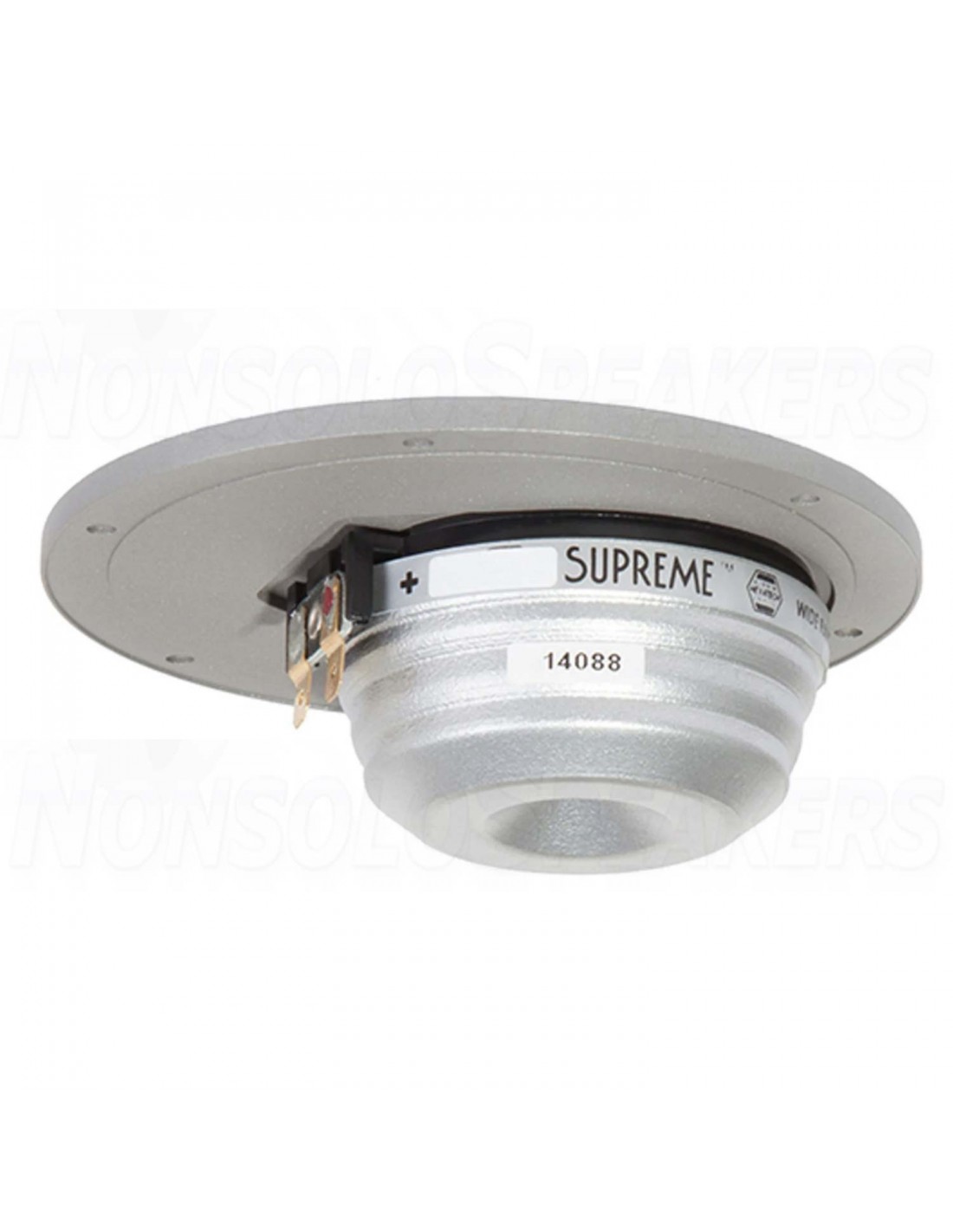

MOREL ST 1308 - 28mm Tweeter - Morel Supreme
MOREL ST 1308 - 28mm Tweeter - Morel Supreme
  • On sale!
  • -5%
MOREL ST 1308 - 28mm Tweeter - Morel Supreme
MOREL ST 1308 - 28mm Tweeter - Morel Supreme

MOREL ST 1308 - 28mm Tweeter - Morel Supreme

SHIPMENT IN 7-10 WORKING DAYS
€245.42 €258.33 -5%
rating No review at the moment

Morel Supreme ST 1308 1 "dome tweeter, matched pair

Innovative engineering and an advanced approach to acoustic construction are the reason for the superior performance of the Supreme series tweeters.

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€69.00
Shipping Time
.
Want to check another country or courier?



Morel Supreme ST 1308 1 "dome tweeter, matched pair

Price for 1 Tweeter ST1308

.

Product description

Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters' superior high performance.

.

Highlights

Sold in factory matched pairs

130 mm IDR™ Improved Dispersion Recess aluminum faceplate

Flat neodymium motor structure provides maximum flux

Hexatech™ voice coil for maximum BL product and power handling

Acuflex™ coated dome with the perfect blend of internal damping and rigidity

Precisely matched acoustic loading between the dome cavity and rear chamber

Unique offset dome design

.

Product details

Morel Supreme ST 1308 1" Dome Tweeter Matched Pair

Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters' superior high performance. Their underhung voice coils move in a significantly higher magnetic field and remain there always during operation. As a result, the Morel Supreme tweeters provide more linear excursion, eliminate intermodulation distortion, reduce power compression at high levels, and considerably improve low frequency reproduction..

.

Specifications

Article numberST1308
Tweeter TypeSoft Dome
Tweeter SeriesSupreme series
Cone / Dome Diameter25 mm | 1"
Power Handling (RMS)220 Watts
Impedance (Z)8 Ω
Sensitivity (SPL at 1m / 2.83V)91.5 dB
Frequency Response1,400-22,000 Hz
Resonant Frequency (Fs)680 Hz
DC Resistance (Re)5.2 ohms
Voice Coil Inductance (Le)0.09 mH
Total Q (Qts)0.44
Overall Outside Diameter5.12"
Cutout Diameter4.09"
Depth1.57"

.
