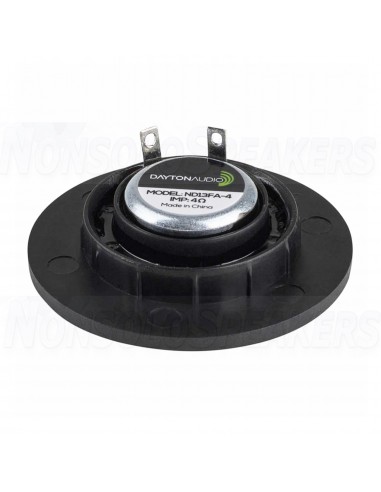

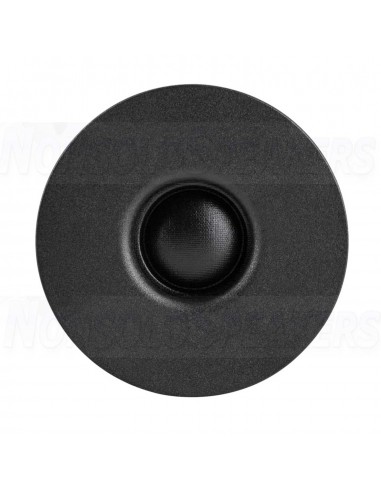

Dayton Audio ND13FA-4 1/2" Soft Dome Neodymium Tweeter 4 Ohm

Dayton Audio's tiny ND13FA-4 1/2" soft dome tweeter is perfect for use in compact 2-way systems such as desktop, surround, or portable speaker systems. With smooth response from 4,500 to 20,000 Hz this tweeter is ideal for adding more top end to many full-range drivers.

The versatile ND13FA-4 1/2" soft dome tweeter from Dayton Audio has the sensitivity, smoothness, and power handling for use in a 2-way design with most small woofers. The small faceplate allows minimal center-to-center distances making these a great choice for use in 2-way designs with high crossover points. With 4-ohm impedance, this tweeter is suitable for use in both home and automotive applications. Thanks to the Ferrofluid cooled voice coil, the ND13FA-4 can handle an impressive amount of power and has excellent damping for extremely accurate response.

-

Highlights

Compact faceplate is perfect for minimal center-to-center distances

Easy installation, front mount pressfit design

Ferrofluid enhances power handling and helps damp resonance

Powerful neodymium motor keeps tweeter small with impressive efficiency

-

Product Details

Speaker Series ND Series

Model Number ND13FA-4

Color Black

Unit of Measure Each

UPC 848791004735

Product Shipping Weight (lbs.) 0.05

Speaker Type Tweeter

Nominal Diameter .5"

Power Handling (RMS) 20 watts

Power Handling (max) 40 watts

Continuous Program Power --

Impedance 4 ohms

Sensitivity 88.5 dB 2.83V/1m

Frequency Response 4,500 - 20,000 Hz

Voice Coil Diameter 13 mm

Magnet Weight --

DC Resistance (Re) 3.07 ohms

Voice Coil Inductance (Le) 0.02 mH

Resonant Frequency (Fs) 2832 Hz

Mechanical Q (Qms) 0.93

Electromagnetic Q (Qes) 8.44

Total Q (Qts) 0.84

Diaphragm Mass Inc.

Airload (Mms) --

Moving Mass Of Diaphragm (Mmd) --

Mechanical Compliance of Suspension (Cms) --

Surface Area Of Cone (Sd) --

Volume of Displacement (Vd) --

BL Product (BL) --

Compliance Equivalent Volume (Vas) --

Maximum Linear Excursion (Xmax) --

Drivers Mechanical Losses (Rms) --

Cone / Diaphragm Material Fabric

Entry / Exit Diameter --

Surround Material Rubber

Voice Coil Wire Material Copper

Voice Coil Former Polyimide

Basket/Frame Material Plastic

Magnet Material Neodymium

Overall Outside Diameter 45 mm

Overall Depth 11.4 mm

Baffle Cutout Diameter 29.5 mm

Mounting Hole Diameter --

Bolt Circle Diameter --

Product Weight --
