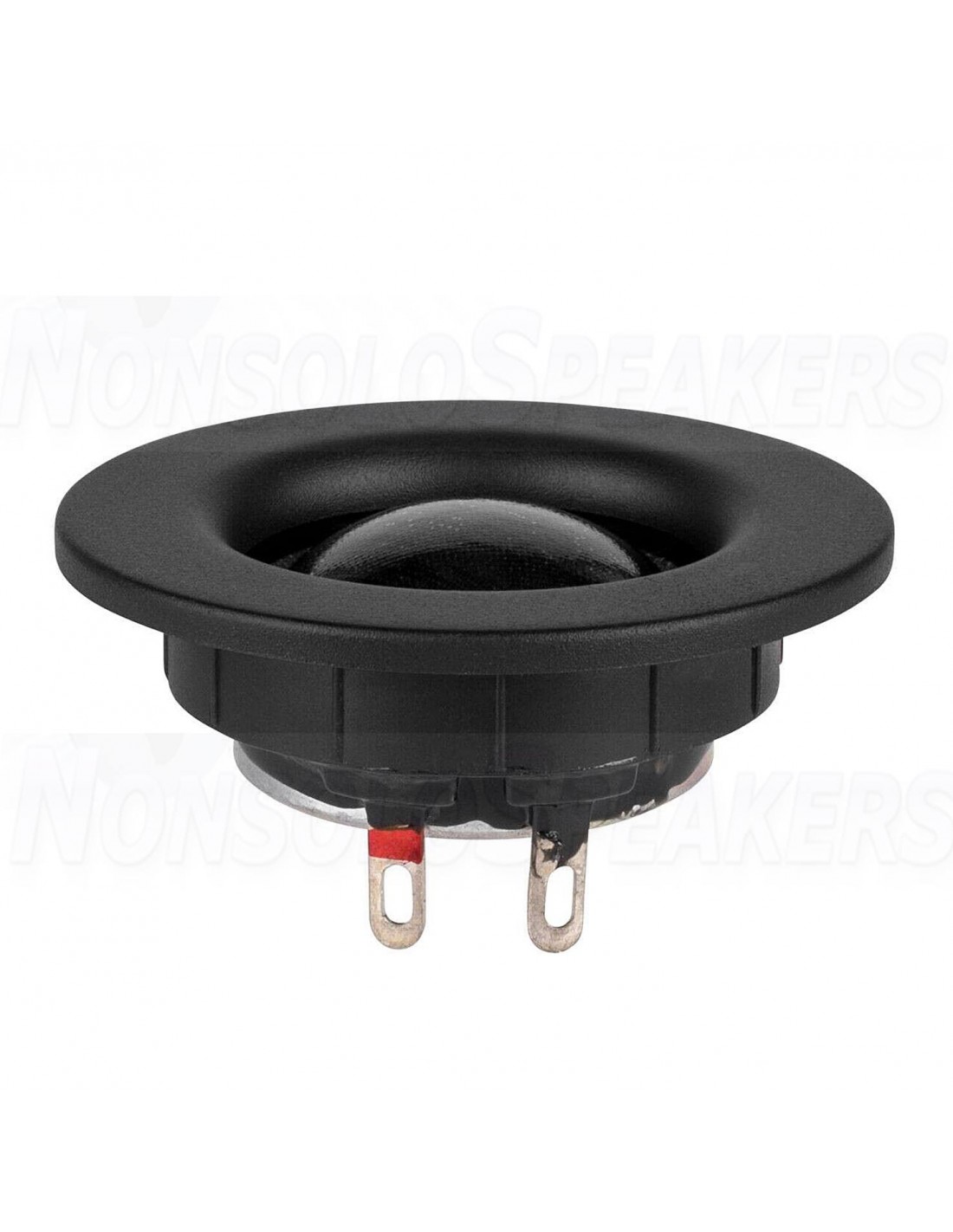

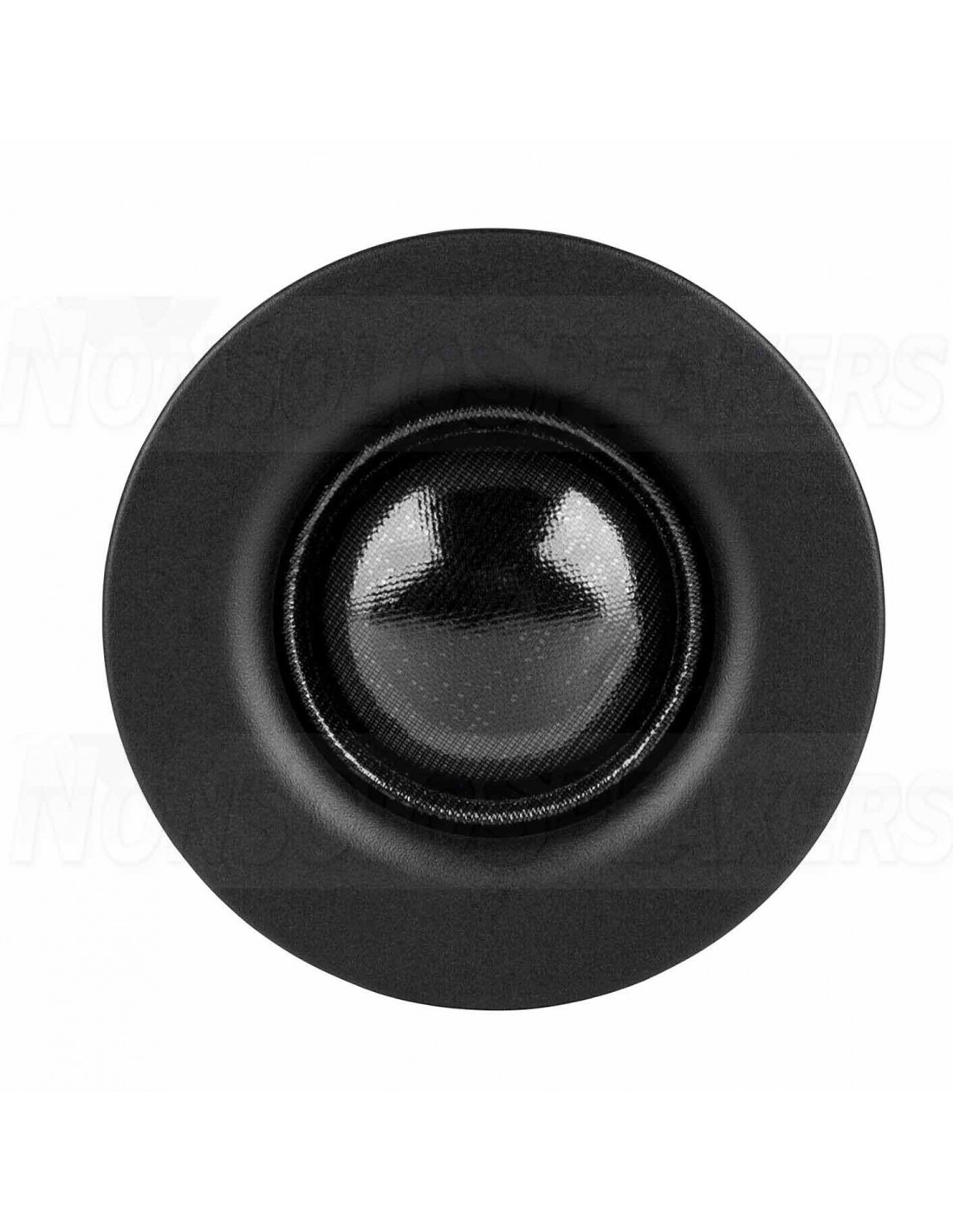

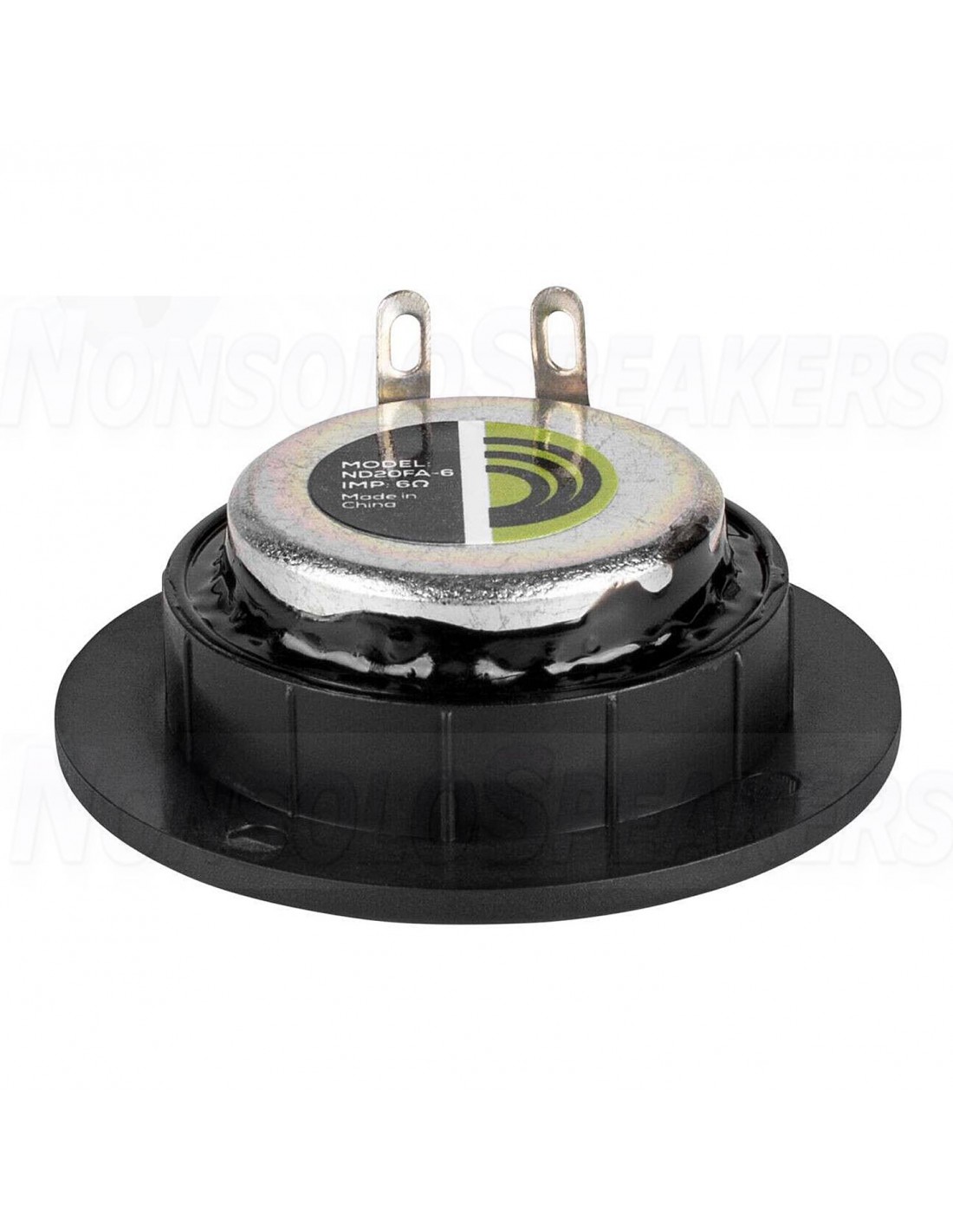

Dayton Audio ND20FA-6 3/4" Soft Dome Neodymium Tweeter

Don't let the low price fool you! This versatile tweeter is a huge step above the average "budget" tweeter. Conceived with line array thoughts in mind, it is finally possible to achieve the inter-driver spacing needed to minimize comb filtering out to nearly 20 kHz. But its uses don't stop at line arrays-- it has the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers. Or, use it in an A-pillar in your car as a great inexpensive component tweeter. Give them a try for your next budget or micro speaker-- you will be pleasantly surprised!

Product Details

Brand Dayton Audio

Model ND20FA-6

UPC 844632000874

Unit of Measure Each

Weight 0.5 grams

Product Specifications

Cone / Dome Diameter 0.75"

Cutout Diameter 1.30

Tweeter Type Soft Dome

Power Handling (RMS) 15 Watts

Impedance 6Ω

Frequency Response 3,500 to 25,000Hz

Sensitivity 90dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs) 2005Hz DC

Resistance (Re) 5.2Ω

Voice Coil Inductance (Le) 0.05mH

Mechanical Q (Qms) 1.5

Electromagnetic Q (Qes) 2.88

Total Q (Qts) 0.99

Mounting Information

Overall Outside Diameter 1.77"

Depth 0.59"
