Dayton Audio AMT3-4 Air Motion Transformer Tweeter 4 Ohm

Dayton Audio AMT3-4 Air Motion Transformer Tweeter 4 Ohm

Dayton Audio AMT3-4 Air Motion Transformer Tweeter 4 Ohm

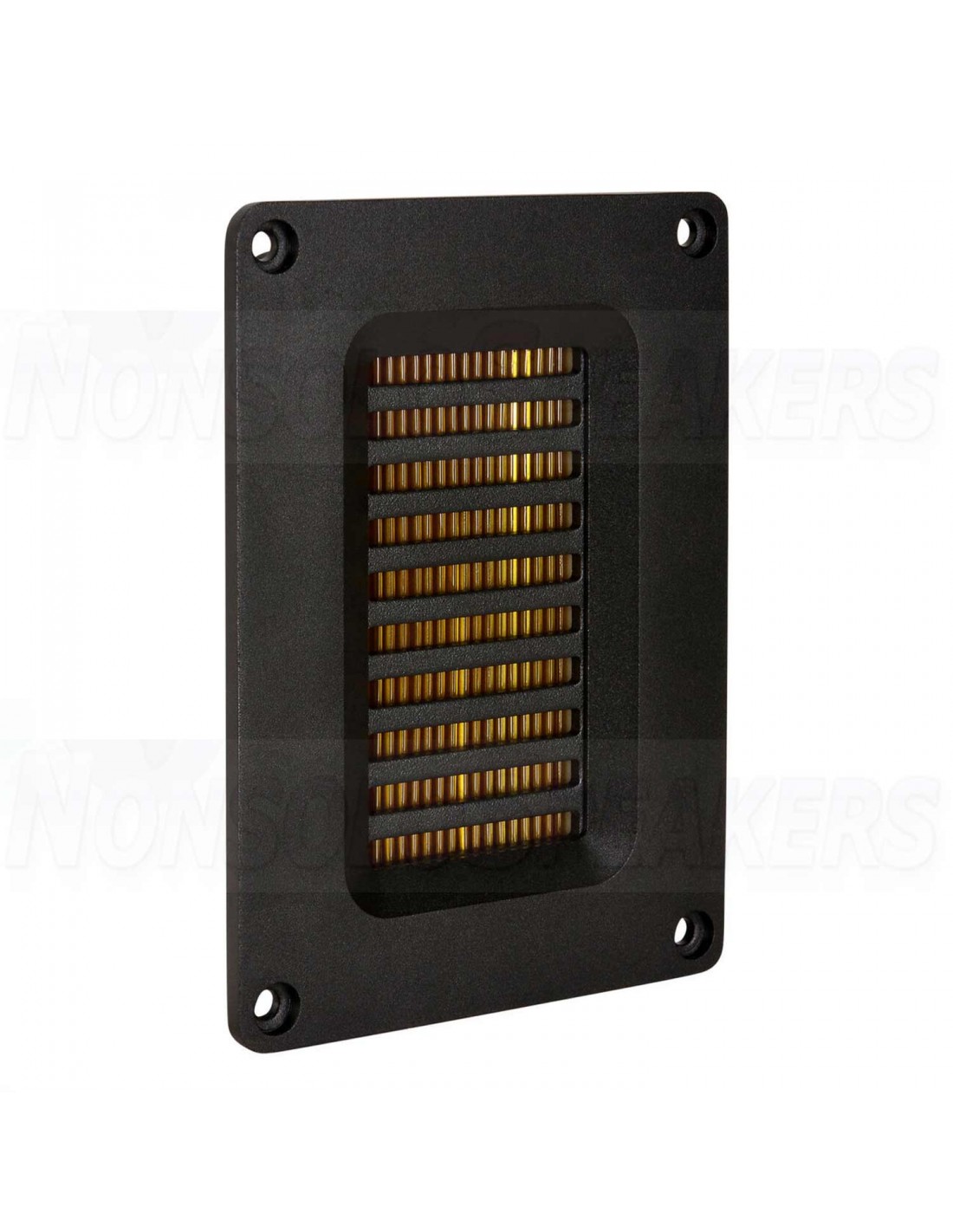

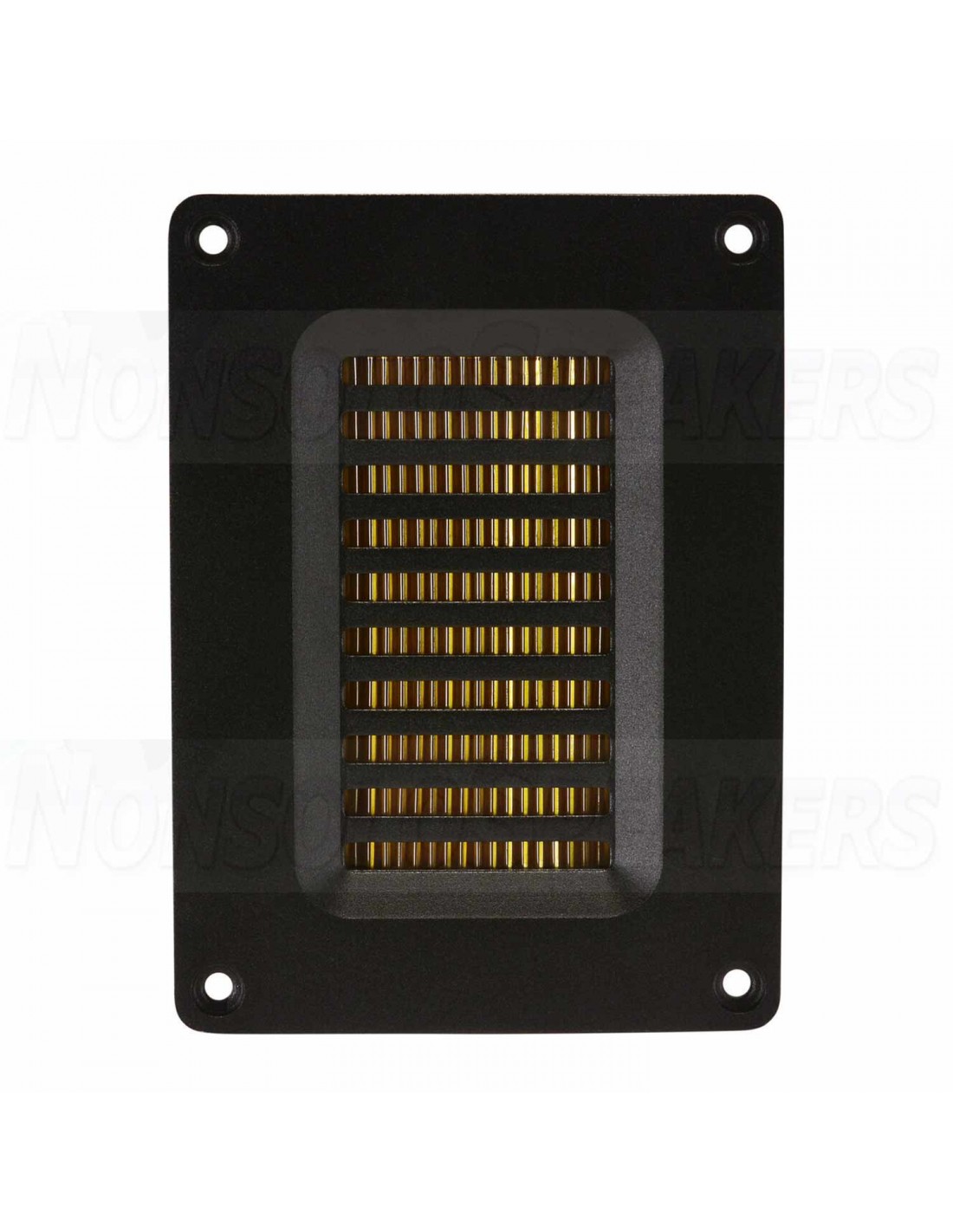

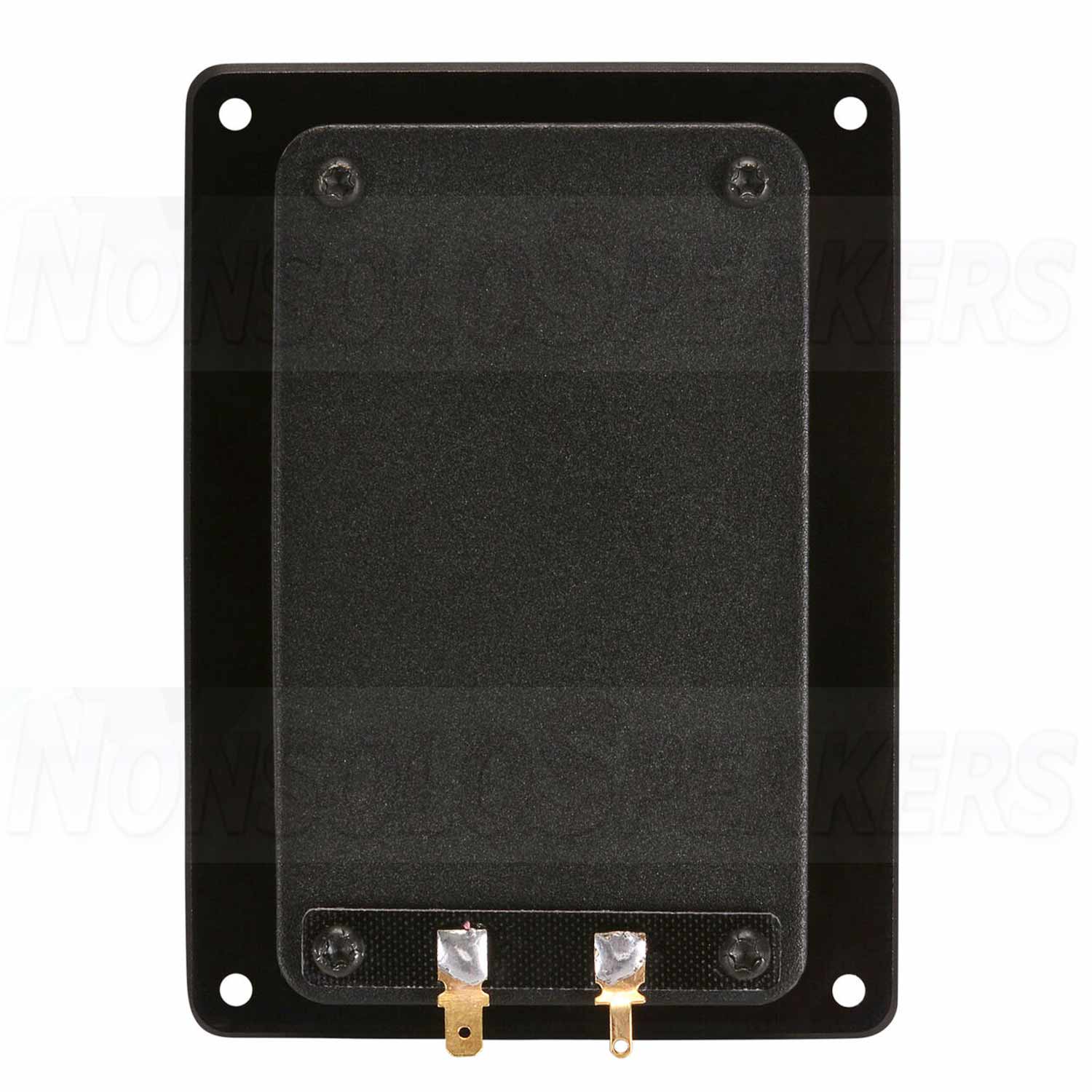

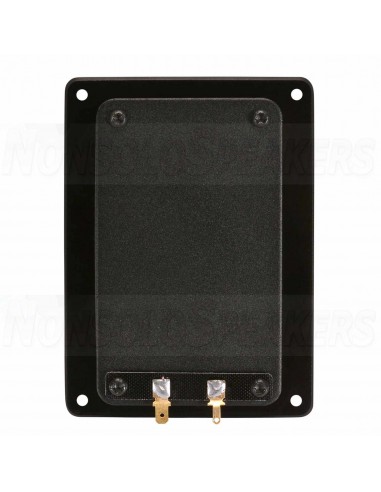

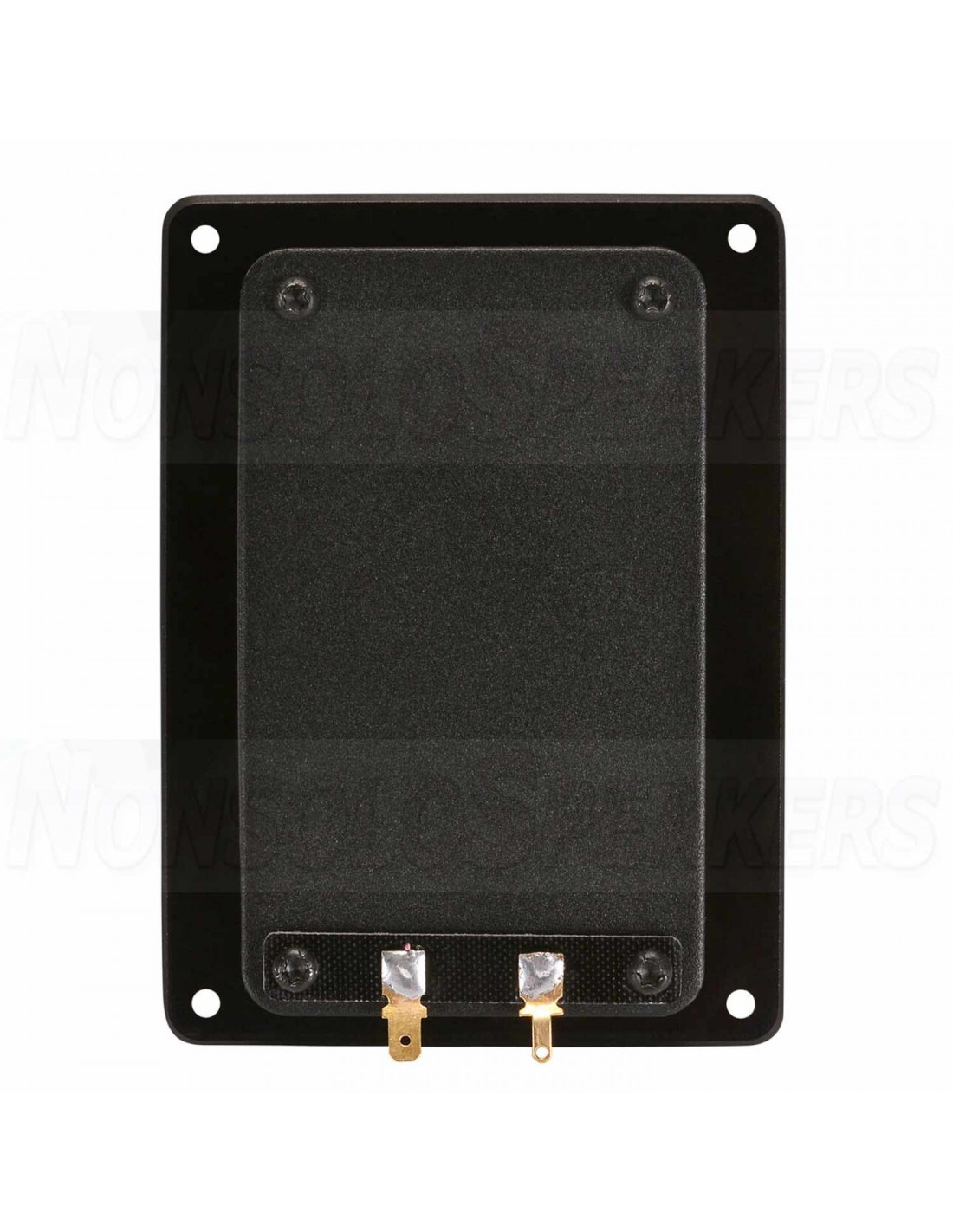

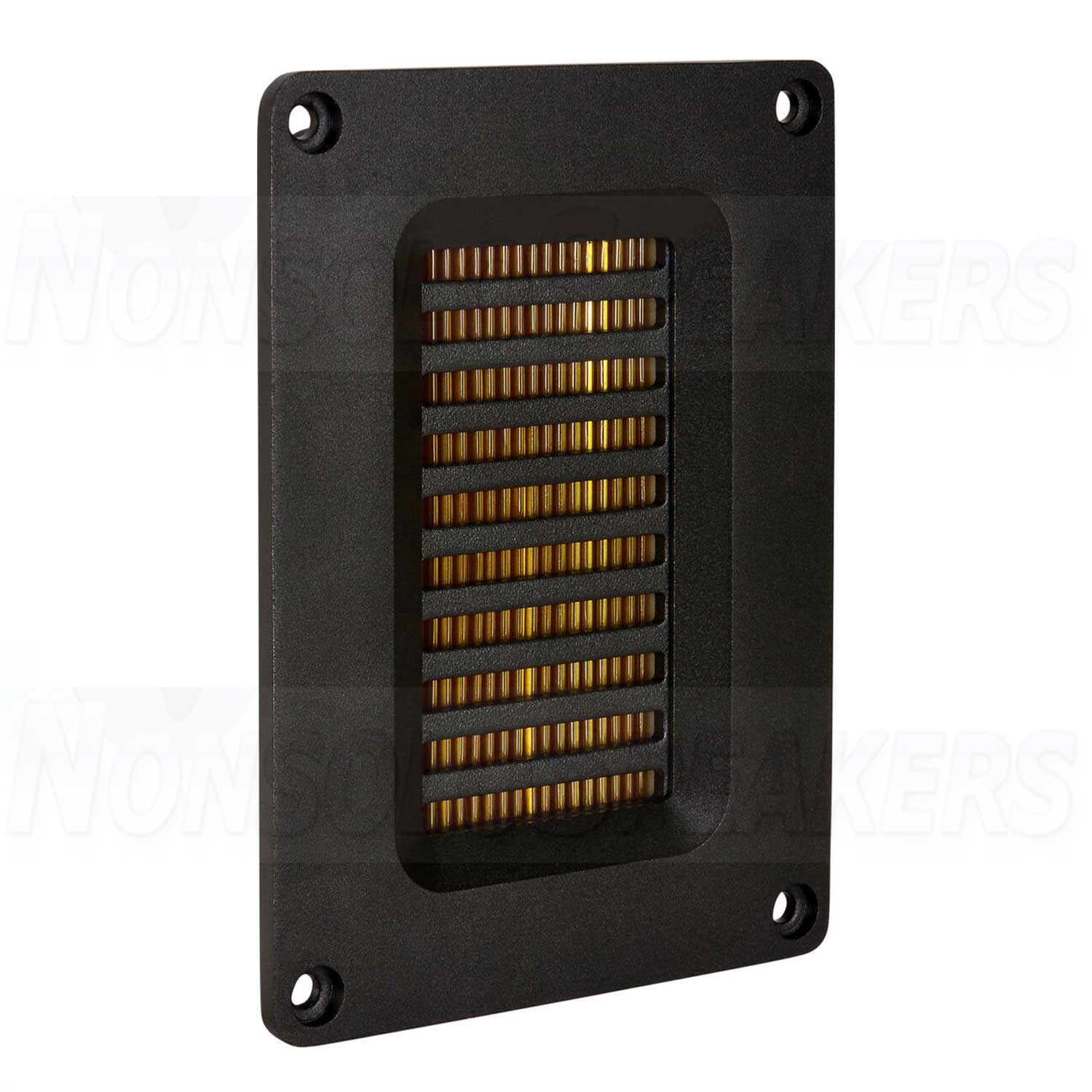

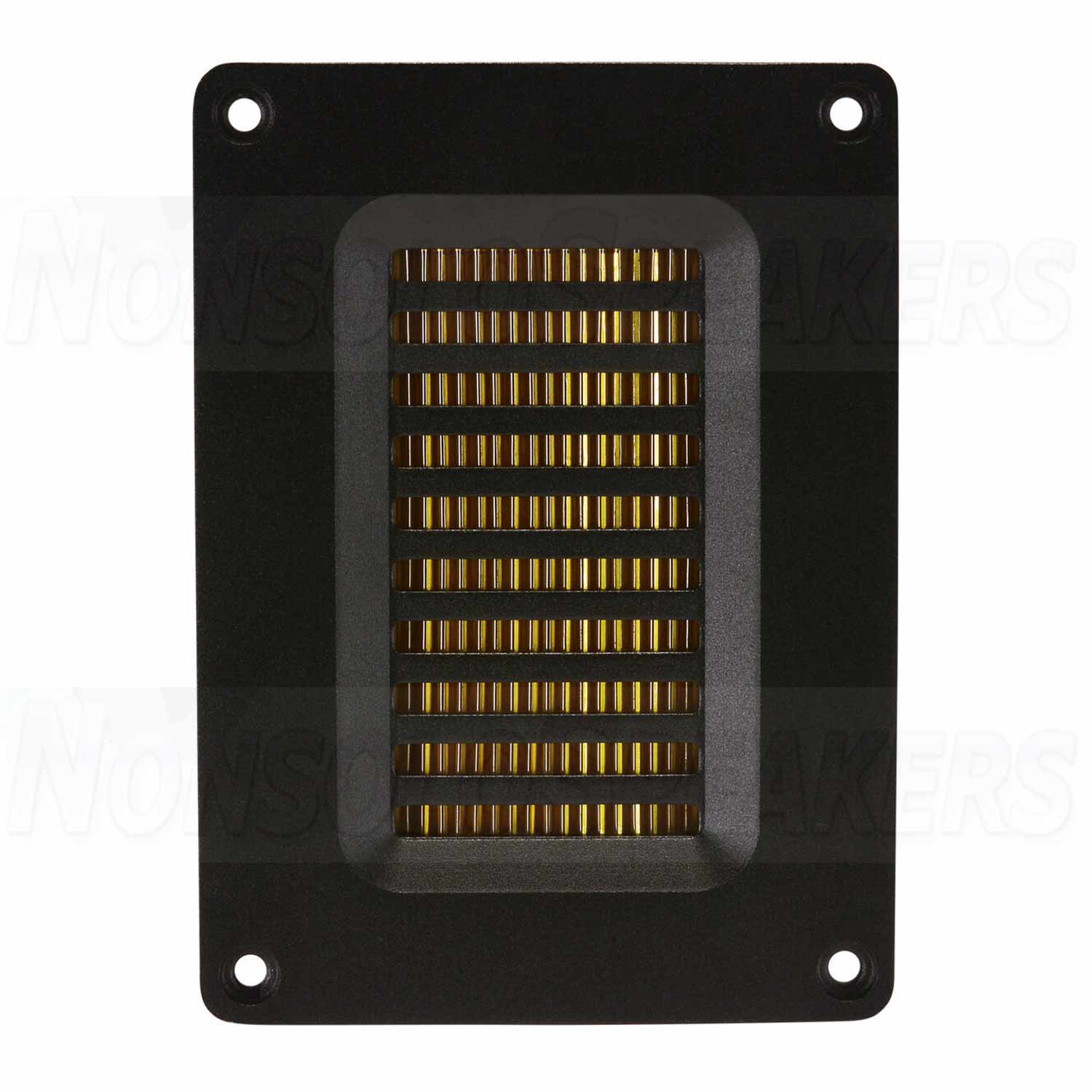

The Dayton Audio AMT3-4's generous radiating area extends response from lower frequencies into the upper midrange, making the transducer great for use as a wideband "mid-tweeter" in a 2-way design with larger woofers, or as a midrange in a 3-way design. The robust metal faceplate adds the distinctive feel of quality, while the sealed rear chamber design eliminates the need for a separate enclosure chamber.

Dayton Audio AMT (Air Motion Transformer) tweeters use groundbreaking transducer technology from the original Heil Air Motion Transformer to provide ultra-clean, detailed, and dynamic treble output. The pleated ribbon diaphragm of an AMT provides a large acoustic radiating area condensed into a compact chassis, for extremely high output and improved power handling.

Product Details

Brand Dayton Audio

Model AMT3-4

Part Number 275-093

UPC 848791000638

Unit of Measure Each

Weight 1.45

Product Specifications

Cutout Diameter 4.45" x 2.68

Tweeter Type AMT Air Motion Transformer

Power Handling (RMS) 25 Watts

Impedance 4Ω

Frequency Response 1,900 to 18,000Hz

Sensitivity 93dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs) 1900Hz

DC Resistance (Re) 3Ω

Mechanical Q (Qms) 6.26

Total Q (Qts) 6.15

Mounting Information

Overall Outside Diameter 5.12" x 3.74"

Depth 0.75"
