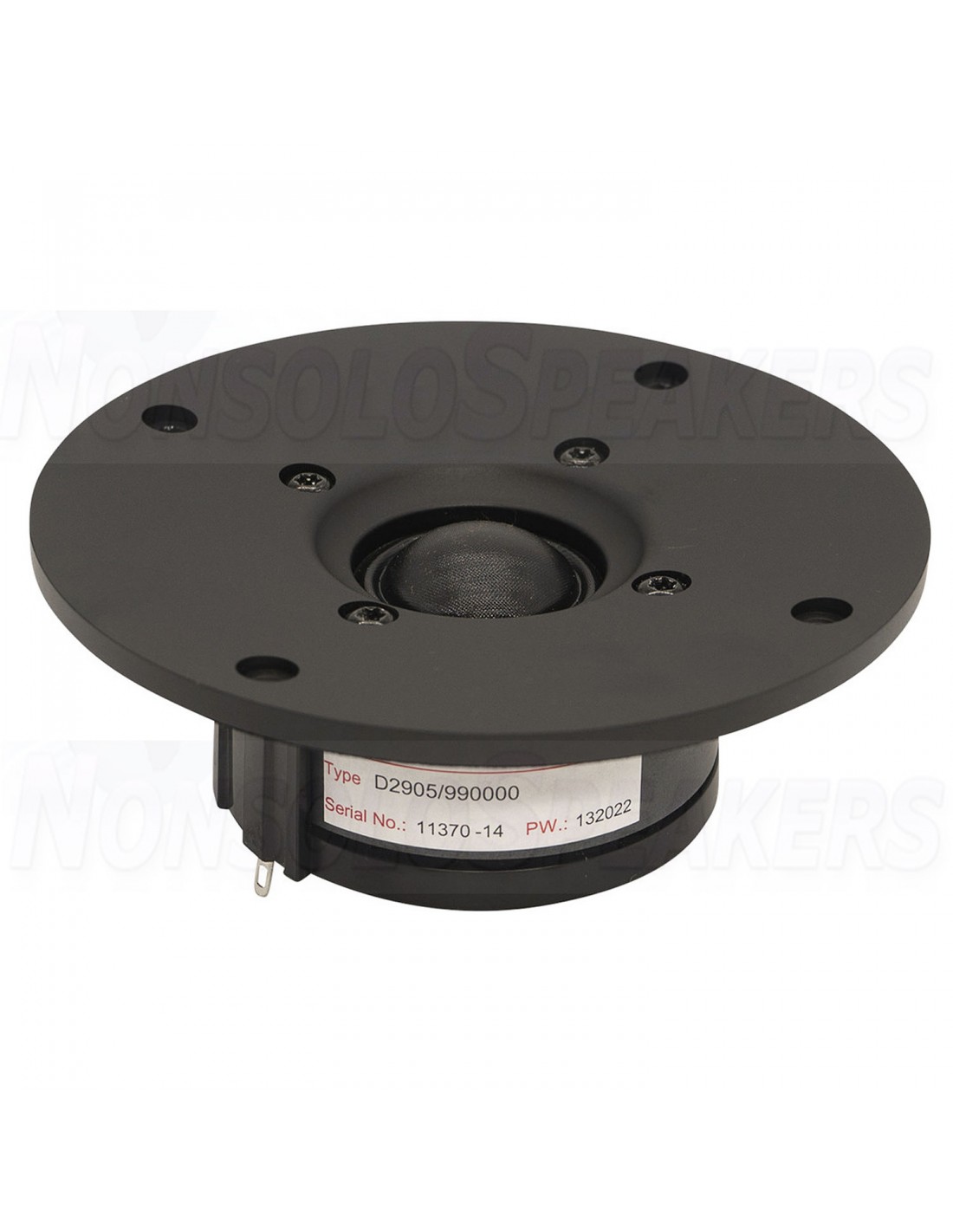

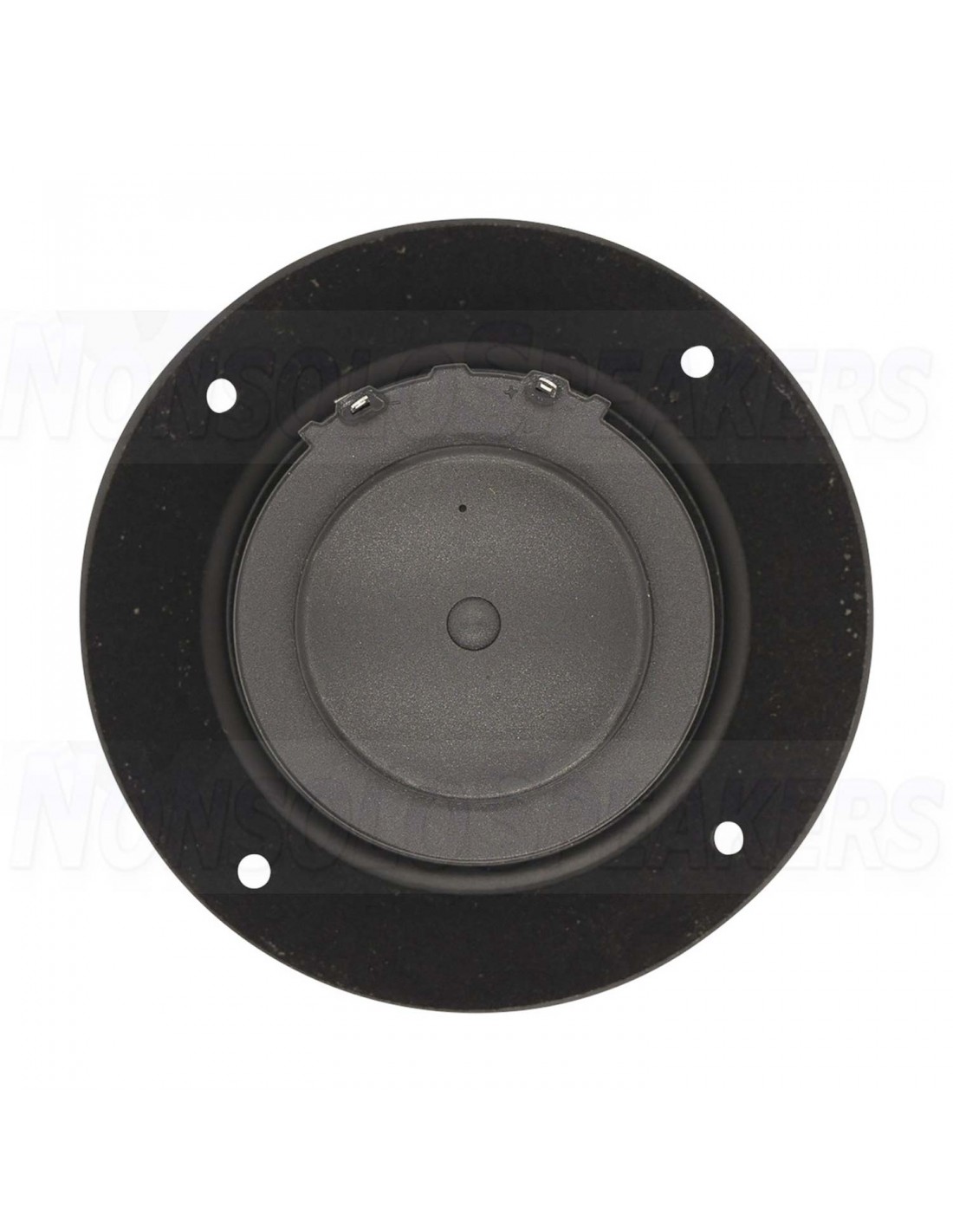

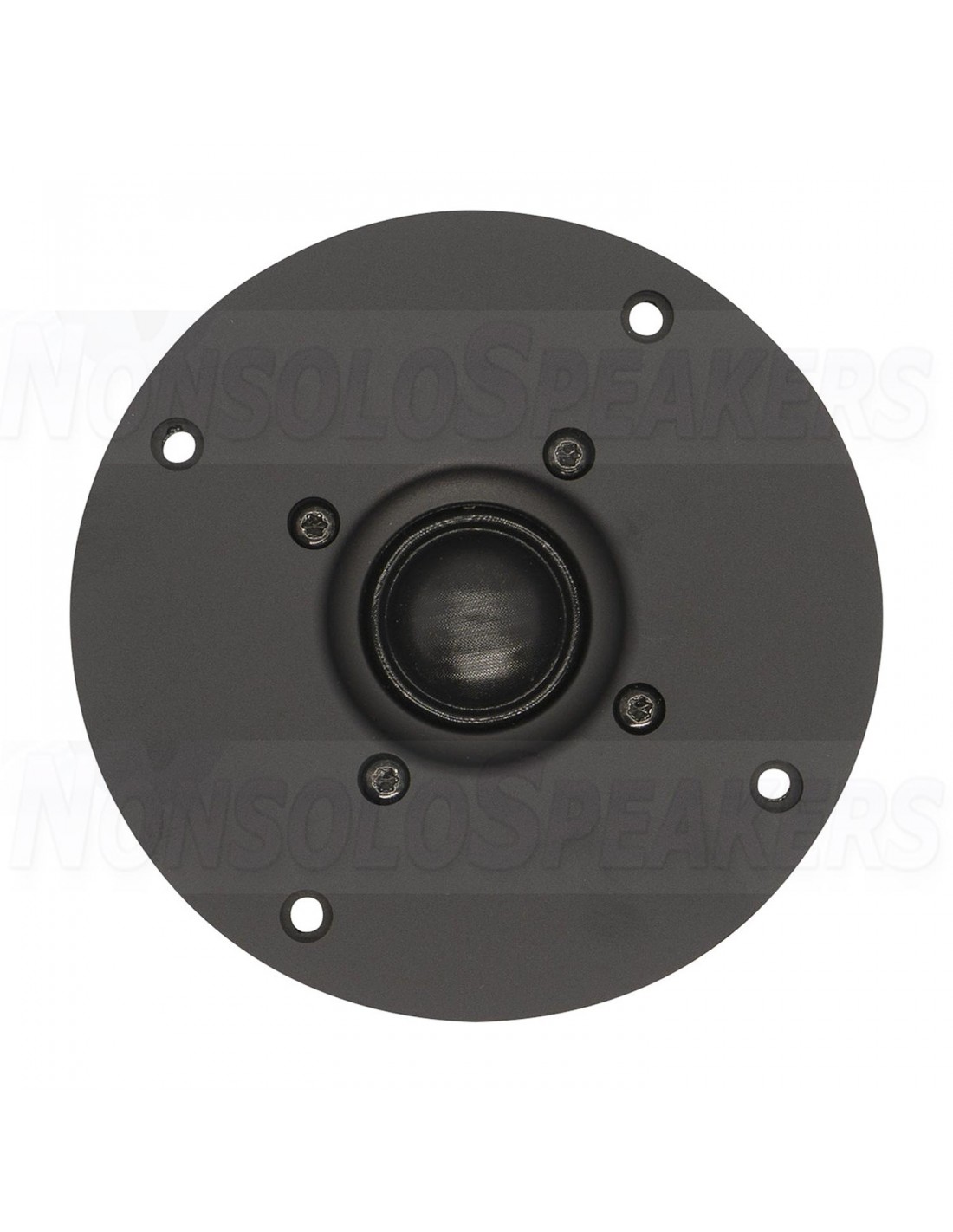

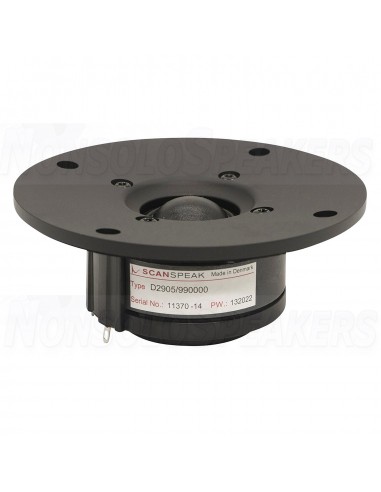

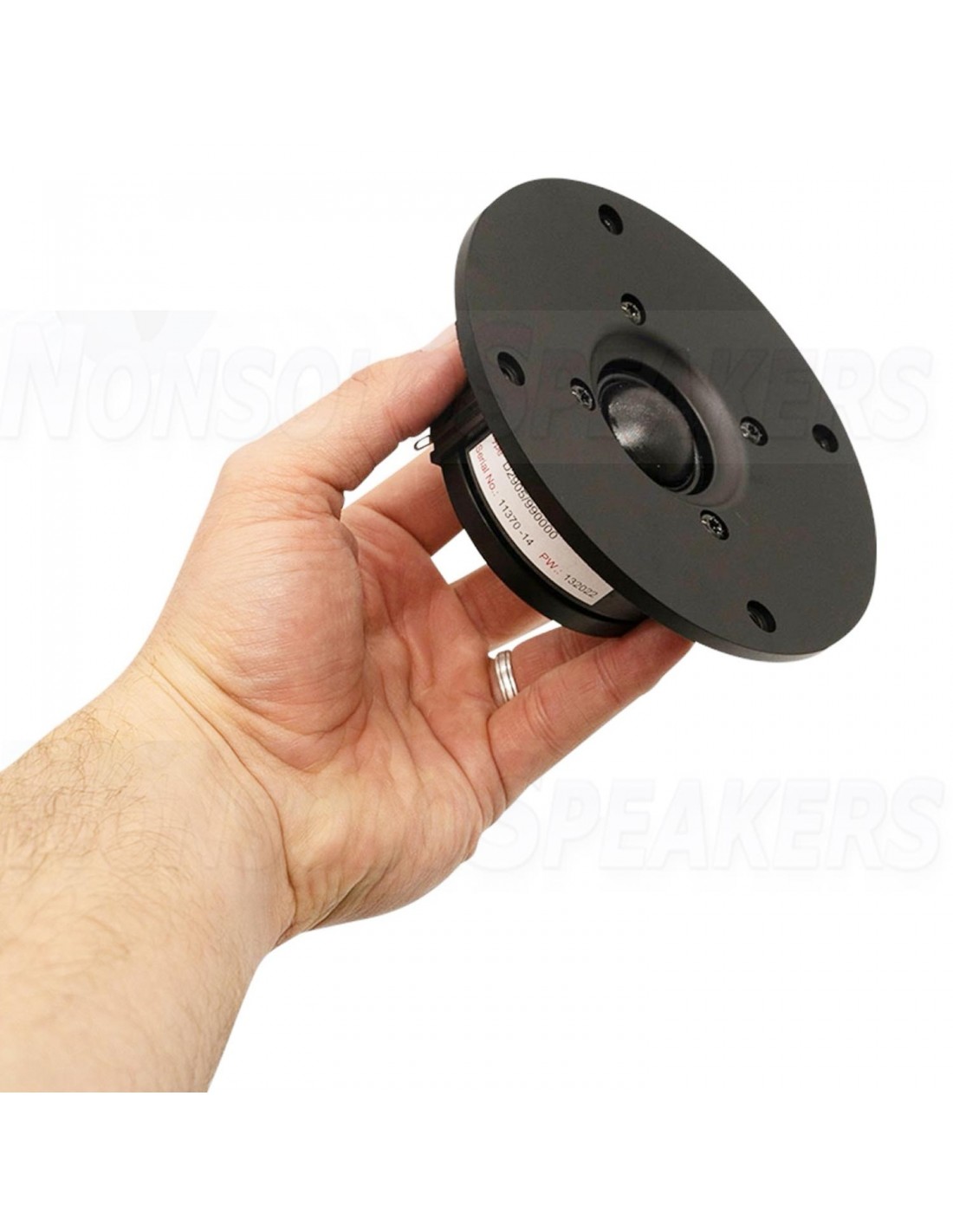

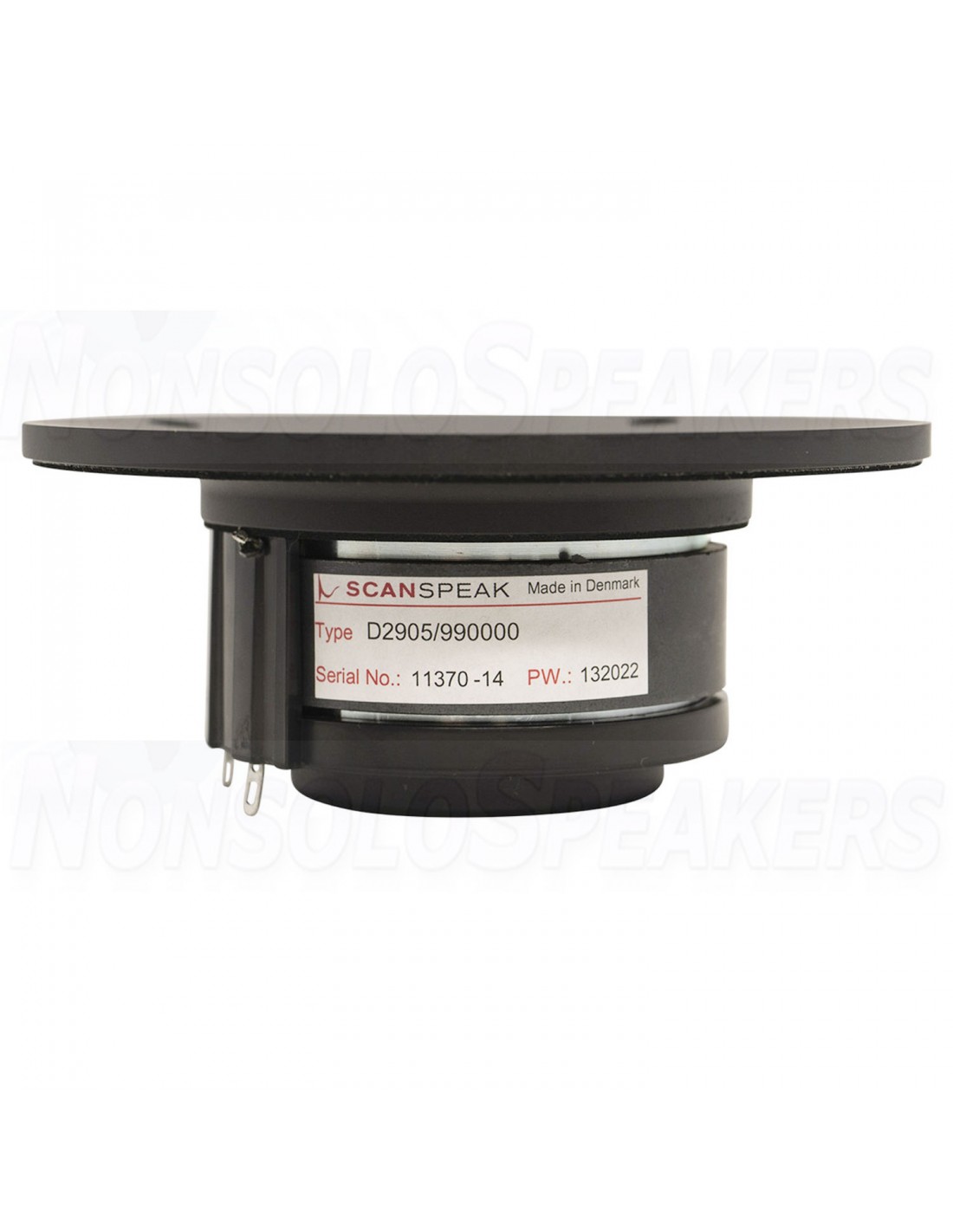

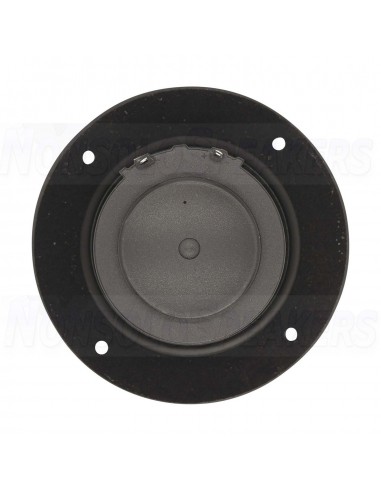

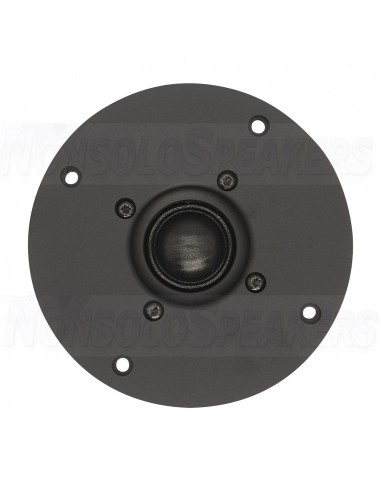

Scan-Speak Revelator D2905/990000 Dome Tweeter

.

Product description

Excellent Sound Reproduction

Patented Symmetrical Drive (SD-2) motor

Large Wave Guide Front

1" Textile Dome Diaphragm

Wide Surround Textile Diaphragm

Black Anodized Machined Alu Face Plate

.

Product details

Scan-Speak Revelator D2905/990000 1" Textile Dome Tweeter

The Scan-speak D2905-990000 is our state of the art tweeter. This "revelation" is a 1" textile dome tweeter that will reach new borders within high-end loudspeaker drive units.

The new magnet system with SD caps and rings that eliminate the electrical phase shift. The new chamber design reduces air noises and compression. The 130mm machined aluminum front plate has more controlled directivity (down to 2Khz). The textile dome is hand coated and a special device is placed behind it to reduce dynamic compression.

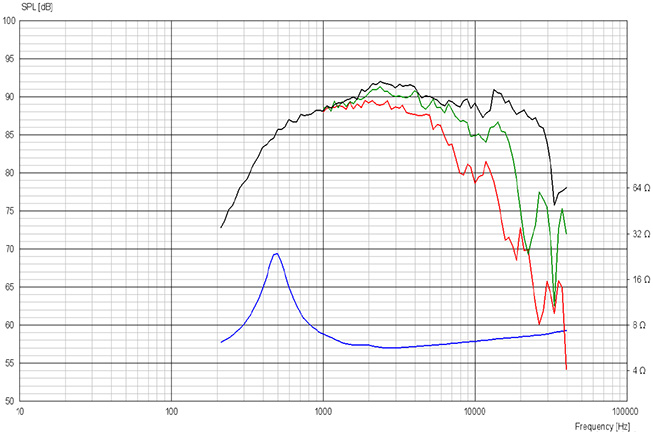

Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 3.5 Tm • Mechanical Compliance of Suspension (Cms): 0.23 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.45 g • Maximum Linear Excursion (Xmax): 0.4 mm • Surface Area of Cone (Sd): 8.5 cm2

.

Specifications
