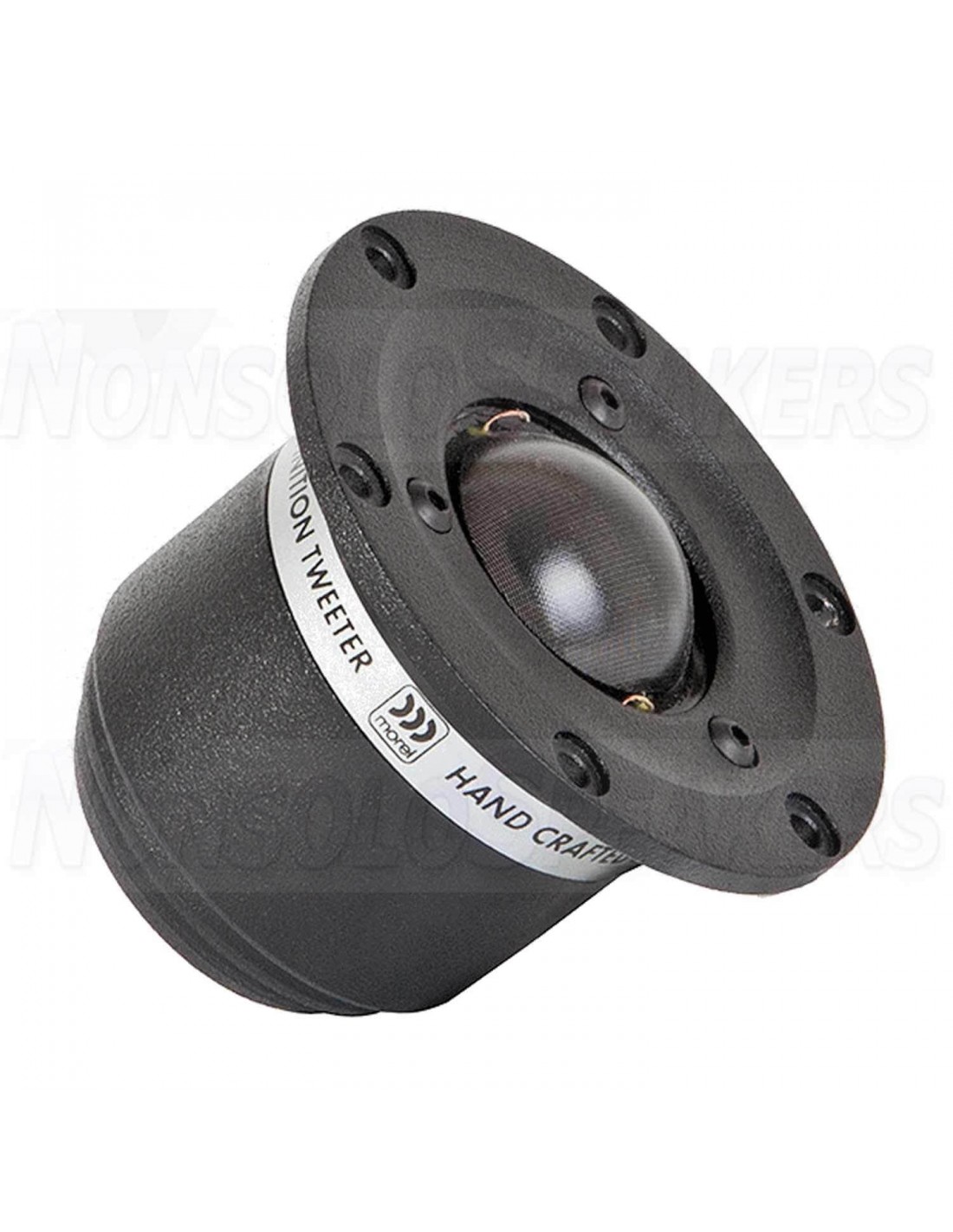

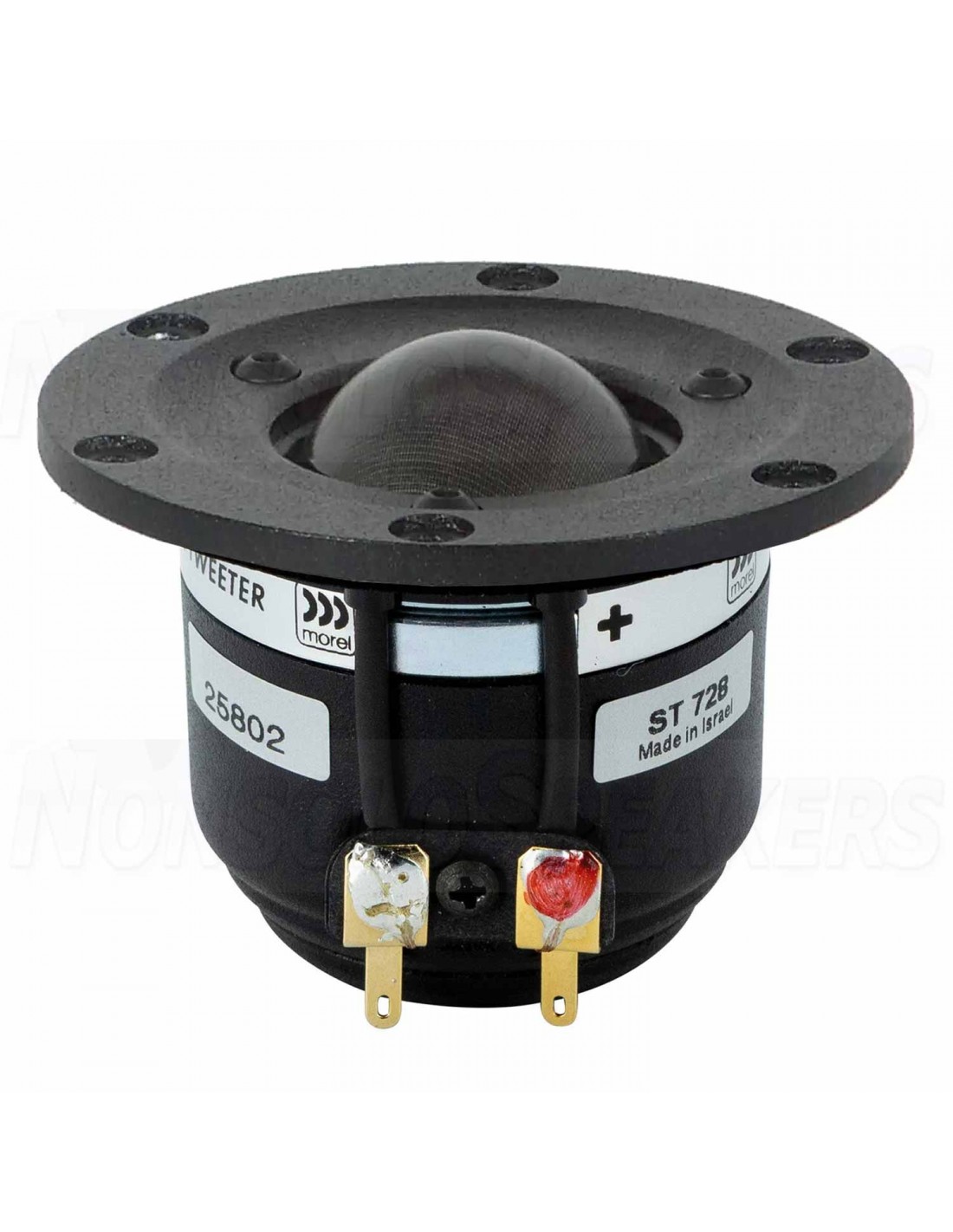

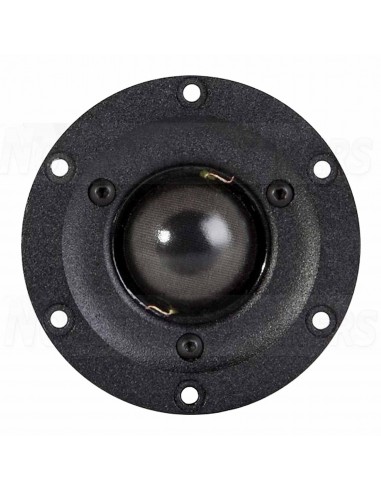

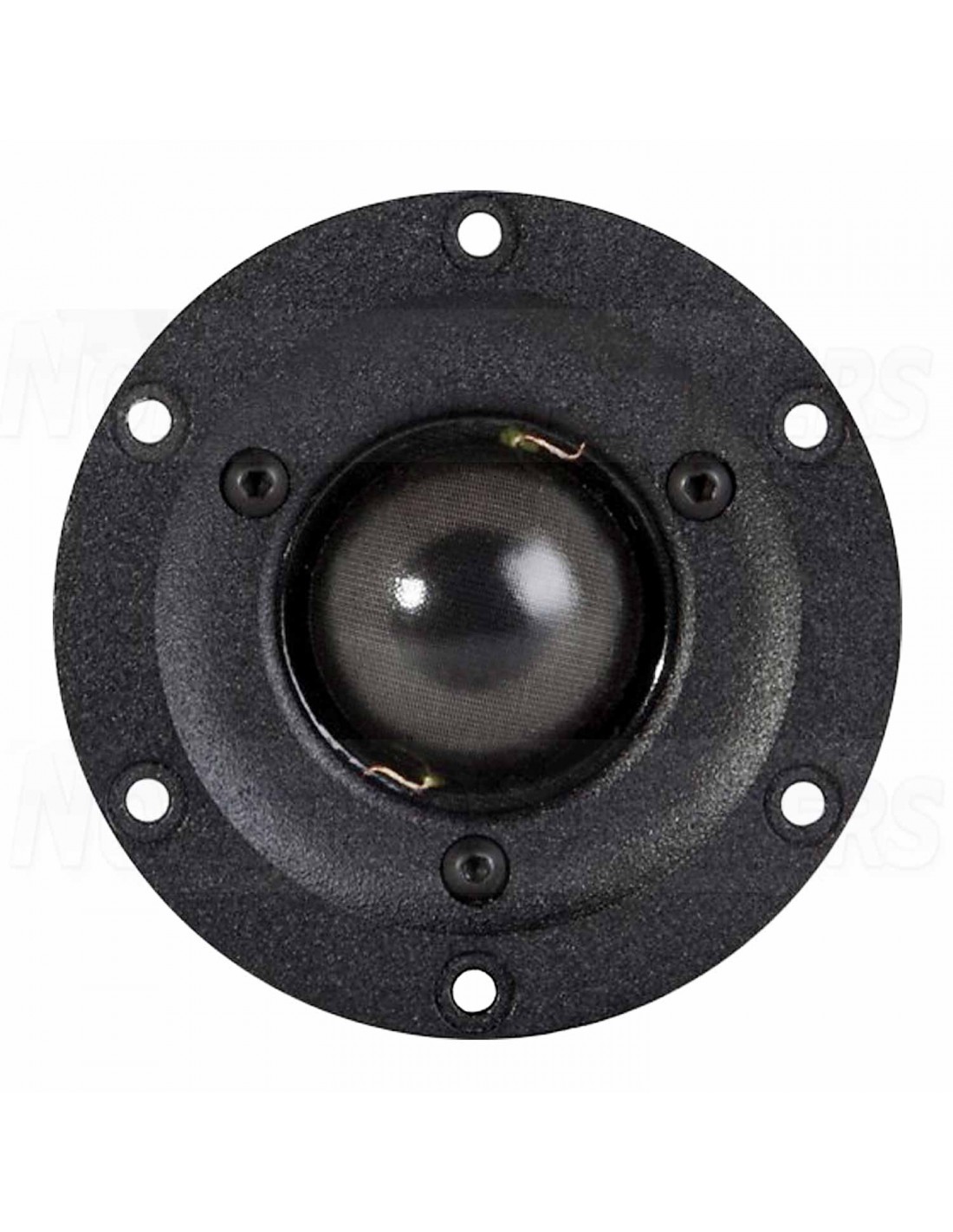

Morel Supreme ST 728 1 "dome tweeter

PRICE FOR 1 PIECE

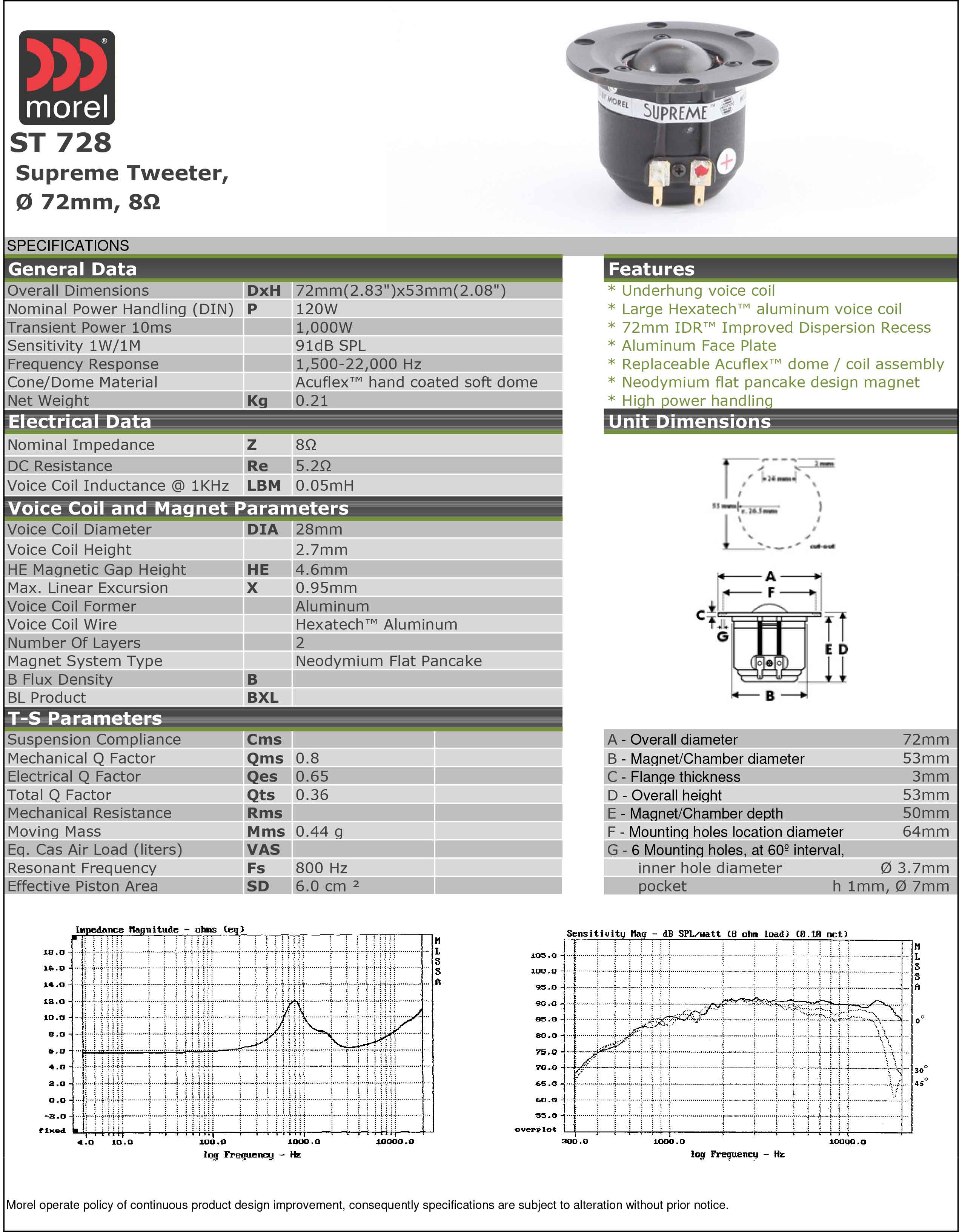

General Data

Overall Dimensions DxH 72mm(2.83")x53mm(2.08")

Nominal Power Handling (DIN) P 120W

Transient Power 10ms 1,000W

Overall Dimensions 91dB SPL

Frequency Response 1,500-22,000 Hz

Overall Dimensions Acuflex™ hand coated soft dome

Net Weight Kg 0.21

-

Electrical Data

Nominal Impedance Z 8Ω

DC Resistance Re 5.2Ω

Voice Coil Inductance @ 1KHz LBM 0.05mH

Voice Coil and Magnet Parameters

Voice Coil Diameter DIA 28mm

Voice Coil Height 2.7mm

HE Magnetic Gap Height HE 4.6mm

Max. Linear Excursion X 0.95mm

Voice Coil Former Aluminum

Voice Coil Wire Hexatech™ Aluminum

Number Of Layers 2

Magnet System Type Neodymium Flat Pancake

-

Thielle/Small Parameters

Mechanical Q Factor Qms 0.8

Electrical Q Factor Qes 0.65

Total Q Factor Qts 0.36

Moving Mass Mms 0.44 g

Resonance Frequency Fs 800 Hz

Effective Piston Area SD 6.0 cm ²

-

Features

Underhung voice coil

Large Hexatech™ aluminum voice coil

72mm IDR™ Improved Dispersion Recess

Aluminum Face Plate

Replaceable Acuflex™ dome/coil assembly

Neodymium flat pancake design magnet

High power handling
