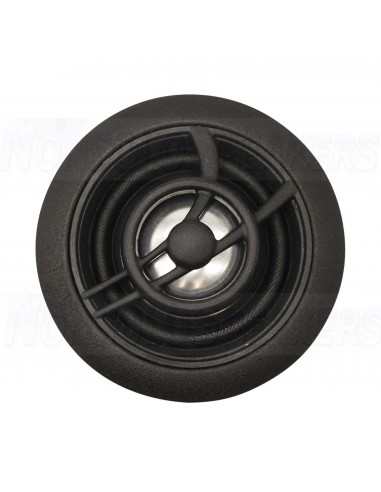

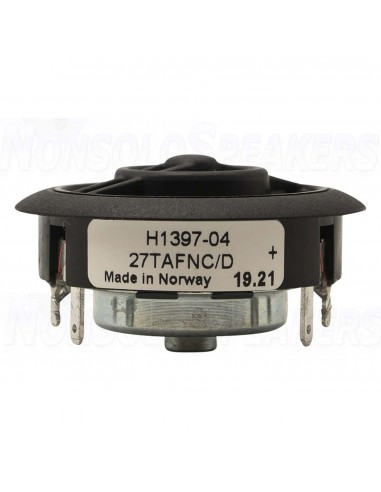

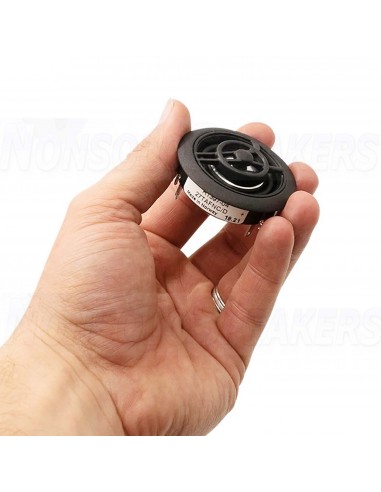

SEAS Prestige 27TAFNC/D - H1397-04 Dome Tweeter

.

Compact neodymium magnet tweeter for high-quality speaker design in small cabinets and automobiles. Aluminium/magnesium alloy diaphragm with pistonic behaviour throughout the audible frequency range, resulting in a good dispersion also above 10kHz.

Wide roll Sonomex surround together with a double chamber magnet system results in a low resonance frequency. The critically designed diffusor compensates for a slight axial roll off towards 20 kHz and reduces resonances above 20kHz.

Very low magnetic stray fields makes this unit suitable for A/V systems. Voice coil immersed in magnetic fluid, allowing high power handling capacity and simplified crossover design.

.

Highlights

• Aluminium/magnesium dome
• Neodymium magnet
• Voice coil immersed in magnetic fluid

.

Technical Specifications:

• Article number 27TAFNC/D
• EAN 8785256843770
• Tweeter Type Dome Tweeter
• Tweeter Series Prestige
• Cone / Dome Diameter 25 mm | 1"
• Power Handling (RMS) 90 Watts
• Power Handling (max) 220 W
• Impedance (Z) 4 Ω
• Sensitivity (SPL at 1m / 2.83V) 90 dB
• Resonant Frequency (Fs) 1170 Hz
• Voice Coil Inductance (Le) 0.03 mH
• Recommended cut frequency 2500 - 30000 Hz
