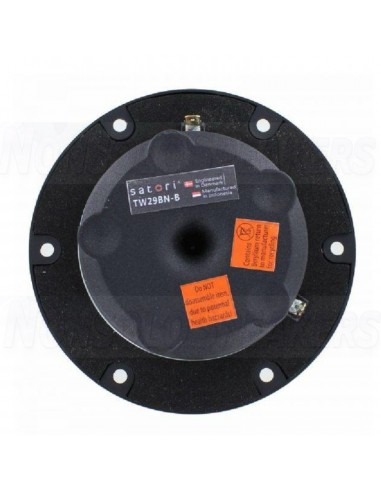

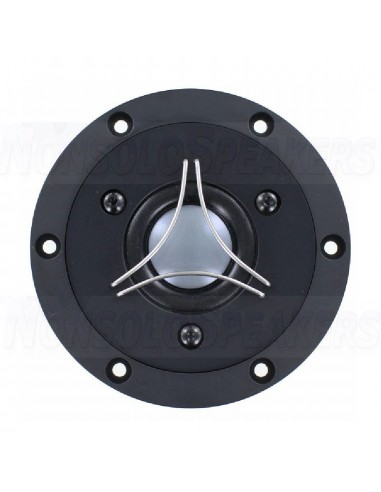

SB Acoustics Satori TW29BN-B Dome Tweeter

.

Product description

Beryllium dome for non-resonant high frequency extension

Two part aluminum faceplate with integrated mechanical decoupling

Dual balanced compression chambers for improved dynamics

Dual copper caps for absolute minimum voice coil inductance and minimum phase shift

High saturation neodymium motor system with T-shaped pole piece for lower distortion

Non-reflective cast aluminum chamber with optimized damping for improved dynamics

Shallow flow optimized magnet structure for optimum coupling to rear chamber

CCAW voice coil for low moving mass

Long life silver lead wires

Low resonance frequency for extended range

.

Product details

SB Acoustics Satori TW29BN Beryllium Dome Tweeter

The new Satori Beryllium dome tweeter has arrived!  Beryllium is known for its open and spatial sound, often described as holographic.  The self-damping properties of Beryllium allow for an extended response without a huge spike in the response at higher frequencies seen in most metal dome tweeters.  All dome materials have a different tonal and spatial presentation.  Beryllium has a real positive difference, providing an experience unlike all other dome materials.

Specifications: BL Product (BL): 3.1 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.46 g • Maximum Linear Excursion (Xmax): 0.25 mm • Surface Area of Cone (Sd): 9.6 cm2

.
