SHIPMENT IN 7-10 WORKING DAYS

€37.08

No review at the moment

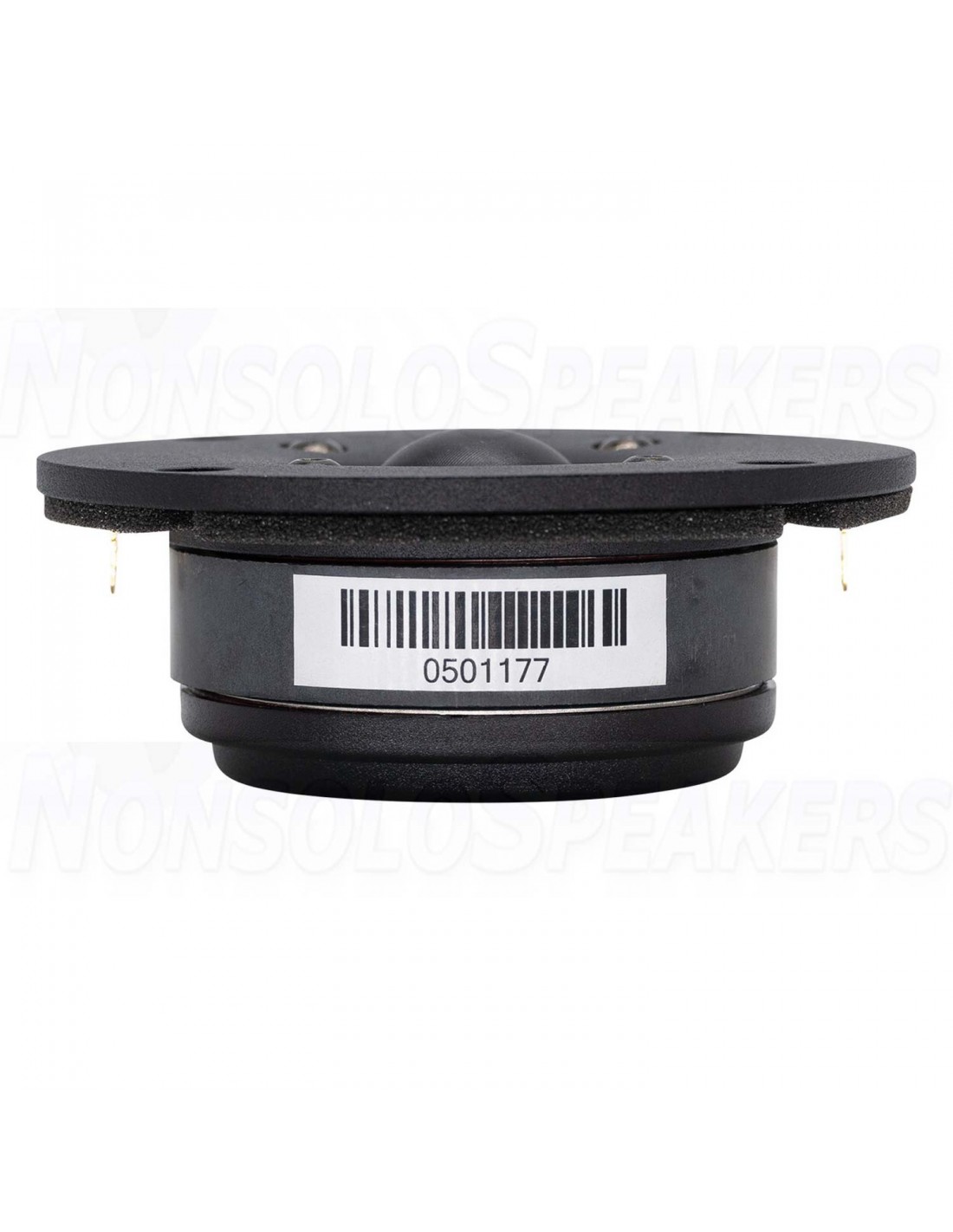

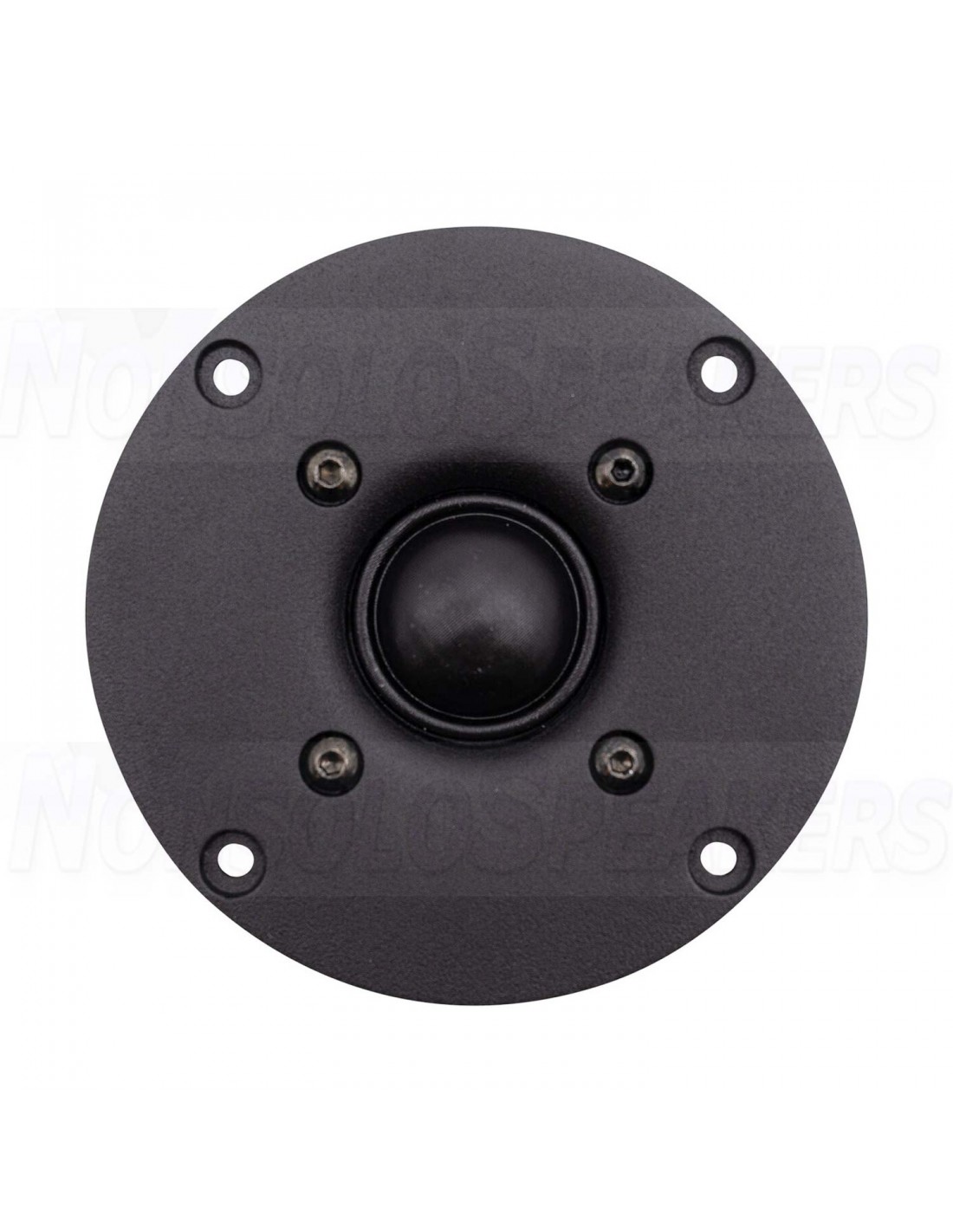

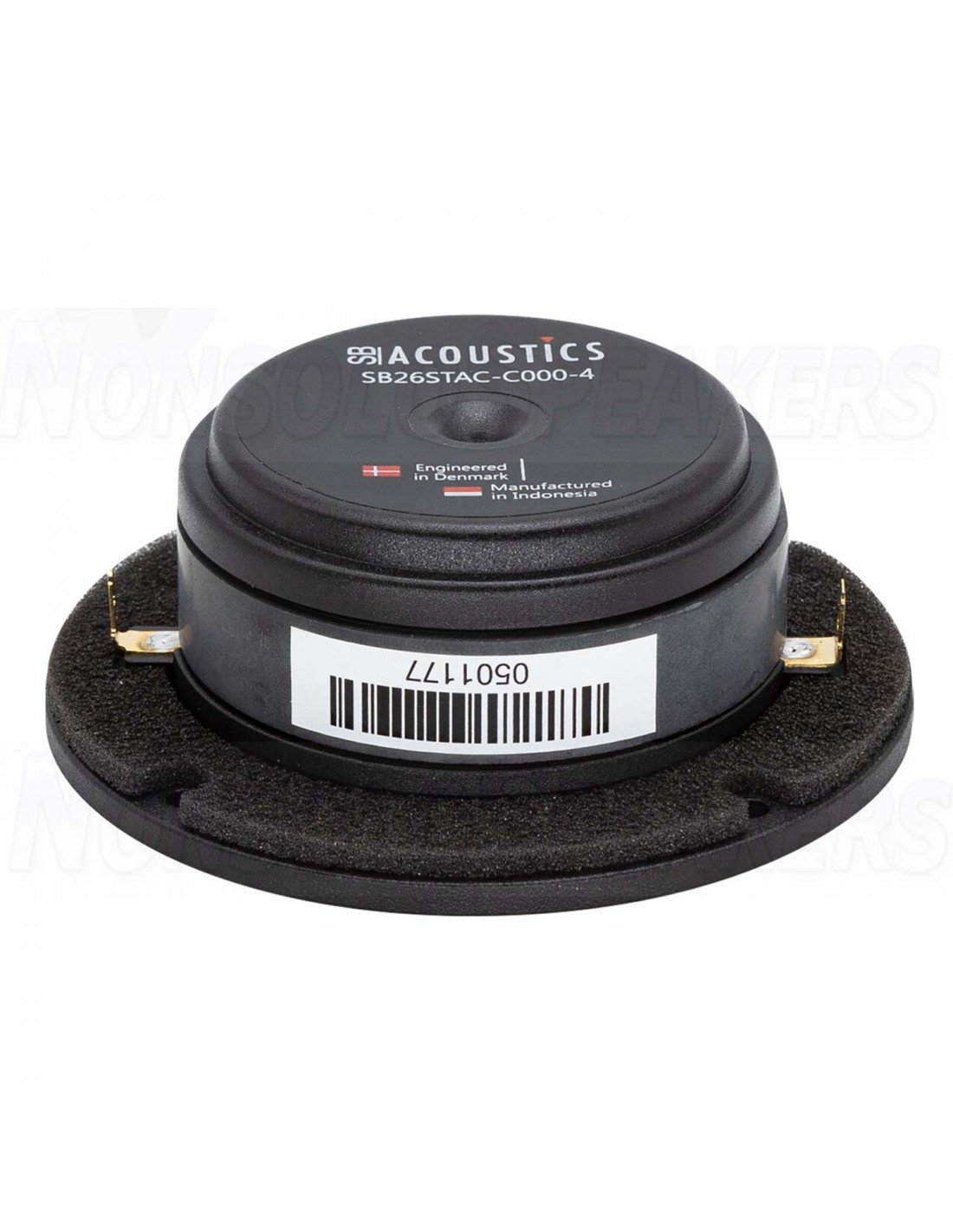

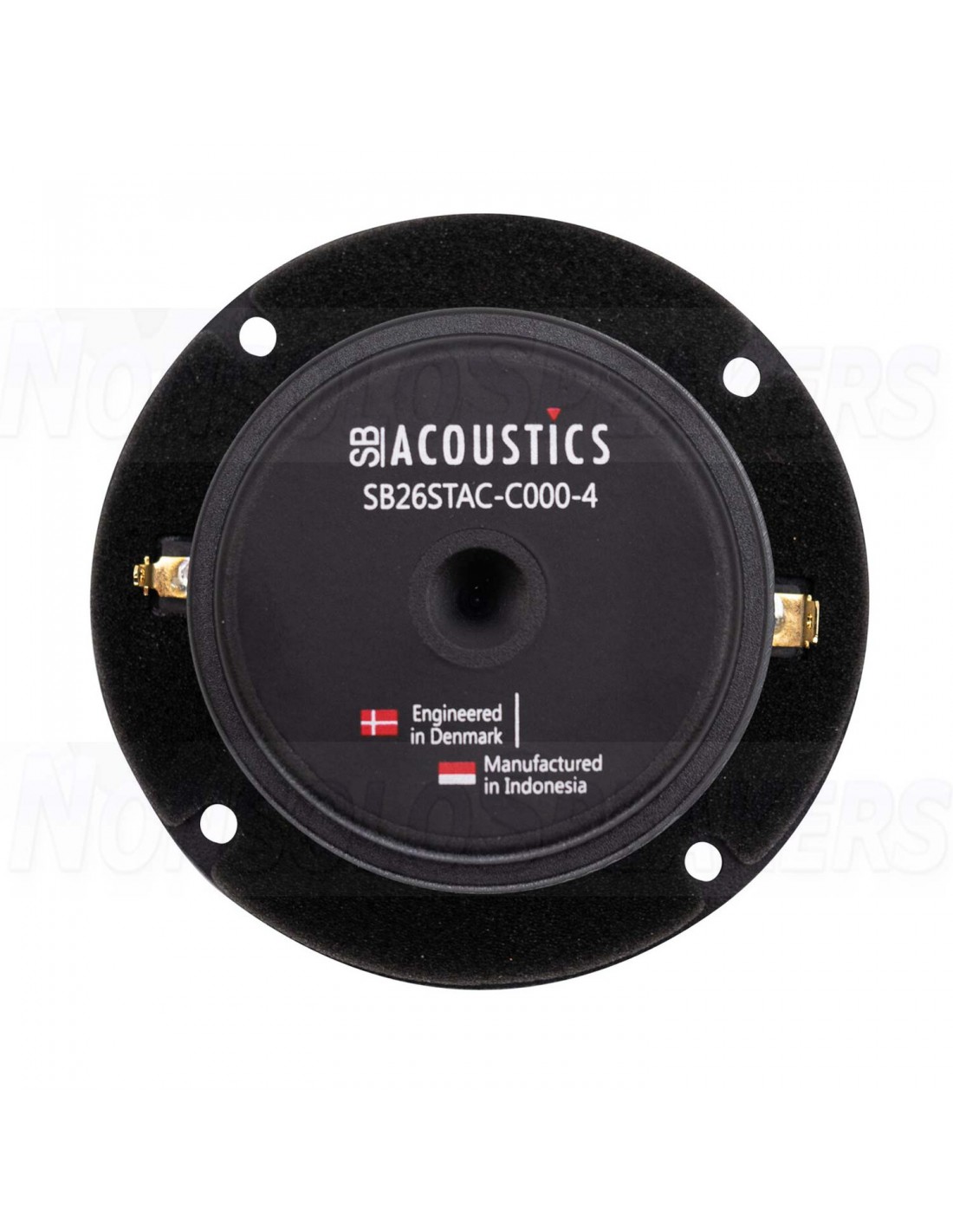

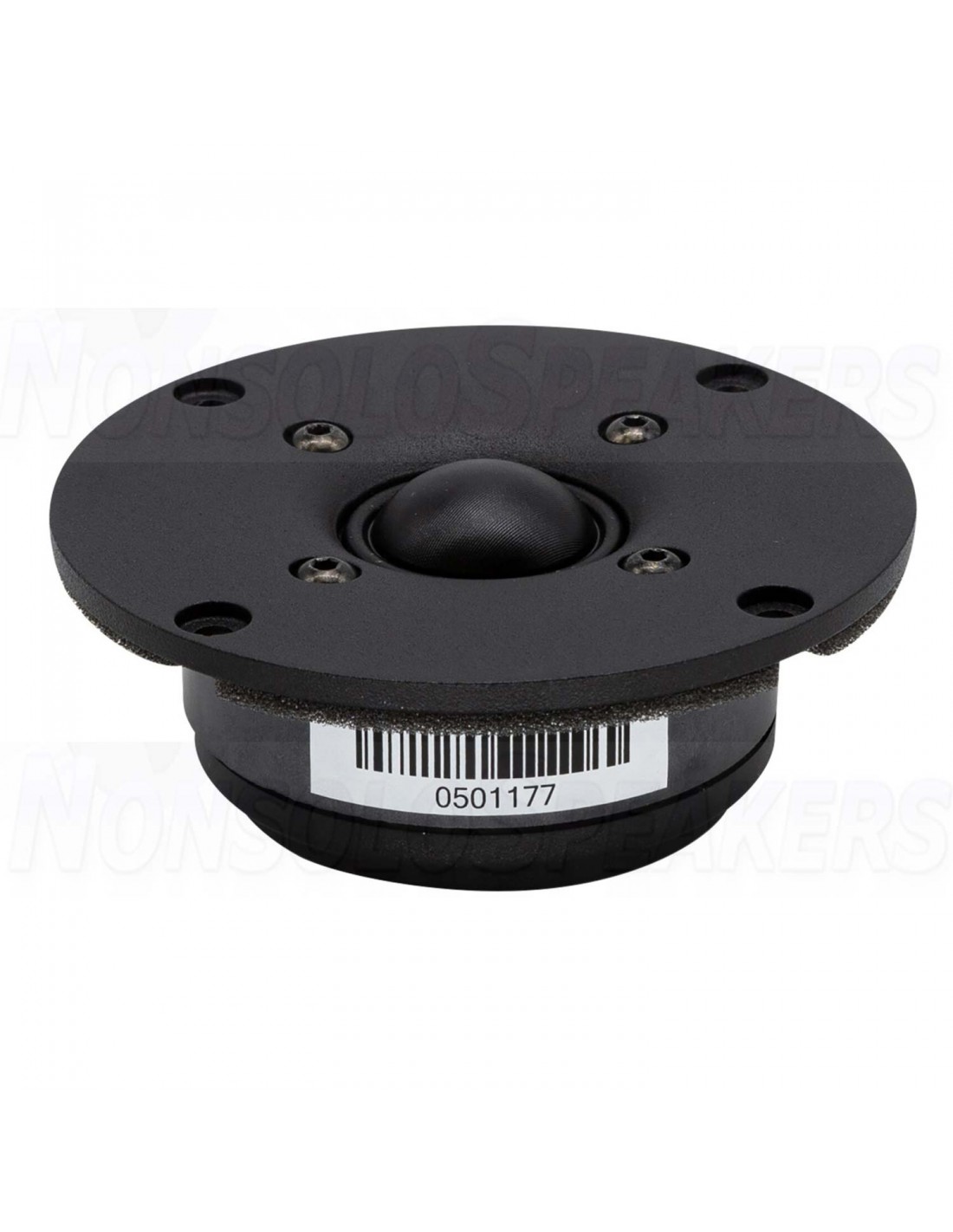

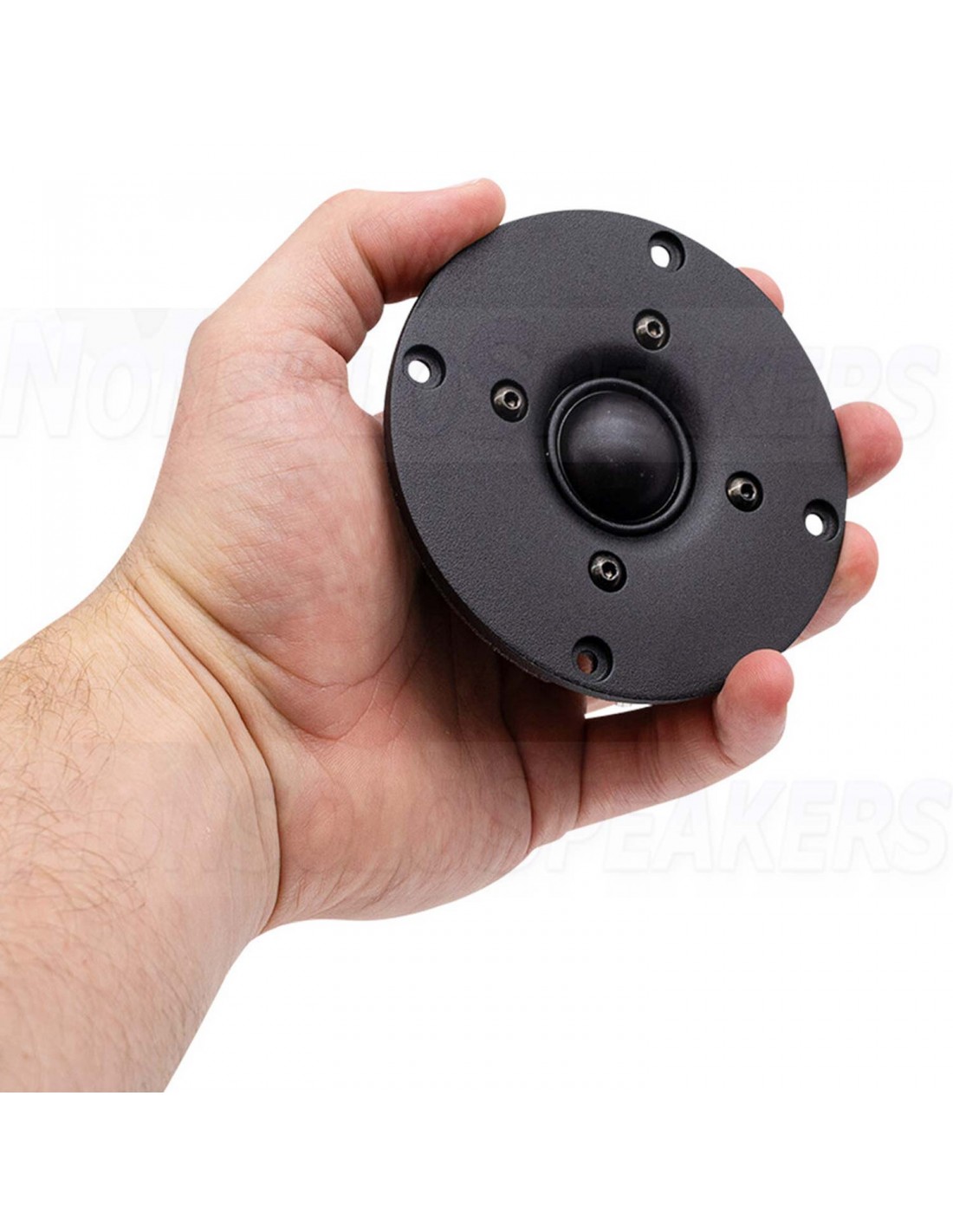

SB ACOUSTICS SB26STAC-C000-4 Tweeter 26mm

The SB Acoustics SB26STAC-C000-4 is a 4 ohm coated textile dome tweeter using a 1” voice coil together with copper cap pole piece. The 100mm aluminum faceplate enhances the sturdy build quality and looks.

Estimated Shipping Costs

Shipping Costs

€69.00

Shipping Time

.

Want to check another country or courier?

Description
Product Details

SB ACOUSTICS SB26STAC-C000-4 Tweeter 26mm

The SB Acoustics SB26STAC-C000-4 is a 4 ohm coated textile dome tweeter using a 1” voice coil together with copper cap pole piece. The 100mm aluminum faceplate enhances the sturdy build quality and looks.

-

Highlights

Cast aluminum faceplate
Copper cap for reduced voice coil inductance and minimum phase shift
Non-reflective rear chamber with optimized damping for improved dynamics
Flow optimized vented pole piece for optimum coupling to rear chamber
Fine weave soft fabric dome for smooth frequency response
Saturation controlled motor system for low distortion
CCAW voice coil for low moving mass
Long life silver lead wires
Low resonance frequency

-

Specifications

Article numberSB26STAC-C000-4

Tweeter TypeDome

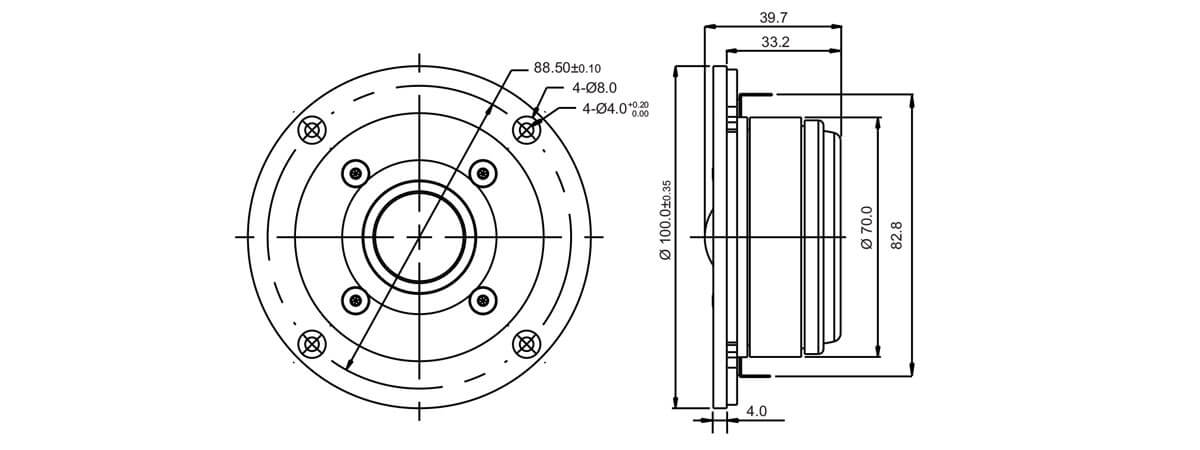

Cone / Dome Diameter25 mm | 1"

Power Handling (RMS)120 Watts

Impedance (Z)4 Ω

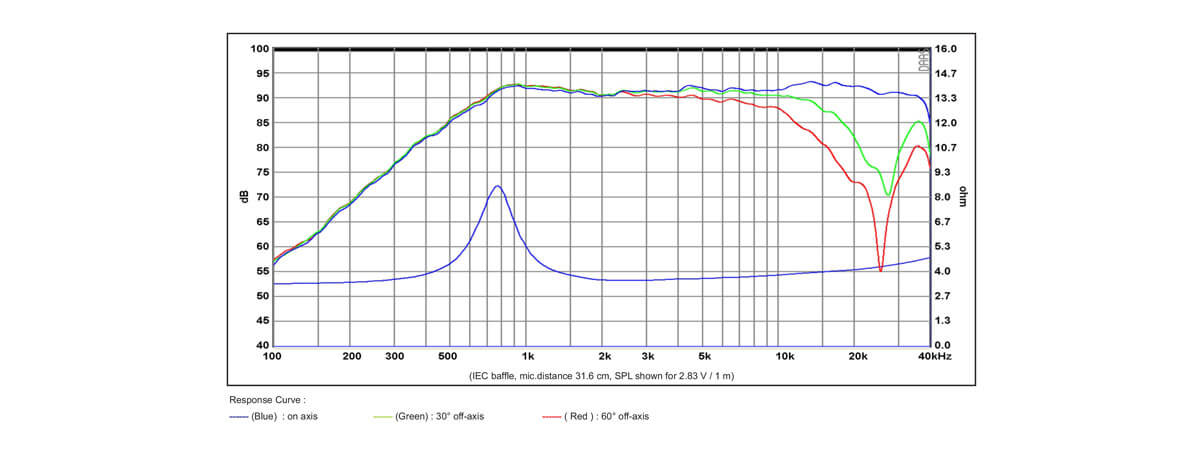

Sensitivity (SPL at 1m / 2.83V)91 dB

Resonant Frequency (Fs)750 Hz

DC Resistance (Re)3.2 ohms

Voice Coil Inductance (Le)0.04 mH

Mechanical Q (Qms)2.5

Electromagnetic Q (Qes)1.7

Total Q (Qts)1.00

Reference SB26STAC-C000-4

In stock 2 Items
