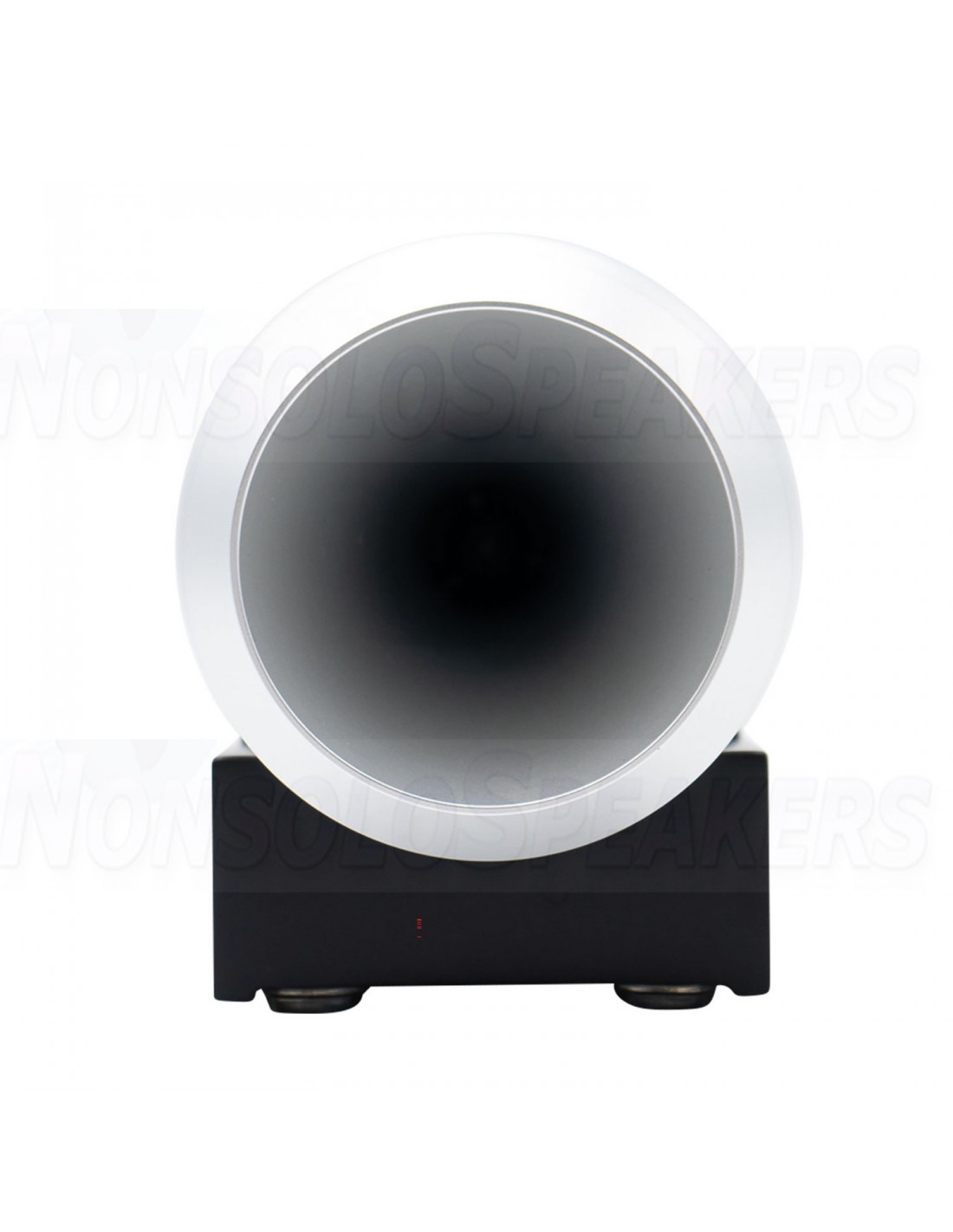

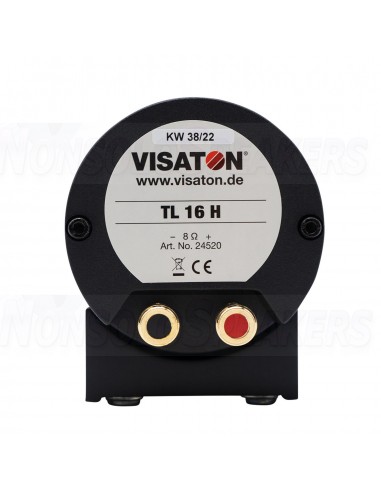

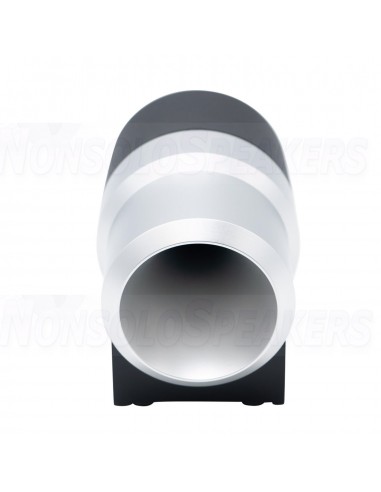

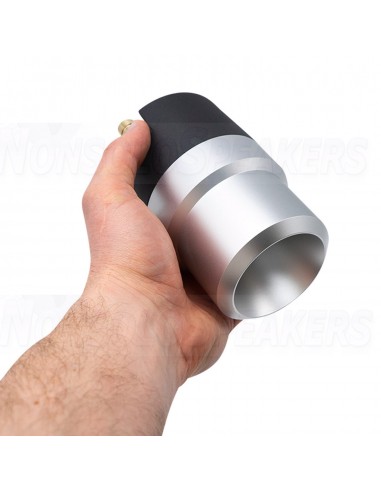

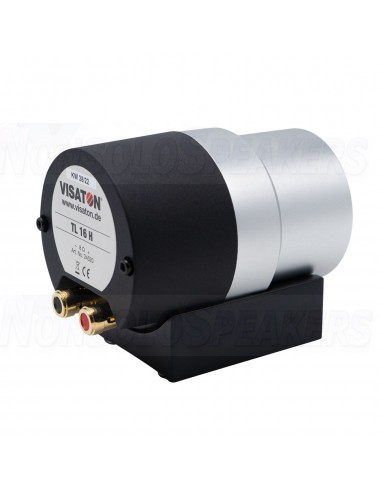

Visaton TL 16 H Horn Dome Tweeter
Visaton TL 16 H Horn Dome Tweeter
Visaton TL 16 H Horn Dome Tweeter
Visaton TL 16 H Horn Dome Tweeter
Visaton TL 16 H Horn Dome Tweeter
Visaton TL 16 H Horn Dome Tweeter
Visaton TL 16 H Horn Dome Tweeter
Visaton TL 16 H Horn Dome Tweeter
Visaton TL 16 H Horn Dome Tweeter
Visaton TL 16 H Horn Dome Tweeter
Visaton TL 16 H Horn Dome Tweeter
Visaton TL 16 H Horn Dome Tweeter
Visaton TL 16 H Horn Dome Tweeter
Visaton TL 16 H Horn Dome Tweeter

Visaton TL 16 H Horn Dome Tweeter

Visaton TL 16 H Horn Dome Tweeter

High-End horn driver for the high-frequency range above 5,000 Hz.

SHIPMENT IN 5-7 WORKING DAYS
€284.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton TL 16 H Horn Dome Tweeter

High-End horn driver for the high-frequency range above 5,000 Hz.

.

Highlights

  • Aluminum-titanium alloy diaphragm
  • Very dynamic pulse response
  • High sensitivity

.

Product Details

Visaton TL 16 H High-End horn driver
The extremely light aluminum titanium alloy diaphragm shows, apart from a very dynamic pulse response, a very linear frequency response.
The powerful strontium-ferrite magnet and the 16 mm voice-coil are a guarantee for highest efficiency.

Technical Specifications

  • Article number TL 16 H
  • Tweeter Type Horn
  • Tweeter Series High-End
  • Power Handling (RMS) 150 Watts
  • Power Handling (max) 200 Watts
  • Impedance (Z) 8 Ω
  • Sensitivity (SPL at 1m / 2.83V) 100 dB
  • Resonant Frequency (Fs) 6000 Hz
  • DC Resistance (Re) 6.9 ohms
  • Voice Coil Inductance (Le) 0.17 mH
  • Overall Outside Diameter 84 mm
  • Depth 135 mm
  • Recommended cut frequency >5,000 Hz

Visaton TL 16 H
