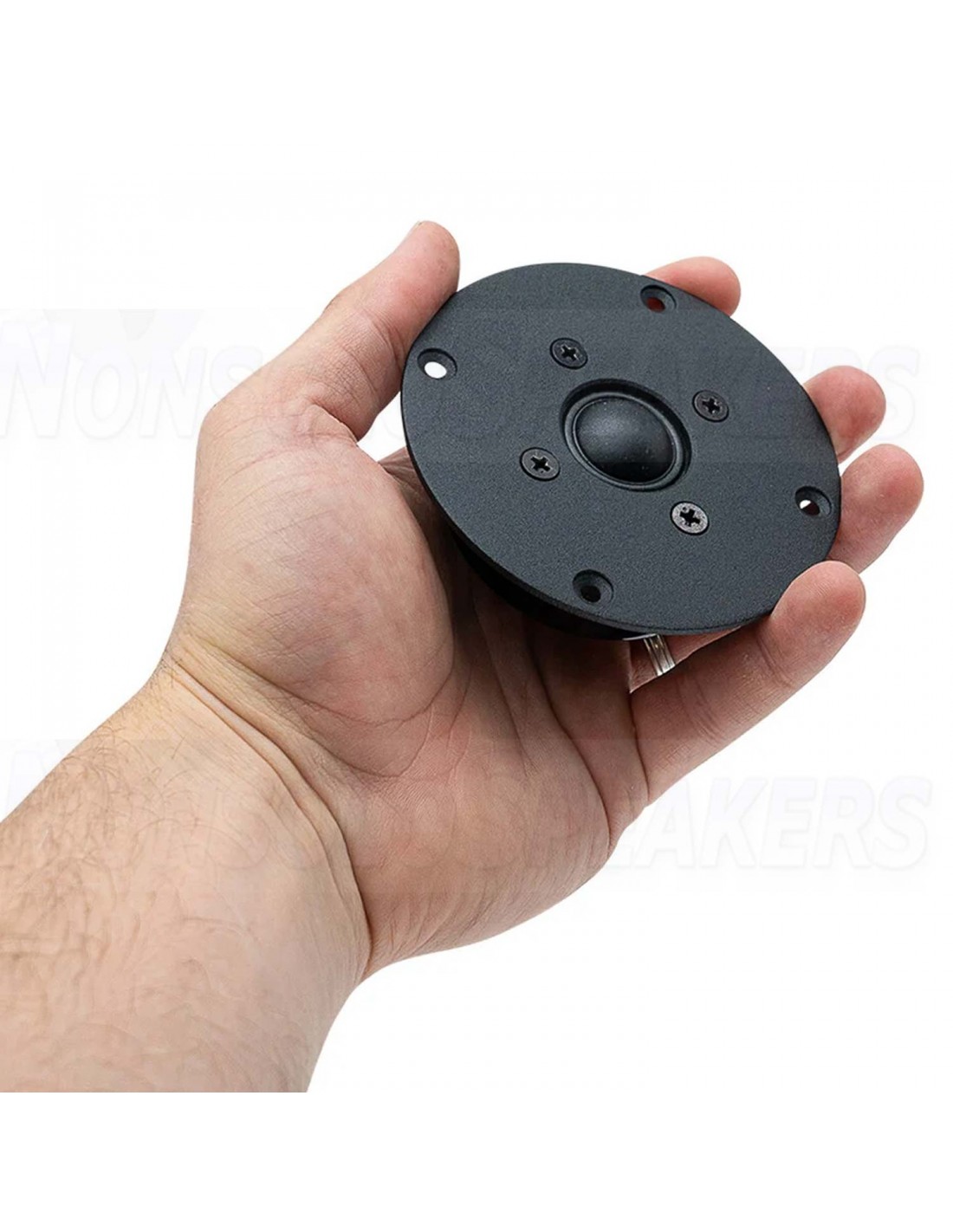

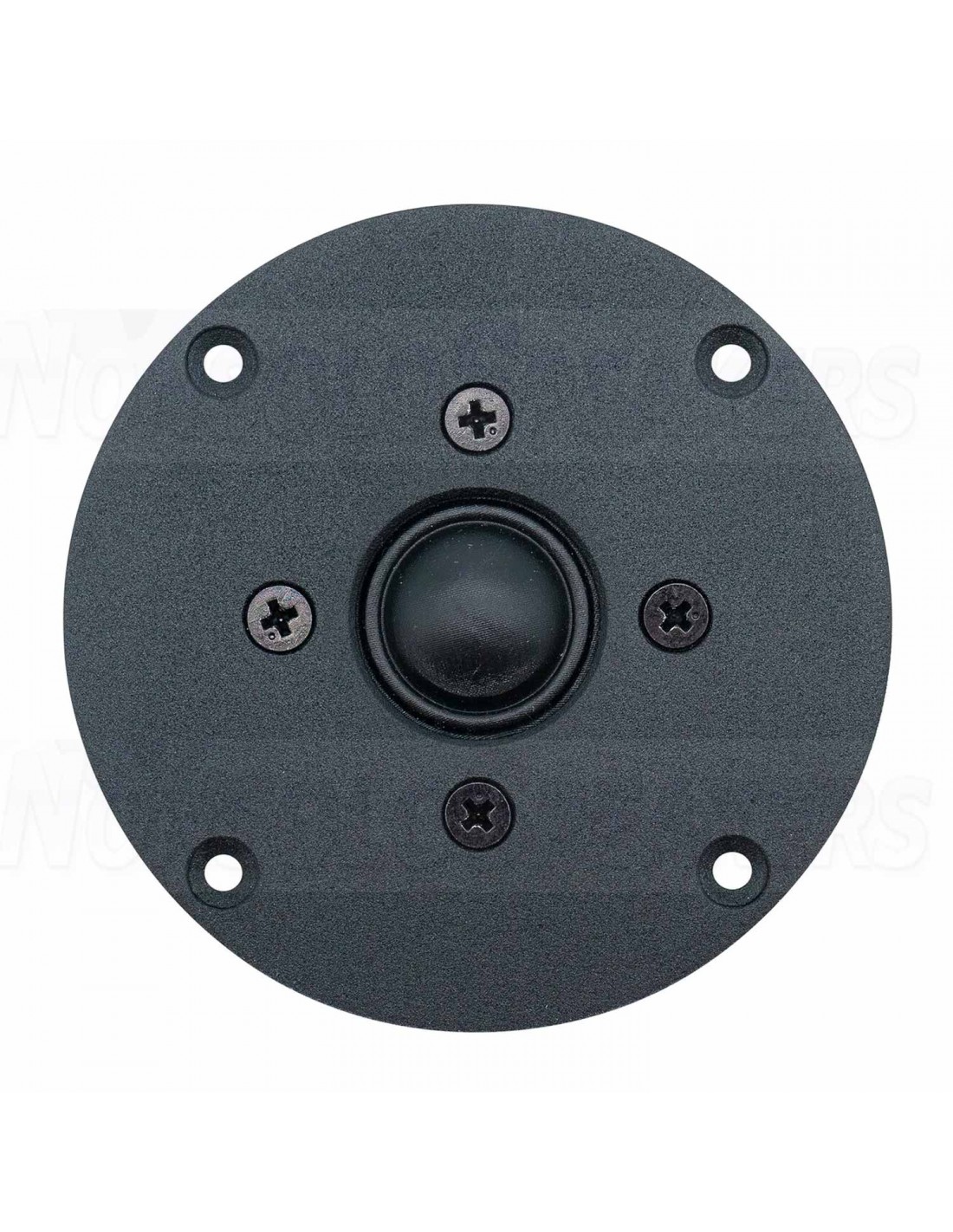

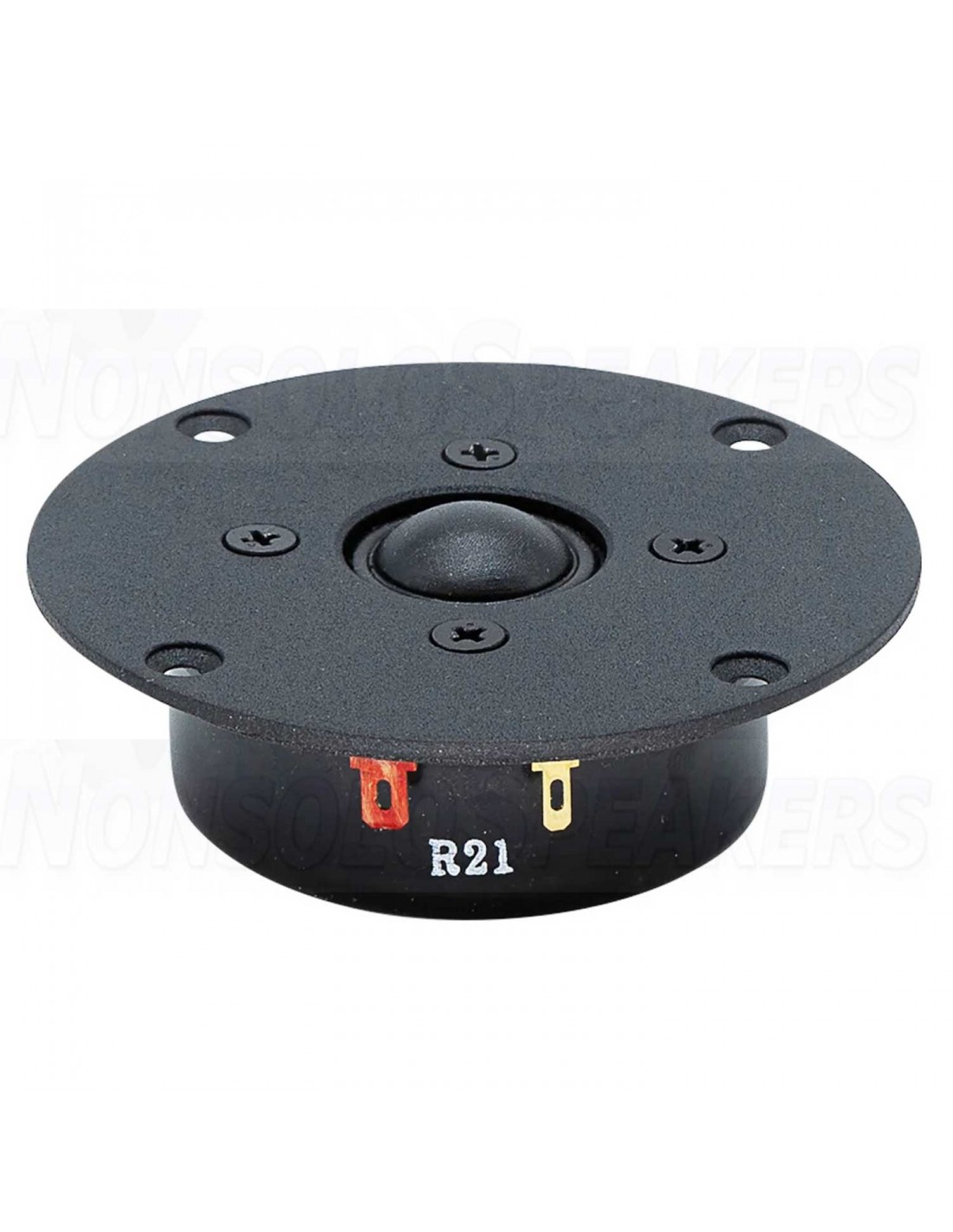

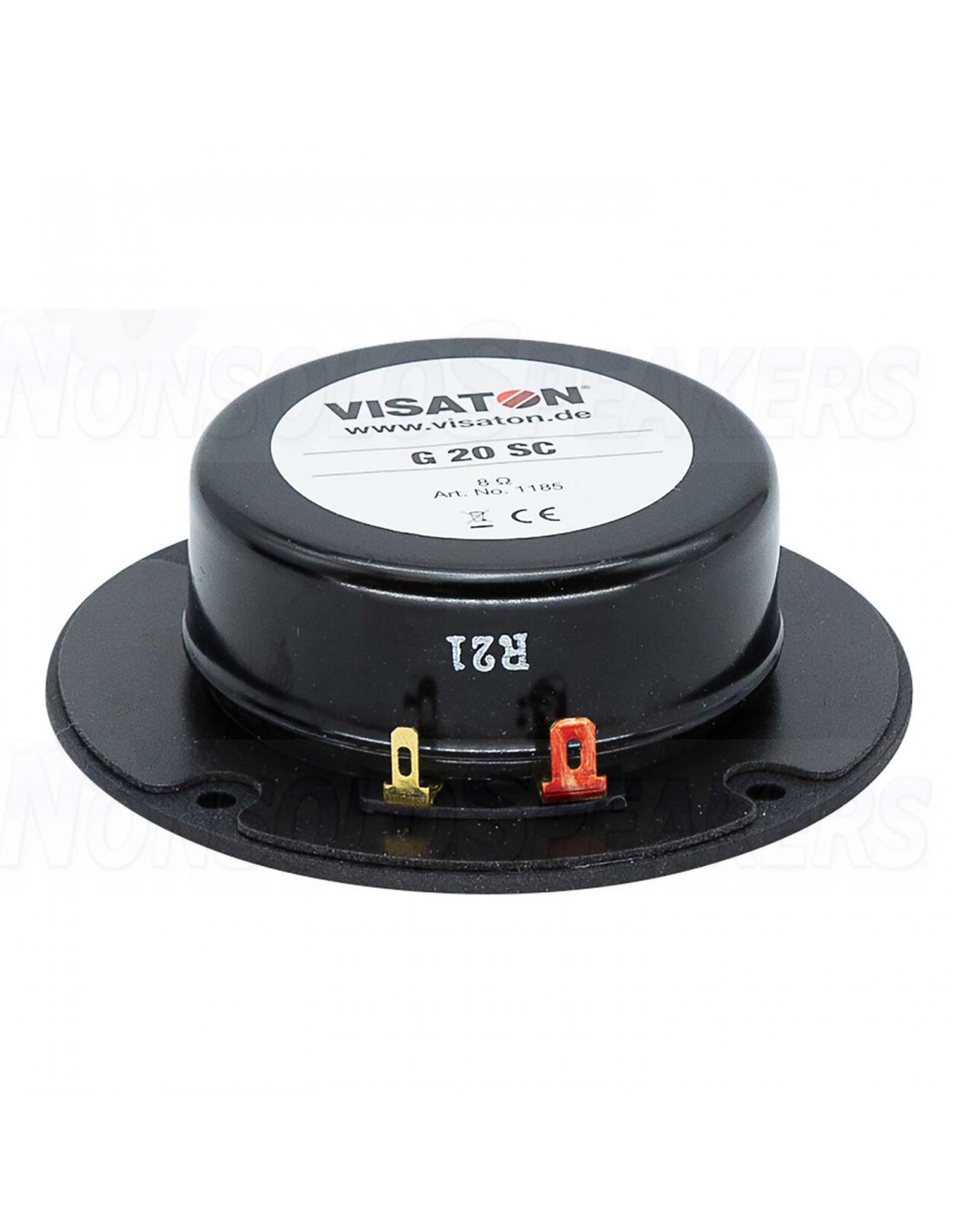

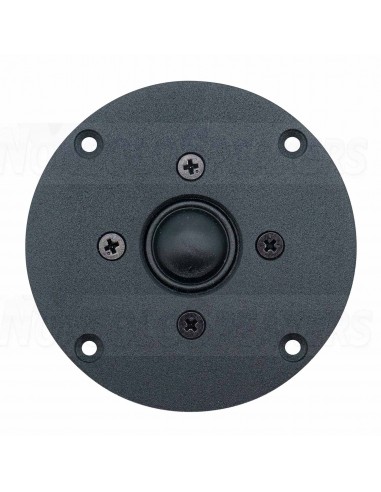

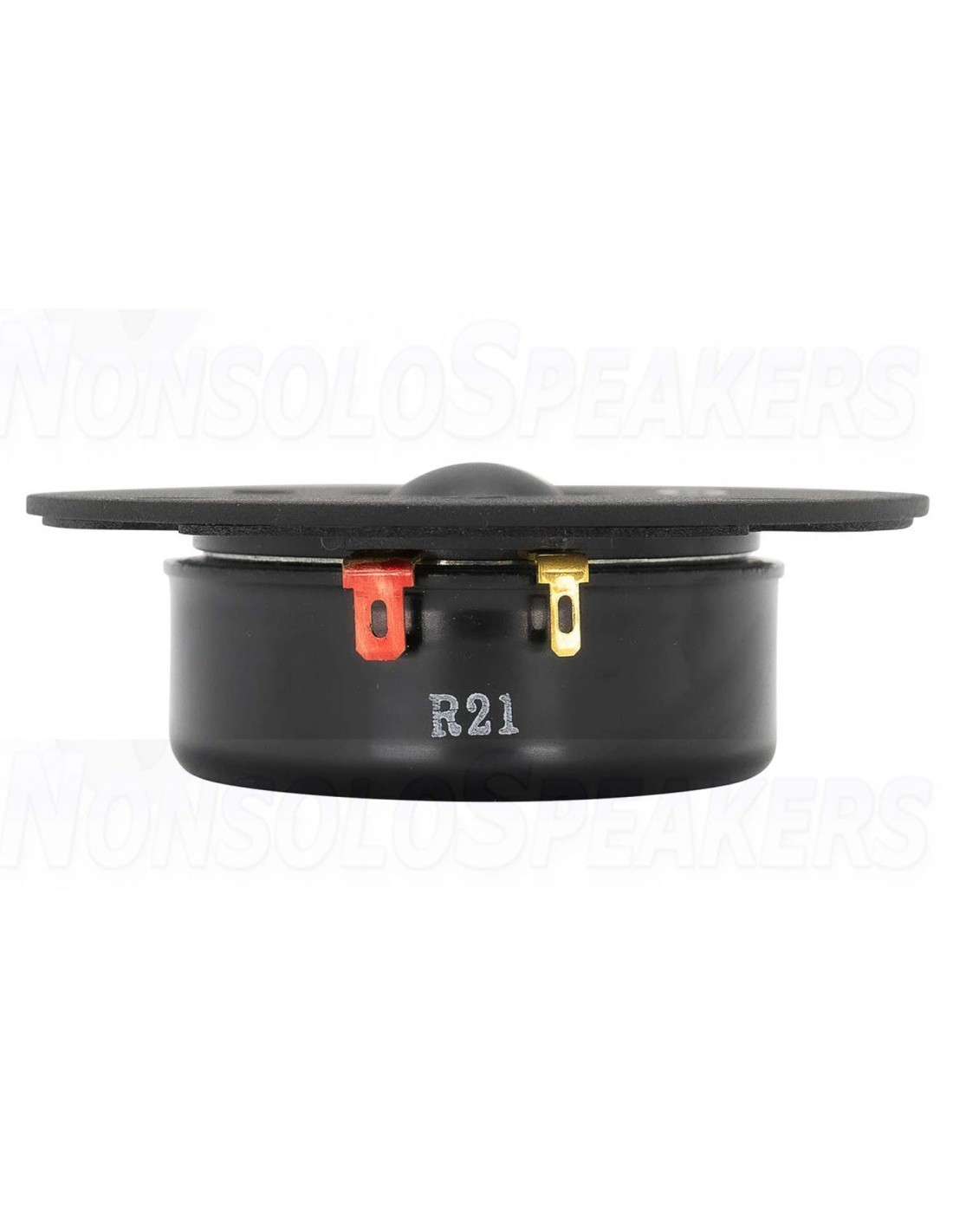

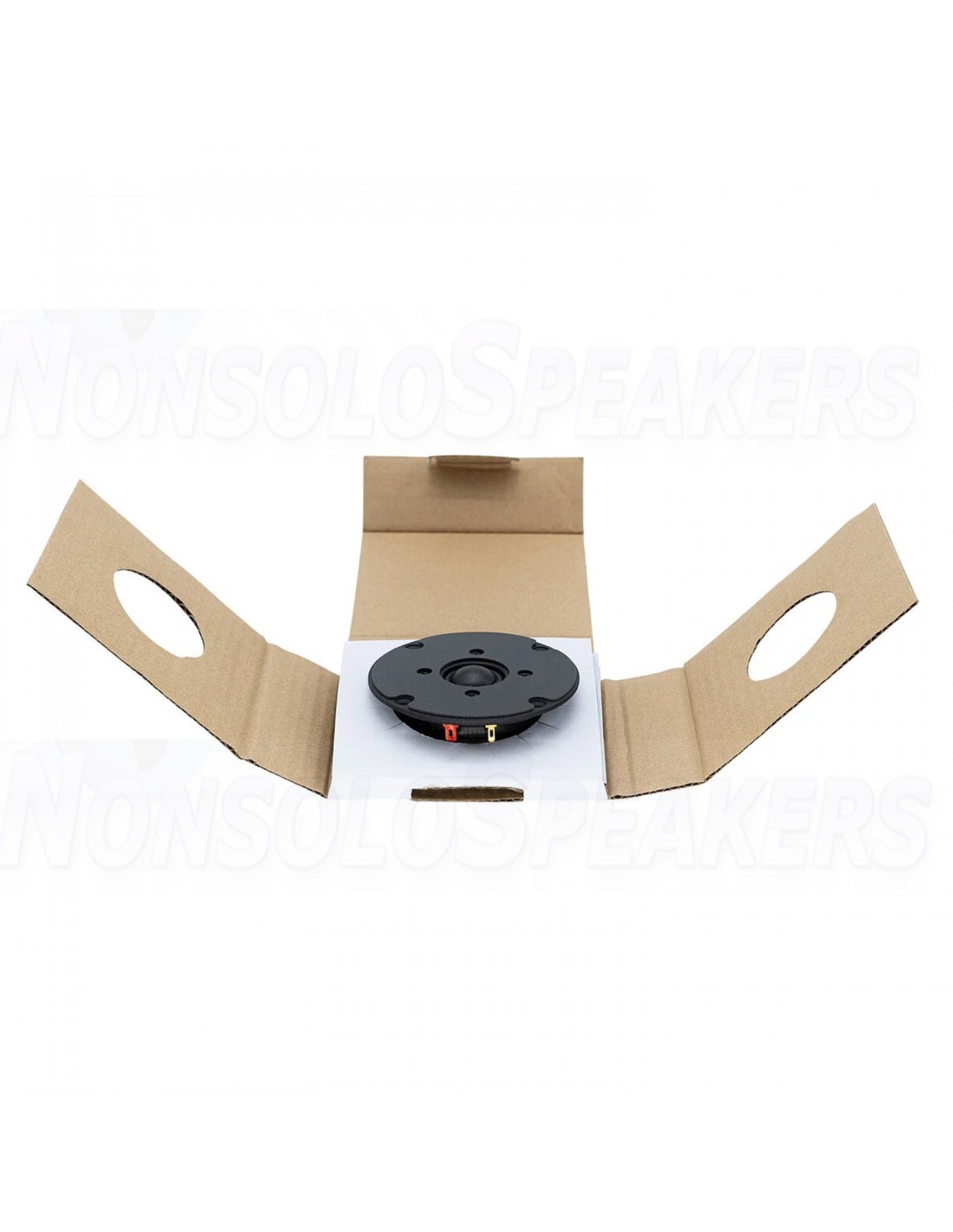

Visaton G 20 SC Dome Tweeter

Magnetically shielded 20 mm (0.8") High-end textile dome unit for use at tweeter frequencies of 3,000 Hz and above.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton G 20 SC Dome Tweeter

Magnetically shielded 20 mm (0.8") High-end textile dome unit for use at tweeter frequencies of 3,000 Hz and above.

.

Highlights

  • Optimised dome shape for balanced frequency response
  • Ferrofluid-cooled 8 ohm voice coil
  • 88 dBsensitivity
.

Product Details

Visaton G 20 SC 0.8" High-End Textile Tweeter
The optimized dome shape and damping felt on the pole piece ensures a very balanced frequency response without resonance and excellent omnidirectional sound distribution.
The powerful magnet drive and ferro-fluid cooled voice coil guarantee both high efficiency and excellent power handling capabilities.
.

Technical Specifications

  • Article number G 20 SC
  • Tweeter Type Dome
  • Tweeter Series High-End
  • Cone / Dome Diameter 15 mm | 0.6"
  • Power Handling (RMS) 80 Watts
  • Power Handling (max) 140 Watts
  • Impedance (Z) 8 Ω
  • Sensitivity (SPL at 1m / 2.83V) 88 dB
  • Frequency Response 1,200 Hz - 30,000 Hz
  • Resonant Frequency (Fs) 1890 Hz
  • DC Resistance (Re) 4.8 ohms
  • Voice Coil Inductance (Le) 0.02 mH
  • Overall Outside Diameter 94 mm
  • Cutout Diameter 66 mm
  • Depth 29 mm
  • Diaphragm Material Fabric
  • Recommended cut frequency 3,000 Hz

Visaton G 20 SC
