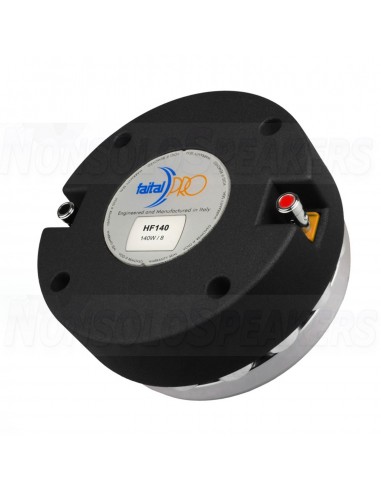

Faital HF140 Compression Drive 1,4" neodimio 8ohm
Faital HF140 Compression Drive 1,4" neodimio 8ohm
Faital HF140 Compression Drive 1,4" neodimio 8ohm
Faital HF140 Compression Drive 1,4" neodimio 8ohm

Faital HF140 Compression Drive 1,4" neodimio 8ohm

Faital HF140  Compression Drive 1,4" neodimio 8ohm

Out-of-Stock
€307.78 €323.98 -5%
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



Faital HF140  Compression Drive 1,4" neodimio 8ohm

TECHNICAL PARAMETERS

Nominal Impedance 8 Ohm
Minimum Impedance 6.3 Ohm
AES Power above 0.9 kHz (1) 70 W
AES Power above 0.65 kHz 50 W
Maximum Power above 0.9 kHz (2) 140 W
Maximum Power above 0.65 kHz 100 W
Minimum Crossover Frequency (3) 0.9 kHz
Sensitivity (1W/1m) (4) 109 dB
Frequency Range 0.5÷18 kHz
Voice Coil Diameter 74 mm (2.91 in)
Winding Material Al
Former Material Kapton
Diaphragm Material Titanium
Diaphragm Shape Dome
Winding Depth 2.35 mm (0.09 in)
Magnetic Gap Depth 2.8 mm (0.11 in)
Flux Density 1.8 T
Magnet Neodymium Slug Crown
Re 5.6 Ohm
Phase Plug Design Annular
Exit Angle (5) 7° Conical
NET Air Volume filled by HF Driver 0.7 dm^3 (0.025 ft^3)

NOMINAL SPECIFICATIONS

Throat Diameter 35.6 mm (1.4 in)
Overall Diameter 130.5 mm (5.14 in)
90° Mounting Holes Diameter (4xM6) 102 mm (4.02 in)
Depth 62 mm (2.44 in)
Net Weight 2.9 Kg (6.4 lb)
Shipping Box
(Single carton box)		 185 x 170 x 122 mm
(7.3 x 6.7 x 4.8 in)
Shipping Weight 3.1 Kg (6.8 lb)


Nominal Impedance 8 Ohm
Minimum Impedance 6.3 Ohm
AES Power above 0.9 kHz (1) 70 W
AES Power above 0.65 kHz 50 W
Maximum Power above 0.9 kHz (2) 140 W
Maximum Power above 0.65 kHz 100 W
Minimum Crossover Frequency (3) 0.9 kHz
Sensitivity (1W/1m) (4) 109 dB
Frequency Range 0.5÷18 kHz
Voice Coil Diameter 74 mm (2.91 in)
Diaphragm Material Titanium
Diaphragm Shape Dome
Flux Density 1.8 T
Re 5.6 Ohm
Phase Plug Design Annular


QUICK MECHANICAL SPECS

Throat Diameter 35.6 mm (1.4 in)
Overall Diameter 130.5 mm (5.14 in)
90° Mounting Holes Diameter (4xM6) 102 mm (4.02 in)
Depth 62 mm (2.44 in)
Net Weight 2.9 Kg (6.4 lb)
Shipping Box
(Single carton box)		 185 x 170 x 122 mm
(7.3 x 6.7 x 4.8 in)
Shipping Weight 3.1 Kg (6.8 lb)
hf140
