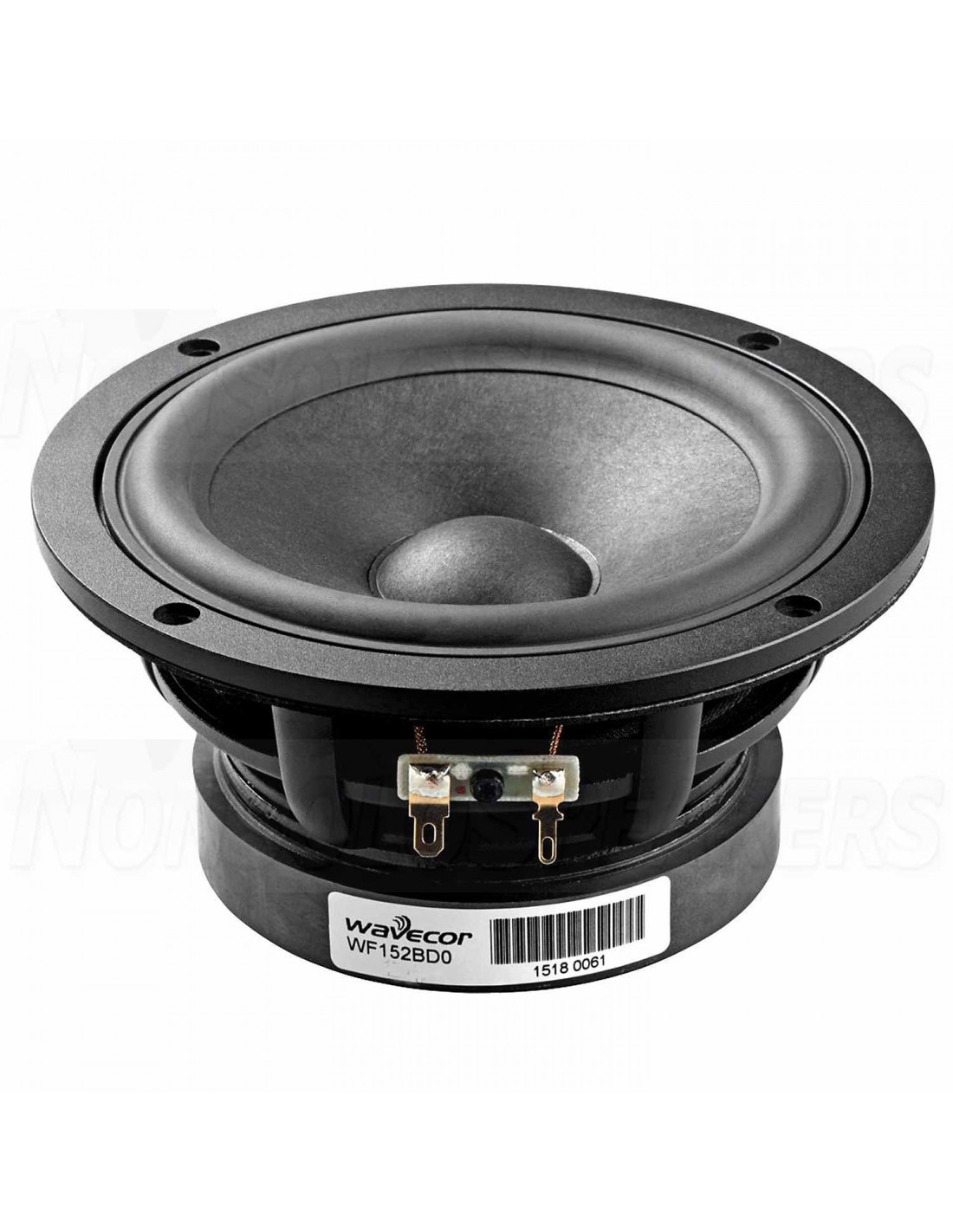

Wavecor WF152BD06 Glass Fiber 14 cm bass midrange

The 6” transducers WF152BD05 (4 ohm) and WF152BD06 (8 ohm) were designed as high performance bass and midrange units for compact monitors and high-end hi-fi speakers.

• Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
• Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
• Cone made of a new paper/glass fiber mix with improved consistency and stability
• Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
• Vented voice coil former for reduced distortion and compression
• Vented center pole with dual flares for reduced noise level at large cone excursions
• Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
• Large motor with 1¼” voice coil diameter for better control and power handling
• Built-in alu field-stabilizing ring for reduced distortion at high levels
• Low-loss suspension (high Qm) for better reproduction of details and dynamics
• Black motor parts for better heat transfer to the surrounding air
• Conex spider for better durability under extreme conditions
• Gold plated terminals to ensure long-term trouble free connection

• Notes

  	Parameter	WF152BD05		WF152BD06		Unit
  		Before burn-in	After burn-in	Before burn-in	After burn-in
  	Nominal size	6		6		[inch.]
  	Nominal impedance	4		8		[ohm]
  	Recommended max. upper frequency limit	3		3		[kHz]
  1, 4	Sensitivity, 2.83V/1m (average SPL in range 300 - 1,000 Hz)	90		87		[dB]
  2, 4	Power handling, short term, IEC 268-5, no additional filtering					[W]
  2, 4	Power handling, long term, IEC 268-5, no additional filtering					[W]
  2, 4	Power handling, continuous, IEC 268-5, no additional filtering	70		70		[W]
  	Effective radiating area, Sd	93		93		[sq.cm]
  3, 4, 6	Resonance frequency (free air, no baffle), Fs	50	44.5	51.5	46	[Hz]
  	Moving mass, incl. air (free air, no baffle), Mms	13.5		12.8		[g]
  3, 4	Force factor, Bxl	6.35		8.0		[N/A]
  3, 4, 6	Suspension compliance, Cms	0.75	0.94	0.75	0.94	[mm/N]
  3, 4, 6	Equivalent air volume, Vas	9.2	11.5	9.2	11.5	[lit.]
  3, 4, 6	Mechanical resistance, Rms	0.41	0.46	0.41	0.46	[Ns/m]
  3, 4, 6	Mechanical Q, Qms	10.3	8.2	10.1	8.0	[-]
  3, 4, 6	Electrical Q, Qes	0.34	0.30	0.41	0.36	[-]
  3, 4, 6	Total Q, Qts	0.33	0.29	0.39	0.35	[-]
  4	Voice coil resistance, RDC	3.2		6.3		[ohm]
  5	Voice coil inductance, Le (measured at 10 kHz)	0.11		0.19		[mH]
  	Voice coil inside diameter	32		32		[mm]
  	Voice coil winding height	14		14		[mm]
  	Air gap height	5		5		[mm]
  	Theoretical linear motor stroke, Xmax	±4.5		±4.5		[mm]
  	Magnet weight	550		550		[g]
  	Total unit net weight excl. packaging	1.44		1.44		[kg]
  3, 4, 5	Krm	51		74		[mohm]
  3, 4, 5	Erm	0.40		0.41		[-]
  3, 4, 5	Kxm	114		195		[mH]
  3, 4, 5	Exm	0.29		0.28		[-]

•
