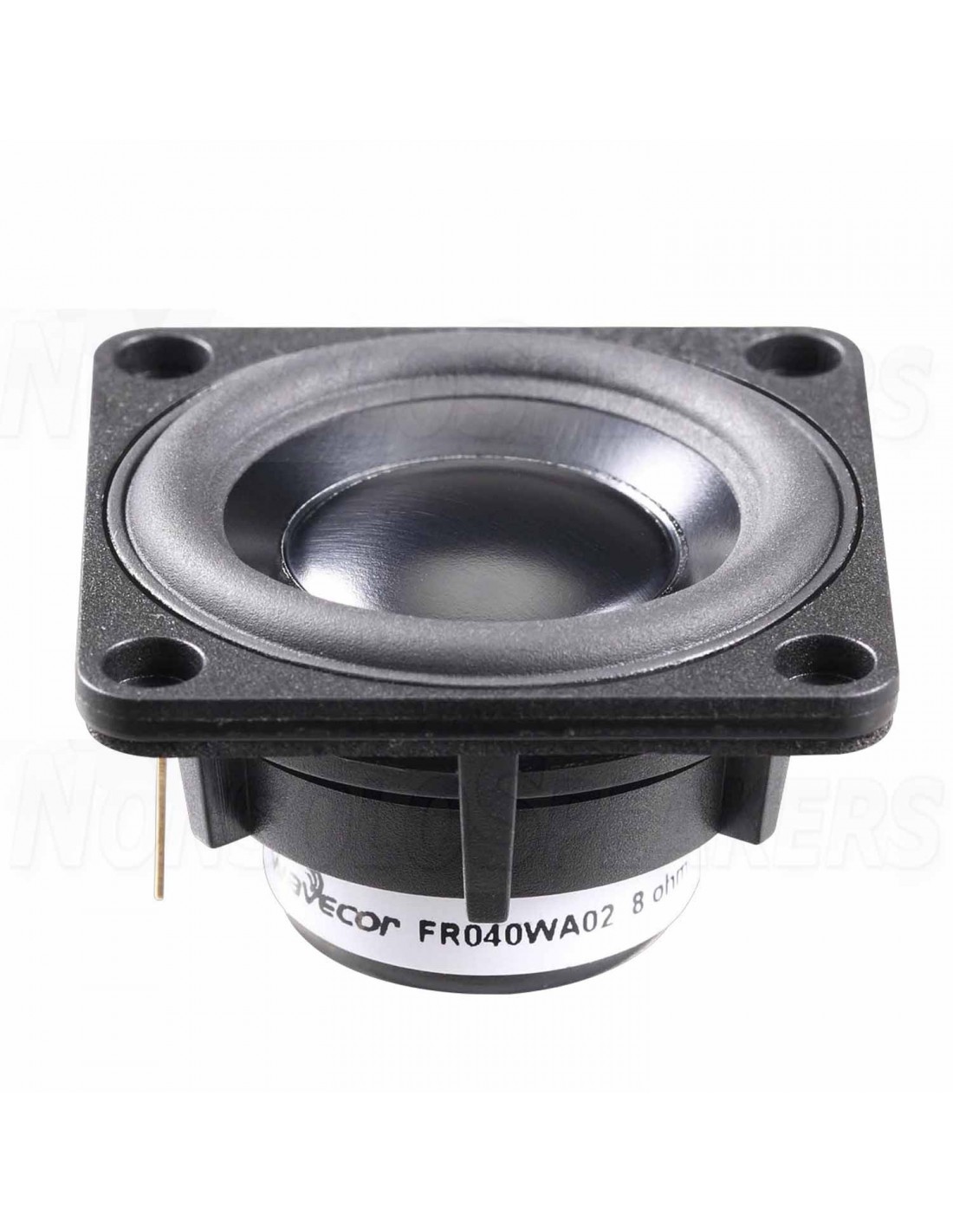

Wavecor FR040WA02 wideband 1,5" 8ohm alu-cone

The 1½” transducers FR040WA01 (4 ohm) and FR040WA02 (8 ohm) were designed especially for high quality multimedia and lifestyle speakers, and for personal audio products, where sound reproduction without compromises is required.
Will work well as a midrange/treble transducer in small speaker products in combinbation with for instance a small subwoofer unit.

• True full-range design with on-axis output to beyond 20kHz
• Dual neodymium magnet structure for high efficiency and almost ideal magnetically shielding
• Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
• Black anodized alu cone for better heat transfer
• Optimized off-axis response
• Vented polymer chassis for lower air flow speed reducing audible distortion
• Vented voice coil former for reduced distortion and compression
• Heavy-duty black fiber glass voice coil bobbin to reduce mechanical losses resulting in better dynamic performance and low-level details
• Large motor with 16 mm voice coil diameter for better control and power handling
• Low-loss suspension (high Qm) for better reproduction of details and dynamics
• Black motor parts for better heat transfer to the surrounding air
• Conex spider for better durability under extreme conditions
• Gold plated terminals to ensure long-term trouble free connection
•

• Notes

  	Parameter	FR040WA01		FR040WA02		Unit
  		Before burn-in	After burn-in	Before burn-in	After burn-in
  	Nominal size	1½		1½		[inch.]
  	Nominal impedance	4		8		[ohm]
  	Recommended max. upper frequency limit	full range		full range		[kHz]
  1, 4	Sensitivity, 2.83V/1m (average SPL in range 200 - 10,000 Hz)	84		81		[dB]
  2, 4	Power handling, short term, IEC 268-5, no additional filtering	35		35		[W]
  2, 4	Power handling, long term, IEC 268-5, no additional filtering	15		15		[W]
  2	Power handling, continuous, IEC 268-5, no additional filtering	3		3		[W]
  	Effective radiating area, Sd	7.8		7.8		[sq.cm]
  3, 4, 6	Resonance frequency (free air, no baffle), Fs	233		239		[Hz]
  	Moving mass, incl. air (free air, no baffle), Mms	0.63		0.60		[g]
  3, 4	Force factor, Bxl	1.67		2.0		[N/A]
  3, 4, 6	Suspension compliance, Cms	0.74		0.74		[mm/N]
  3, 4, 6	Equivalent air volume, Vas	0.064		0.064		[lit.]
  3, 4, 6	Mechanical resistance, Rms	0.096		0.096		[Ns/m]
  3, 4, 6	Mechanical Q, Qms	9.6		9.4		[-]
  3, 4, 6	Electrical Q, Qes	0.99		1.42		[-]
  3, 4, 6	Total Q, Qts	0.90		1.23		[-]
  4	Voice coil resistance, RDC	3.0		6.3		[ohm]
  5	Voice coil inductance, Le (measured at 10 kHz)	0.053		0.081		[mH]
  	Voice coil inside diameter	16		16		[mm]
  	Voice coil winding height	3		3		[mm]
  	Air gap height	2		2		[mm]
  	Theoretical linear motor stroke, Xmax	±0.5		±0.5		[mm]
  	Magnet weight					[g]
  	Total unit net weight excl. packaging					[kg]
  3, 4, 5	Krm	0.016		0.018		[mohm]
  3, 4, 5	Erm	0.98		1.01		[-]
  3, 4, 5	Kxm	0.66		1.15		[mH]
  3, 4, 5	Exm	0.73		0.71		[-]
