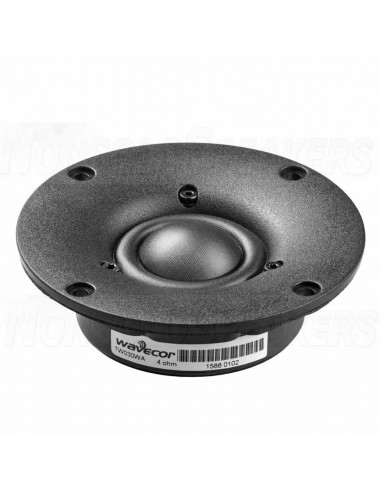

Wavecor TW030WA10 30 mm tweeter 8 ohm

Wavecor TW030WA10 30 mm tweeter 8 ohm

The Wavecor TW030WA10 is a 30 mm tweeter with a curved faceplate that was designed for applications requiring extremely low resonance frequency and distortion. Thanks to the extensive internal venting between three internal cavities, no air inside is trapped. This feature extends the usable frequency range to that lower than most tweeters.

  • Cone / Dome Diameter 1.125"
  • Cutout Diameter 3.62
  • Tweeter Type Soft Dome
  • Power Handling (RMS) 55 Watts
  • Impedance 8Ω
  • Frequency Response 2,000 to 27,000Hz
  • Sensitivity 90dB 2.83V/1m
SHIPMENT IN 5-7 WORKING DAYS
€106.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



TW030WA09 and TW030WA10 are tweeters designed for applications requiring the highest level of performance, with extended and linear high frequency response and best consistency.

Tweeters used to feature a separate rear chamber in order to obtain low resonance frequency. Not any longer. By designing the internal parts to accommodate new larger internal volumes, the TW030WA09/10 offer an unusually low  resonance frequency.

  • 30 mm design with controlled off-axis and power response, high power handling, and low resonance frequency
  • Internal volumes for low resonance frequency and distortion
  • Precision-coated textile diaphragm for improved consistency and high-frequency extension
  • Optimized dome shape for ultra high frequency cutoff
  • Vented voice coil former for reduced distortion and compression
  • Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
  • Build-in cavities under dome/edge to equalize pressure for lower distortion and lower resonance frequency
  • Flexible lead wires for higher power handling and larger excursion
  • Gold plated terminals to prevent oxidation and ensure long-term reliable connection
  • Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing

  • TW030WA09_SPL_&_IMP_respons

  • TW030WA09-outline

  • Wavecor-TW030WA09_10-terminals

Product Details

Wavecor brand

Model TW030WA10

Part Number 298-1118

UPC 848864054605

Unit of Measure Each

Weight 1.05

Product Specifications

Cone / Dome Diameter 1.125 "

Cutout Diameter 3.62

Soft Dome Tweeter Type

Power Handling (RMS) 55 Watts

Impedance 8Ω

Frequency Response 2,000 to 27,000Hz

Sensitivity 90dB 2.83V / 1m

Thiele-Small Parameters

Resonant Frequency (Fs) 750Hz

DC Resistance (Re) 6.3Ω

Voice Coil Inductance (Le) 73mH

Mechanical Q (Qms) 7.8

Electromagnetic Q (Qes) 2.17

Total Q (Qts) 1.7

Mounting Information

Overall Outside Diameter 4.09 "

Depth 1.18 "

TW030WA10
