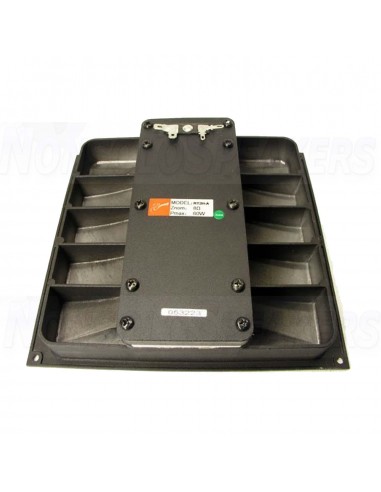

HiVi RT2H-A Isodynamic Planar Horn Tweeter

The key feature of the RT2C-A and the RT2H-A is the membrane, which consists of Kapton film with a pattern of aluminum conductors. The conductors cover about 90% of the whole vibrating area.

.

Highlights

• Nearly weightless Kapton diaphragm for incredible transient response
• Semi-horn loaded faceplate for improved efficiency
• Large diaphragm can accommodate crossovers as low as 3,000 Hz

.

Product details

Why Isodynamic? Contrary to a conventional dynamic driver, these transducers have a driving force distributed evenly over the whole area of their vibrating elements. The key feature of the RT2C-A and the RT2H-A is the membrane, which consists of Kapton film with a pattern of aluminum conductors.

The conductors cover about 90% of the whole vibrating area. The membrane assembly is placed precisely between two rows of Neodymium and Barium Ferrite bar magnets. A larger membrane area provides higher power handling and substantially extended low-end cut-off frequency. The aluminum mounting flange, with flared waveguide, controls the frequency response and directivity of the tweeter.

These tweeters are magnetically shielded and are extremely flat with a depth only 27mm including the mounting flange.

.

Specifications

• Article number RT2H-A
• Cone / Dome Diameter 1.06'' W x 4.61'' H
• Power Handling (RMS) 30 Watts
• Impedance (Z) 8 Ω
• Sensitivity (SPL at 1m / 2.83V) 94 dB
• Frequency Response 1,700 to 25,000 Hz
• Overall Outside Diameter 7.13" x 7.13"
• Cutout Diameter 6.13" x 6.13"
• Depth 1.63"
• Recommended cut frequency 3,000 Hz with 2nd order
