Dayton Audio PHT1-6 Planar Horn Tweeter 6 Ohm

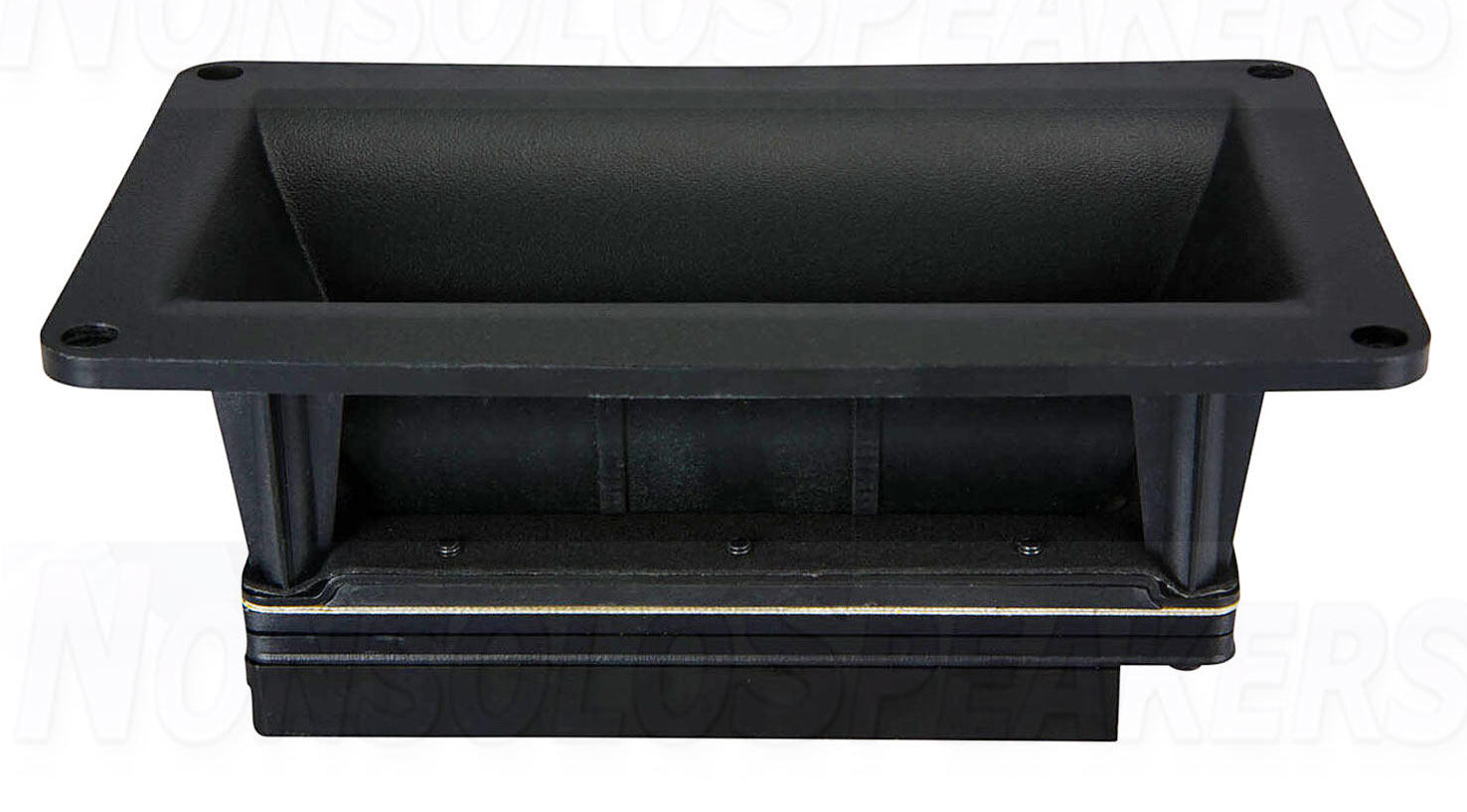

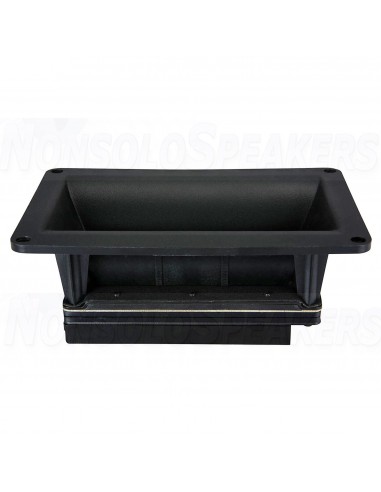

Planar tweeters offer a seductively smooth and richly detailed sound, but most don’t have the ruggedness or reliability for use in pro audio and high level studio monitoring applications. The Dayton Audio PHT1-6 Planar Horn Tweeter is different. It features a horn loaded design that achieves the high sensitivity of many horn loaded compression drivers, and its thermally robust Kapton diaphragm with etched aluminum conductor is rugged enough to handle the high power levels common in pro audio.

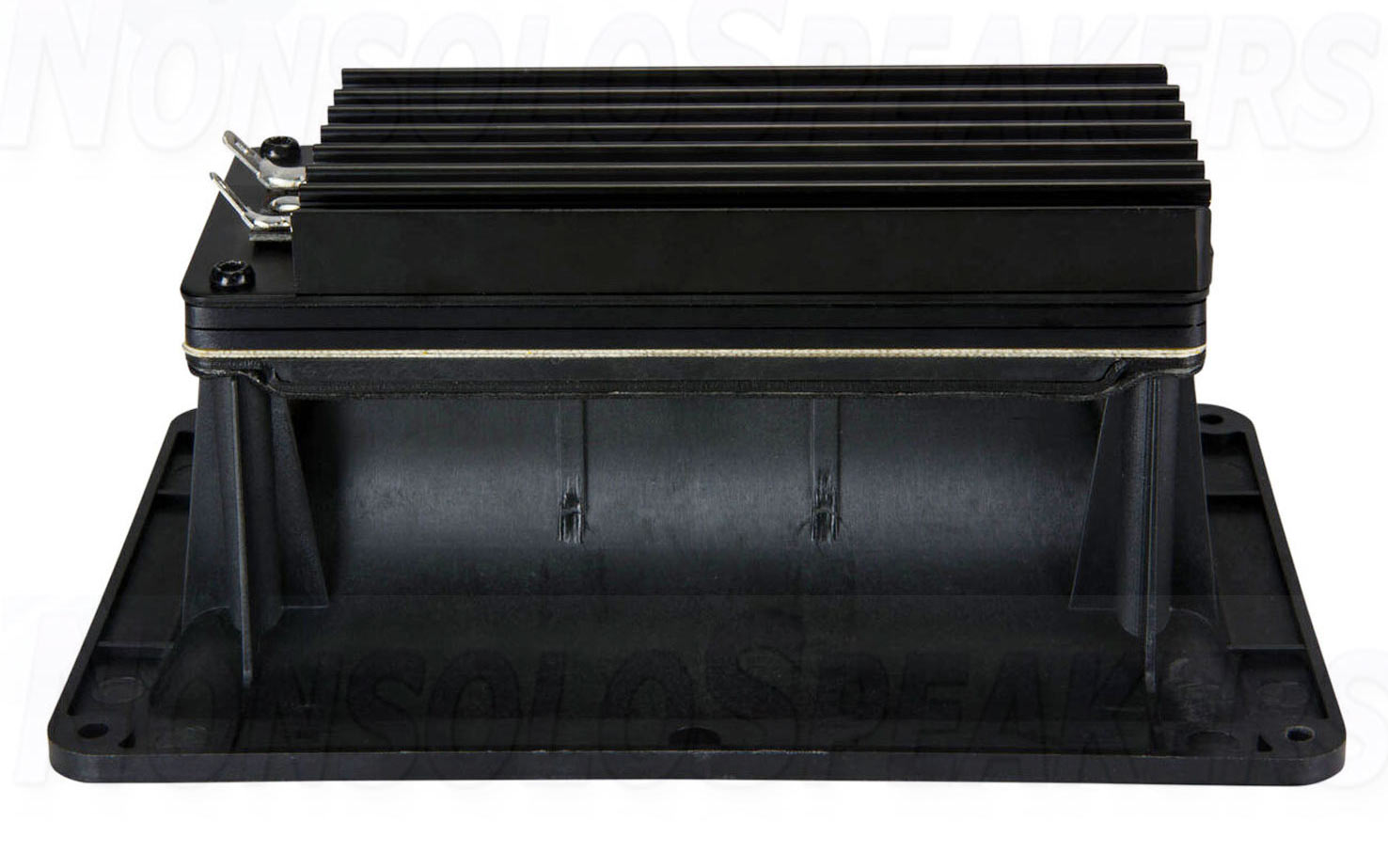

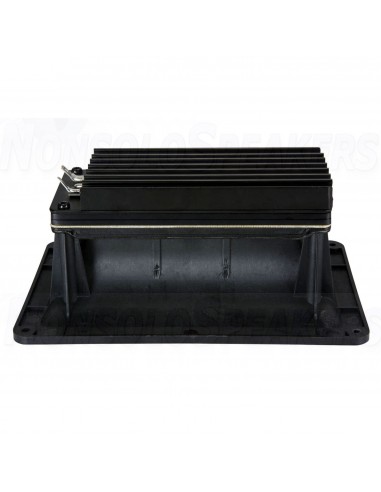

Cooling is often a problem in planar drivers, but the PHT1-6 features a large, rear-mounted aluminum heatsink that is thermally coupled to the membrane’s conductor and also evacuates heat from the transducer’s rear chamber, for extended component life and the ability to withstand peaks of 160 watts (80 watts RMS) when used with a 2nd order 2,500 Hz (minimum) crossover. The 6-ohm impedance helps the PHT1-6 maintain a high sensitivity, for use with virtually any pro audio or high efficiency midbass driver.

Product Details

Brand Dayton Audio

Model PHT1-6

UPC 848791001543

Unit of Measure Each

Weight 1,5

Product Specifications

Cutout Diameter 7.12" x 3.25

Tweeter Type Planar

Power Handling (RMS) 80 Watts

Impedance 6Ω

Frequency Response 2,500 to 18,000Hz

Sensitivity 105dB 2.83V/1m

Thiele-Small Parameters

Voice Coil Inductance (Le) 0.17mH

Mounting Information

Overall Outside Diameter 7.93" x 4.93"

Depth 3.25"
