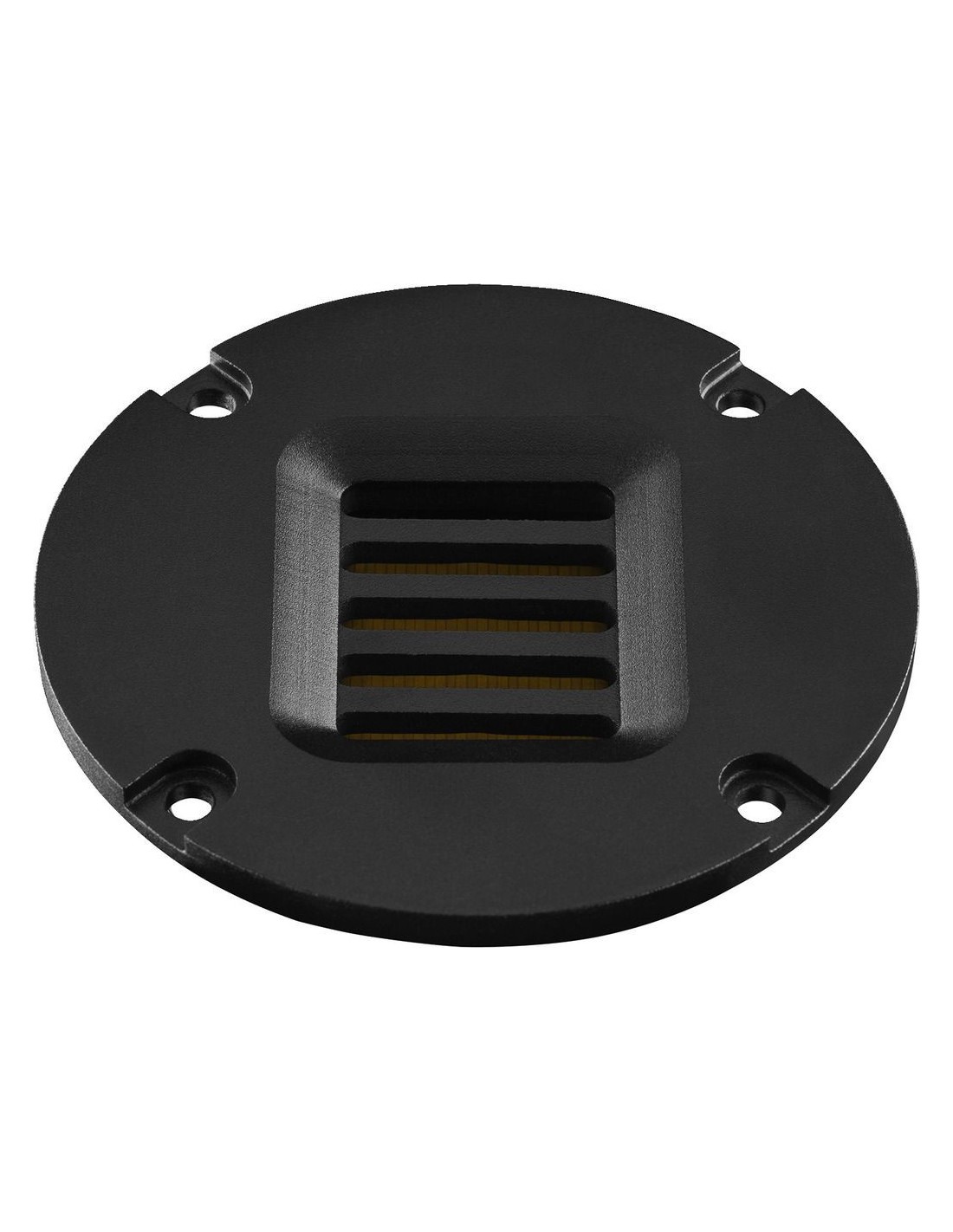

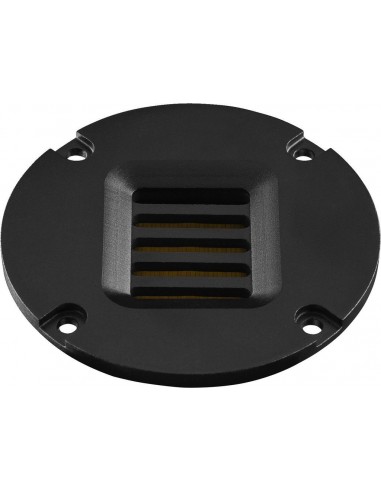

• Tweeter based on the principle of Air Motion Transformer
• High-performance neodymium magnet system
• Fine, dynamic and brilliant reproduction of the high frequencies
• Folded cone made of Kapton and aluminium
• High efficiency
• For use from 2,500 Hz on
• Robust aluminium front panel

.

Technical Specifications

AIRMT-85
Impedance (Z) 4 Ω
Frequency range 2,000-30,000 Hz
Rec. Crossov. fre. (fmax.) (12 dB / oct.)> 2,500 Hz
Power rating (RMS) 20 W
Peak music power output (MAX) 40 W
Sensitivity 92 dB / W / m
DC resistance (Re) 3.8 Ω
Magnet diameter neodymium rods

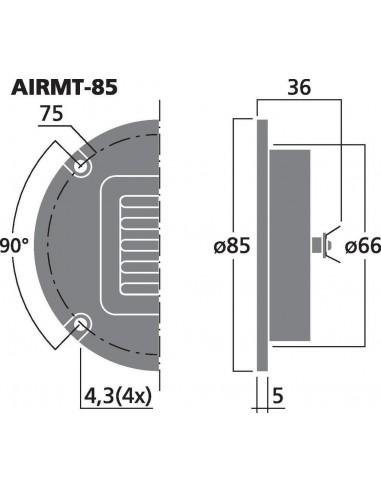

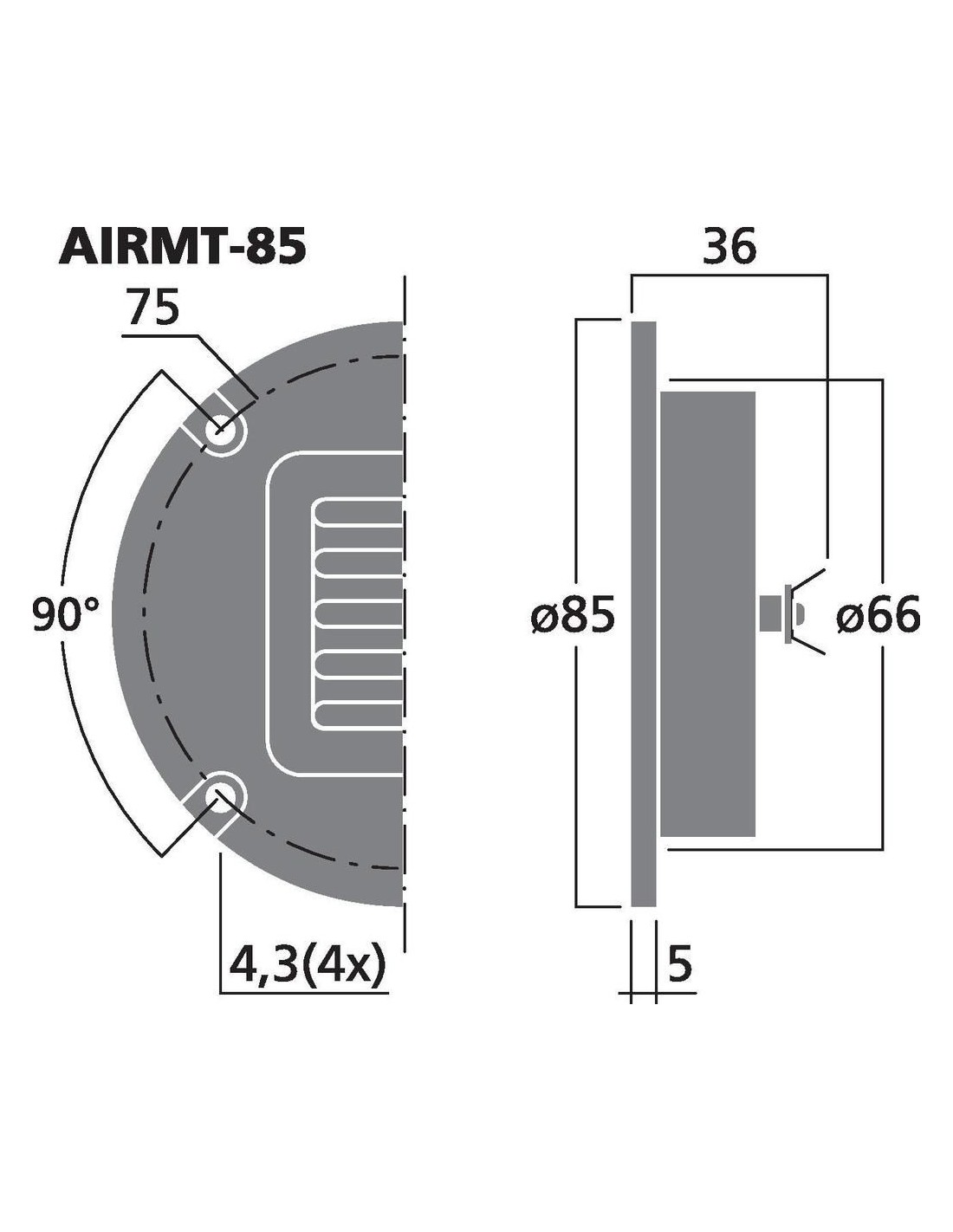

Mounting cutout Ø 66 mm
Mounting depth 36 mm
Mounting hole diameter Ø 75 mm
Dimensions Ø 85 mm x 36 mm
Outside diameter Ø 85 mm
Width Ø 85 mm
Depth 36 mm
Admiss. ambient temp. 0-40 ° C
Weight 0.3 kg
Packing unit 1
Low-impedance 1
