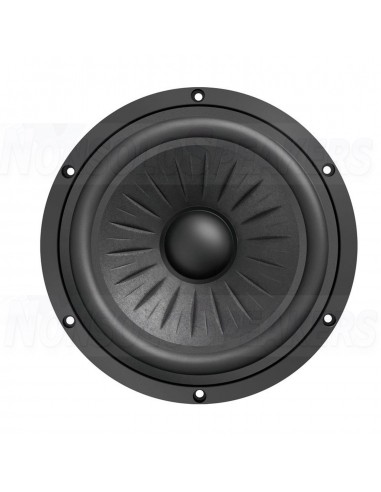

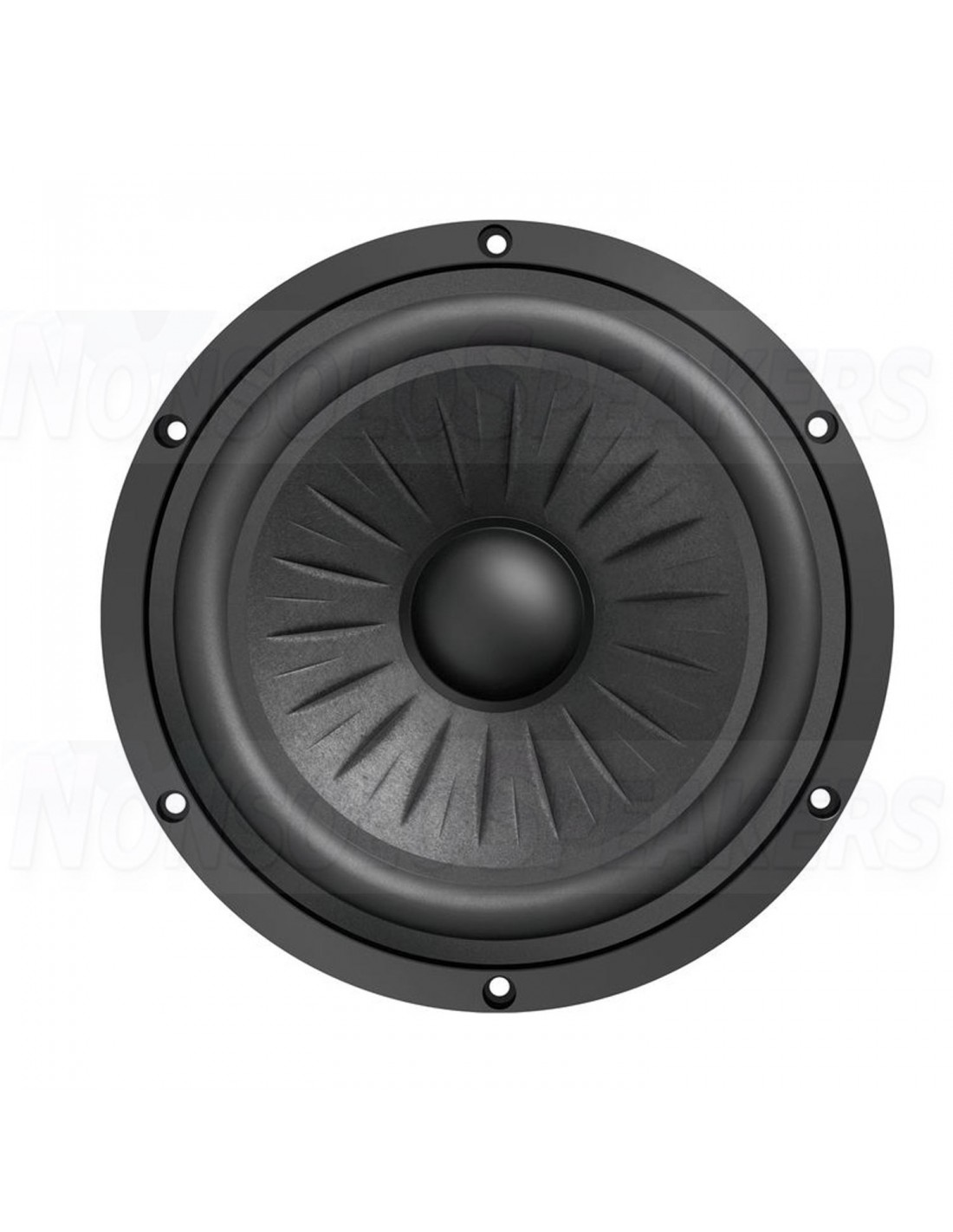

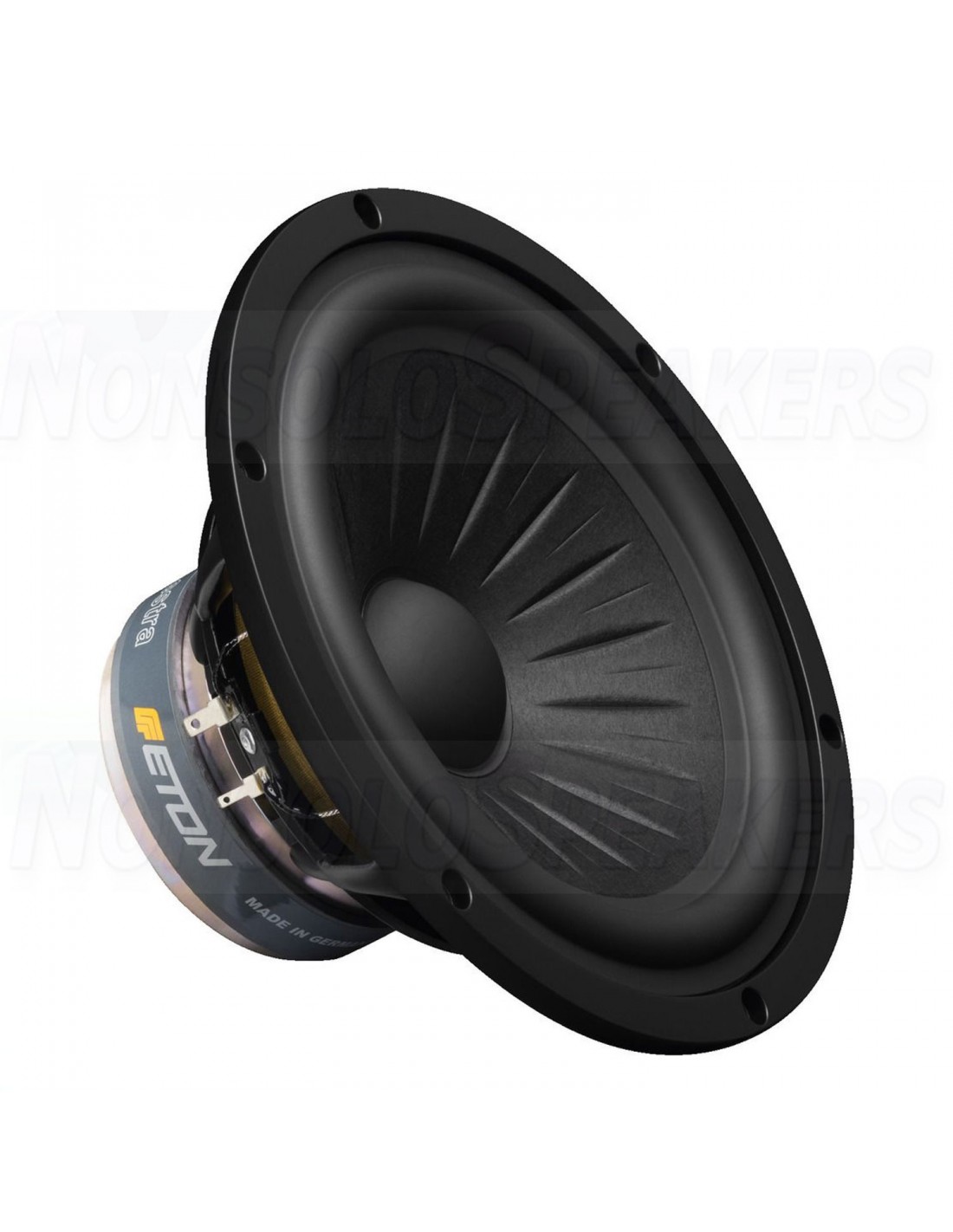

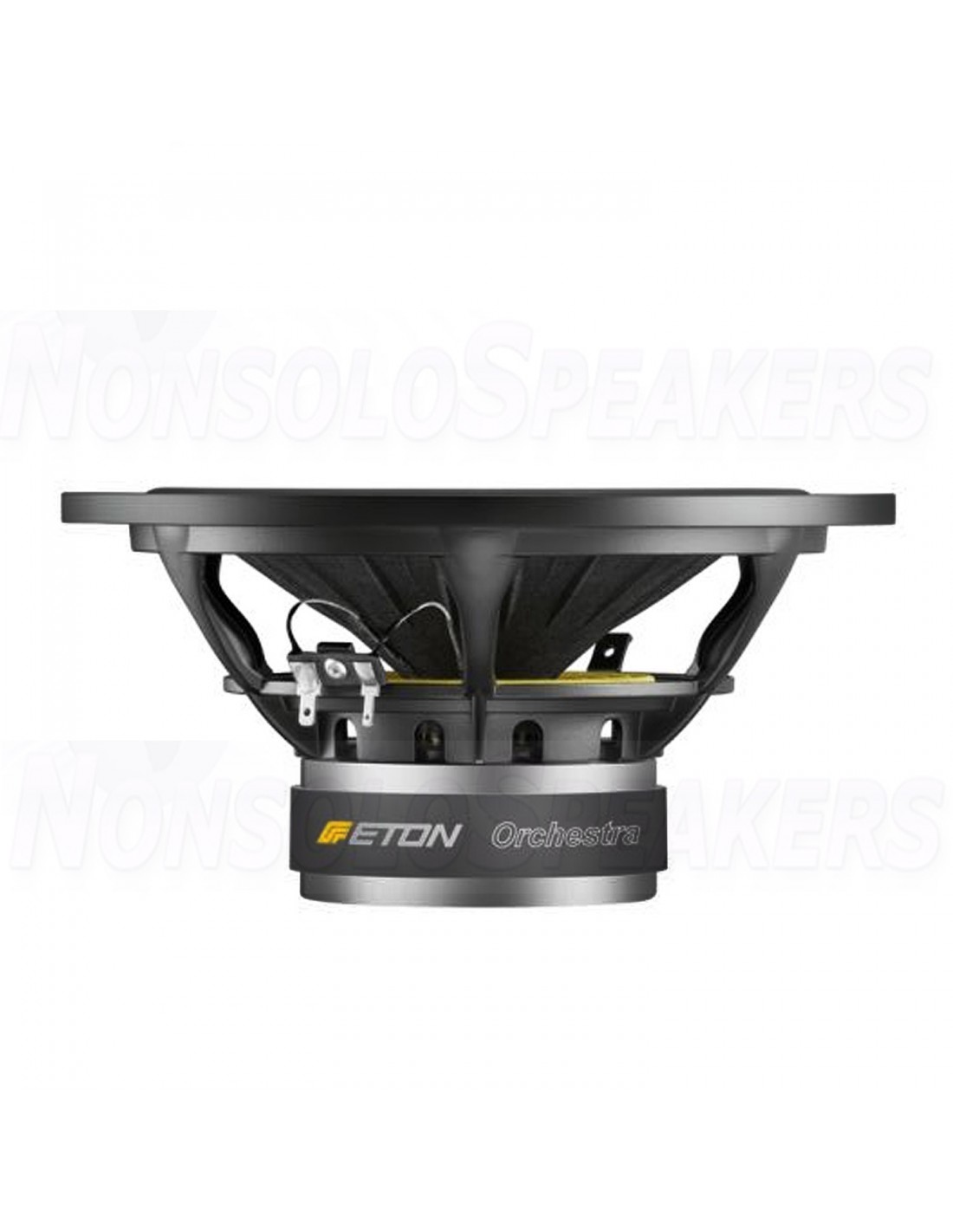

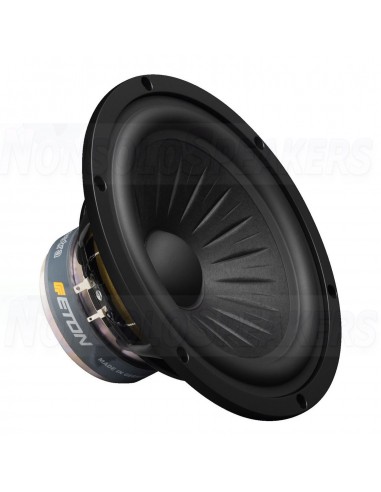

Monacor 8-612/C8/32RP hi-fi woofer 80 W8 Ω

.

Our Orchestra series with a classic paper membrane, reinterpreted through ETON know-how. The special radial rib stiffening and the long-fiber, highly damping paper mix produce a very high level of impulse fidelity and precision, even at high levels - not to mention the resulting individual look. The special paper mixture guarantees homogeneity in all representable frequency ranges by avoiding the formation of modes. The orchestra mid and woofer are characterized by their natural, warm sound. The result is a balanced, well-contoured and smooth midrange. In the bass range, our Orchestra series is more than convincing with its voluminous and impulsive bass reproduction. The ferrite drive ensures through multiple ventilation and a streamlined cast basket that any compression effects that may occur are reduced to a minimum. Orchestra - a tonal reinterpretation with classic materials - Made in Germany.

High-end hi-fi woofer, 80 W, 8 Ω

20 cm long throw woofer (8 ")

Ribbed membrane geometry in paper design

Soft and voluminous sound character

Has an impressive impulse behavior

Primarily suitable for bass reflex constructions

.

Technical Specifications

8-612/C8/32RP

Impedance (Z) 8 Ω

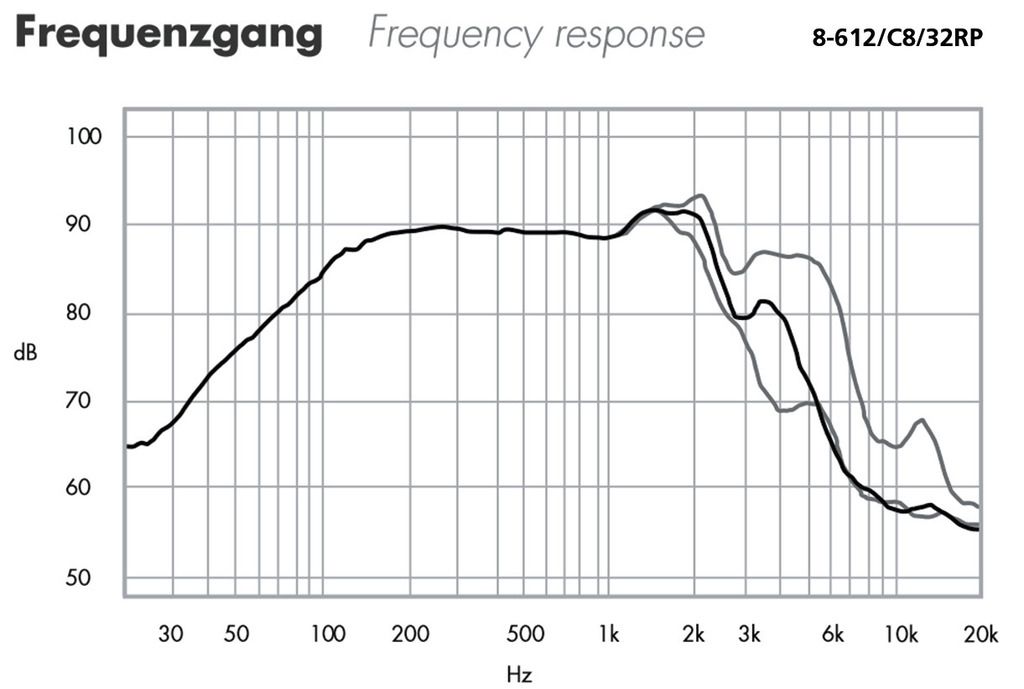

Frequency range f3-2,000 Hz

Resonant frequency (fs) 24 Hz

Power rating (RMS) 80 W

Peak music power output (MAX) 160 W

Sensitivity 90 dB/W/m

Suspension compl. (Cms) 1.48 mm/N

Moving mass (Mms) 26.3 g

Mech. Q factor (Qms) 6.67

Electr. Q factor (Qes) 0.32

Total Q factor (Qts) 0.30

Equivalent volume (Vas) 100 l

DC resistance (Re) 6.6 Ω

Force factor (BxL) 9.30 Tm

Voice coil induct. (Le) 0.99 mH

Voice coil diameter Ø 32 mm

Voice coil former Kapton

Linear excursion (XMAX)  ± 4.5 mm

Eff. cone area (Sd) 222 cm2

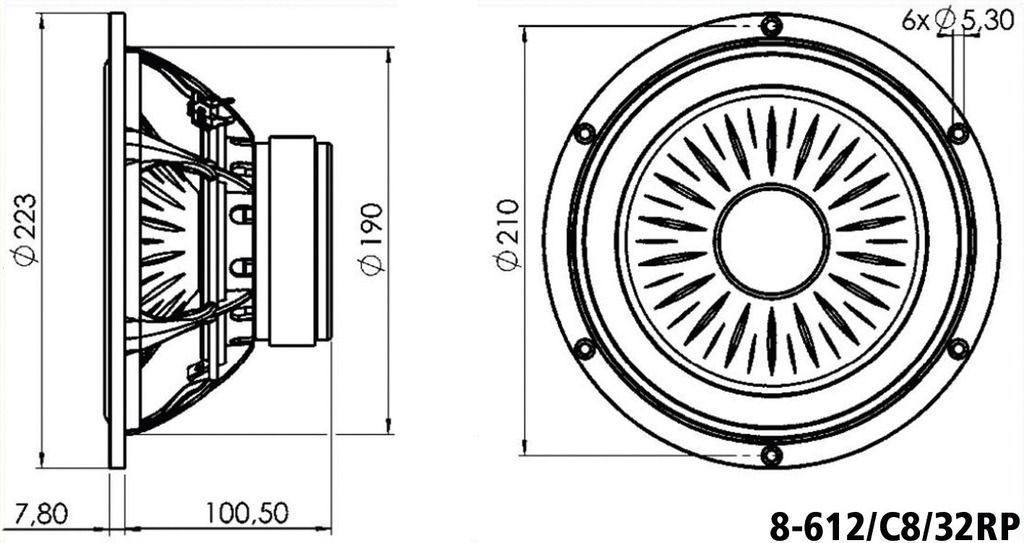

Magnet diameter Ø 102 mm

Mounting cutout Ø 190 mm

Mounting depth 100.5 mm

Mounting hole diameter Ø 210 mm

Dimensions Ø 223 mm x 108.3 mm

Outside diameter Ø 223 mm

Width Ø 223 mm

Depth 108.3 mm

Colour black

Admiss. ambient temp. 0-40 °C

Weight 2.13 kg

Packing unit 1

Type of speaker 8"

Packing dimensions (W x H x L) 0.25 x 0.18 x 0.25 m

Gross weight 2.57 kg

Net weight 2.13 kg
