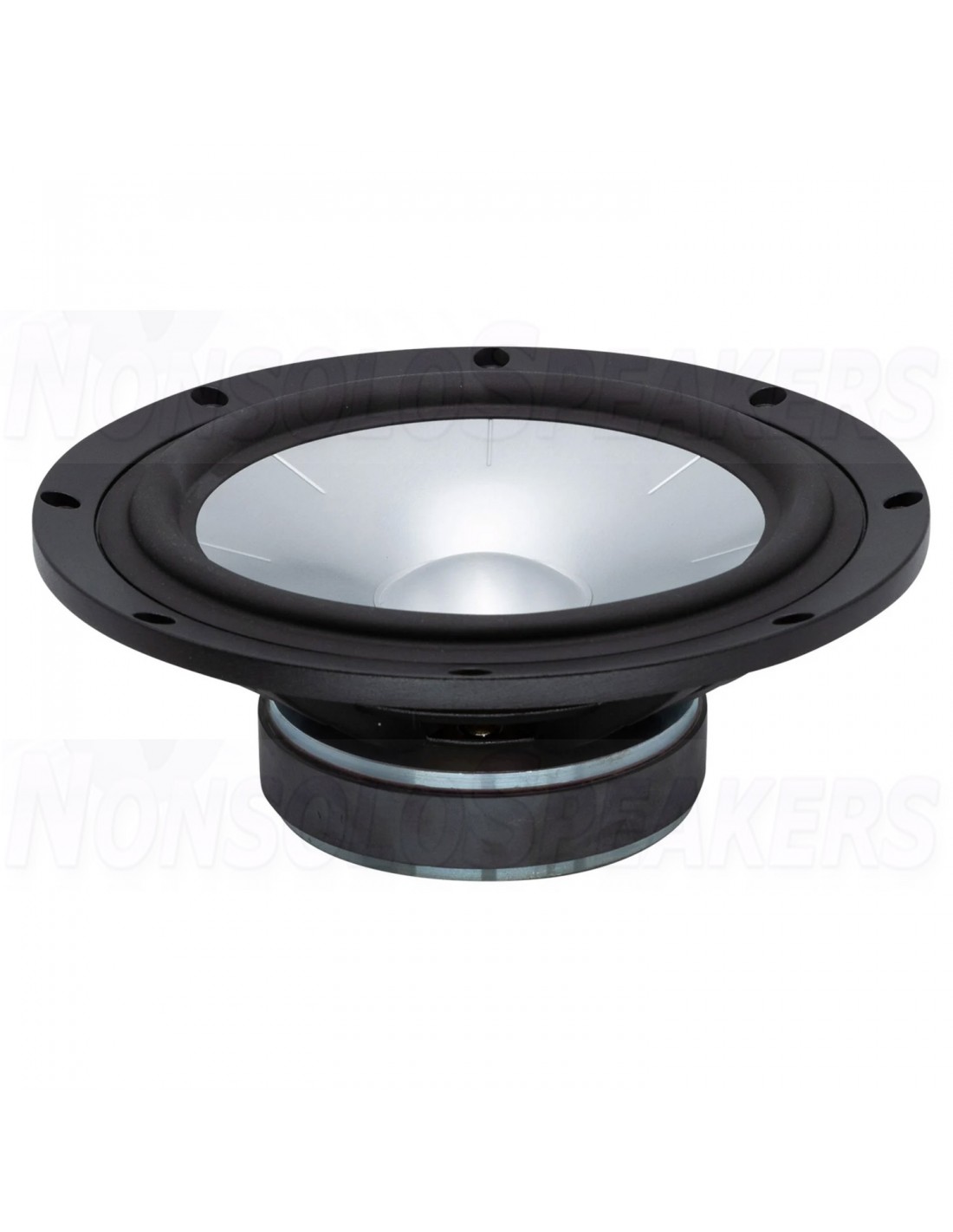

SB ACOUSTICS SB23NACS45-8 - 8" Midwoofer
SB ACOUSTICS SB23NACS45-8 - 8" Midwoofer
SB ACOUSTICS SB23NACS45-8 - 8" Midwoofer
SB ACOUSTICS SB23NACS45-8 - 8" Midwoofer
SB ACOUSTICS SB23NACS45-8 - 8" Midwoofer
SB ACOUSTICS SB23NACS45-8 - 8" Midwoofer
SB ACOUSTICS SB23NACS45-8 - 8" Midwoofer
SB ACOUSTICS SB23NACS45-8 - 8" Midwoofer
SB ACOUSTICS SB23NACS45-8 - 8" Midwoofer
SB ACOUSTICS SB23NACS45-8 - 8" Midwoofer
SB ACOUSTICS SB23NACS45-8 - 8" Midwoofer
SB ACOUSTICS SB23NACS45-8 - 8" Midwoofer

SB ACOUSTICS SB23NACS45-8 - 8" Midwoofer

SHIPMENT IN 7-10 WORKING DAYS
€124.00
Tax included
rating No review at the moment

SB ACOUSTICS SB23NACS45-8 - 8" Midwoofer

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like

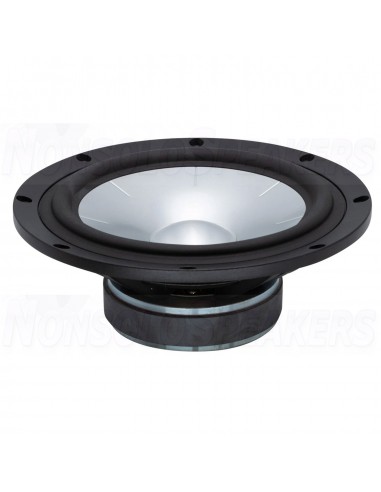

SB ACOUSTICS SB23NACS45-8 - 8" Midwoofer

The SB Acoustics SB23NACS45-8 features a soft low damping rubber surround for improved transient response and a geometrically reinforced aluminum cone for improved break-up control. Shorting ring in motor system for reduced distortion and vented pole piece for reduced compression. Vented cast aluminum chassis for optimum strength and low compression and non-conducting fiber glass voice coil former for minimum damping. CCAW voice coil for reduced moving mass. Long life silver lead wires.

.

Highlights

Soft low damping rubber surround for improved transient response
Geometrically reinforced aluminum cone for improved break-up control
Shorting ring in motor system for reduced distortion
Vented pole piece for reduced compression
Vented cast aluminum chassis for optimum strength and low compression
Shallow design
Non-conducting fiber glass voice coil former for minimum damping
CCAW voice coil for reduced moving mass
Long life silver lead wires

.

Specifications

Article numberSB23NACS45-8
Woofer SeriesNAC Series
Woofer TypeFull-range
Nominal Diameter8"
Power Handling (RMS)60 Watts
Impedance (Z)8 ohms
Sensitivity (SPL at 1m / 2.83V)87.5 dB
Voice Coil Diameter1.79"
DC Resistance (Re)5.6 ohms
Voice Coil Inductance (Le)0.60 mH
Resonant Frequency (Fs)25 Hz
Mechanical Q (Qms)5.6
Electromagnetic Q (Qes)0.4
Total Q (Qts)0.37
Diaphragm Mass Inc. Airload (Mms)28.5 g
Mechanical Compliance of Suspension (Cms)1.42 mm/N
Surface Area of Cone (Sd)216 cm2
BL Product (BL)7.9 Tm
Compliance Equivalent Volume (Vas)3.31 ft.³
Maximum Linear Excursion (Xmax)13 mm

SB23NACS45-8
