Visaton's 9023 W130S 5" woofer features a coated paper cone and durable rubber surround

SHIPMENT IN 5-7 WORKING DAYS
€38.45
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton W 130 S - 8 5" Woofer 8 Ohm

Visaton's 9023 W130S 5" woofer features a coated paper cone and durable rubber surround

.

Highlights

  • Relatively flat frequency response from 80 to 4,000 Hz
  • Able to play below 40 Hz in a proper vented cabinet
  • Great power handling and Xmax

.

Product Details

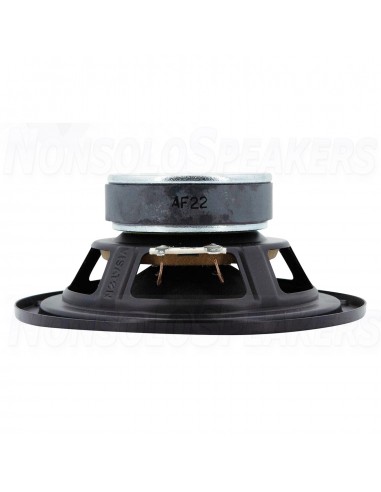

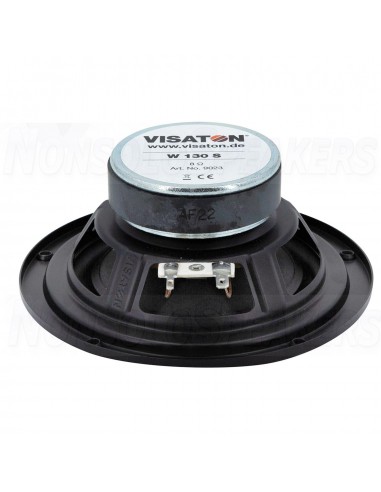

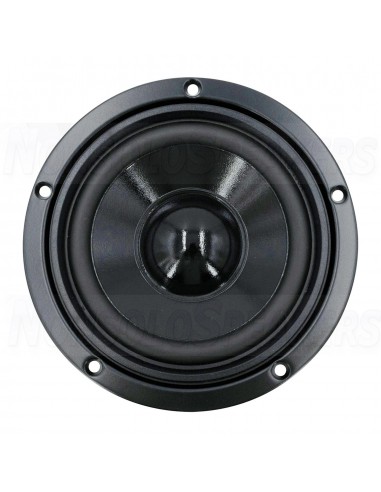

Visaton W 130 S - 8 5" Woofer 8 Ohm
Visaton's 9023 W130S 5" woofer features a coated paper cone and durable rubber surround. A very balanced frequency response allows the W130S to be used as a woofer in small two-way speakers or a midbass/midrange in three-way speakers, with a crossover point as high as 4,000 Hz. This allows you to build a surround sound system with large speakers for front and left, while maintaining the same voicing in smaller surround satellite speakers.
For best bass performance, install the W130S into one of the following cabinets:
• A 0.25 cubic foot sealed cabinet (F3 is 86 Hz with a Qtc of 0.75)
• A 0.71 cubic foot cabinet tuned to 44 Hz with a 1-1/4" diameter port that is 1-9/16" long
• A 1.06 cubic foot cabinet tuned to 39 Hz with a 2-3/8" diameter port that is 4-3/4" long.

.

Technical Specifications

  • Article number W 130 S - 8
  • Woofer Series HiFi Series
  • Woofer Type Bass-mid woofer
  • Nominal Diameter 5"
  • Power Handling (RMS) 50 watts
  • Power Handling (max) 80 watts
  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 87 dB
  • Frequency Response 52 - 12,000 Hz
  • Voice Coil Diameter 1" DC Resistance (Re) 6 ohms
  • Voice Coil Inductance (Le) 0.6 mH
  • Resonant Frequency (Fs) 52 Hz
  • Mechanical Q (Qms) 2.26
  • Electromagnetic Q (Qes) 0.59
  • Total Q (Qts) 0.47
  • Compliance Equivalent Volume (Vas) 0.42 ft.³
  • Maximum Linear Excursion (Xmax) 2.25 mm
  • Cone / Diaphragm Material Treated Paper
  • Surround Material Rubber
  • Overall Outside Diameter 146 mm
  • Overall Depth 53.1 mm
  • Baffle Cutout Diameter 106.9 mm
  • # Mounting Holes 5
  • Sealed Volume 5.95 liters
  • Sealed F3 88 Hz
  • Vented Volume 15.86 liters
  • Vented F3 43 Hz
