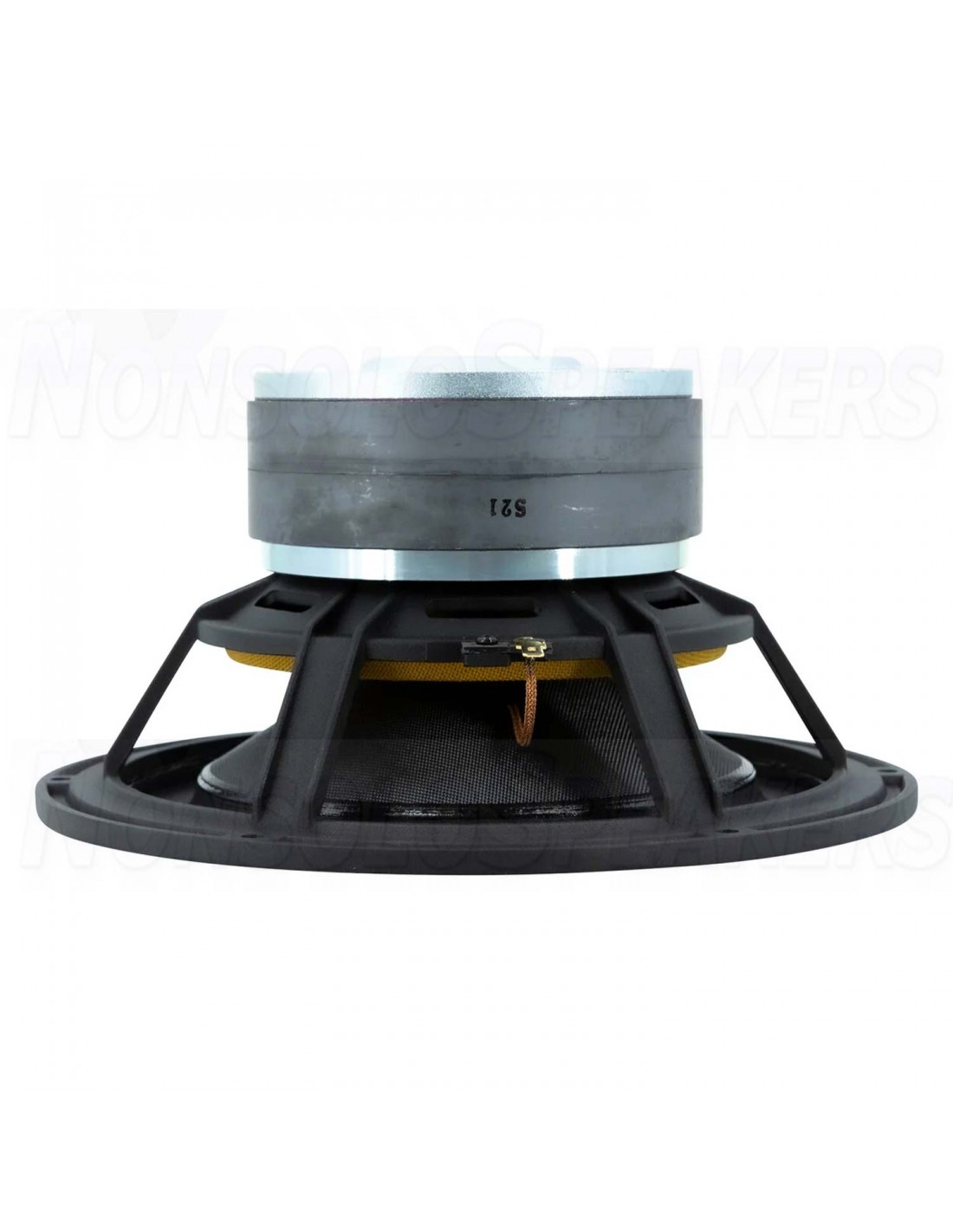

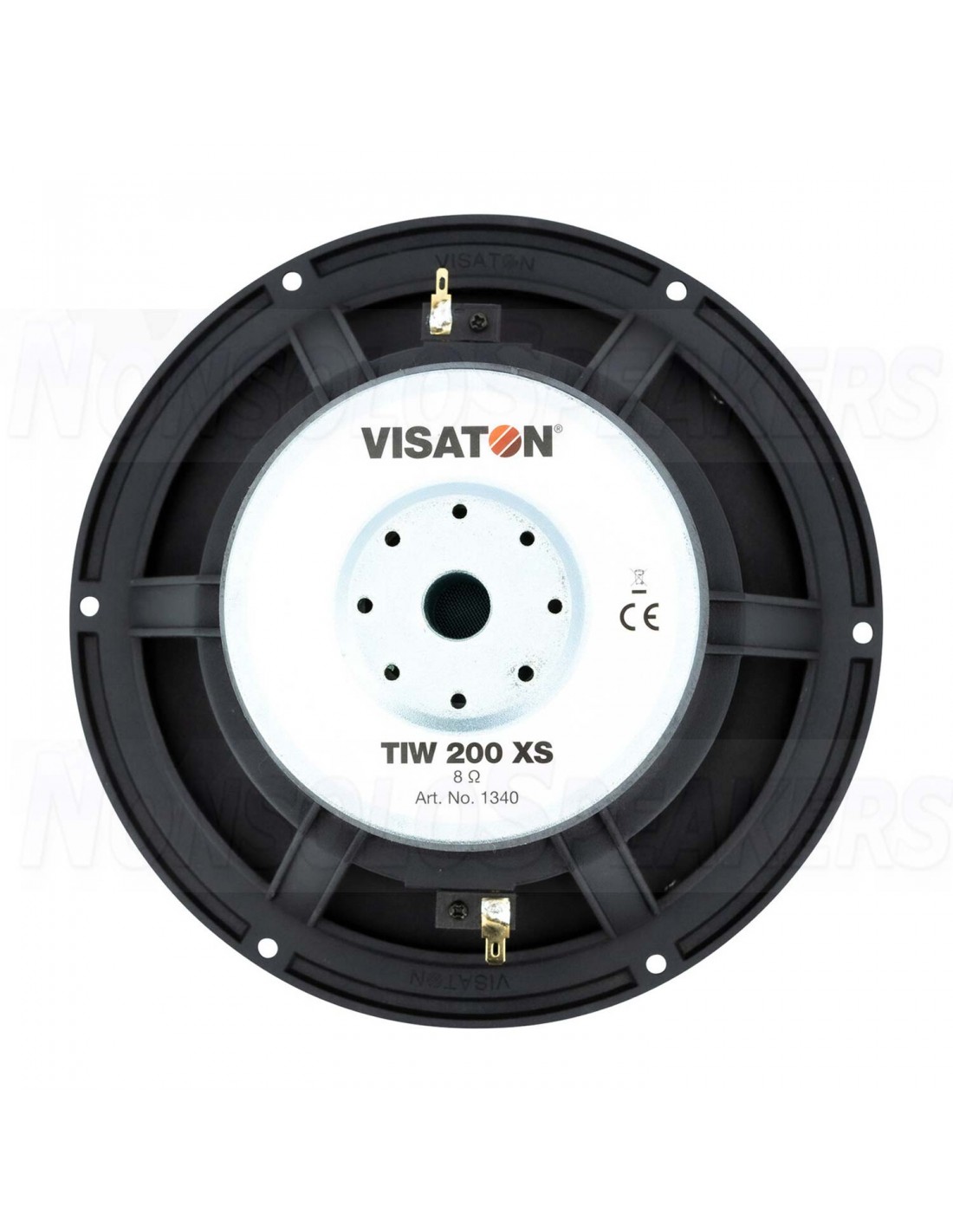

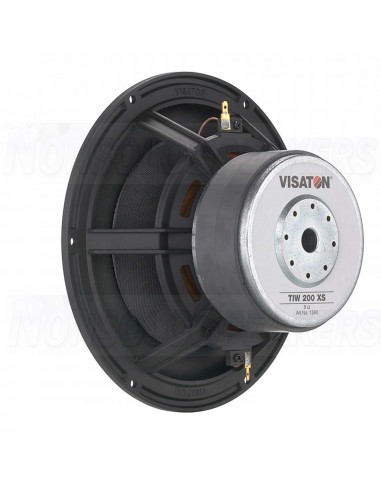

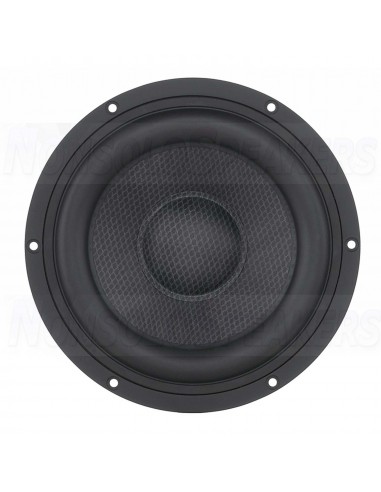

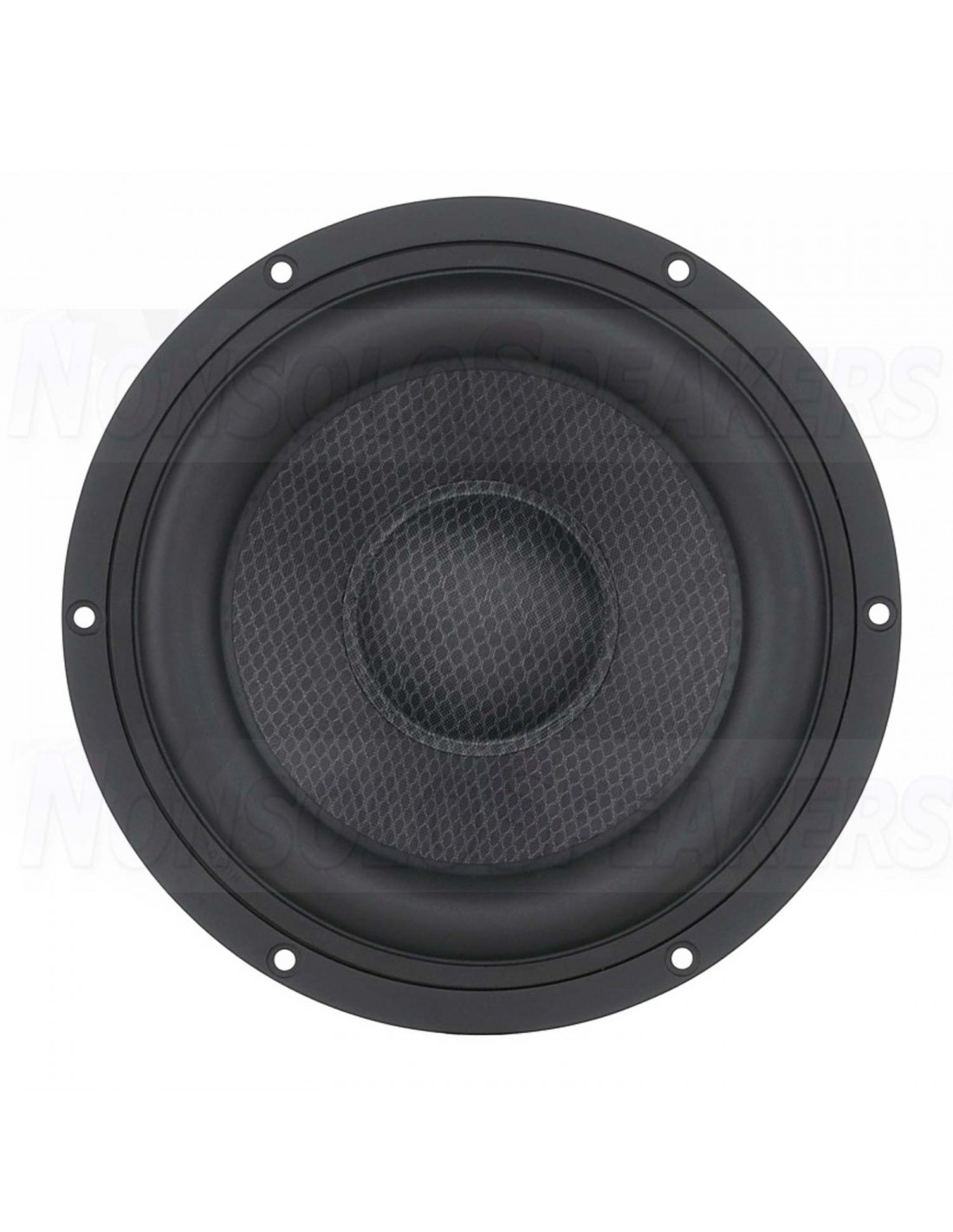

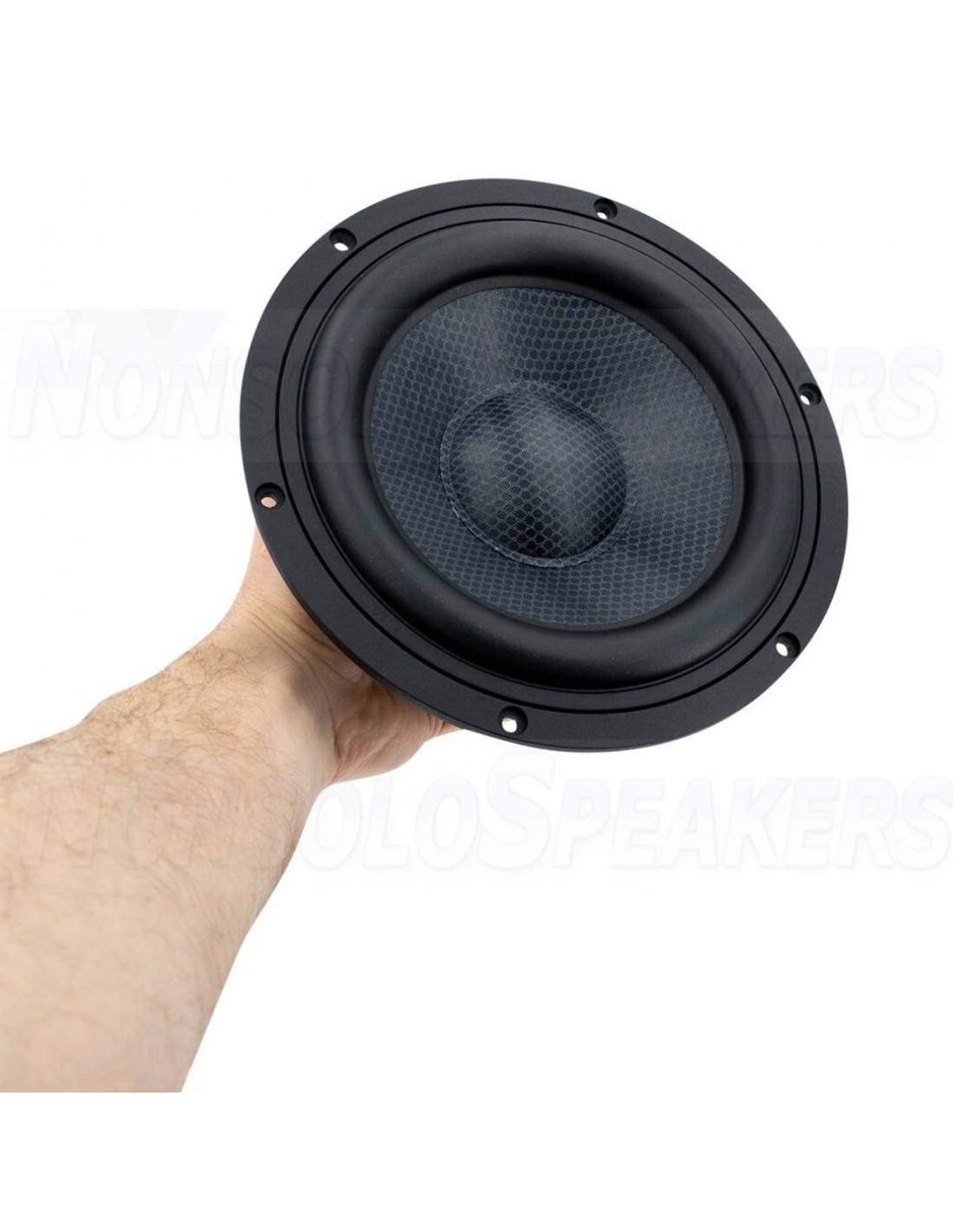

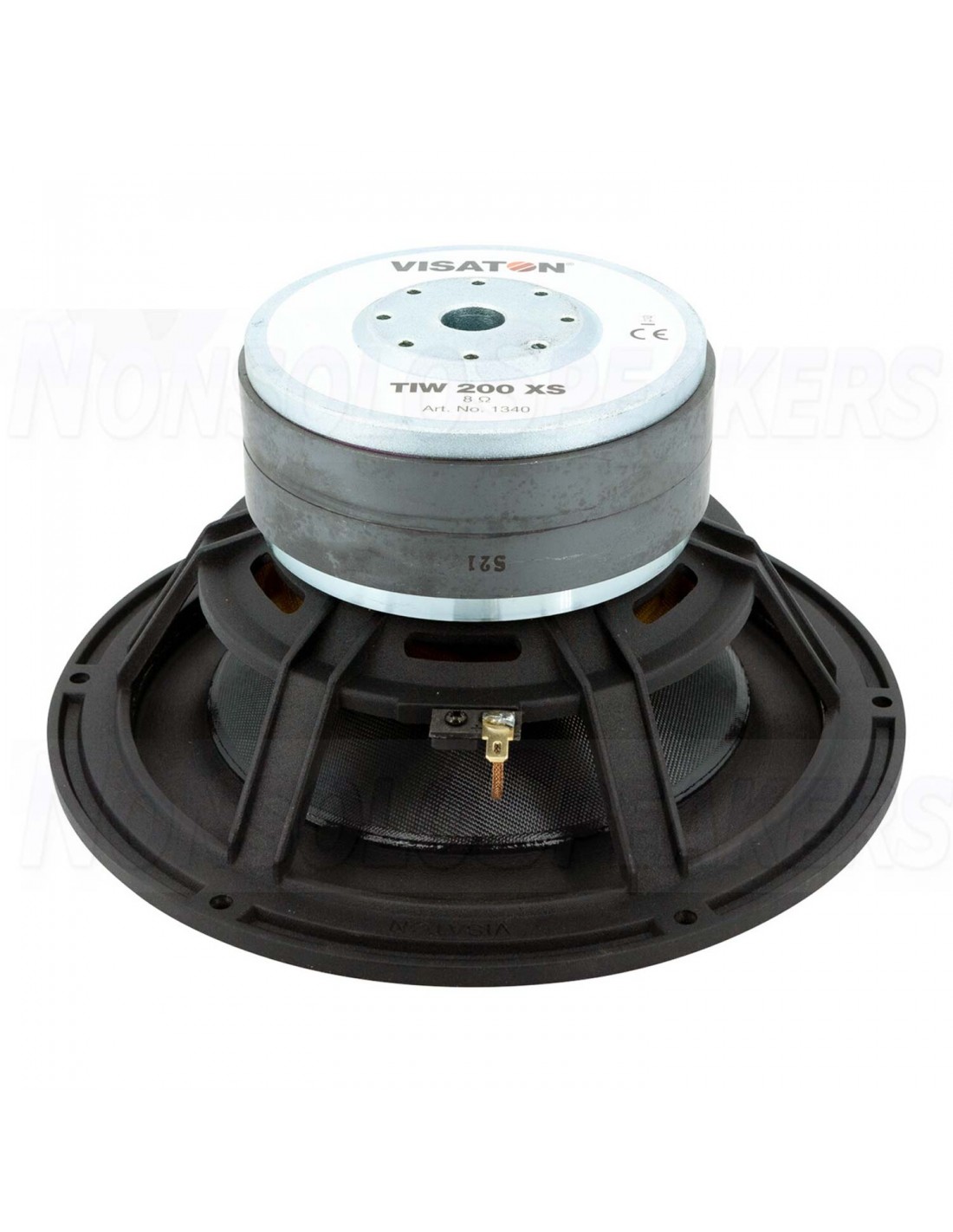

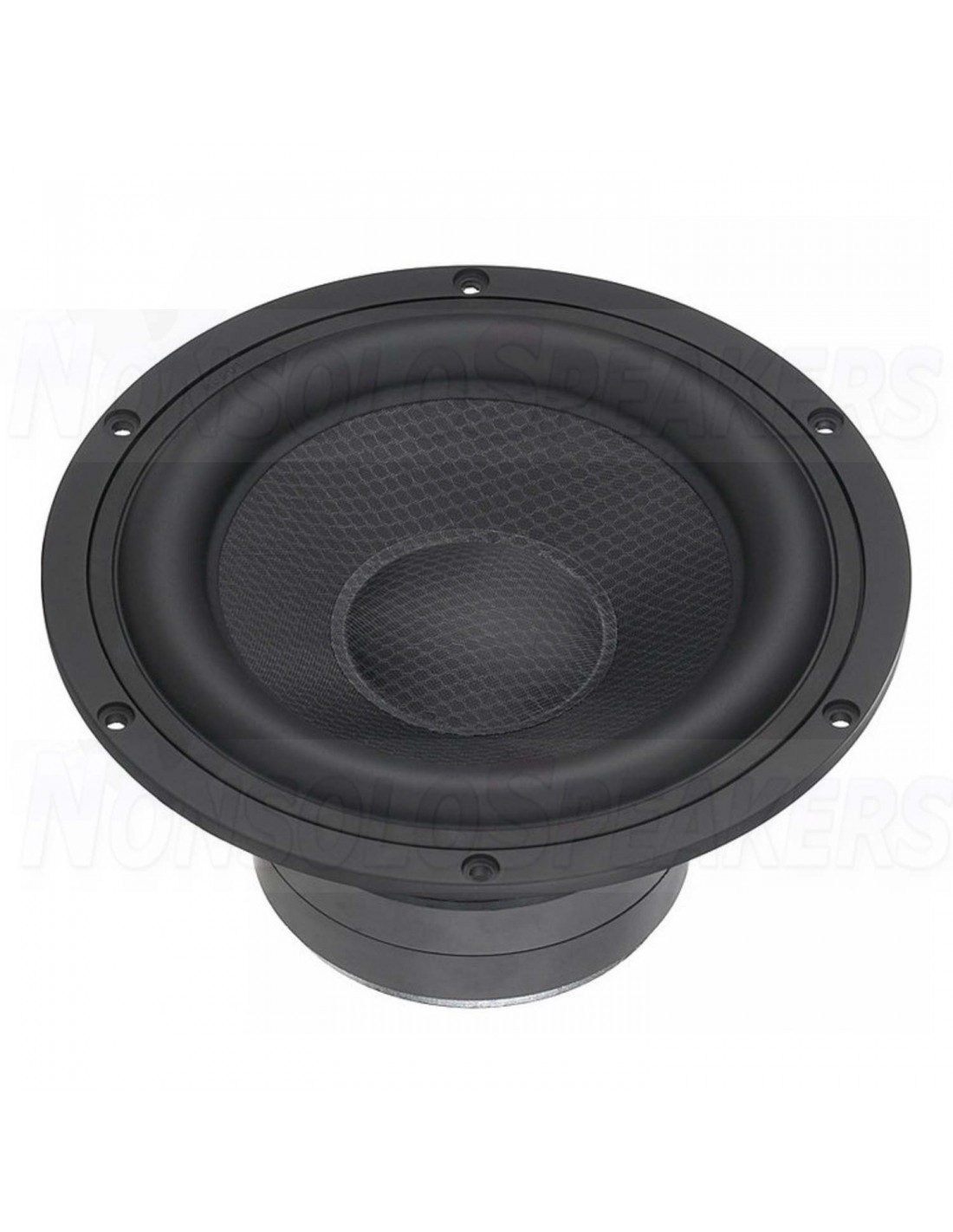

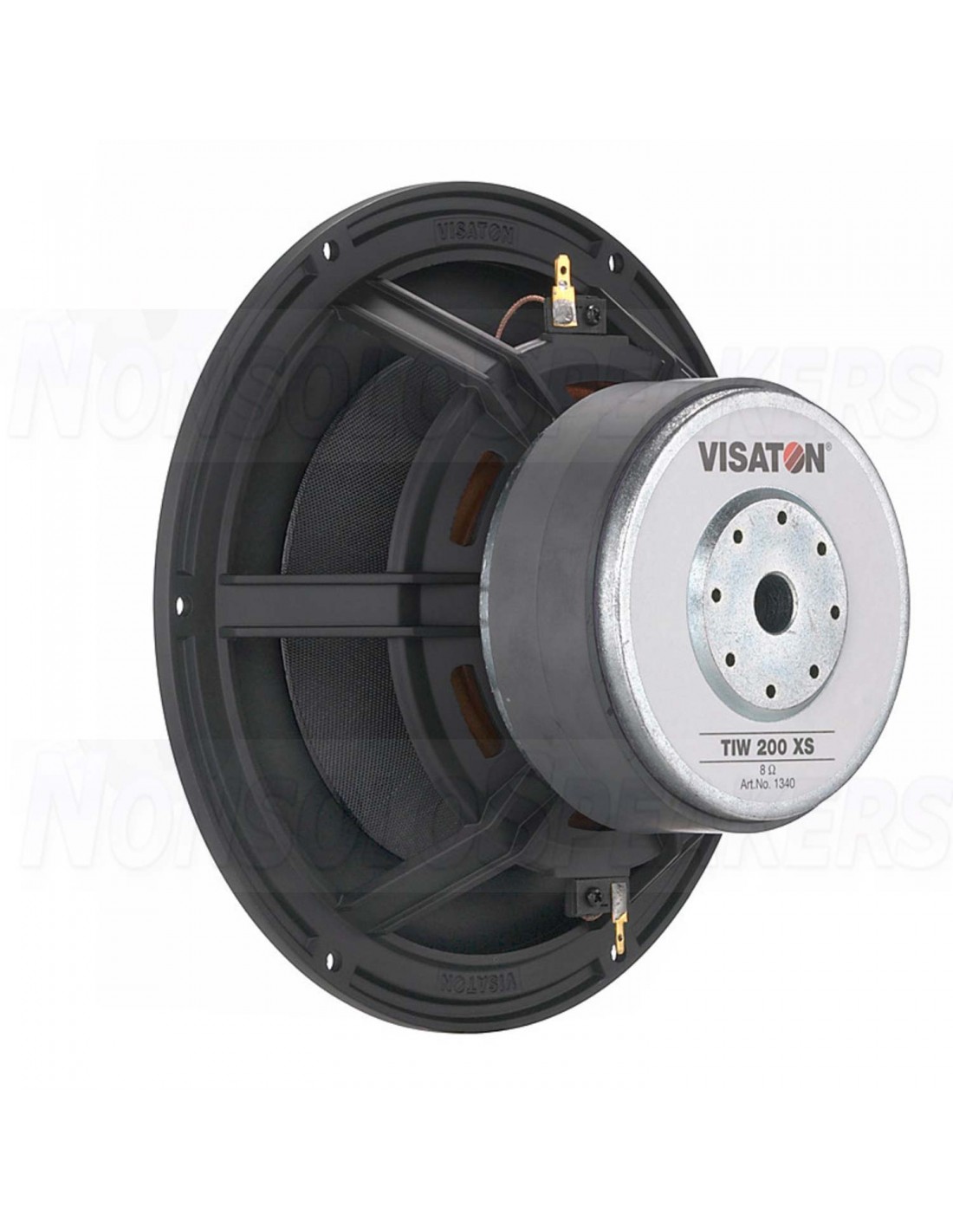

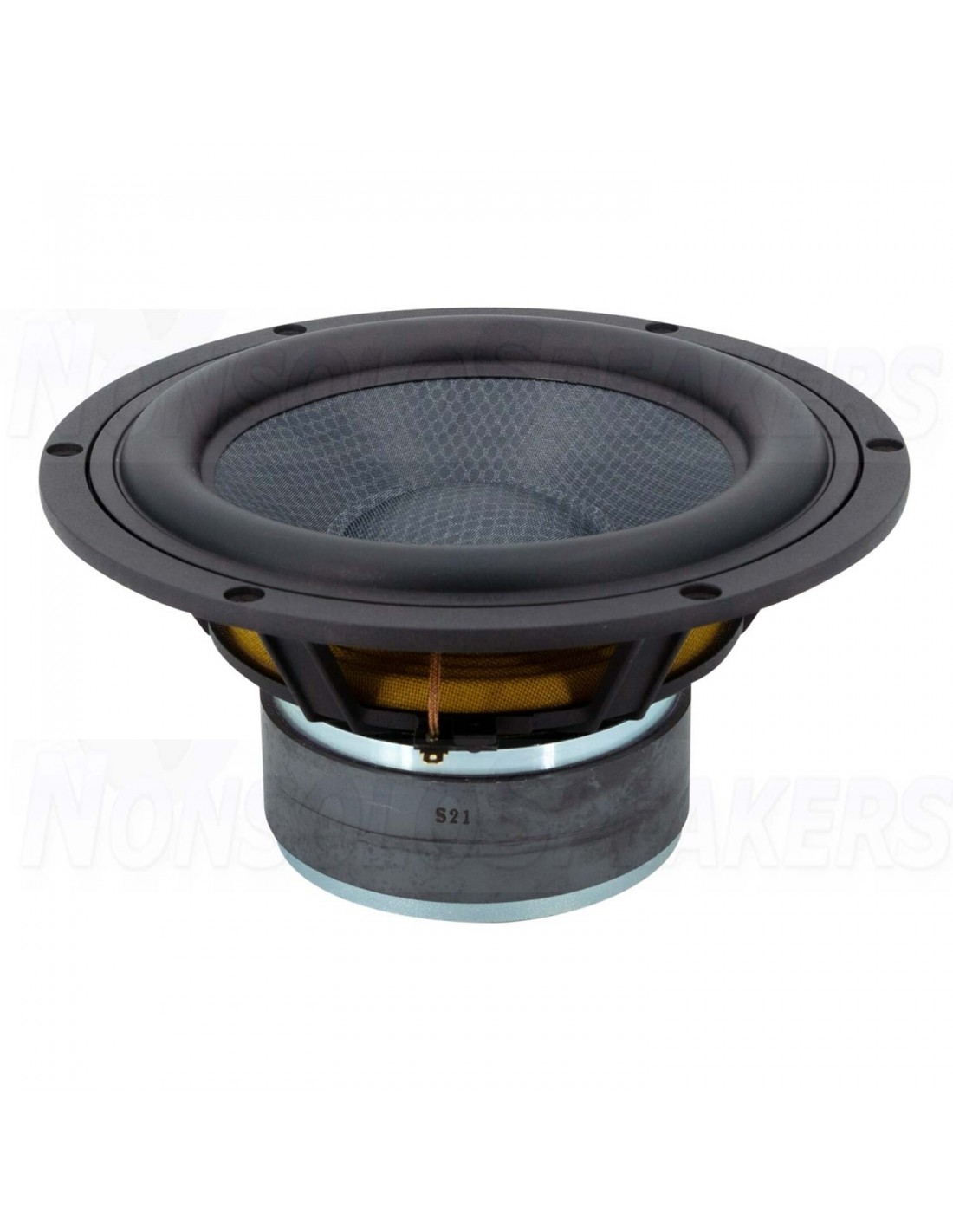

Visaton TIW 200 XS 8" High-End Woofer 8 Ohm

20 cm (8") High-end woofer specially for use as a small subwoofer.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton TIW 200 XS 8" High-End Woofer 8 Ohm

20 cm (8") High-end woofer specially for use as a small subwoofer.

.

Highlights

  • Rigid Sandwich diaphragm
  • Wide surround
  • Long voice coil

.

Product details

The extra-wide elastic surround, the long voice coil and particularly large magnet arrangement give this speaker extremely long excursion. Thanks to the multiple venting of the voice coil (pole piece hole, holes in the pole piece plate, cutouts in the aluminium diecast cone to vent the centering unit from behind) losses and flow noise are minimised. The capton voice coil carrier and the long voice coil enable the driver to withstand considerable loads. The diaphragm is a sandwich construction made up of layers of fibreglass and polyester fabric which makes it particularly rigid and low in resonance. These design features result in high level accuracy and excellent low-range bass imaging even in smaller cabinets.

.

Specifications

  • Woofer Series High-End
  • Woofer Type Midwoofer
  • Nominal Diameter 222 mm
  • Power Handling (RMS) 120 Watts
  • Power Handling (max) 120 Watts
  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 84 dB
  • Frequency Response 30 - 7,500 Hz
  • Voice Coil Diameter 38 mm
  • DC Resistance (Re) 6 ohms
  • Voice Coil Inductance (Le) 1.6 mH
  • Resonant Frequency (Fs) 30 Hz
  • Mechanical Q (Qms) 5.19
  • Electromagnetic Q (Qes) 0.5
  • Total Q (Qts) 0.46
  • Diaphragm Mass Inc. Airload (Mms) 33g
  • Surface Area of Cone (Sd) 206 cm2
  • BL Product (BL) 8.51 Tm
  • Compliance Equivalent Volume (Vas) 51.5 liters
  • Maximum Linear Excursion (Xmax) 11 mm
  • Cone / Diaphragm Material Fiberglass Polyester Sandwich
  • Voice Coil Former Kapton
  • Basket / Frame Material Cast Aluminum
  • Overall Outside Diameter 222 mm
  • Overall Depth 114
  • Baffle Cutout Diameter 190 mm
  • Bolt Circle Diameter 210 mm
  • # Mounting Holes 6
  • Mounting Hole Diameter 5 mm
Visaton TIW 200 XS
