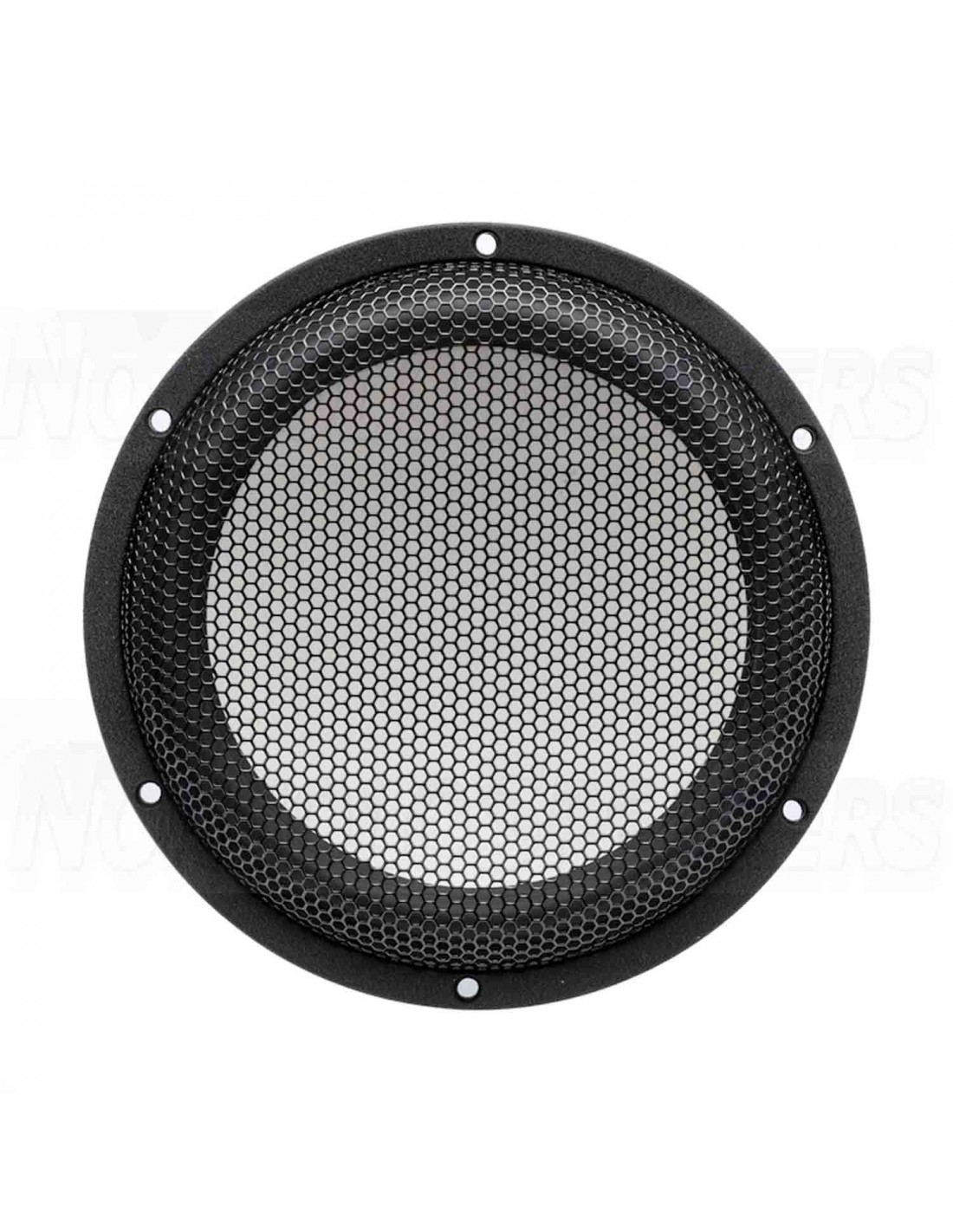

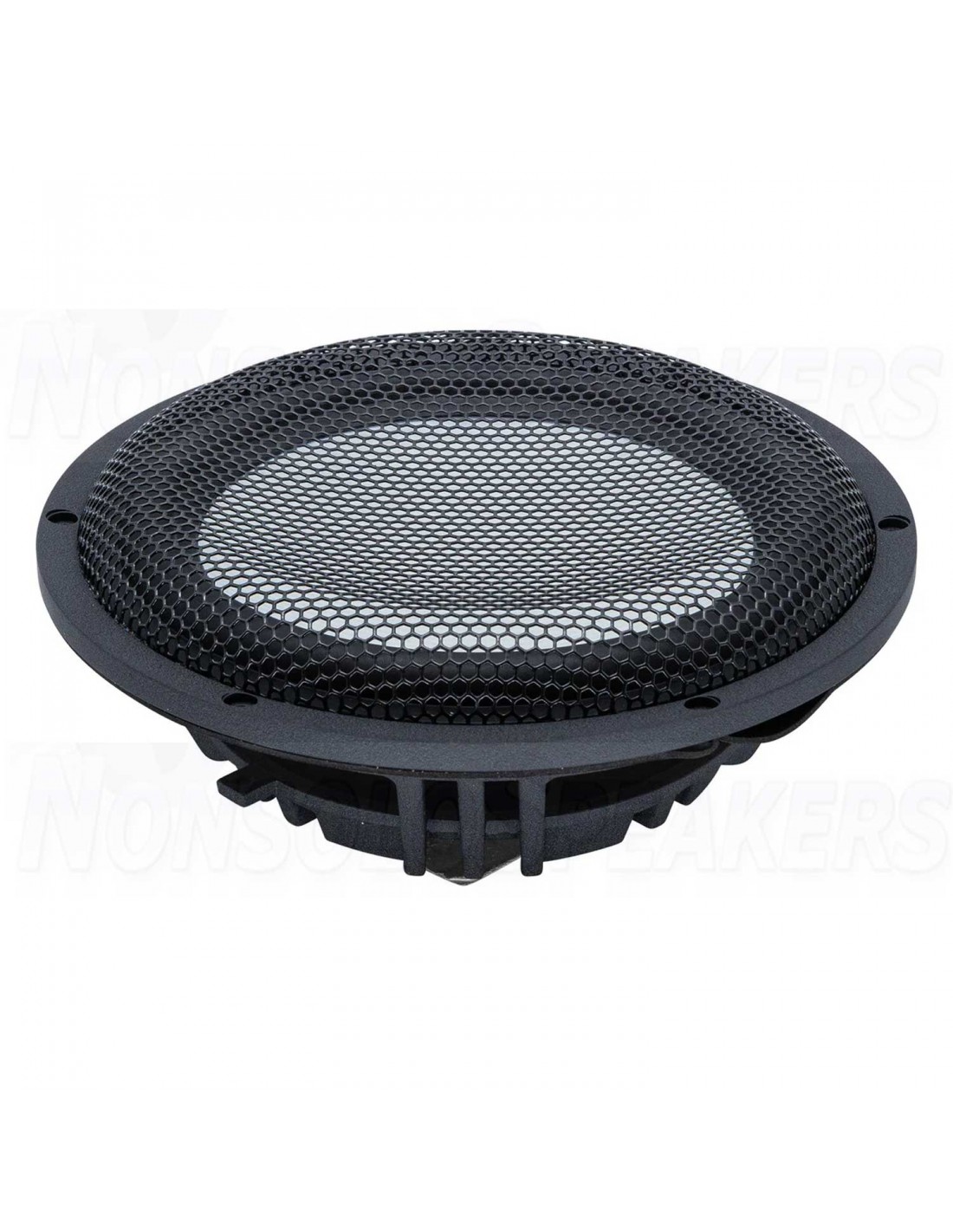

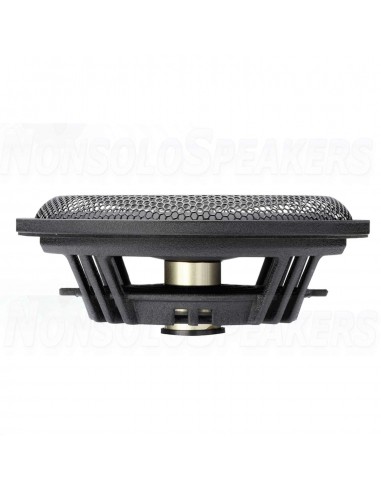

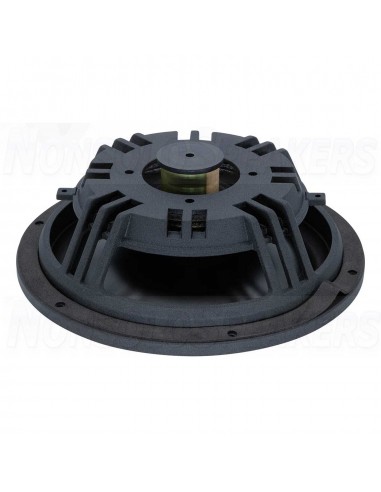

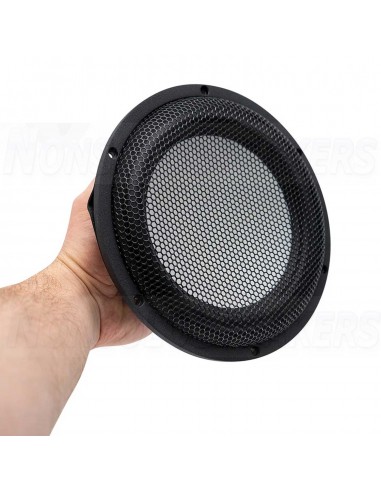

The P220 ist a 8 inch Passive Radiator with an Aluminium Sandwich Dome. Extra mass can easily be added to tune the resonance frequency. A simple but robust screw mount provides fixing of stainless steel discs in the desired quantity.
The values of Vas and Cms allow for extensive tuning and various box sizes.

Out-of-Stock
€269.00

Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



Accuton P220 Passive Radiator 21 cm 1 piece

The P220 ist a 8 inch Passive Radiator with an Aluminium Sandwich Dome. Extra mass can easily be added to tune the resonance frequency. A simple but robust screw mount provides fixing of stainless steel discs in the desired quantity.
The values of Vas and Cms allow for extensive tuning and various box sizes.

The stated resonance frequency of the passive radiator is taken at 3mm excursion, offering a realistic value.

.

Mechanical Data

Specification Value Unit

Overall diameter 220 mm

Cutout Diameter/Square 190.5 mm

Min. frontplate thickness 9 mm

Overall depth 76 mm

Motor assembly depth 0 mm

Motor assembly diameter 0 mm

Screwfitting DIN 7984 / 4mm mm

Terminal 0 mm

Shipping weight (pair) 6.3 Kg

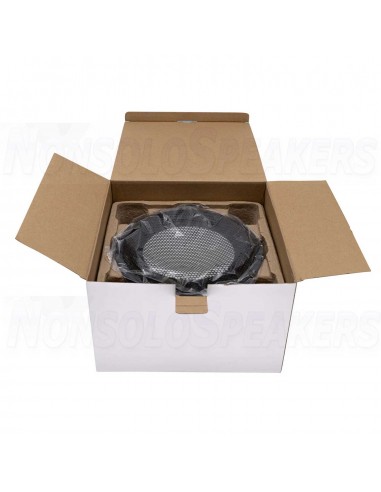

Shipping box size (pair) 250/290/250 mm

.

Thiele/Small Parameters

Specification Value Unit

Sensitivity (2.83V / 1m) Spl 0 dB

DC-resistance Re 0 Ohm

Resonance frequency Fs 41 Hz

Equivalent volume of air Vas 26.5 ltr

Mechanical Q Qms 0

Electrical Q Qes 0

Total Q Qts 0

Effective piston area Sd 224 Cm2

Moving mass Mms 23.4 g

Suspension compliance CMs 0.64 mm/n

Mechanical resistance Rms 0 Kg*s

.

Voice Coil Parameters

Specification Value Unit

Power handling P 0 W

Linear excursion Xmax 11 mm

Voice coil diameter 0 mm

Voice coil former material 0

Voice coil material 0

Voice coil inductance Le 0 mH

Force factor Bl 0 N/A

Motor type 0

Ferrofluid filling No

Accuton P220
New

Since 1994 the Thiel & Partner GmbH is developing, designing, producing and distributing under the registred trademark accuton® high quality loudspeaker made of stiff membrane materials like ceramics, diamond and aluminium sandwich.
It is our declared aim to be the provider of the constractional and phonetical best dynamic speaker drivers on the market. We also provide our customers an extensive support and collaboration in areas like case construction, design of the crossover and implemantation of electronic components.
