On sale!
-5%

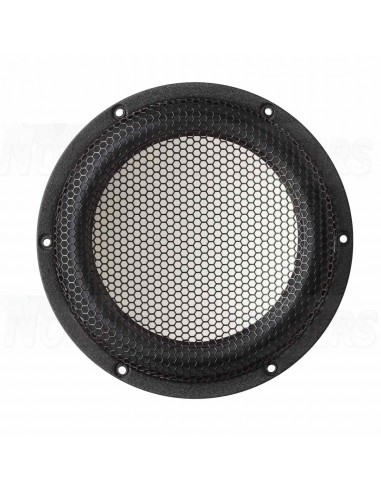

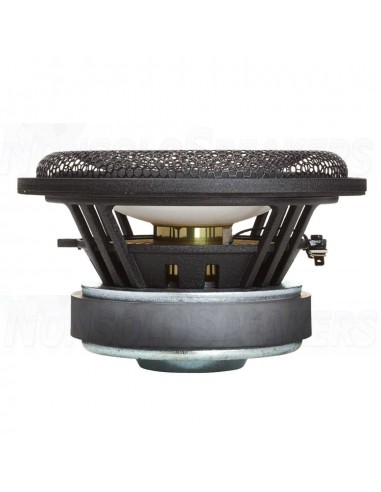

Accuton C173-6-191 Midrange 6 Ohm 1 piece

Accuton C173-6-191 Midrange 6 Ohm 1 piece

Name: Accuton C173-6-191 Midrange 6 Ohm 1 piece
Brand: Accuton
SKU: C173-6-191
Price: 379.05 EUR
Availability: InStock

Accuton C173-6-191 Midrange 6 Ohm 1 piece

SHIPMENT IN 7/10 WORKING DAYS

€379.05 €399.00 -5%

Tax included

No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs

Shipping Costs

€19.08

Shipping Time

Want to check another country or courier?

Mundorf AMT19CM1.1-C tweeter Ribbon...

0 review

€417.05 €439.00

MOREL CAW 938 - 21cm Woofer - Bass...

0 review

€185.27 €191.00

Mundorf AMT U60W1.1 Air Motion...

1 review

€206.10 €229.00

Accuton C25-4-158 Tweeter 4 Ohm

0 review

€521.55 €549.00

Accuton C25-6-158 Tweeter 6 Ohm 1 piece

0 review

€445.55 €469.00

Accuton C30-4-358 Tweeter 4 Ohm 1 piece

0 review

€512.05 €539.00

Accuton C30-6-358 Tweeter 6 Ohm 1 piece

0 review

€502.55 €529.00

Accuton C51-6-286 Tweeter 6 Ohm 1 piece

0 review

€949.05 €999.00

Accuton C158-8-085 Midrange 8 Ohm 1...

0 review

€407.55 €429.00

Accuton C158-6-851 Midrange 6 Ohm 1...

0 review

€350.55 €369.00

Accuton C173-6-191 Midrange 6 Ohm 1 piece

The Accuton C173-6-191 is a 16cm bass-midrange driver designed for small bookshelf monitors. It features a mid-sized voice coil with 38mm titanium voice coil former for high midrange resolution and a long excursion design for high SPL capabilities. TheAccuton C173-6-191 is the successor tothe C173-6-095 and features higher excursion and optimization for smaller cabinet sizes.

Short Description:

16 cm bass-midrange driver with ceramic cone and rear-vented voice coil.

Mechanical data:

Overall diameter / front panel 173 mm

cut-out 146 mm

minimum front panel thickness 6.35 mm

Overall height 94.5 mm

Magnet height 42 mm

Magnet diameter 120 mm

Screw holes For screws According to Din 7984 / Ø 4.50 mm

Weight 2,65 Kg

Thiele-Small Parameter:

Sensitivity Spl 88 dB

Resistance(DC) Re 5.9 Ohm

Free air resonance frequency Fs 38.6 Hz

Equivalent volume Vas 21.6 Ltr

Mechanical Q factor Qms 5.27

Electrical Q factor Qes 0.37

Overall quality Qts 0.34

Effective diaphragm area Sd 133 Cm2

Moving mass Mms 19.8 G

Membrane stress compliance Cms 0.86 Mm/N

Mechanical resistance Rms 0.91 Kg*S

Voice coil parameters:

Power handling P 120 W RMS

Impedance 6 Ohm

Linear excursion Xmax +/-5 Mm

Voice coil diameter 38 Mm

Voice coil carrier material Ti

Conductor material Cu

Voice coil inductance Le 0.72 Mh

Force Factor Bl 8.8 N/A

Drive type Overhanging

Ferrofluid In air gap No

Enclosure Recommendation Closed:

Vb: 6.5L, -13dB @ 40Hz, F-3dB: 76Hz, Q: 0.71 (Balanced).

Vb: 18L, -10dB @ 40Hz, F-3dB: 85Hz, Q: 0.50 (Enhanced Bass)

Enclosure Recommendation Bass Reflex:

Vb: 12L, port diameter: 50mm, length: 220mm, Fres: 45Hz, F-3dB: 50Hz, Q: 0.58 (optimum).

Vb: 18L, port diameter: 50mm, length: 150mm, Fres: 43,5Hz, F-3dB: 41Hz, Q: 0,50 (extended bass)

Vb: 10L, port diameter: 50mm, length: 240mm, Fres: 48Hz, F-3dB: 52Hz, Q: 0.61 (0.7dB wave height) at 100Hz

Reference C173-6-191

In stock 4 Items

Condition New

Since 1994 the Thiel & Partner GmbH is developing, designing, producing and distributing under the registred trademark accuton® high quality loudspeaker made of stiff membrane materials like ceramics, diamond and aluminium sandwich.
It is our declared aim to be the provider of the constractional and phonetical best dynamic speaker drivers on the market. We also provide our customers an extensive support and collaboration in areas like case construction, design of the crossover and implemantation of electronic components.
