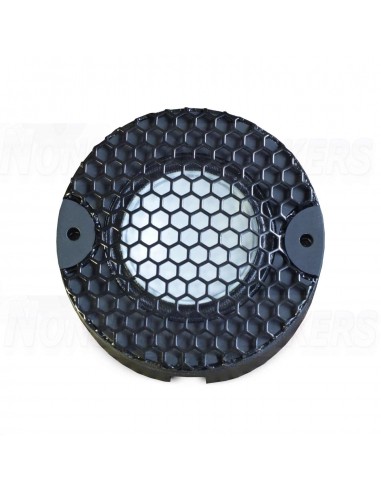

Accuton C30-6-358 Tweeter 6 Ohm 1 piece
Accuton C30-6-358 Tweeter 6 Ohm 1 piece
Accuton C30-6-358 Tweeter 6 Ohm 1 piece
Accuton C30-6-358 Tweeter 6 Ohm 1 piece
Accuton C30-6-358 Tweeter 6 Ohm 1 piece
Accuton C30-6-358 Tweeter 6 Ohm 1 piece

Accuton C30-6-358 Tweeter 6 Ohm 1 piece

Accuton C30-6-358 Tweeter 6 Ohm 1 piece

The Accuton C30-6-358 is a tweeter with an ultra-hard 30mm ceramic cone in a 58mm aluminum enclosure. A proprietary clamping technique allows easy mounting and adaptation to various front panel designs.

SHIPMENT IN 7/10 WORKING DAYS
€502.55 €529.00 -5%

Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



Accuton C30-6-358 Tweeter 6 Ohm 1 piece

The Accuton C30-6-358 is a tweeter with an ultra-hard 30mm ceramic cone in a 58mm aluminum enclosure. A proprietary clamping technique allows easy mounting and adaptation to various front panel designs. Since the diaphragm's breakup frequency is above the audible range and well damped, no diaphragm cutouts are required. A unique FEA-optimized underhang design with vented titanium voice coil former and dual neodymium magnet ensures low energy storage, excellent heat transfer and high excursion for low compression and extremely low distortion with values around 0.07% at 2.83 V and 0.5% max at 110 dB. The redesigned soft fabric surround centers the moving parts with improved linearity. We recommend our Accuton C30-6-358 in an application above 1800 Hz.

.

Short Description:

30 mm tweeter with ceramic cone.

A magnet system with neodymium magnets drives the speaker.

The underhang voice coil remains completely in the magnetic field during linear operation.

.

Mechanical data:

Overall diameter / front plate 57.6 mm

Hole cut-out 58 mm

Minimum front panel thickness 6 mm

Overall height 28 mm

Connection For flat plug +: 4.8 X 0.8 / -: 2.8 X 0.8 mm

Weight (pair) 0.6 Kg

.

Thiele-Small Parameter:

Sensitivity Spl 93.5 dB

Resistance(DC) Re 5.23 Ohm

Free air resonance frequency Fs 826 Hz

Equivalent volume Vas - Ltr

Mechanical quality Qms 4.5

Electrical quality Qes 0.85

Overall quality Qts 0.71

Effective diaphragm area Sd 8.55 Cm2

Moving mass Mms 0.39 Gr

Membrane stress compliance Cms 0.145 mm/N

Mechanical resistance Rms 0.97 Kg*S

.

Voice coil parameters:

Power handling P 120 Watt
Impedance 6 Ohm
Linear excursion Xmax +/-0.8 mm
Voice coil diameter 30 mm
Voice coil carrier material Ti
Conductor material Cu
Voice coil inductance Le 0.01 mH
Force factor Bl 3.98 N/A
Drive Type Underhung
C30-6-358
10 Items
New

Since 1994 the Thiel & Partner GmbH is developing, designing, producing and distributing under the registred trademark accuton® high quality loudspeaker made of stiff membrane materials like ceramics, diamond and aluminium sandwich.
It is our declared aim to be the provider of the constractional and phonetical best dynamic speaker drivers on the market. We also provide our customers an extensive support and collaboration in areas like case construction, design of the crossover and implemantation of electronic components.
