Scan Speak D3004/660000 - Tweeter 25mm - 4ohm

pro originální autorádia bez RCA výstupů).

Product description

Highlights

1" Textile Dome Diaphragm

Patented Symmetrical Drive (SD-2) motor

Die Cast Rubber Painted Alu Face Plate

Large Roll Surround for Wide Dispersion

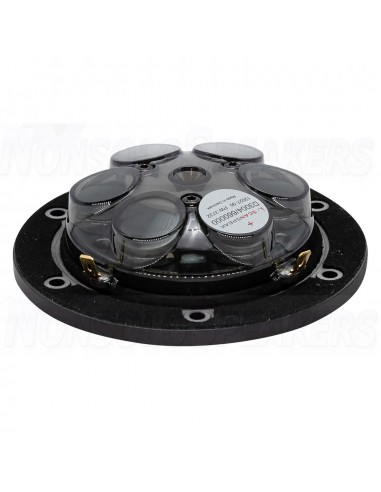

AirCirc Motor Design w. 6 Neo magnets

.

Product details

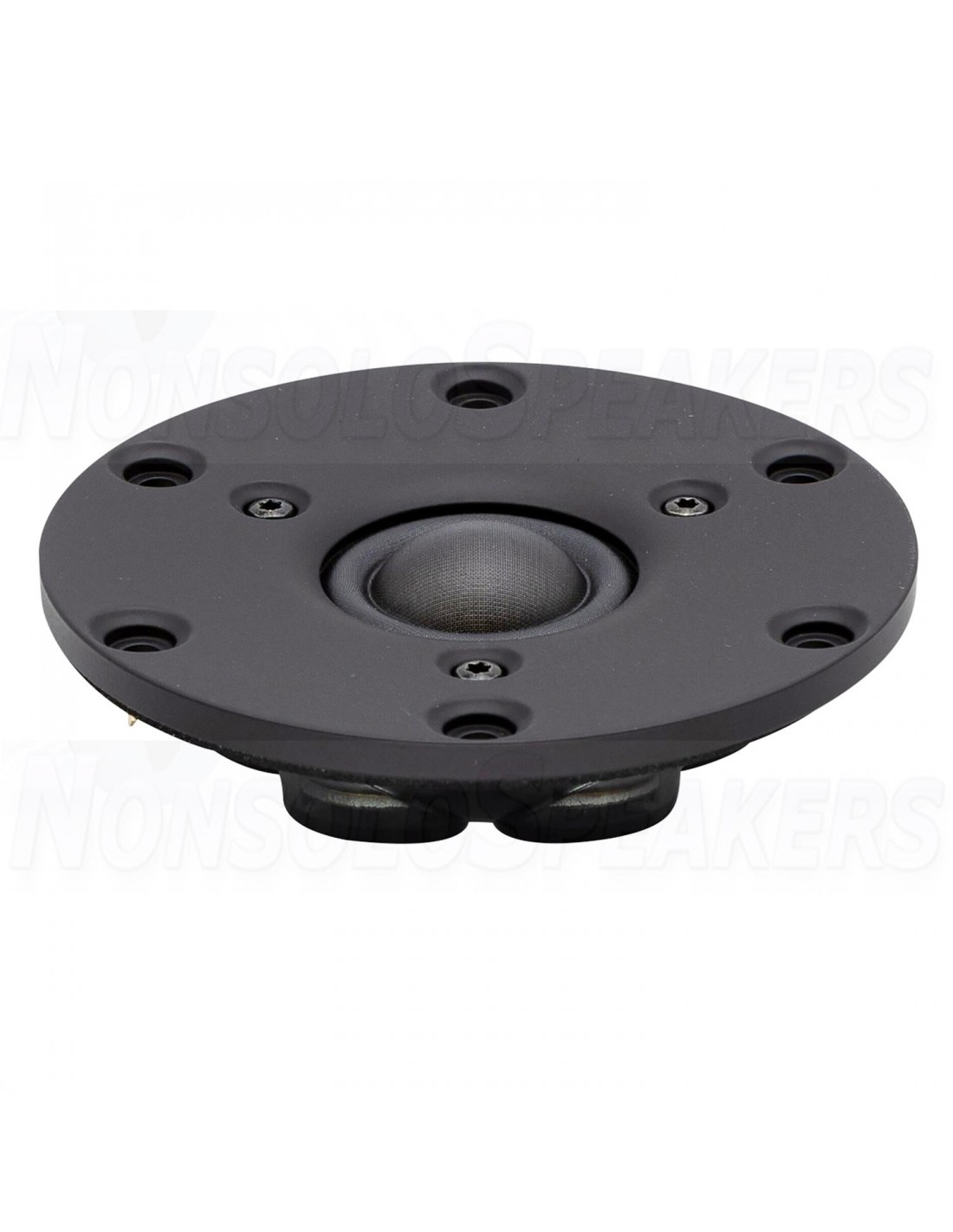

Scan-Speak Illuminator D3004/660000 1" Textile Dome Tweeter

The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. Its large roll surround and textile dome diaphragm provides a flat frequency response to above 30KHz with outstanding off-axis dispersion. The unique AirCirc Magnet System, and its rear chamber, results in elimination of reflections and resonances that compromise the performance of traditional motors.

Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 2.3 Tm • Mechanical Compliance of Suspension (Cms): 0.33 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.35 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 7 cm 2

.

.

Specifications

.

.
