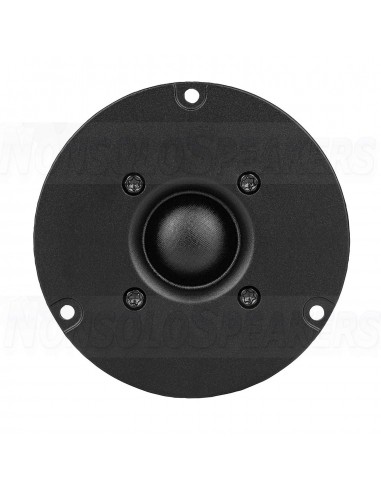

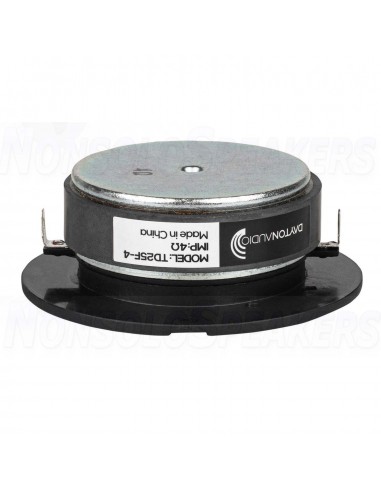

Dayton Audio TD25F-4 1" Soft Dome Tweeter 4 Ohm
Dayton Audio TD25F-4 1" Soft Dome Tweeter 4 Ohm
Dayton Audio TD25F-4 1" Soft Dome Tweeter 4 Ohm
Dayton Audio TD25F-4 1" Soft Dome Tweeter 4 Ohm
Dayton Audio TD25F-4 1" Soft Dome Tweeter 4 Ohm
Dayton Audio TD25F-4 1" Soft Dome Tweeter 4 Ohm

Dayton Audio TD25F-4 1" Soft Dome Tweeter 4 Ohm

Dayton Audio TD25F-4 1" Soft Dome Tweeter 4 Ohm

Dayton Audio’s TD25F-4 1” soft dome tweeter is ideal for adding natural high frequency response to cost effective projects. Capable of handling a crossover frequency as low as 2,000 Hz (@ 12 dB/octave), the TD25F-4 makes a great choice for use in compact 2-way designs.

Highlights

  • 1” silk dome delivers high efficiency and smooth response
  • Semi-horn loaded faceplate protects the dome while controlling off-axis response
  • Low Fs for use with crossovers as low as 2,000 Hz (@12 dB/octave)
  • Perfect choice for use in budget 2-way designs
SHIPMENT IN 7-10 WORKING DAYS
€29.00

Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?



Dayton Audio TD25F-4 1" Soft Dome Tweeter 4 Ohm

Dayton Audio’s TD25F-4 1” soft dome tweeter is ideal for adding natural high frequency response to cost effective projects. Capable of handling a crossover frequency as low as 2,000 Hz (@ 12 dB/octave), the TD25F-4 makes a great choice for use in compact 2-way designs.

With a 1” silk dome the TD25F-4 from Dayton Audio produces smooth and natural high frequency output. The semi-horn loaded faceplate helps to control the off-axis response while recessing the dome for extra protection. An Fs of 900 Hz makes this tweeter suitable for use with a crossover as low as 2,000 Hz for an easy transition to most 6-1/2” woofers. The TD25F-4 is an excellent choice for use in cost effective, but high performance, 2-way speaker systems.

.

Highlights

  • 1” silk dome delivers high efficiency and smooth response
  • Semi-horn loaded faceplate protects the dome while controlling off-axis response
  • Low Fs for use with crossovers as low as 2,000 Hz (@12 dB/octave)
  • Perfect choice for use in budget 2-way designs

.

Product Details

Speaker Series
Model Number TD25F-4
Color Black
Unit of Measure Each
UPC 848791007903
Product Shipping Weight (lbs.) 1.15
Speaker Type Tweeter
Nominal Diameter 1"
Power Handling (RMS) 20 watts
Power Handling (max) 40 watts
Continuous Program Power --
Impedance 4 ohms
Sensitivity 91 dB @ 2.83V/1m
Frequency Response 2,000 - 20,000 Hz
Voice Coil Diameter 25 mm
Magnet Weight --
DC Resistance (Re) 3.5 ohms
Voice Coil Inductance (Le) 0.04 mH @ 1 kHz
Resonant Frequency (Fs) 900 Hz
Mechanical Q (Qms) 2.22
Electromagnetic Q (Qes) 1.62
Total Q (Qts) 0.94
Diaphragm Mass Inc. Airload (Mms) --g
Moving Mass Of Diaphragm (Mmd) --
Mechanical Compliance of Suspension (Cms) --mm/N
Surface Area Of Cone (Sd) 7.5 cm²
Volume of Displacement (Vd) --cm³
BL Product (BL) --
Compliance Equivalent Volume (Vas) --
Maximum Linear Excursion (Xmax) --
Drivers Mechanical Losses (Rms) --
Cone / Diaphragm Material --
Entry / Exit Diameter --
Surround Material --
Voice Coil Wire Material --
Voice Coil Former --
Basket/Frame Material --
Magnet Material Ferrite
Overall Outside Diameter 3.68"
Overall Depth 1.28"
Baffle Cutout Diameter 2.72"
# Mounting Holes 3
Mounting Hole Diameter -
- Bolt Circle Diameter --
Product Weight --
