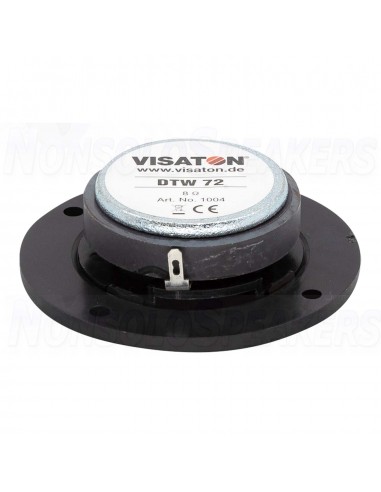

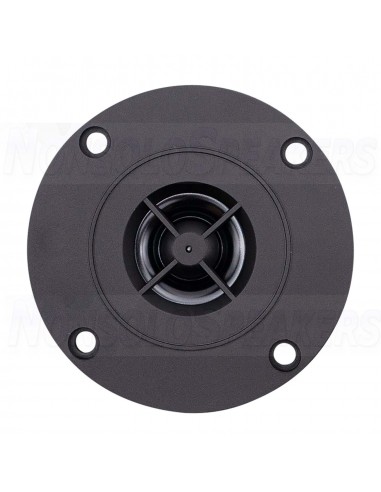

Visaton DTW 72 Dome Tweeter 15 mm
Visaton DTW 72 Dome Tweeter 15 mm
Visaton DTW 72 Dome Tweeter 15 mm
Visaton DTW 72 Dome Tweeter 15 mm
Visaton DTW 72 Dome Tweeter 15 mm
Visaton DTW 72 Dome Tweeter 15 mm
Visaton DTW 72 Dome Tweeter 15 mm
Visaton DTW 72 Dome Tweeter 15 mm
Visaton DTW 72 Dome Tweeter 15 mm
Visaton DTW 72 Dome Tweeter 15 mm

Visaton DTW 72 Dome Tweeter 15 mm

Visaton DTW 72 Dome Tweeter 15 mm

14 mm (0.6") polycarbonate dome driver for the highrange above 4000 Hz.

SHIPMENT IN 5-7 WORKING DAYS
€17.45
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton DTW 72 Dome Tweeter 15 mm

14 mm (0.6") polycarbonate dome driver for the highrange above 4000 Hz.

.

Highlights

  • Ferrofluid-cooled 8 ohm voice coil
  • 91 dB sensitivity
  • High power handling

Product Details

Visaton DTW 72 0.6" Polycarbonate Tweeter
Balanced frequency response and excellent omnidirectional sound distribution. Due to the strong magnetic drive and the ultra-light dome in conjunction with the ferrofluid-cooled voice-coil good efficiency and high power handling.
.

Technical Specifications

  • Article number DTW 72
  • Tweeter Type Dome
  • Tweeter Series DTW Series
  • Cone / Dome Diameter 15 mm | 0.6"
  • Power Handling (RMS) 70 Watts
  • Power Handling (max) 110 Watts
  • Impedance (Z) 8 Ω
  • Sensitivity (SPL at 1m / 2.83V) 91 dB
  • Frequency Response 2,200 - 23,000 Hz
  • Resonant Frequency (Fs) 3000 Hz
  • DC Resistance (Re) 5.7 ohm
  • Voice Coil Inductance (Le) 0.16 mH
  • Overall Outside Diameter 72 mm
  • Cutout Diameter 50 mm
  • Depth 21.1 mm
  • Diaphragm Material Polycarbonate
  • Recommended cut frequency >4,000 Hz
