Visaton ALTO I | DIY Components Pack | Sold as Pair

Components for 2 speakers, (cabinet not included)

Estimated Shipping Costs
Shipping Costs
€16.80
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton ALTO I | DIY Components Pack | Sold as Pair

Components for 2 speakers , (cabinet not included)

.

Product description

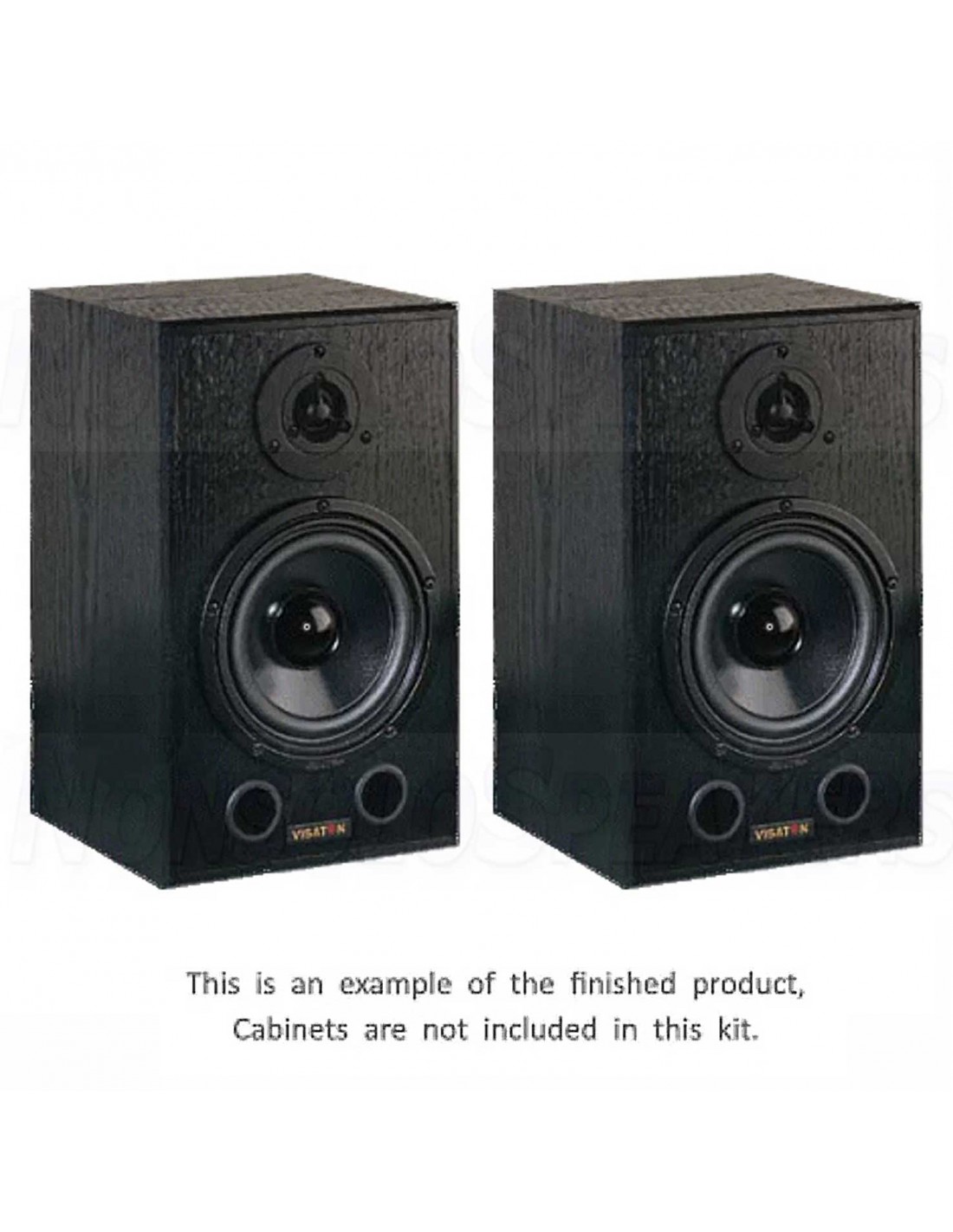

With this package you will be provided the audio components to built the ALTO I. This is a 2-way shelf-mounted speaker with a cabinet volume of 13 litres. Apart from the 4/5inch (2cm) tweeter cone, the package contains a 7inch (17.8cm) diameter mid-bass cone.

.

Highlights

Great value for money

Can be mounted on a wall

.

Product details

Visaton ALTO I DIY Components Pack

The sound qualities of the ALTO I are "warm" but with crisp, high-range reproduction. This kit is ideally suited to replacing the more basic speakers often supplied as standard with low-priced hifi systems and thus improving the overall standard of the system. Since the bass ports are positioned in the baffle , the ALTO I can be hung on the wall or placed on bookshelves, facilitating good bass response even in rooms with difficult acoustics.

.

Extract from Klang & Ton

"The ALTO I is a neat little bubbly speaker system, especially for pop music. In this area, its liveliness and clarity are highly pleasing.

Value for money: very good!”

.

Features

Rated power 60 W

Music power handling 100 W

Nominal impedance Z 4 ohms

Transmission range (-10dB) 50-22000Hz

Mean sound pressure level 83 dB (1 W/1 m)

Separation frequency 3500 Hz

Housing principle bass reflex

Net volume 13 l

External height 380 mm

External width 230 mm

Outer dimension depth 230 mm

.

The Visaton Alto 1 kit contains:

  • 1 x tweeter DT 94 8 ohms,

  • 1 x midrange driver W 170 S 4 ohms,

  • 1 x terminal block

  • 1 x bag of cushioning material

  • 1 x crossover, fully assembled

  • 12 x various screws

  • 2 x cables for indoor wiring

  • Description and blueprint

Note: Cabinets are not included.

Visaton ALTO I
1 Item
