SoundImpress DIY Stereo amplifier kit | 125WPC | Powered by ICEpower
Build your own high-performance stereo amplifier based on the 125ASX2 module from ICEpower.
Estimated Shipping Costs
Shipping Costs
€19.20
Shipping Time
.
Want to check another country or courier?
SoundImpress DIY Stereo amplifier kit | 125WPC | Powered by ICEpower
Build your own high-performance stereo amplifier based on the 125ASX2 module from ICEpower. This SoundImpress DIY stereo amplifier kit all-in-on amplifier, designed for a wide range of audio applications, ranging from public address systems to ultra high-fidelity replay systems for studio and home use. The SoundImpress brand stands for outstanding quality, timeless designs, and Dutch craftsmanship. This amplifier kit gives you the opportunity to make an amplifier, when properly assembled, built to last as its modules are extensively tested.
.
Highlights
- All-in-one stereo amplifier kit
- Amplifier and Power Supply integrated solution
- Easy to assemble
- Detailed step-by-step instructions
- Very low distortion over whole frequency range
- Neutral and transparent reproduction
- Thermal and over-current protection
- Sound optimized soft clipping
-
Product details
SoundImpress ICE125-2CH-Kit DIY Stereo Amplifier Kit | 125WPC | Powered by ICEpower
As sound sources have evolved from LP’s to CD’s to streaming audio, a high quality power amplifier remains a key ingredient to any good Hi-Fi stereo setup. No matter whether you need an amplifier for your small bookshelf speakers, subwoofer or tower speakers, this amplifier kit with ICEpower technology inside creates a fantastic high quality result.
The 125ASX2 amplifier module is an audiophile, high performance class-D power amplifier. The performance stands out with high dynamics and crystal clear mid- and high-frequencies. The low noise level generates a completely black background to reveal the tiniest of details in every recording.
This kit contains everything you need to build your own SoundImpress stereo amplifier. The main parts for this are the ICEpower 125ASX2 amplifier module and a black anodized aluminum case. The amplifier module with integrated high efficient resonant power supply offers audiophile quality, is very powerful but also compact. The custom milled aluminum enclosure, which houses the ICEpower 125ASX2 amplifier module, is the best thermal material for audio devices.
Along the main parts, this kit includes everything else you need to build a powerful, high-quality stereo amplifier at a reasonable price. Assembly is easy and only requires proper positioning of the modules, some minor soldering, bolts to be tightened and connectors to be clicked. Anybody, who is comfortable with a screwdriver and can handle a soldering iron, can build this amazing stereo amplifier.
.
Specifications
- Article number ICE125-2CH-Kit
- Rated power output 2x 125 watts at 4 ohms 2x 150 watts at 8 ohms
- Minimum load 3 Ohm
- Efficiency 86%
- Distortion 0.003 % THD+N
- Gain 24.3 dB
- Input impedance 8 kOhm
- Amplifier Classification Class D
- Speaker output channels 2
- Input connection type RCA
- Speaker output connection type Gold plated binding posts
- Power Requirements 110/220 VAC, 50Hz/60Hz
- Power inlet connector IEC C14
- Current limit 20 A
-
What’s In The Box

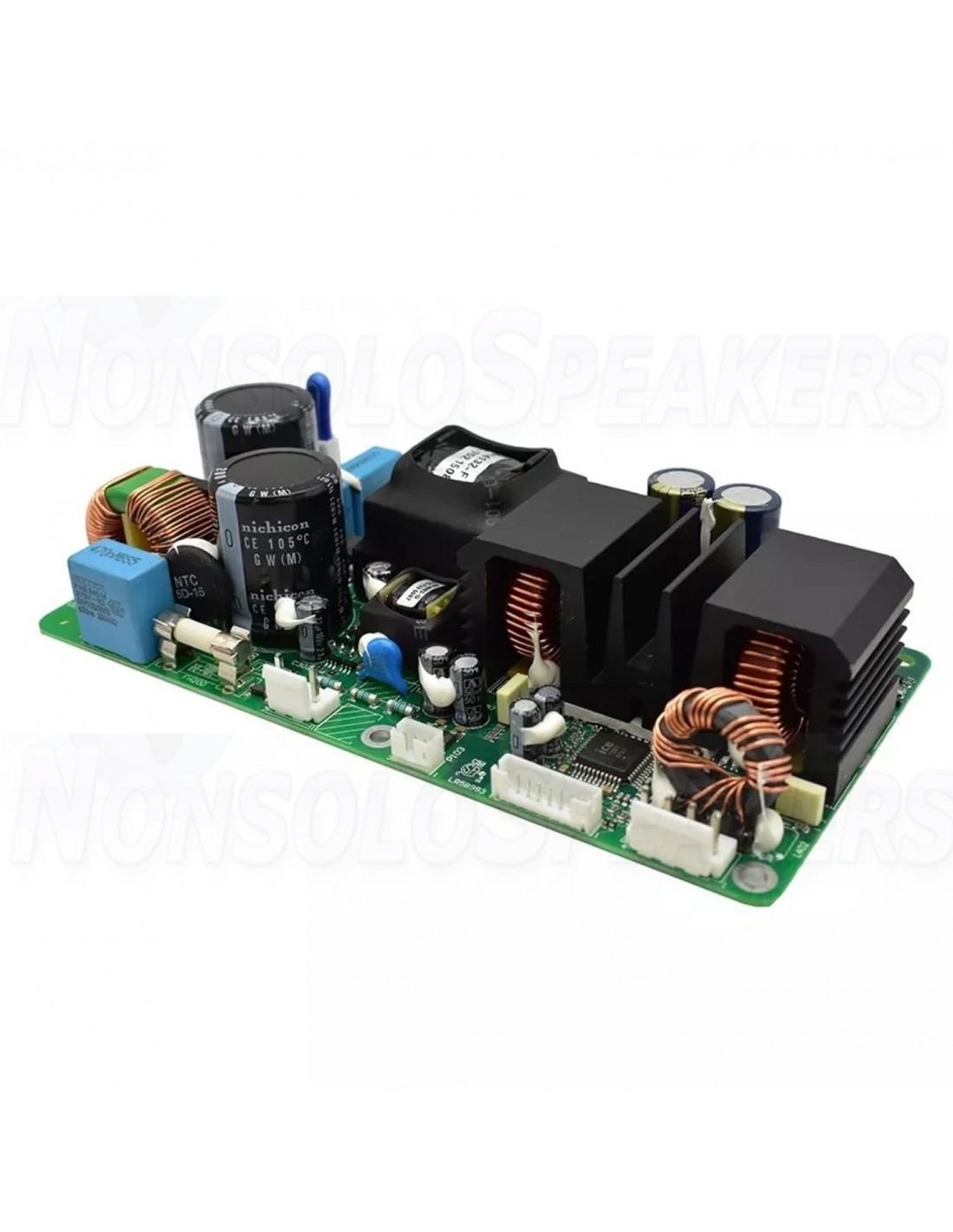

- 1x ICEpower 125ASX2 amplifier module with integrated power supply

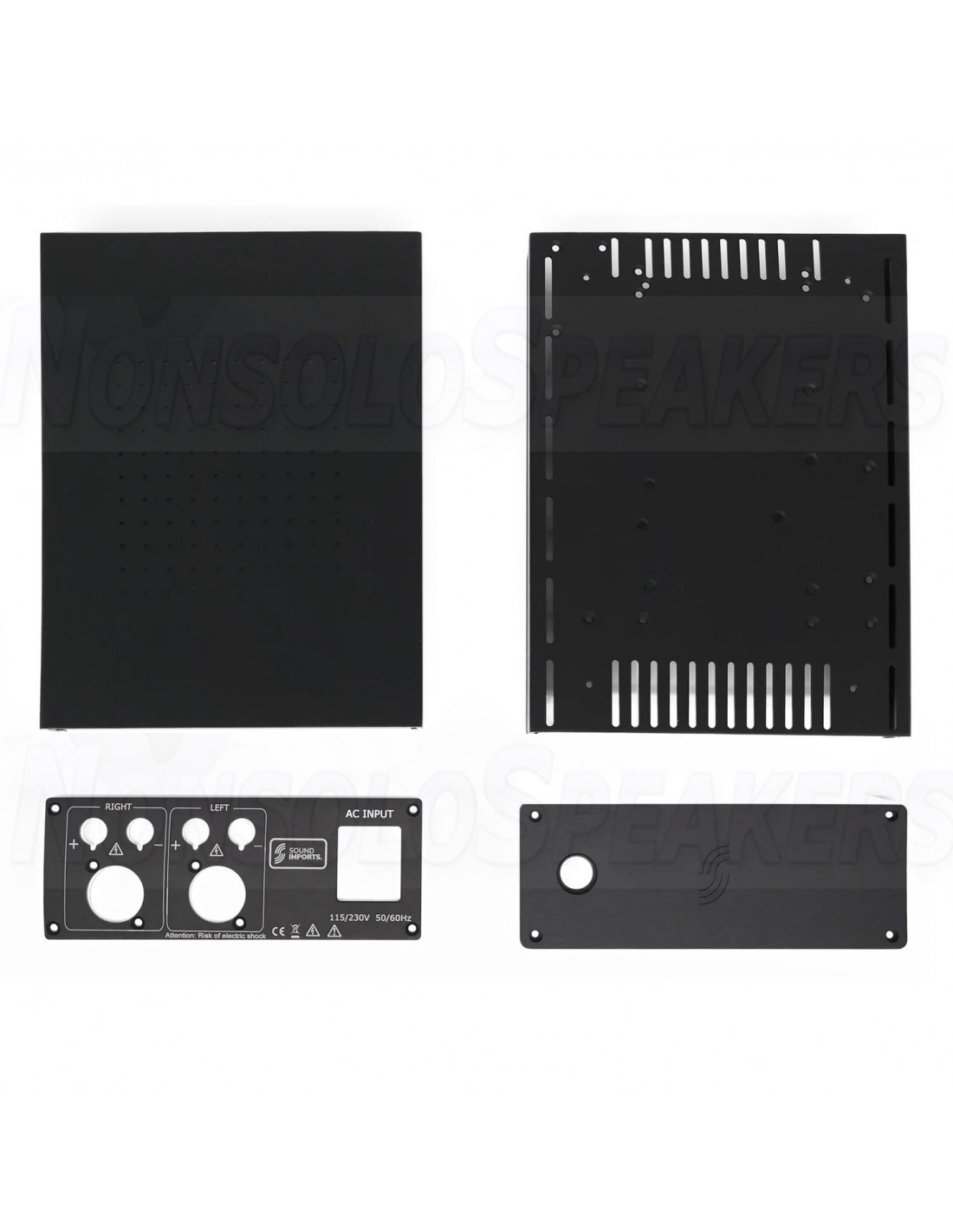

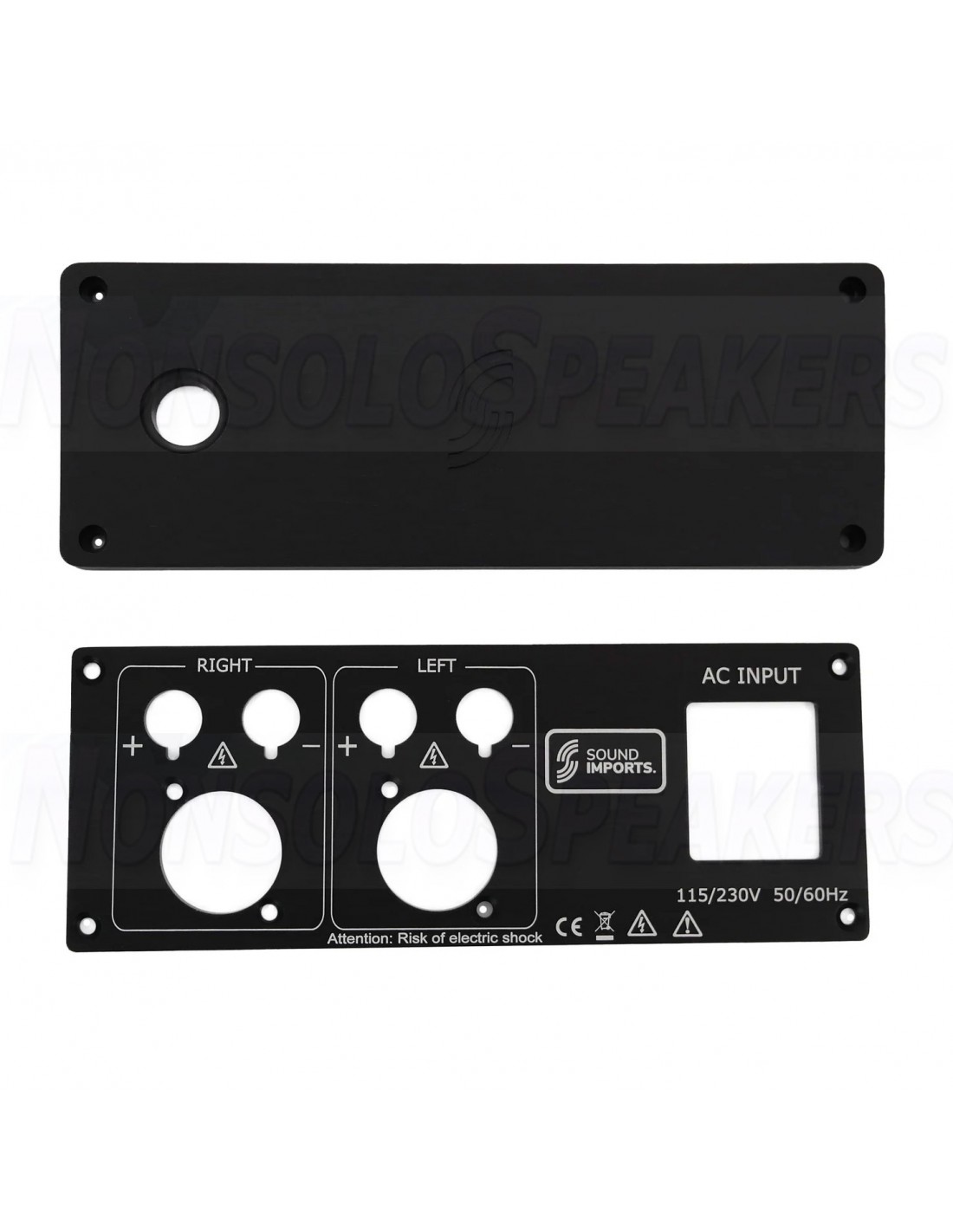

- Aluminum enclosure

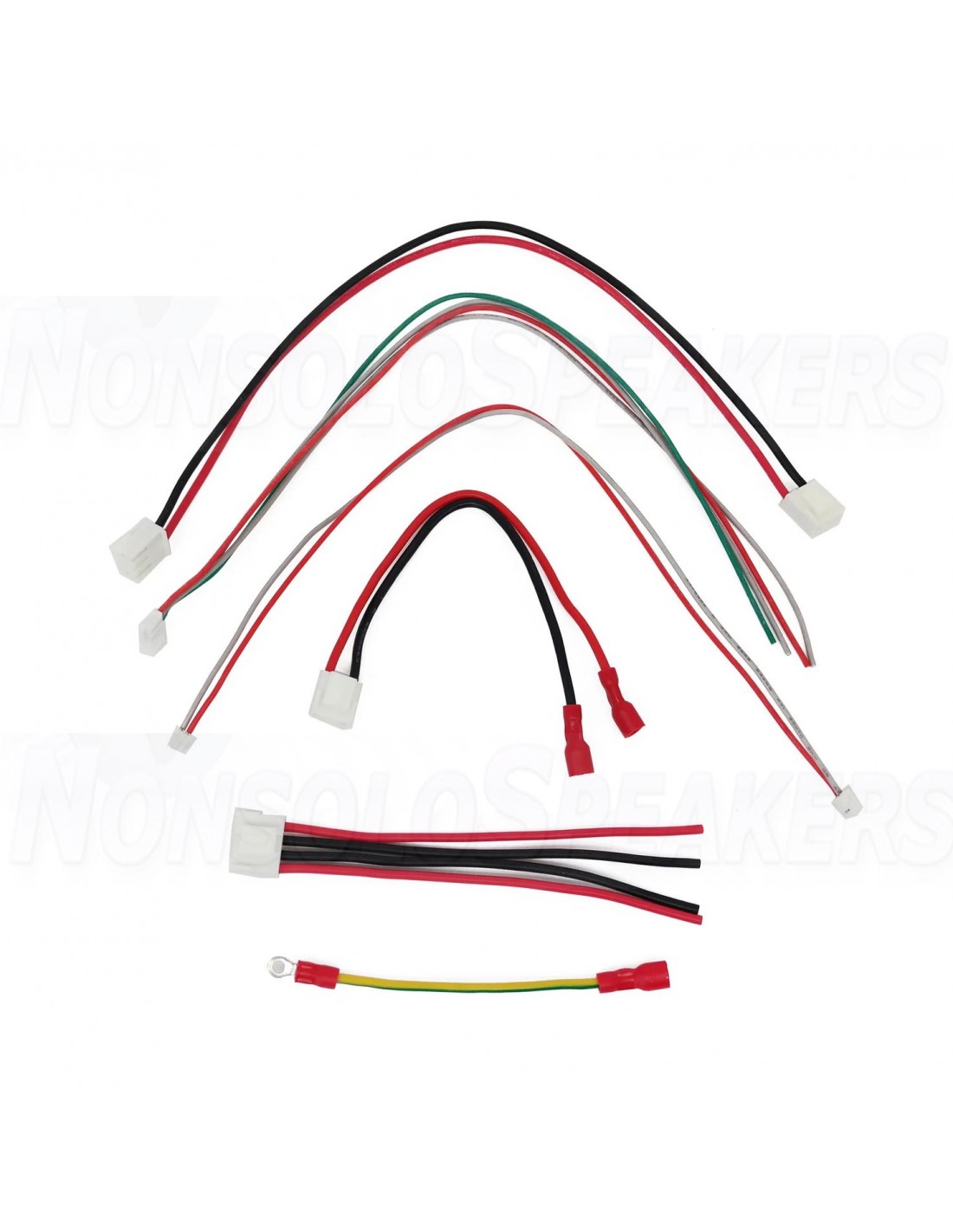

- All internal cables

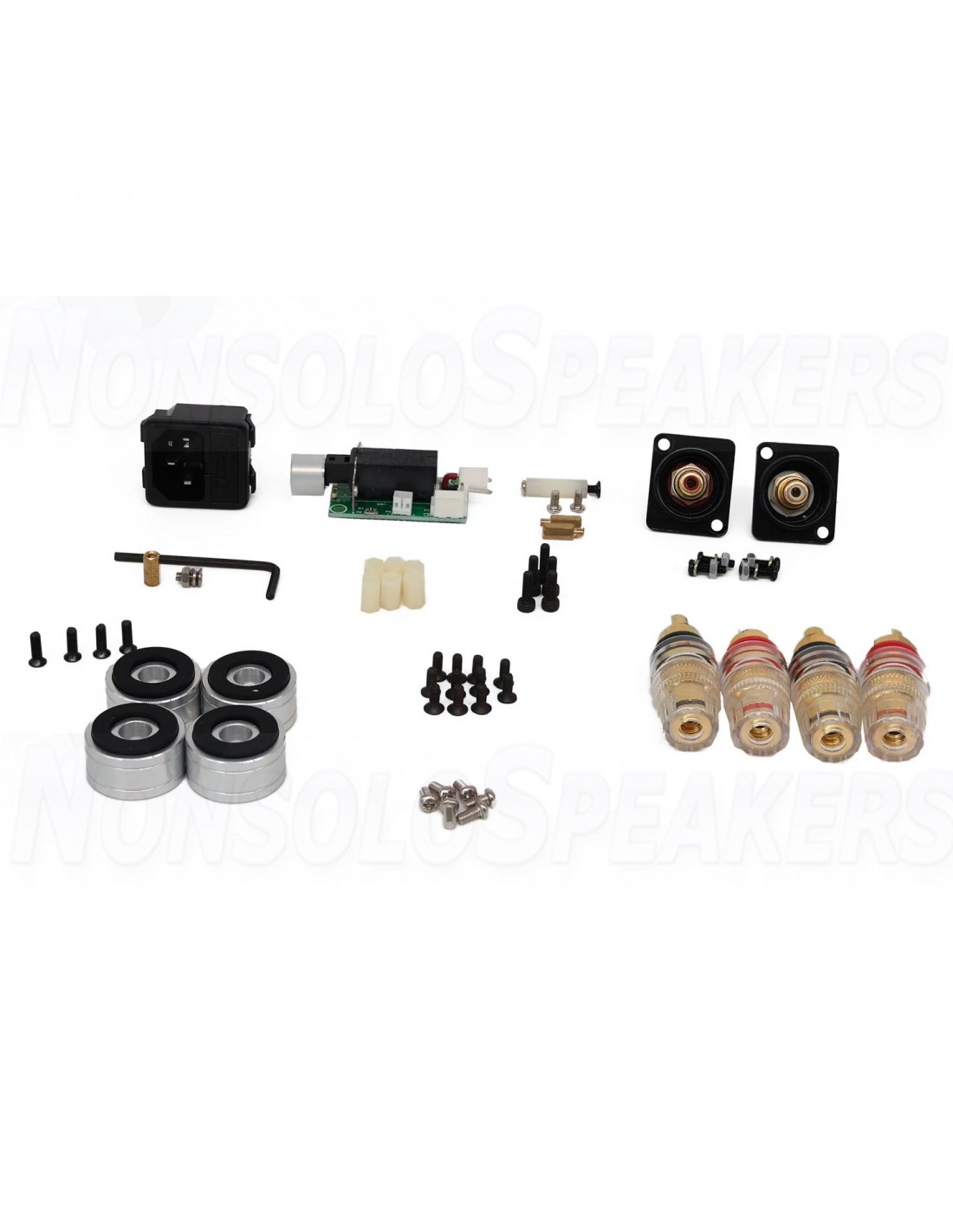

- All needed mounting materials
- 2x binding posts (pair)
- 2x input RCA connectors (pair)
- On/Off Switch
- IEC C14 power connector (including fuse)
- IEC C13 power cable (UK/EU/US)
