SoundImpress DIY Stereo Amplifier Kit | 400WPC | Powered by ICEpower

Build your own high-performance stereo amplifier based on the 700AS2 module from ICEpower. This SoundImpress DIY stereo amplifier kit all-in-on amplifier, designed for a wide range of audio applications, ranging from public address systems to ultra high-fidelity replay systems for studio and home use. The SoundImpress brand stands for outstanding quality, timeless designs, and Dutch craftsmanship. This amplifier kit gives you the opportunity to make an amplifier, when properly assembled, built to last as its modules are extensively tested.

.

Highlights

• All-in-one stereo amplifier kit
• Amplifier and Power Supply integrated solution
• Easy to assemble
• Universal mains with active Power Factor Correction
• Detailed step-by-step instructions
• Very low distortion over whole frequency range
• Minimum load impedance at 2.7 Ohm
• Thermal and over-current protection
• Sound optimized soft clipping

-

Product details

SoundImpress ICE700-2CH-Kit 2x400W DIY Amplifier Kit Powered by ICEpower

As sound sources have evolved from LP’s to CD’s to streaming audio, a high quality power amplifier remains a key ingredient to any good Hi-Fi stereo setup. No matter whether you need a stereo amplifier for your small bookshelf speakers, subwoofer or tower speakers, this amplifier kit with ICEpower technology inside creates a fantastic high quality result.

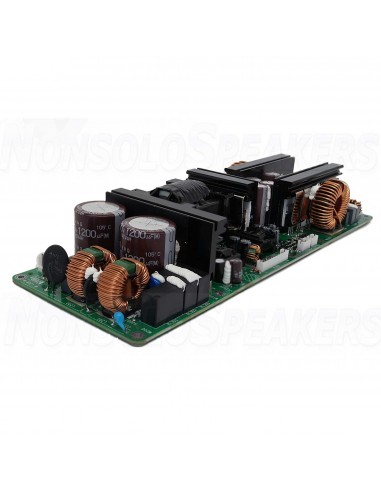

The 700AS2 amplifier module is an audiophile, high performance class-D power amplifier. The performance stands out with high dynamics and crystal clear mid- and high-frequencies. The low noise level generates a completely black background to reveal the tiniest of details in every recording. Designed to withstand the demands of professional (live concert) applications, not only in terms of sound quality, but also on ruggedness and reliability.

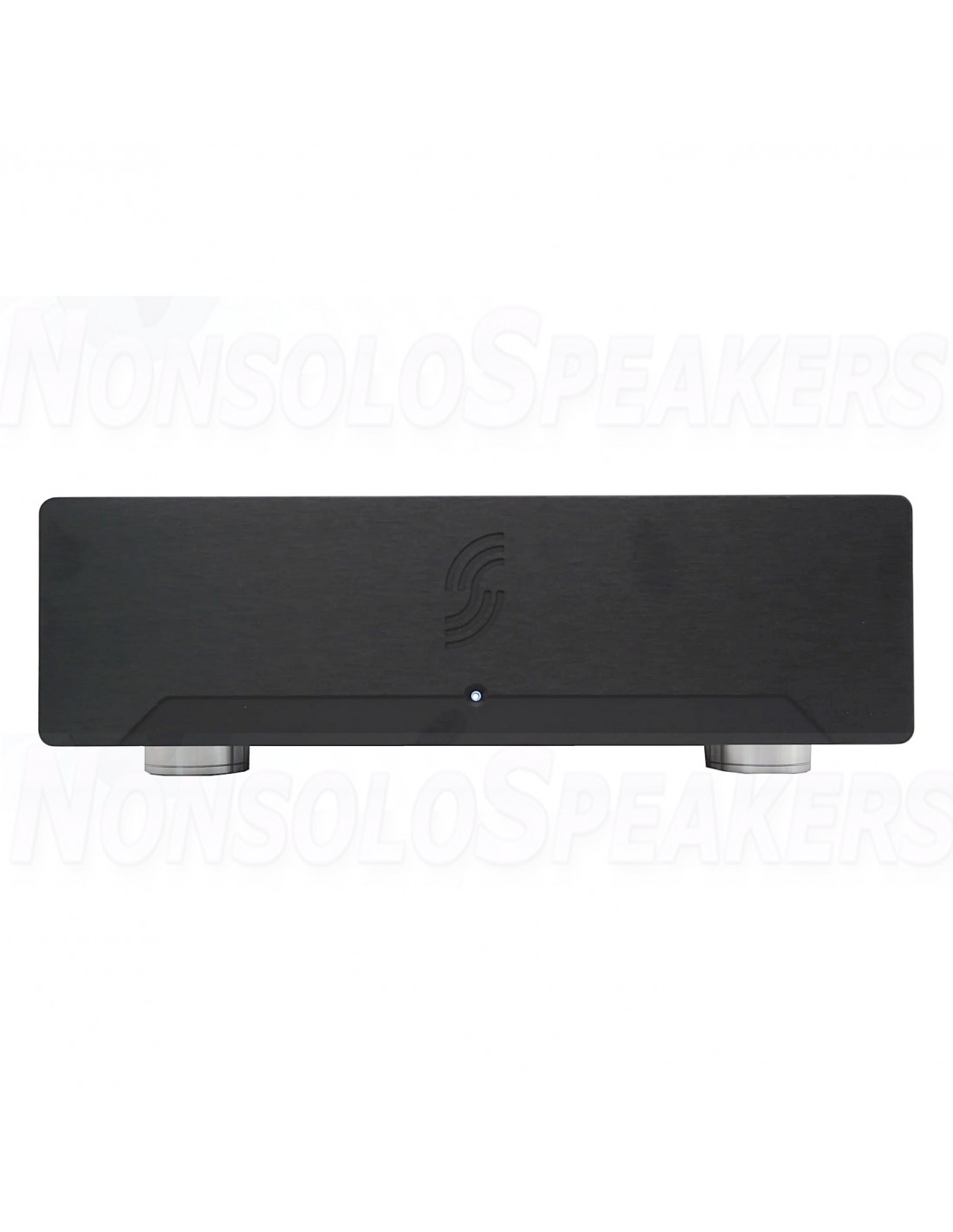

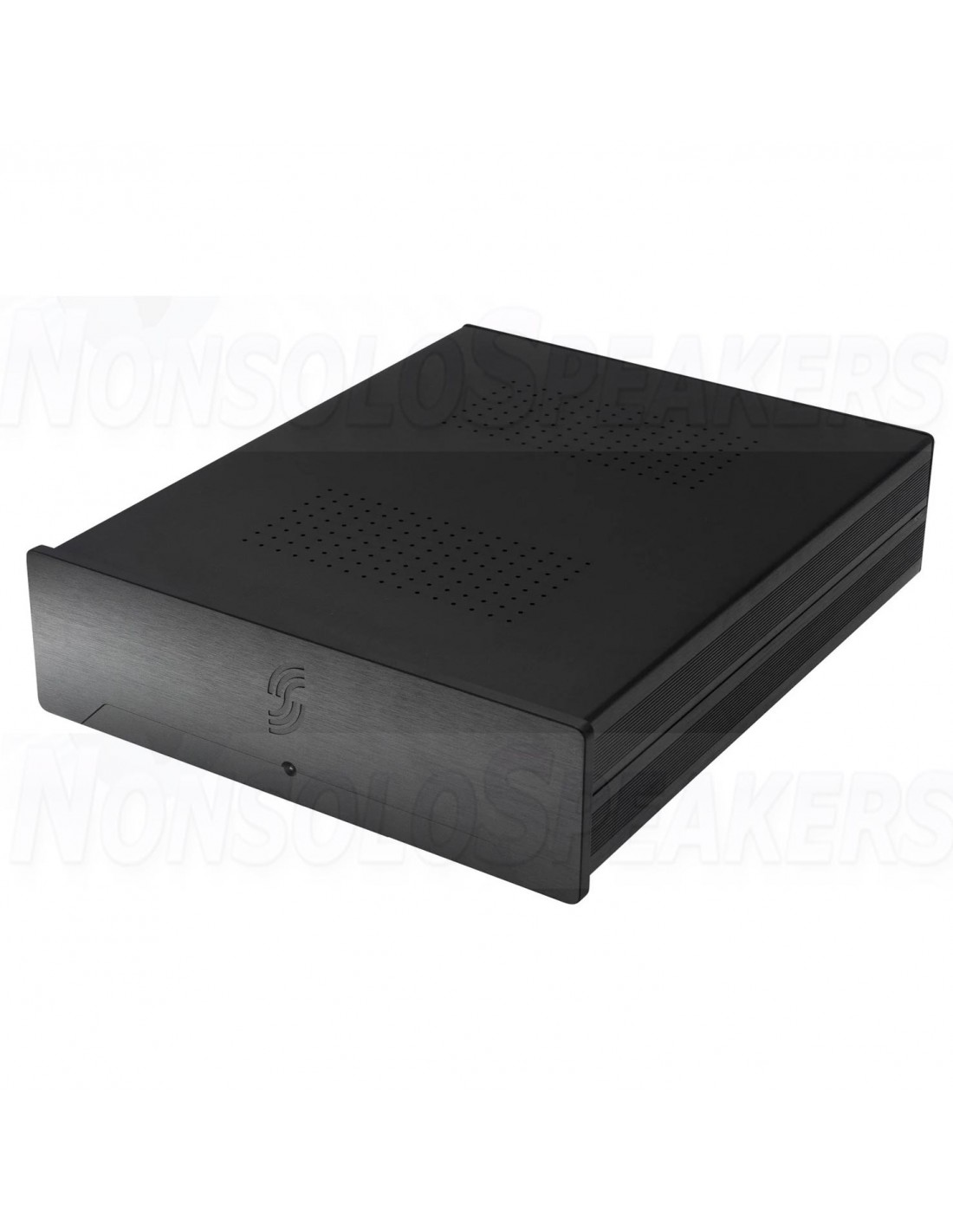

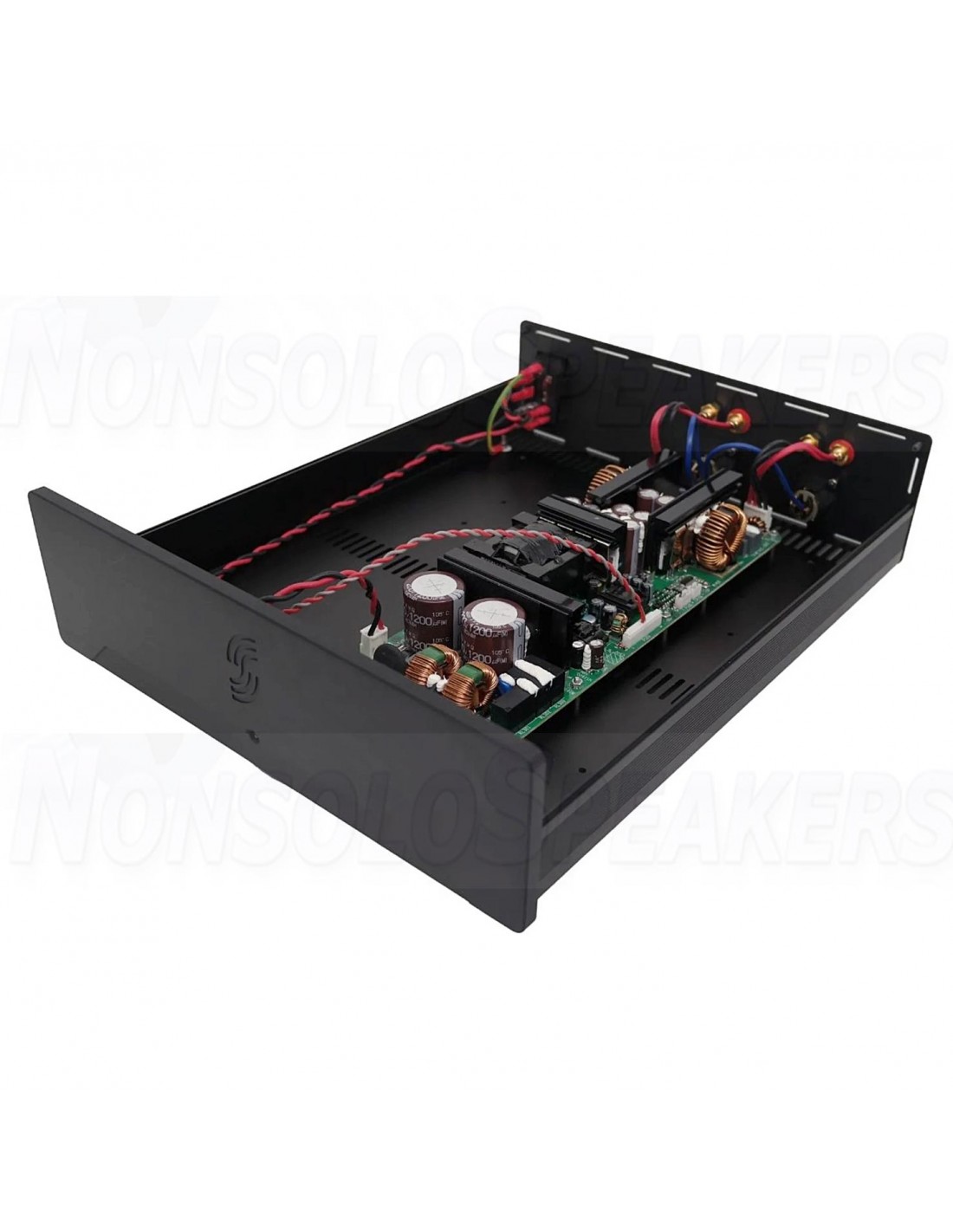

This kit contains everything you need to build your own SoundImpress stereo amplifier. The main parts of this amplifier are the ICEpower 700AS2 amplifier module and the black anodized aluminum case. The amplifier modules with integrated high efficient resonant power supplies offers audiophile quality, are extreme powerful but also compact. The custom milled aluminum enclosure, which houses the ICEpower 700AS2 amplifier module, is the best thermal material for audio devices.

Along the main parts, this kit includes everything else you need to build a powerful, high-quality stereo amplifier at a reasonable price. Assembly is easy and only requires proper positioning of the modules, some minor soldering, bolts to be tightened and connectors to be clicked. Anybody, who is comfortable with a screwdriver and can handle a soldering iron, can build this amazing stereo amplifier.

.

Specifications

• Article number ICE700-2CH-Kit
• Rated power output 2 x 400 watts at 4 ohms 2 x 335 watts at 8 ohms
• Minimum load 2.5 Ohm
• Efficiency 84%
• Distortion 0.006 % THD+N
• Gain 27.4 dB
• Input impedance 36 kOhm
• Amplifier Classification Class D
• Speaker output channels 2

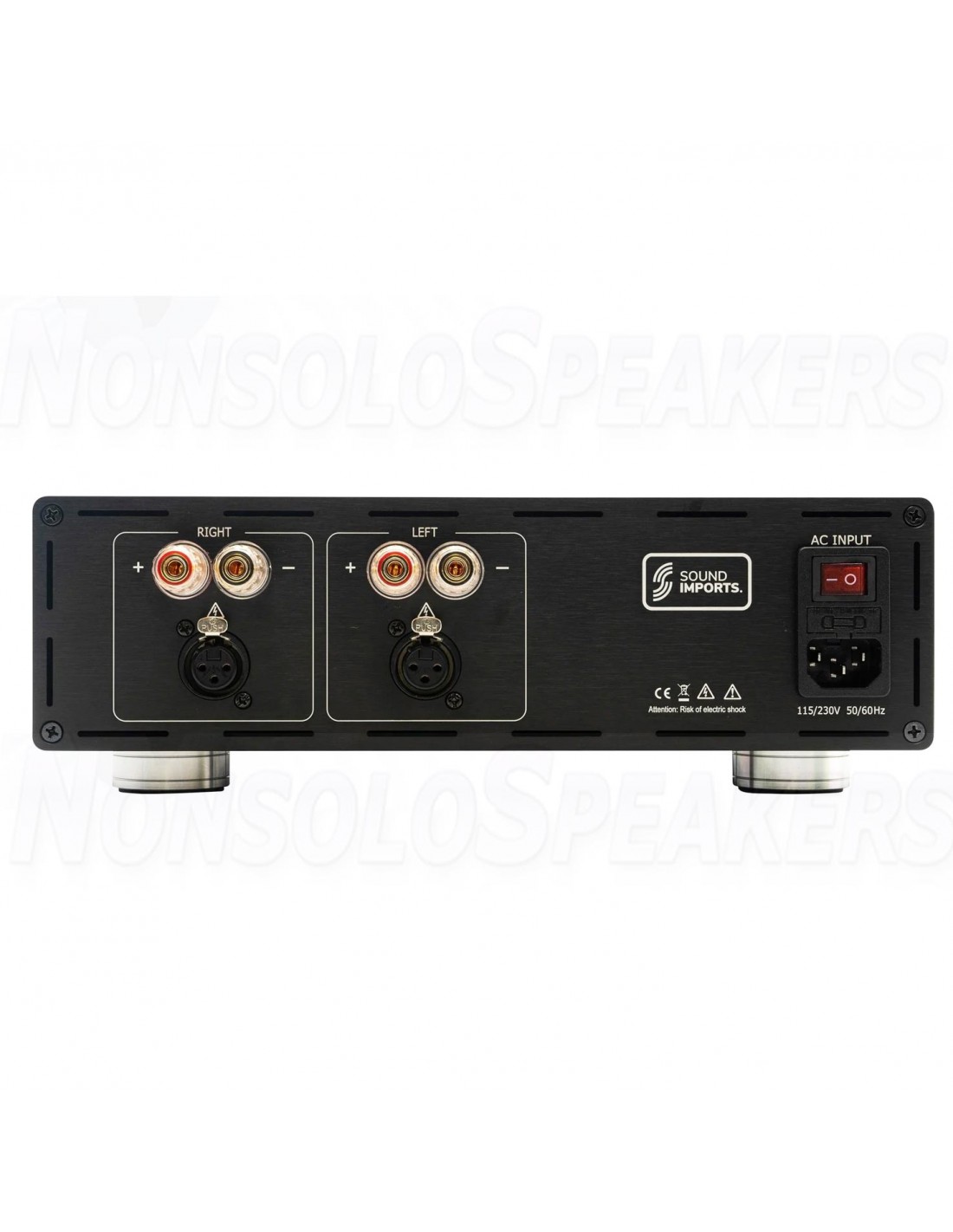

• Input connection type XLR
• Speaker output connection type Gold plated binding posts
• Power Requirements 110 / 230 VAC
• Power inlet connector
• IEC C14
• Current limit 30 A

-

What’s In The Box

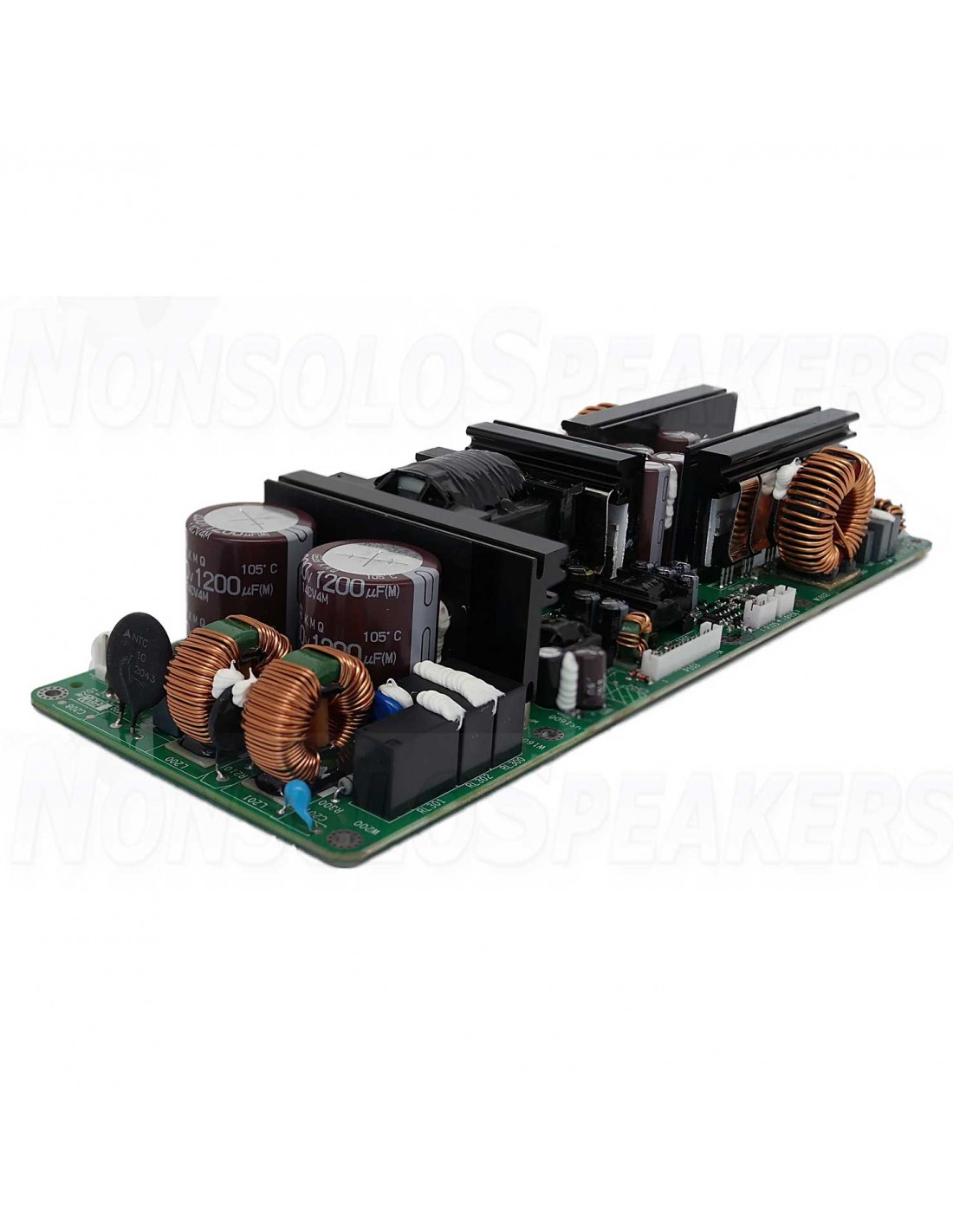

• 1x ICEpower 700AS2 amplifier module with integrated power supply

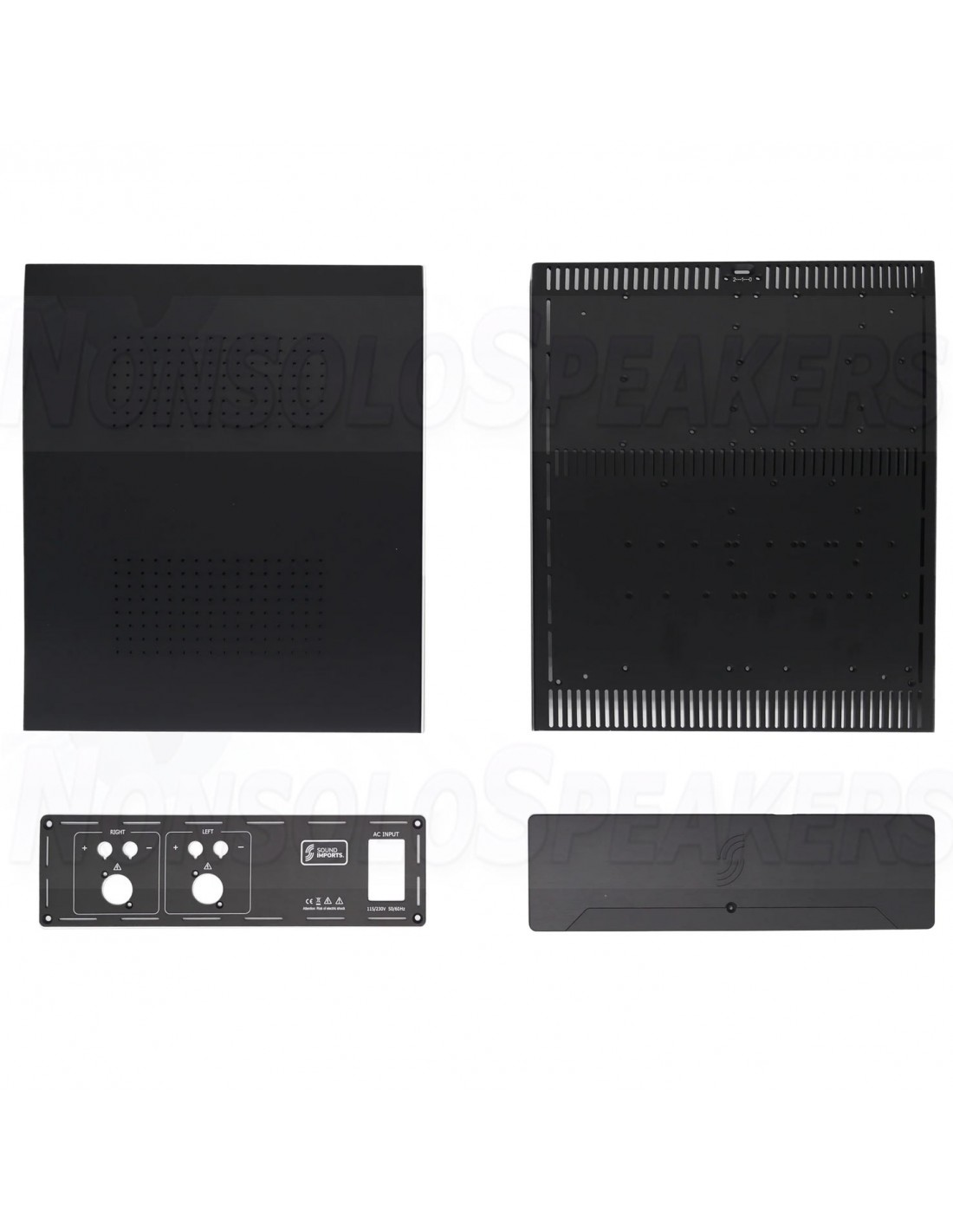

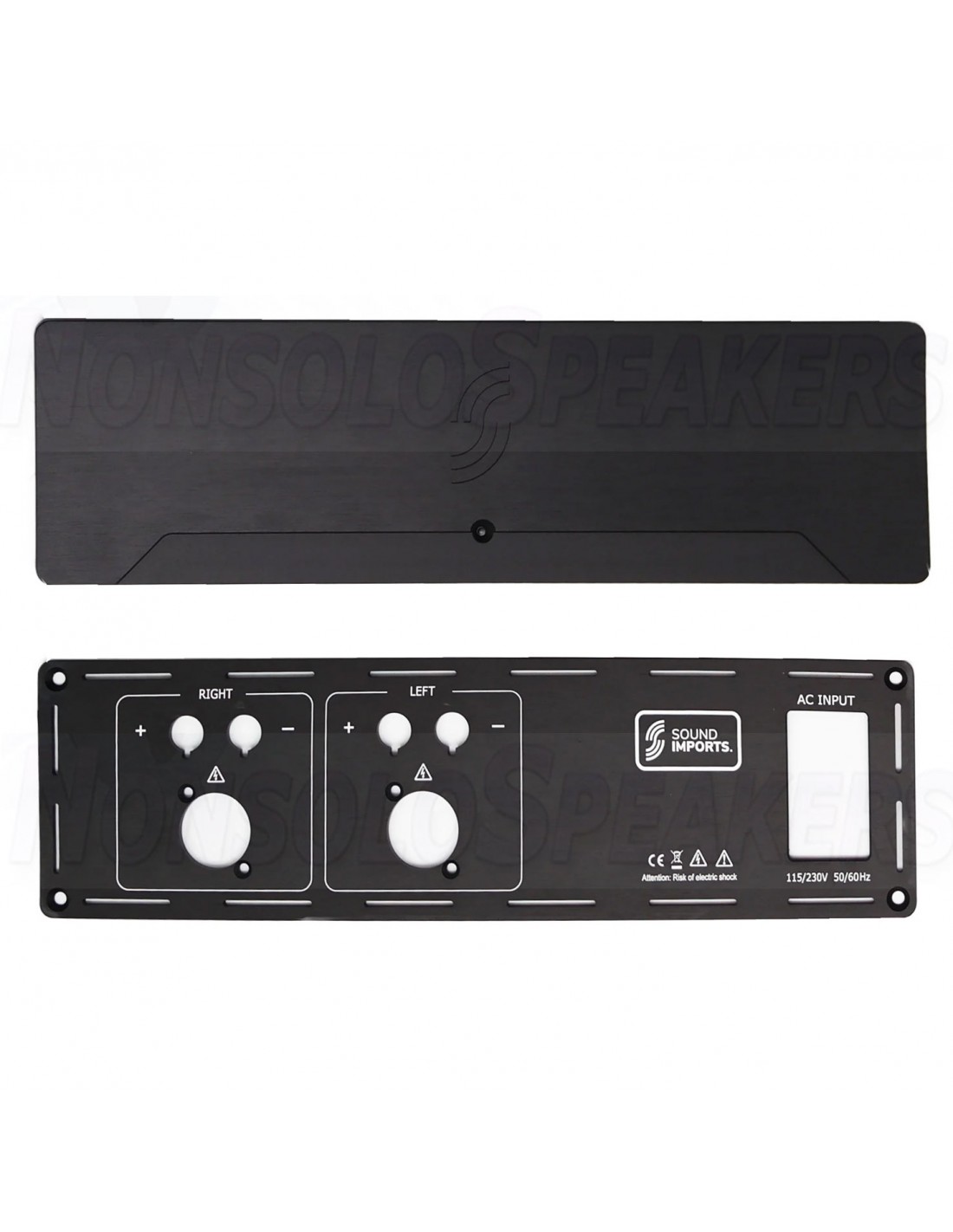

• Aluminum enclosure

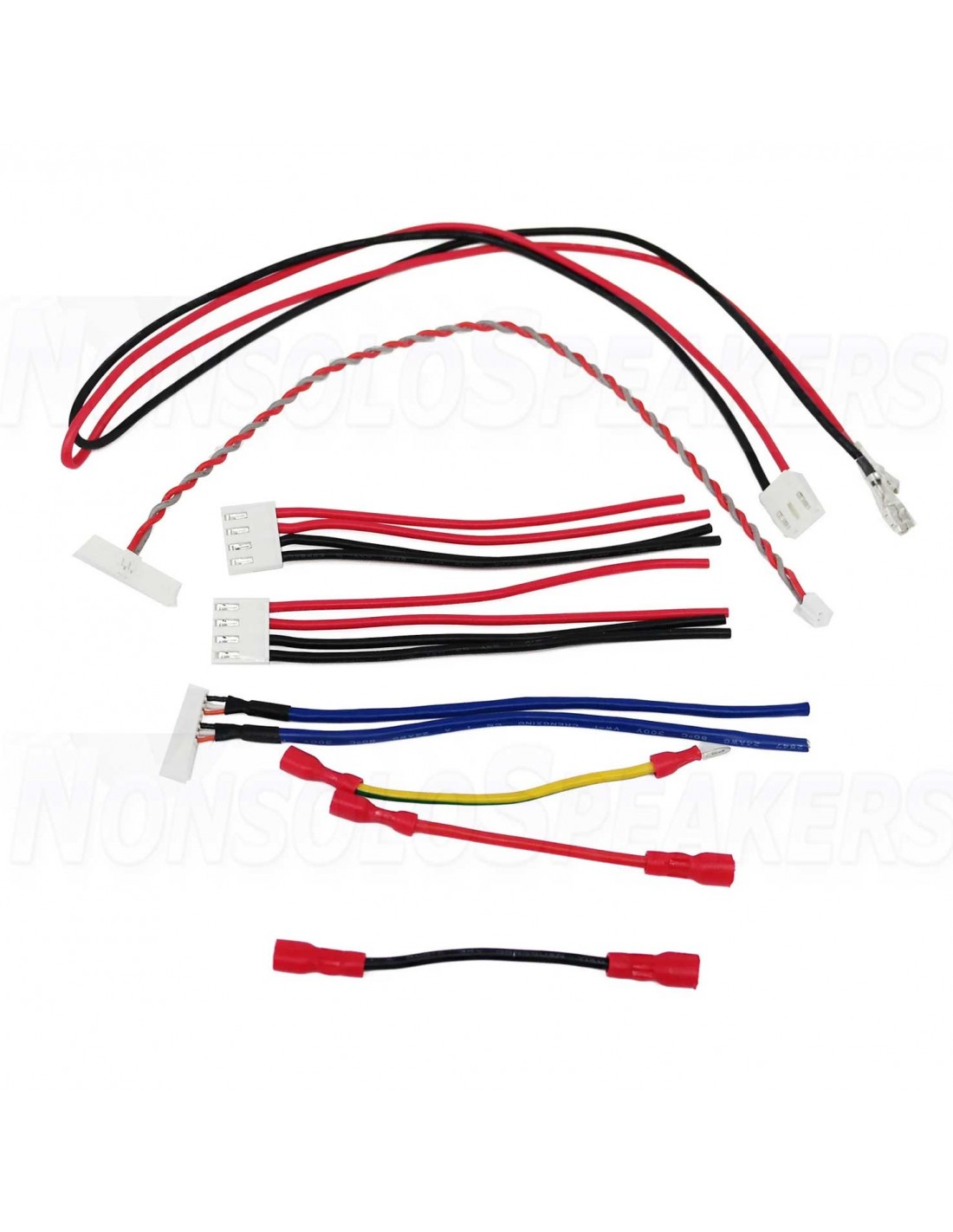

• All internal cables

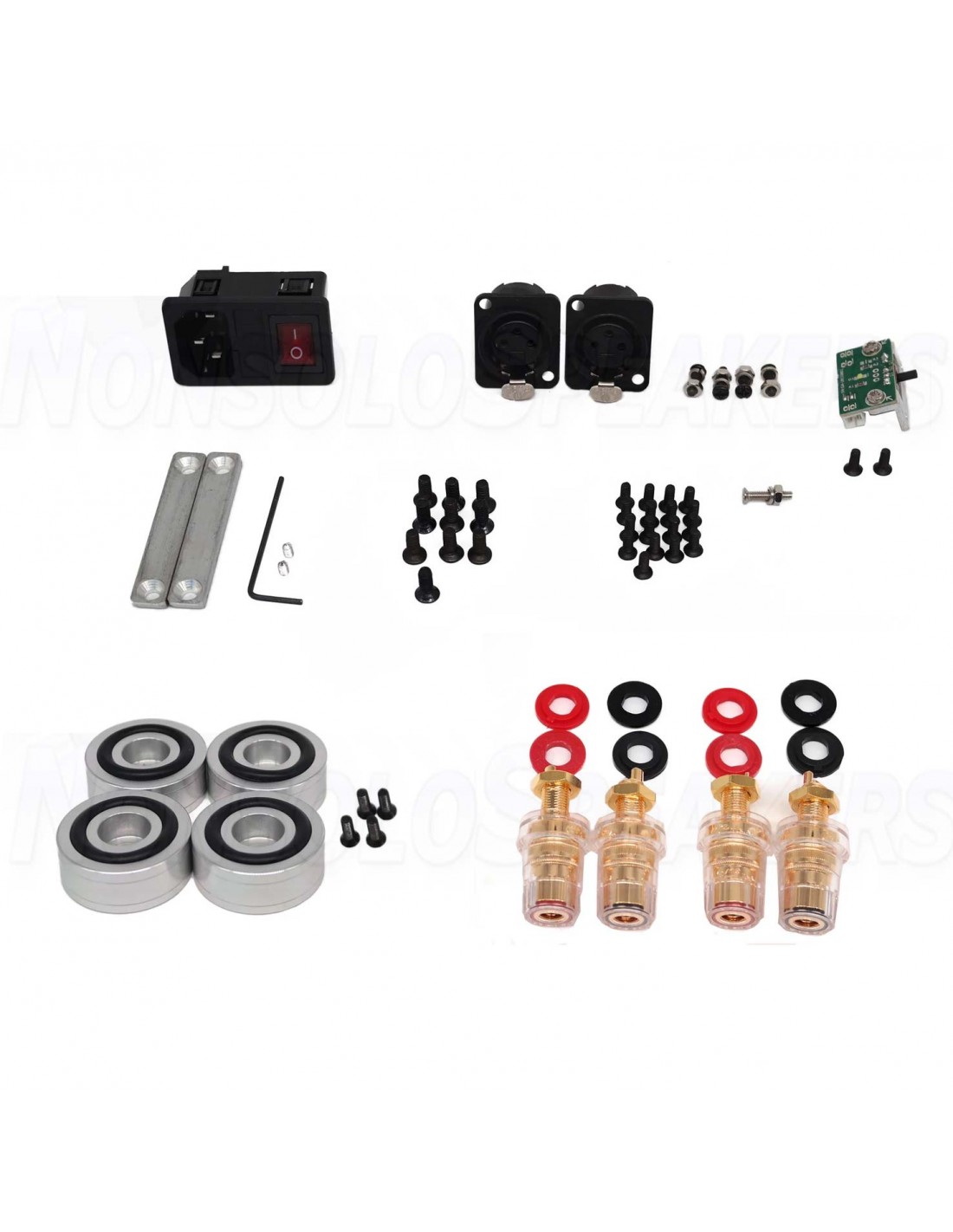

• All needed mounting materials
• 4x binding posts (2 pair)
• 2x input
• XLR connector
• On/Off Switch
• IEC C14 power connector (including fuse)
• IEC C13 power cable (UK/EU/US)
