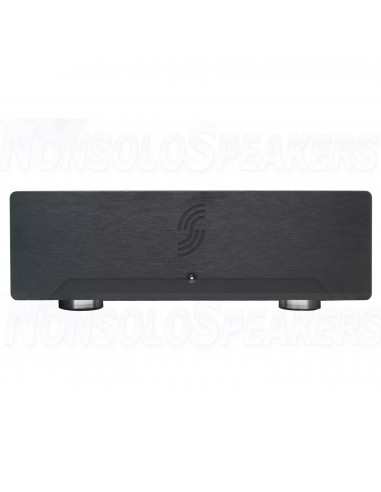

SoundImpress DIY Stereo amplifier kit |425w| Eigentakt by Purifi
SHIPMENT IN 5/7 WORKING DAYS
€1,599.95
Tax included
No review at the moment
You might also like
SoundImpress DIY Stereo amplifier kit | 425W | Eigentakt | Powered by Purifi
Build your own high-end class D stereo amplifier based on the Eigentakt technology from Purifi Audio.
Highlights
All-in-one stereo amplifier kit
Easy assembly and no soldering required
Unprecedentedly low distortion over frequency and power range

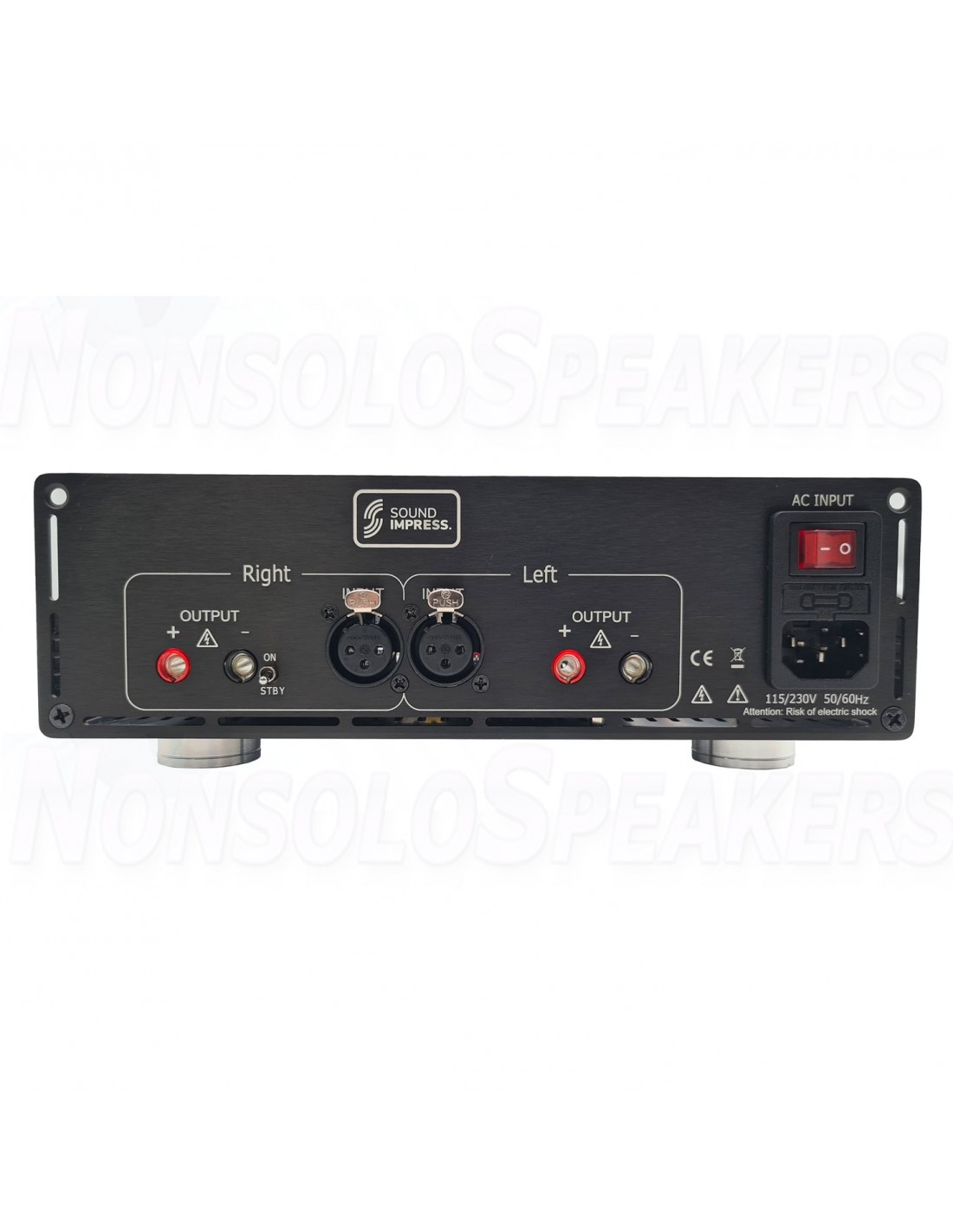

Balanced analog inputs (XLR) and banana-plug speaker connectors
On-board voltage regulators
Compact design
Stand-by option
Two gain options
-
Product details
SoundImpress DIY Stereo Kit | 2 x 425W | Eigentakt | Powered by Purifi The Eigentaktimplementation from Purifi is one the best amplifier technologies available.
This class D technology meets high standards and gives super performance an any playback level, regardless of load.
The EVAL1 stands among the top of our amplifier module technology.
Besides impeccable performance, this kit features everything you need to build your own Eigentakt stereo amplifier.

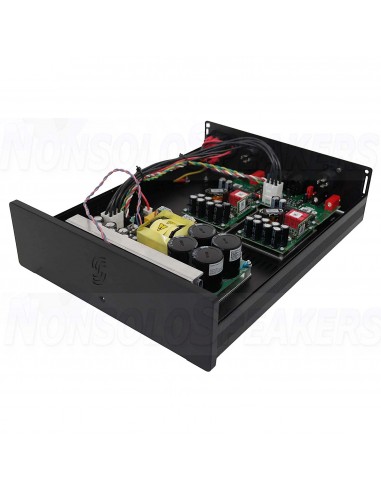

The main parts are the Purifi EVAL1 amplifer modules, SMPS1200A400 switch mode power supply and the SoundImpress DIY Stereo Case.
The amplifier module and power supply combination enable the best performance available from the Eigentakt technology.

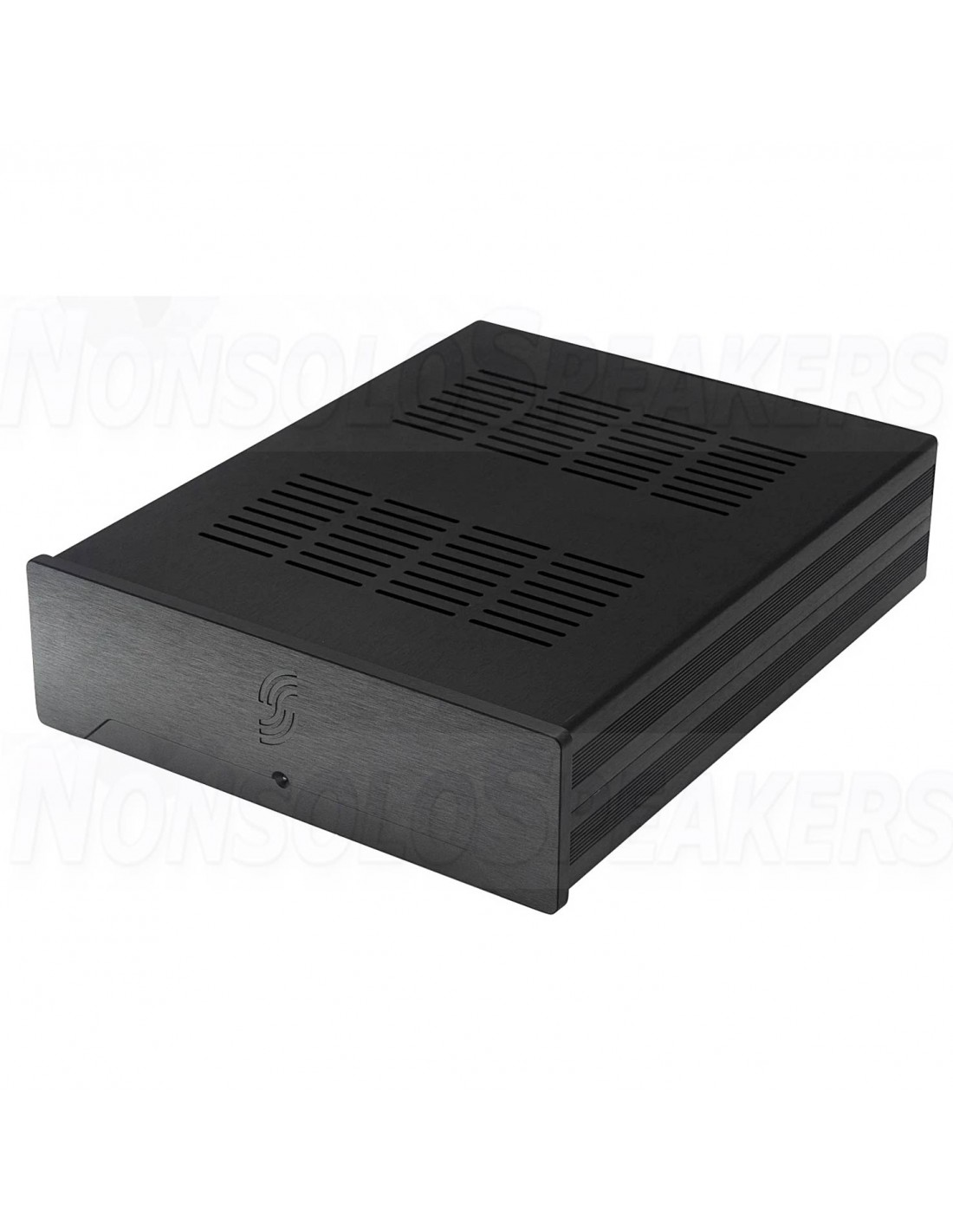

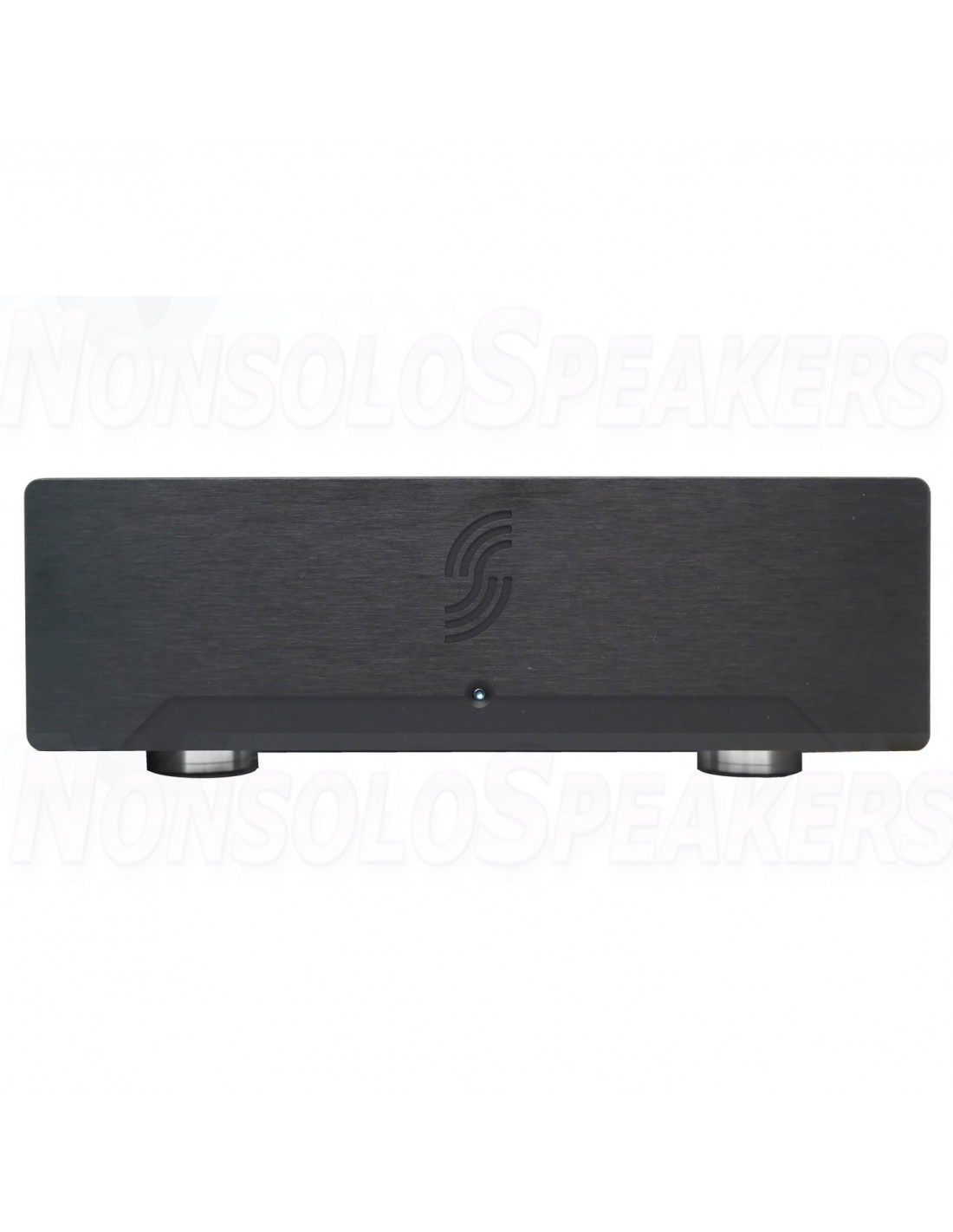

The black anodized case provides good heat dissipation and a compact design.
Along with the main parts, everything else you need to build a powerful high-quality stereo amplifier is included.
Assembly only requires proper positioning, around 25 bolts to be tightened and some connectors to be clicked.
Anybody comfortable with a screwdriver can build one of the best amplifiers available.
.
Specifications
- Article number PU400-2CH-Kit
- Rated power output (RMS) 2 x 450 watts at 2 ohms 2 x 425 watts at 4 ohms 2 x 227 watts at 8 ohms
- Minimum load 2 ohms
- Signal-to-noise ratio (SNR) 131 dB
- Distortion 0.00017 % THD+N (20 Hz - 20 kHz, 4 ohms, 100 watts)
- Efficiency > 94%
- Frequency response 0 - 60,000 Hz
- Input impedance 4.4k ohms (14 dB) / 10.2k ohms (27 dB)
- Circuit Topology Eigentakt™
- Amplifier classification Class D
- Speaker output channels 2
- XLR in/out 2/0
- Banana plug compatible
- Power requirements 110/220 VAC, 50Hz/60Hz
- Power inlet connector IEC C14
- Case material Aluminum
-
What’s In The Box

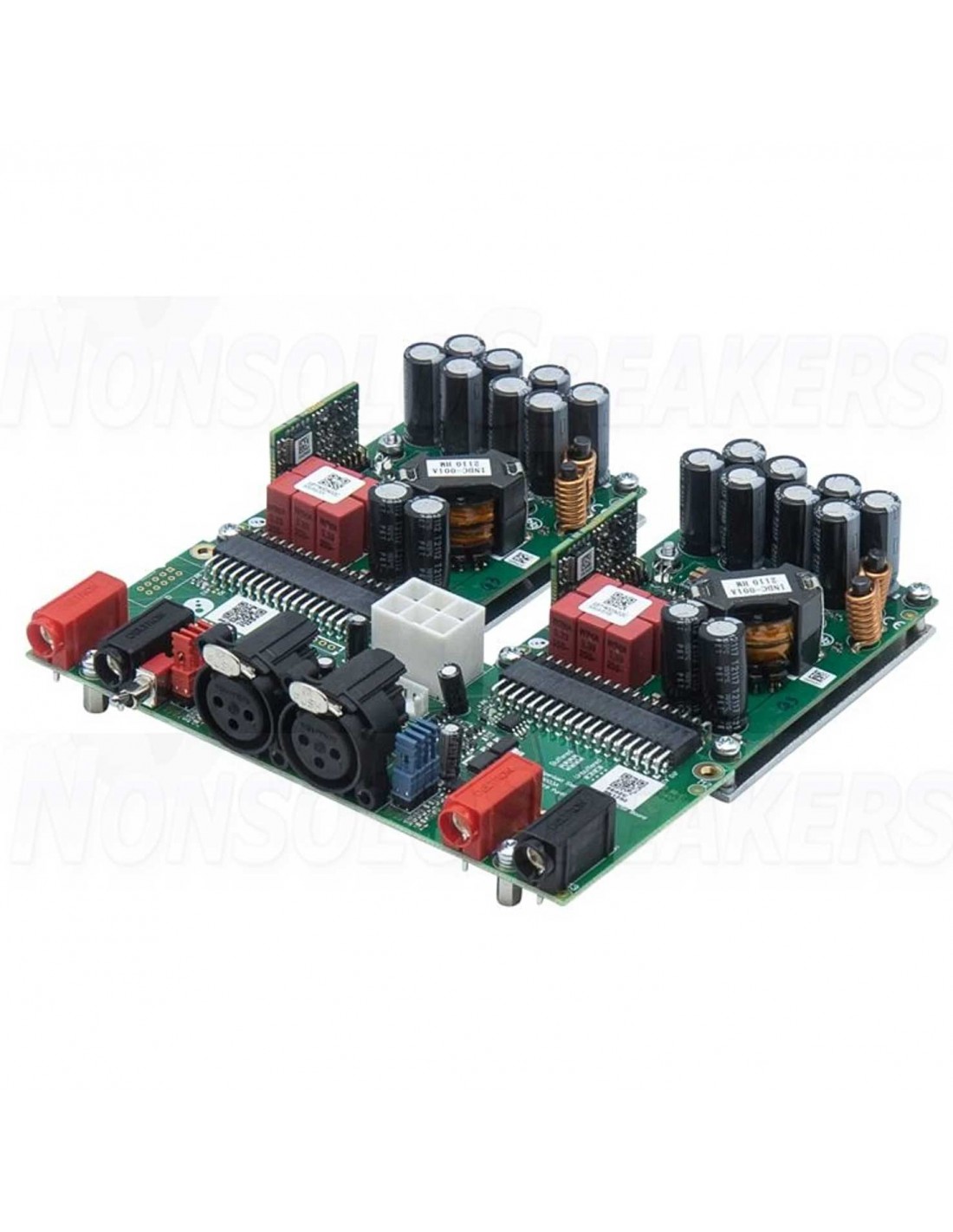

- Purifi EVAL1 amplifer module

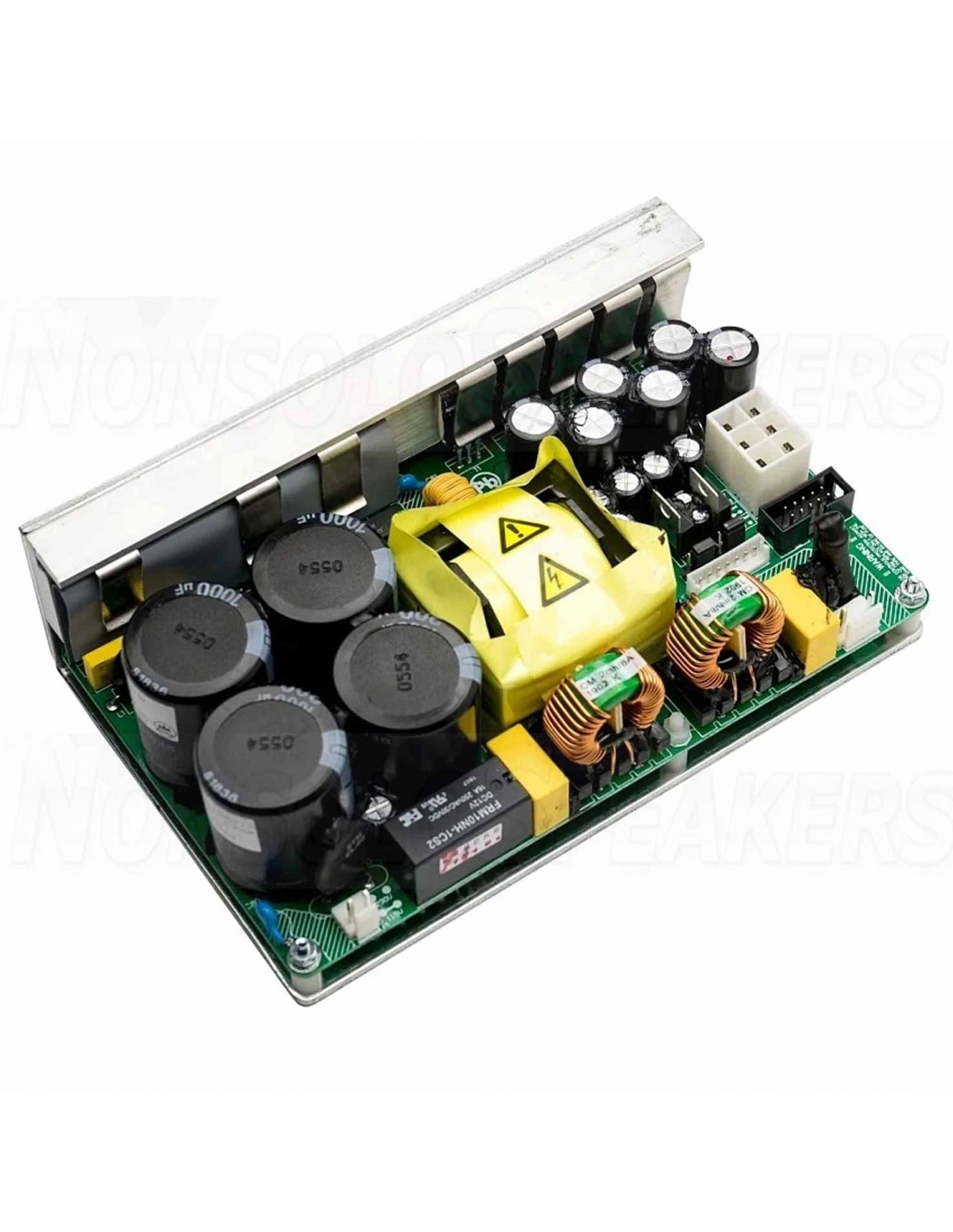

- SMPS1200A400 switch mode power supply

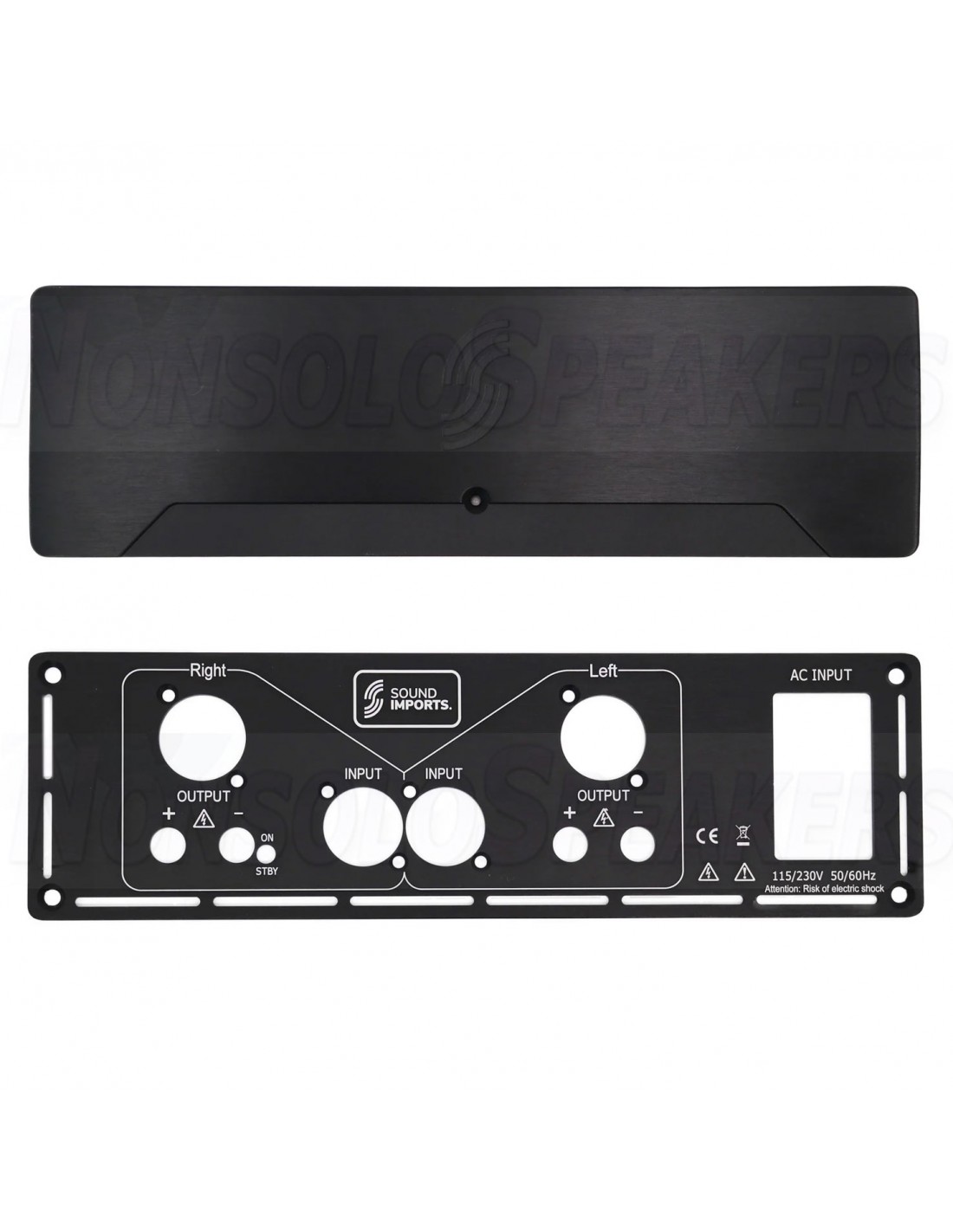

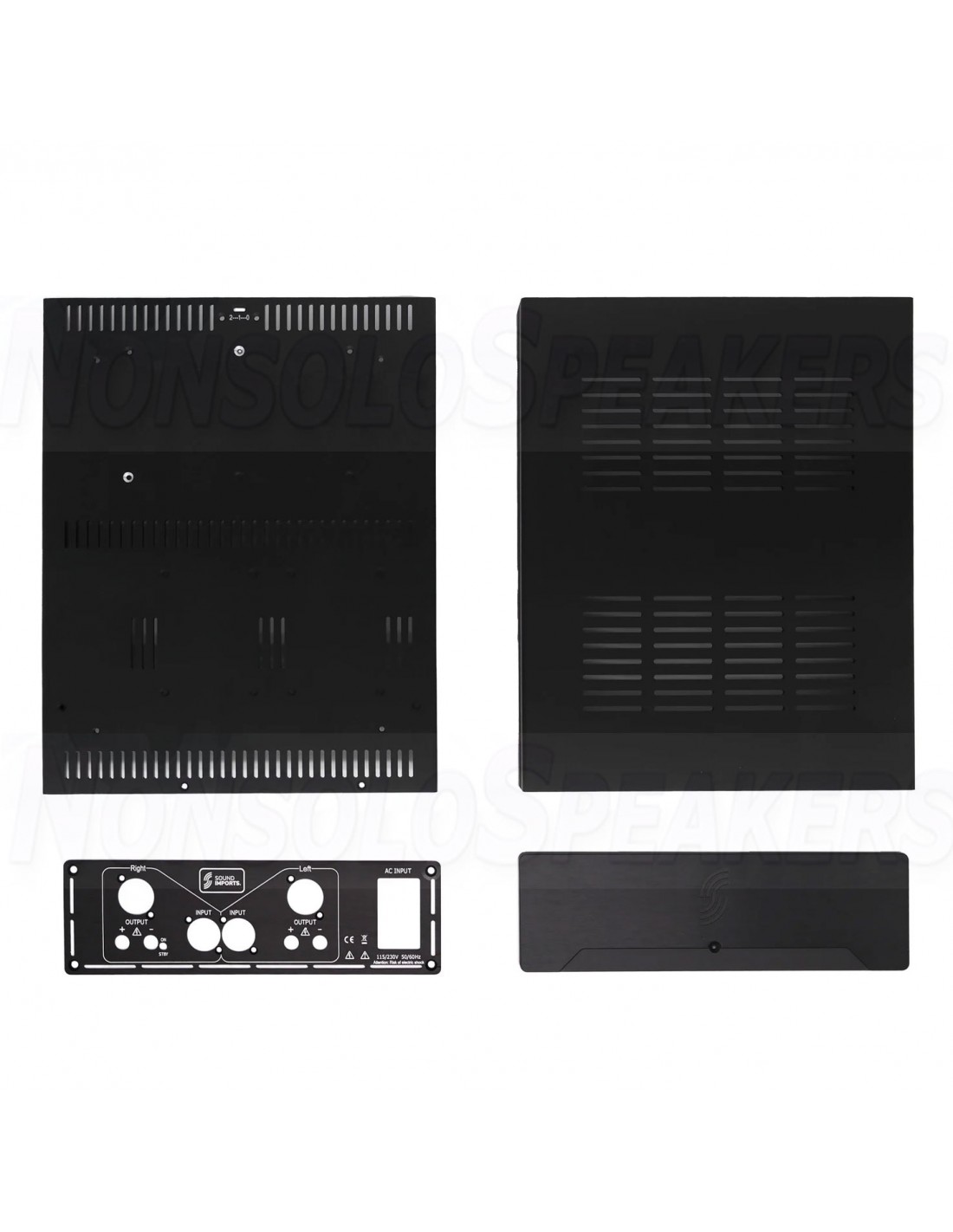

- SoundImpress DIY Stereo Case

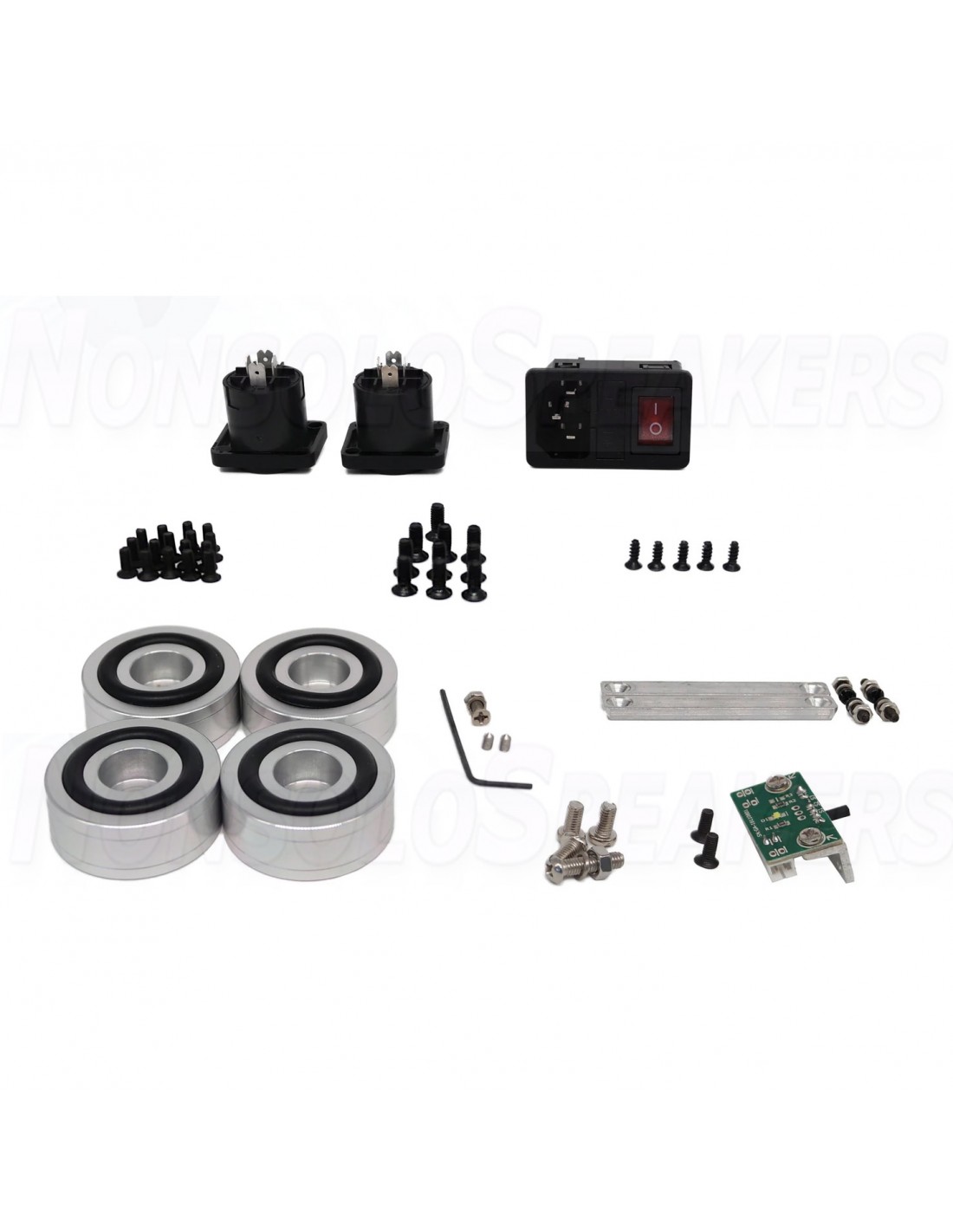

- Signal cable with XLR female chassis

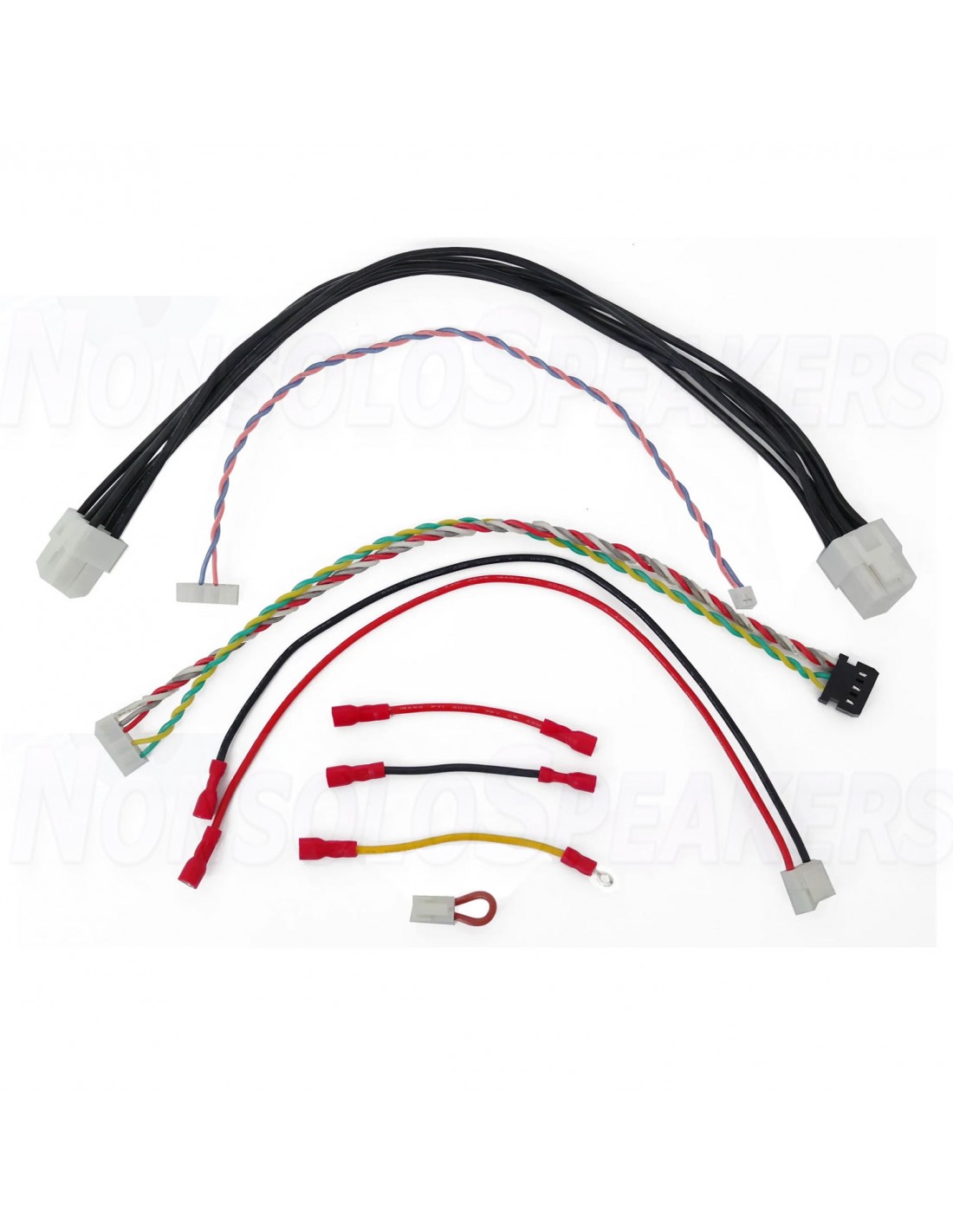

- All internal cables
- IEC C14 power connector (including fuse)
- IEC C13 power cable
- On/Off Switch
- Binding posts
- All needed bolts
