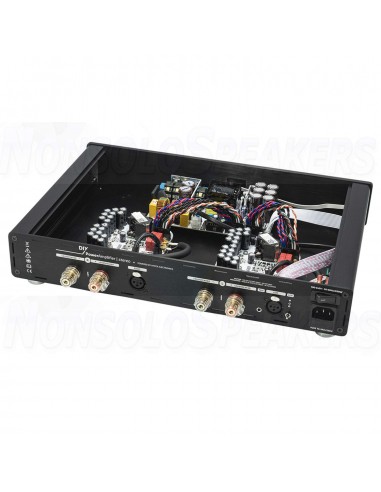

Hypex Nilai500DIY 2-channel Nilai Stereo amplifier kit
Hypex Nilai500DIY 2-channel Nilai Stereo amplifier kit
Build your own high-end class D stereo amplifier based on the Nilai technology from Hypex.
Hypex Nilai500DIY 2-channel Nilai Stereo amplifier kit
Product description
Build your own high-end class D stereo amplifier based on the Nilai technology from Hypex.
.
Highlights
Nilai® Class D technology inside
Impressive performance despite load
Neutral and transparent reproduction
Flat, fully load-independent frequency response
Plenty of power combined with high efficiency
Compact design
Carefully selected high-grade components
Balanced XLR input, goldplated binding posts output
12V Trigger
Easy to assemble offers a ready-to-go DIY-experience
.
Characteristics
Item number: Nilai stereo kit
Rated power (SQMW)
2 x 300 watts at 2 ohms
2 x 300 watts at 4 ohms
2 x 260 watts at 8 ohms
minimum load 2 ohms
Signal to Noise Ratio (SNR). 125dB
distortion. 0.0007 THD+N (20 Hz - 20 kHz, 4 ohms)
frequency response. 0Hz - 50kHz
amplifier topology. Nilai®
amplifier classification. Class D
output channels. 2 XLR on / off 2/0
banana plug
power requirement 110/240VAC, 50Hz/60Hz
power connector pluIEC C13
Dimensions (D x W x H) 300x420x80mm
housing material Matte Black Aluminum
Product details
Hypex Nilai500DIY 2CH Nilai® 2x250W Stereo Amplifier
-
The Nilai® technology is the latest amplifier technologie from Hypex and the long-awaited successor to the acclaimed NC400 Ncore amplifier.
This new class D technology boosts all previous achieved performances to a next level. The Nilai500 stands among the top of our amplifier module technology.
Besides impeccable performance, this kit features everything you need to build your own Nilai stereo amplifier. The main parts are the Nilai500 amplifier modules, PS500 power supply and the DIY Monoblock case. The amplifier modules and power supply combination enable the latest and best performance available from the Nilai technology.
-
This amplifier can deliver all its power from as low as 2 ohm impedance combined with ultra low distortion, very low idle loss, and very noise levels. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency independent distortion behaviour. This results in performances such as the max output power of 300Wrms at 2 ohm, a Signal-to-Noise Ratio (SNR) of 134dB and astonishing distorting level of 0.00015%.

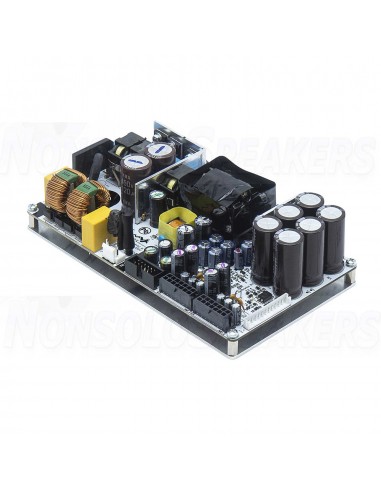

An amplifier is only as good as the power supply it contains. In this Nilai500 DIY stereo amplifier, the power supply providing the power for the amplifier is a compact, high power, highly efficient PFC power supply, including standby power supply. Including these properties and carefully selected high-grade power supply components makes this technology ideal for powering the Nilai500 amplifier modules.

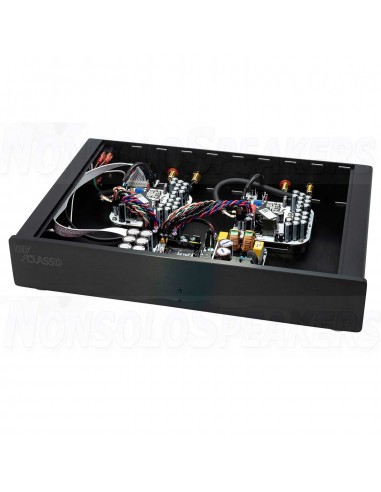

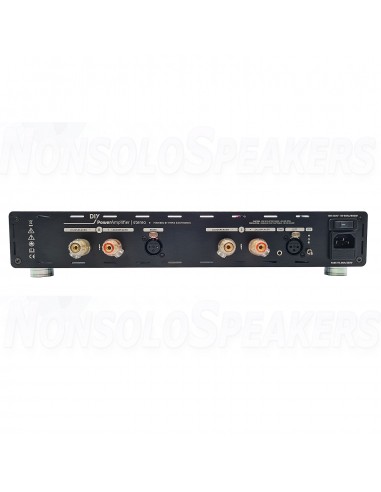

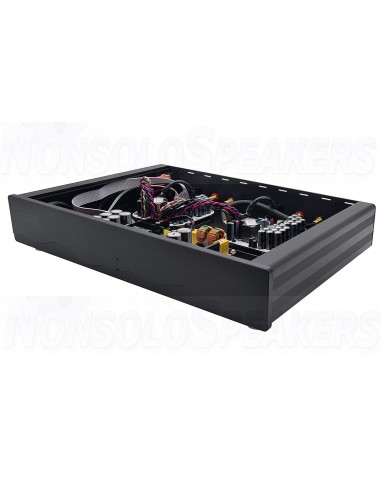

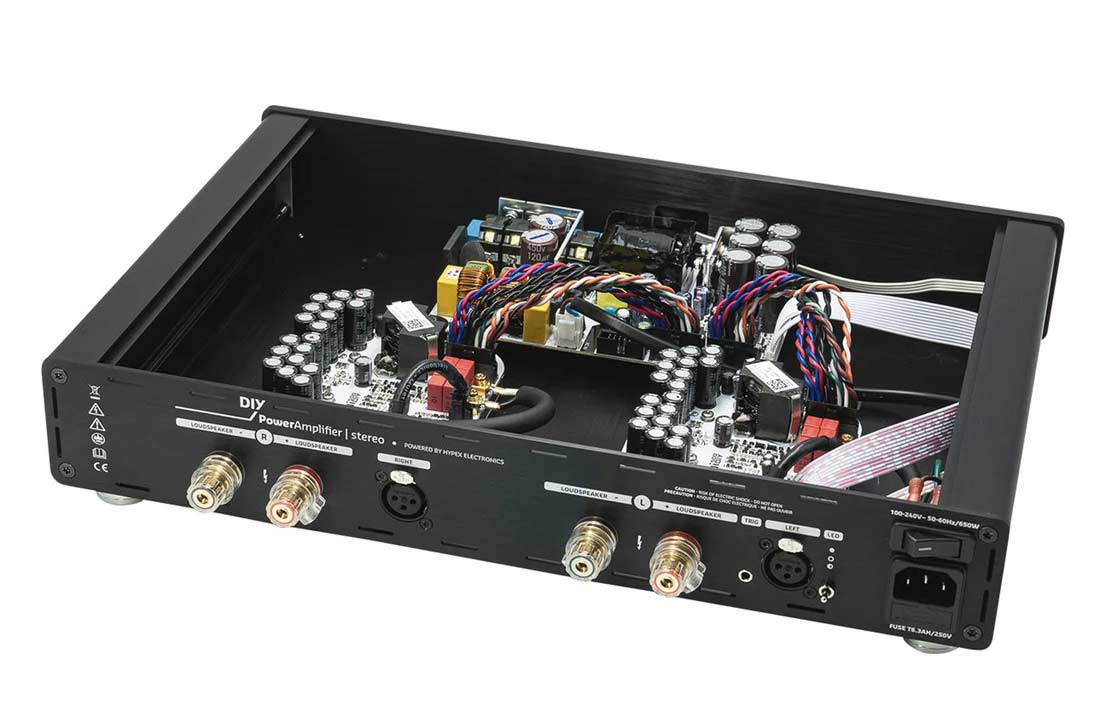

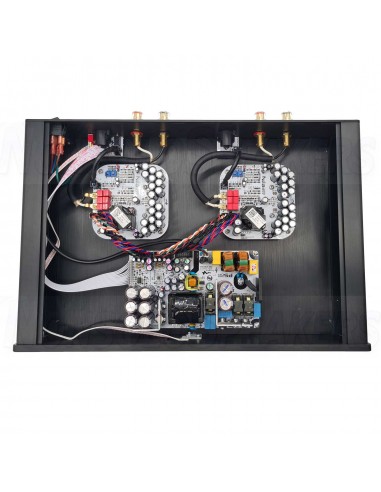

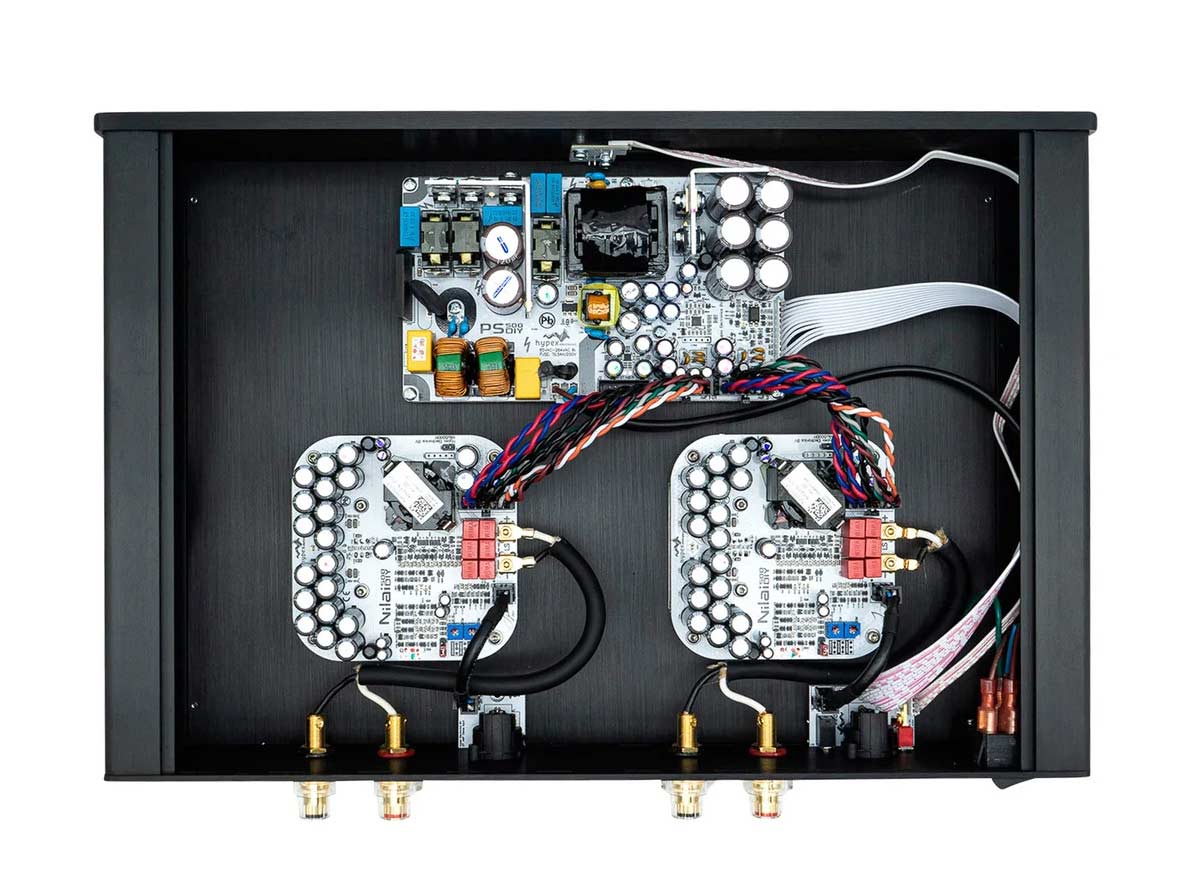

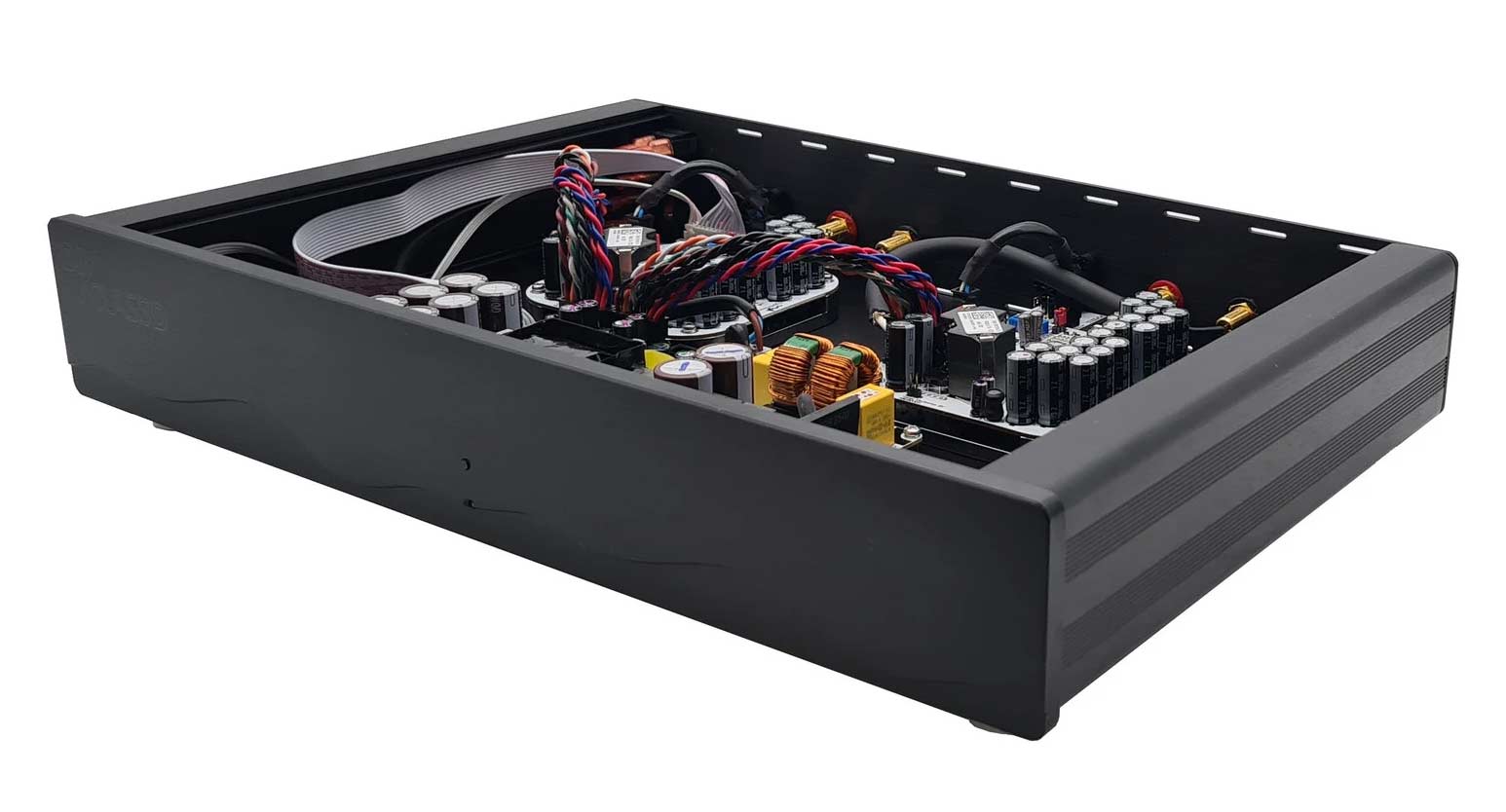

The aluminum enclosure houses the Hypex Nilai500 amplifier modules and power supply, the best thermal material for audio devices. The in- and output connections are provided through high-quality gold plated binding posts and XLR-chassis from Neutrik. The power supply can operate from both 110 and 230 VAC mains voltage due to it's universal mains input.
Along with the main parts, everything else you need to build a powerful high-quality stereo amplifier is included. Including an easy to follow instruction manual which gives you the ability to realize a high end stereo amplifier at a fraction of the costs. Assembly only requires proper positioning, around 60 bolts to be tightened and some connectors to be clicked. Anybody comfortable with a screwdriver can build one of the best amplifiers available within just 30-60 minutes.
Check out this Nilai500DIY 2CH Nilai Stereo Kit based on the same Nilai® technology from Hypex or the DIY PreAmplifier kit which perfectly matches this mono amplifier.
-
What’s In The Box
DIY stereo case "matte black"
Complete internal cable harness
PS500DIY power supply

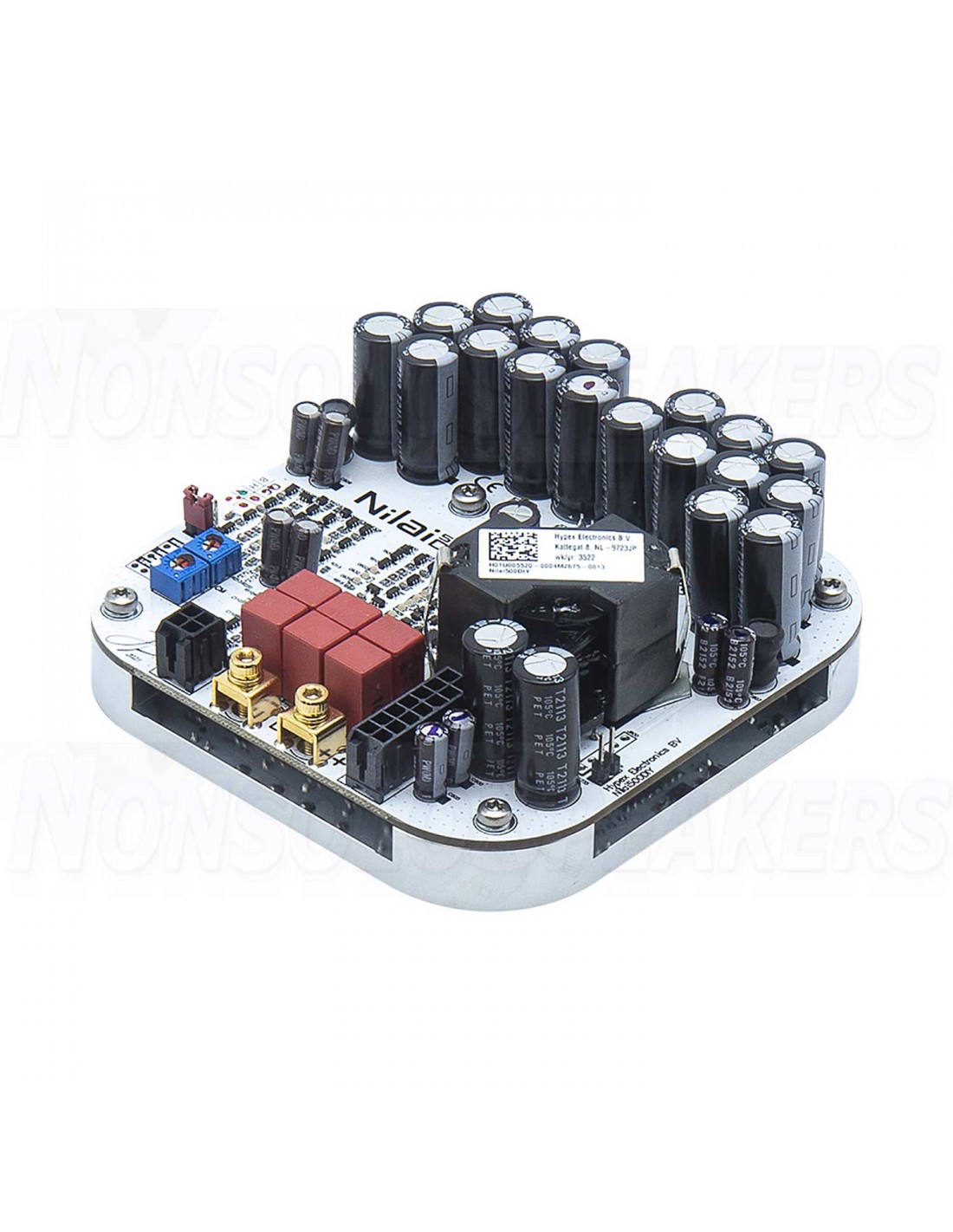

2 x Nilai500DIY amplifier modules
Inputboard and frontboard
All needed mounting materials
TX-10 and TX-20 Torx key
1.5mm and 2.5mm Allen key
IEC C13 power cable (UK/EU/US) including fuse
Assembly instruction manual
